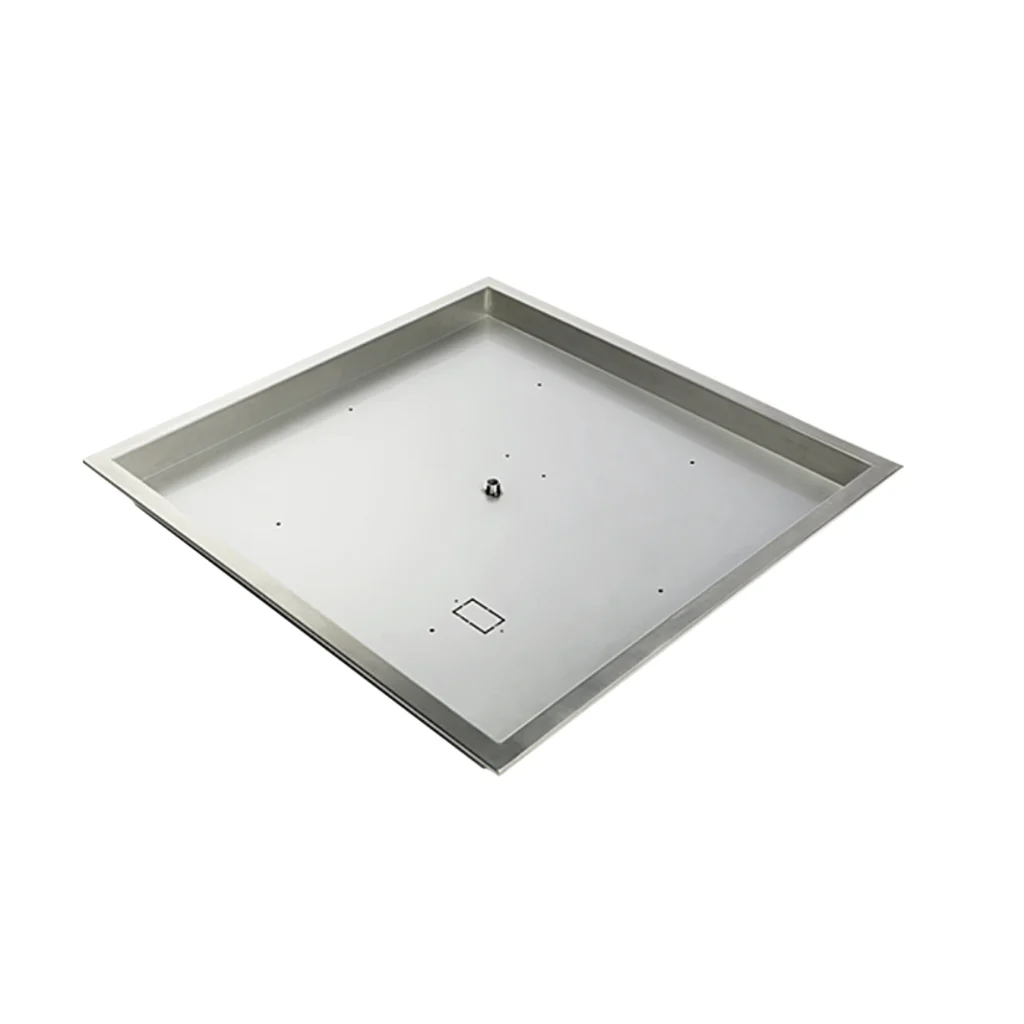

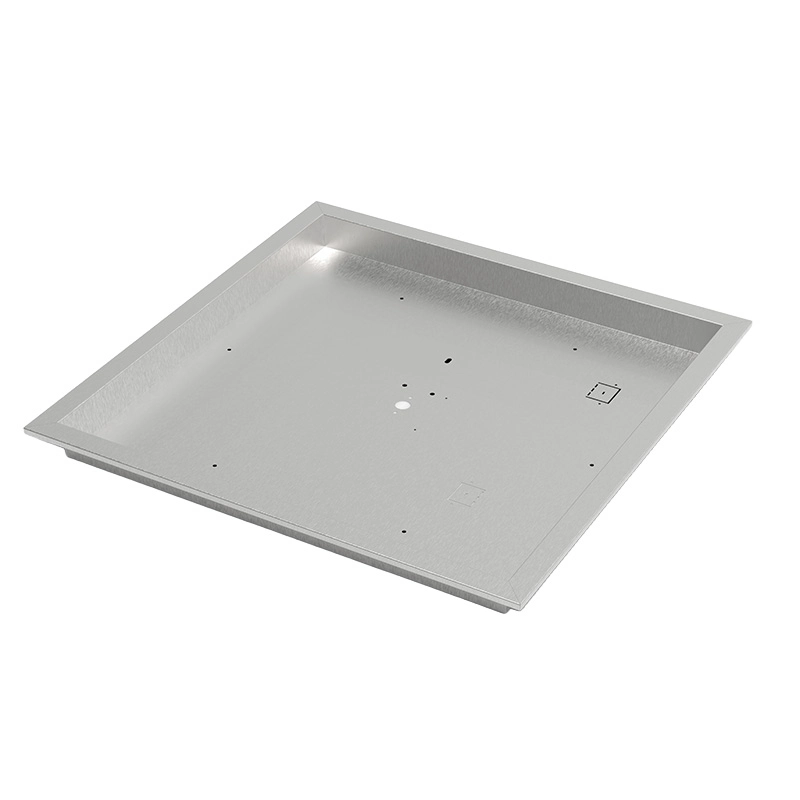

HPC Square Drop-In Pan

The Square Drop-In Pan by HPC Fire is designed for straightforward installation in square fire features. Once dropped into the opening, the pan is supported by the integrated lip, which rests on the fire feature’s top surface. The stainless steel lip remains visible, neatly framing the burn area while also allowing for easy removal during maintenance.

This square drop-in configuration is available in five sizes.

For a broader overview of available styles and configurations, view our full range of fire pit pans and trays.

Pan Features

Built from durable .304 18-gauge stainless steel, this pan provides a long-lasting and reliable foundation for your burner system. Key features include:

• The Pans are 2.5 inches deep and have a 1.5-inch lip on all sides.
• Pre-cut knockouts for optional ignition system installation
• Integrated weep holes to assist with drainage

Design Update

Previously, pans were manufactured with welded gas hubs for burner connection. All pans now require a compatible Hub Plate.

Compatible Hub Plates

Hub plates are not included (linked at the bottom of the page) and must be selected based on the burner gas inlet size. Two options are available:

• 1/2″ gas inlet – Standard capacity
• 3/4″ gas inlet – High capacity

When sizing your burner, allow a minimum 2-inch clearance between the burner and the pan sidewall. This helps ensure proper flame performance, safe operation, and reduces the risk of overheating or structural damage.

Available Sizes

The size of the pan refers to the inside dimensions, excluding the lip.

• 18″ x 18″
• 24″ x 24″
• 30″ x 30″
• 36″ x 36″
• 42″ x 42″
