Rectangular Flat Pan with Stainless Steel H Bullet Burner by The Outdoor Plus

Rectangular Flat Pan with Stainless Steel H Bullet Burner

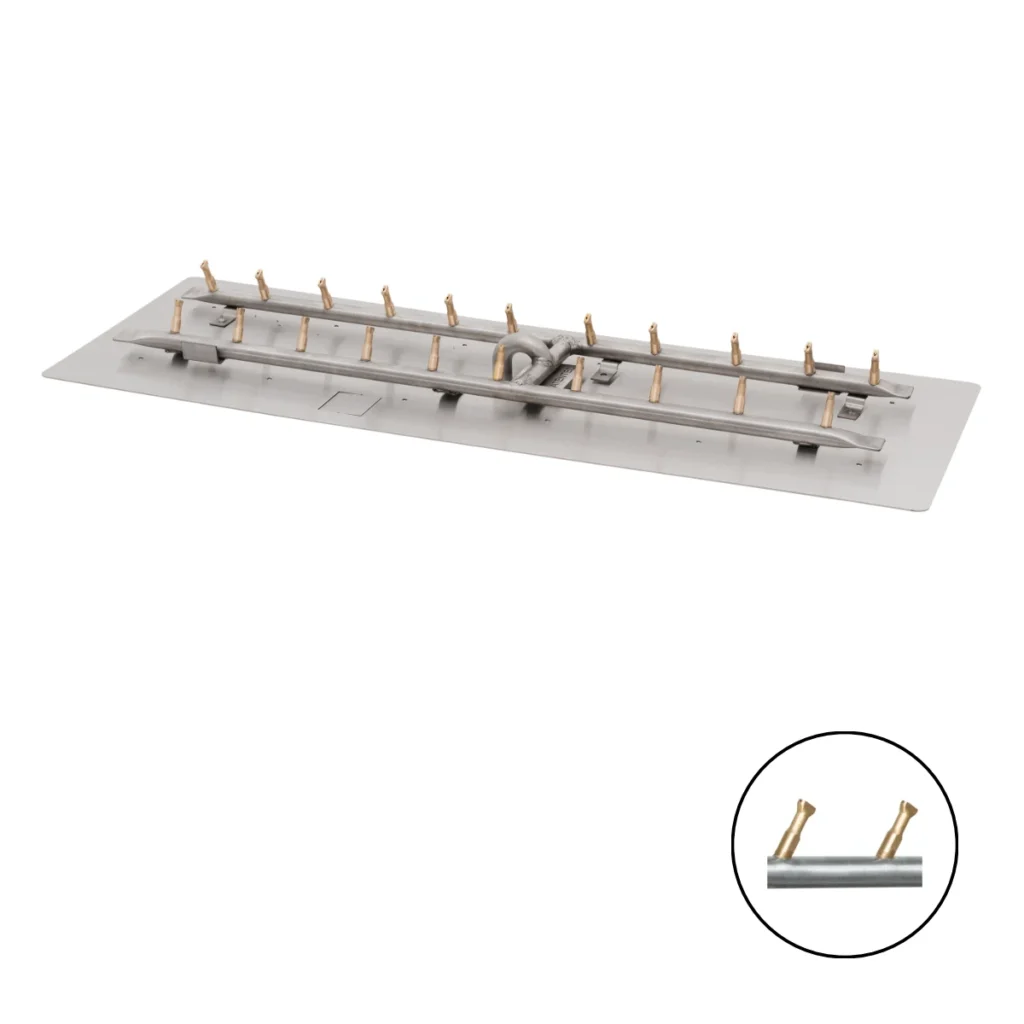

This Pan & Burner by The Outdoor Plus combines the Stainless Steel Bullet H-Burner with the Aqua Guard design, and an aluminum Rectangular Flat Pan.

The Patented Stainless Steel Bullet Burners force the gas out of the jets, producing a flame twice the height of an equivalent standard burner. Astonishingly, this technology uses less gas to achieve the same size flame as a traditional burner. Alternatively, you can turn up the gas for a more impressive, taller flame. Bullet Technology eliminates the need for an LP air mixer when used with propane.

Rectangular Flat Pan with Stainless Steel H Bullet Burner Specifications

The Flat Pan is made from Aluminum with an H-burner manufactured from 304 Stainless Steel.

The pan sizes range from 24″ to 96″ long with a constant width of 12″. The length of the burner increases as the fire pit pans get longer, however, the burner is always 6″ wide for all size options.

The H-burners of the 72″, 84″, and 96″ length pans have an additional crossbar(H) with a gas inlet for proper gas distribution and require a manifold.

The clearance needed below the pans is 10″; however, this increases to 15″ for the larger sizes that require a manifold.

Details:

• Size 24″ x 12″ with 18″ x 6″ Burner rated at 85,000 BTUs – 1/2″ Gas Inlet
• Size 36″ x 12″ with 24″ x 6″ Burner rated at 110,000 BTUs – 1/2″ Gas Inlet
• Size 48″ x 12″ with 36″ x 6″ Burner rated at 160,000 BTUs – 1/2″ Gas Inlet
• Size 60″ x 12″ with 48″ x 6″ Burner rated at 205,000 BTUs – 1/2″ Gas Inlet
• Size 72″ x 12″ with 60″ x 6″ Burner rated at 255,000 BTUs (Manifold) – 3/4″ Gas Inlets
• Size 84″ x 12″ with 72″ x 6″ Burner rated at 300,000 BTUs (Manifold) – 3/4″ Gas Inlets
• Size 96″ x 12″ with 84″ x 6″ Burner rated at 350,000 BTUs (Manifold) – 3/4″ Gas Inlets

Warranty:

• Burner: Lifetime Warranty.
• Aluminum Pan: Residential 5-Years, Commercial 1-Year

Flat Pan Installation

Flat Pans require a built-in support structure, which typically takes the form of a collar around the inner parameter of the enclosure, ‘Z’ brackets, or a built-in shelf or recess.
