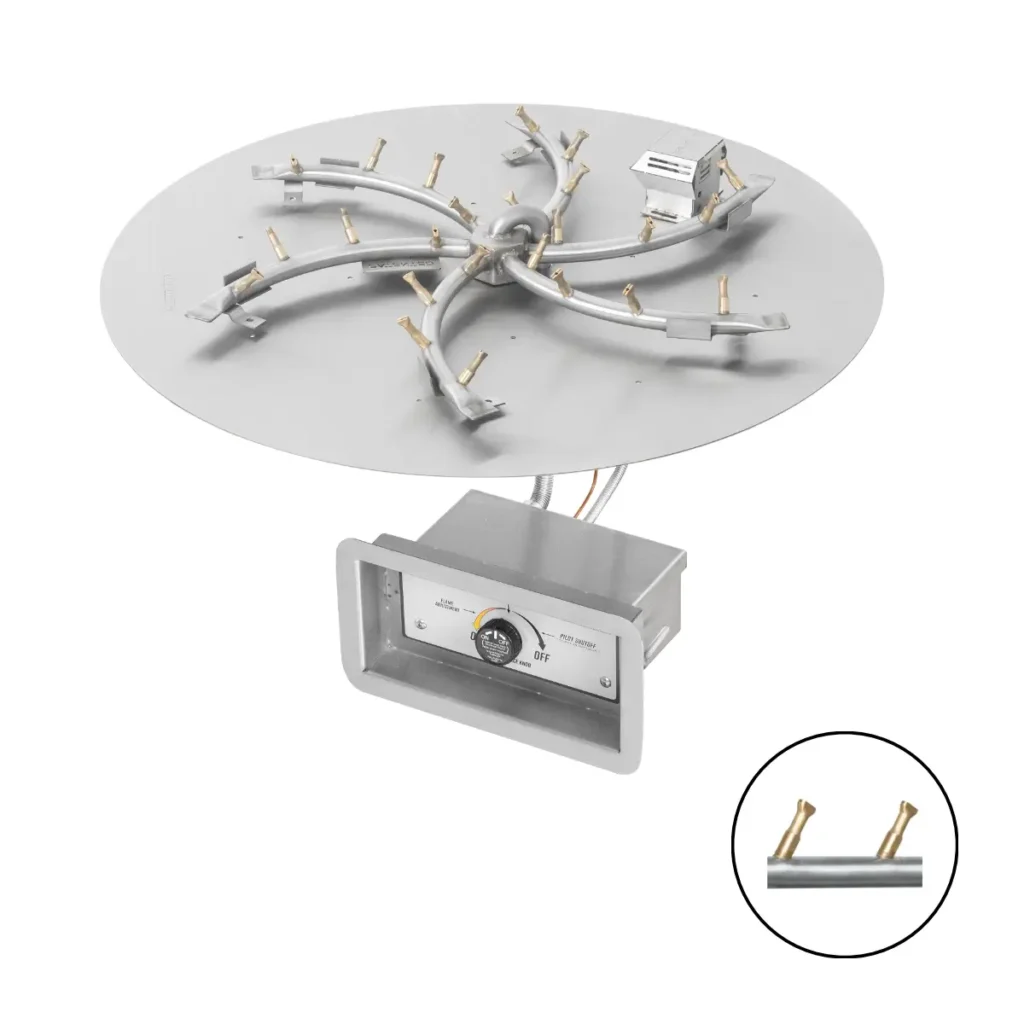

Match Lit Flame Sensing Round Flat Fire Pit Kit with Triple S Bullet Burner

Match Lit Flame Sensing Round Flat Fire Pit Kit with Triple S Bullet Burner

The Outdoor Plus Match-Lit Flame-Sensing Kits feature a manual ignition process using a lit match or taper, providing both simplicity and reliability. Additionally, they include a flame-sensing safety feature that continuously monitors the flame. If the flame is extinguished, the gas flow to the burner is automatically shut off, ensuring safe operation.

Features

• Match Lit Ignition
• Flame-sensing safety pilot & thermocouple.
• Gas Valve Control Box with Control Panel
• Patented Bullet Burner® technology
• Aqua Guard Technology

Stainless Steel vs All-Brass

While the all-brass Bullet Burner is available, the stainless steel version is a more cost-effective gas ring while retaining the crucial patented brass nozzles. The design is more accessible without sacrificing performance.

Options

Select Size

There are three sizes available: An 18″ Pan with 8″ Burner, an 18″ Pan with 12″ Burner, and a  24″ Pan with 18″ Burner.

The Spark Ignition with Flame Sensing version offers a 30″ Pan with a 24″ Burner. Use the link provided to view the listing.

Select Gas Type

The kits are available for use with natural gas or propane. Be sure to select the correct option.

Operation

Match Lit Flame Sensing Round Flat Fire Pit Kit with Triple S Bullet Burner Specifications:

Please note that Bullet Burners do not require an air mixer valve when connected to a propane gas supply.

The Flat Pan is made from Aluminum, and the Burner is manufactured from 304 Stainless Steel with Brass Bullet Tips.

Dimensions and BTU Ratings

• 18″ Pan with 8″ Bullet Burner – BTU rating 50,000 – 1/2″ Gas Inlet
• 18″ Pan with 12″ Bullet Burner – BTU rating 75,000 – 1/2″ Gas Inlet
• 24″ Pan with 18″ Bullet Burner – BTU rating 110,000 – 1/2″ Gas Inlet

Warranty:

• Aluminum Pans: Commercial – 1 Year | Residential – 5 Years
• Bullet Burners are supplied with a Lifetime Warranty
• Electronics, Gas Valves, & Pilot Assembly: Commercial – 6 Months | Residential – 1 Year

Match Lit Flame Sensing Round Flat Fire Pit Kit with Triple S Bullet Burner Documents:

• PDF – Match-Lit-with-Flame-Sense-Installation-and-Operation-Guide
• PDF – Round Flat Pan with Triple S Bullet Burner Drawings and Specifications
• PDF – Bullet Burner Manual
• PDF – Warranty
