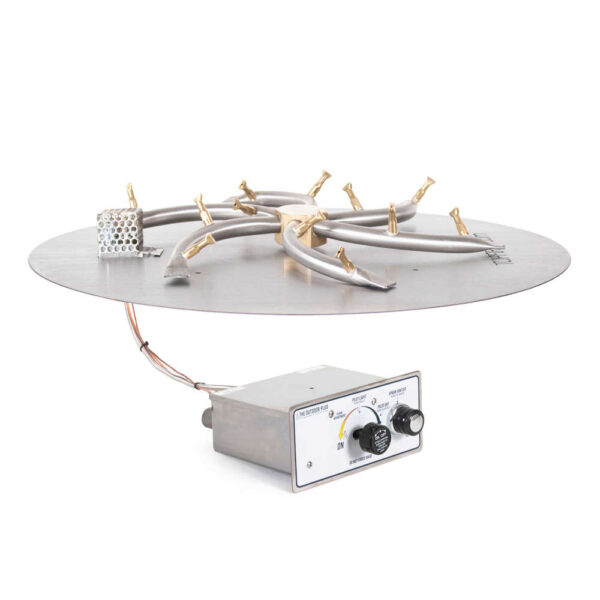

Round Flat Fire Pit Kit Triple S Bullet Burner and Flame Sense Spark Ignition
$1,762.00 – $2,322.00
Round Flat Fire Pit Kit Triple S Bullet Burner and Flame Sense Spark Ignition
These mid-range Spark Ignition Kits by The Outdoor Plus combine flame-sensing safety features with the convenience of push-button ignition.
Features:
- The patented Bullet Burner®
- Push-Button Spark Ignition built into the Valve Control Box/Panel
- Flame-sensing safety features. If a loss of flame is detected, the system will automatically shut off the gas supply.
Burner
What makes this style of burner stand out is its ability to deliver the same flame height as a standard fire pit burner while using less gas. If you’re aiming for a more dramatic display, simply increase the gas flow for a taller, more impressive flame.
The Bullet Orifice eliminates the need for a separate LP air mixer.
A Typical Standard Burner vs The Bullet
Options
Select Size
The Round Flat Fire Pit Kit Triple S Bullet Burner and Flame Sense Spark Ignition are available in four sizes: Two 18″ Kits with different size Burners, a 24″ and a 30″ Kit.
Select Gas Type
The kits are available for use with natural gas or propane, be sure to select the correct option, as the connections are specifically designed for the intended gas type.
Round Flat Fire Pit Kit Triple S Bullet Burner and Flame Sense Spark Ignition Specifications:
The Pan is made from Aluminum and the Burner with high-quality Stainless Steel. All sizes have a 1/2″ gas Inlet.
- 18″ Diameter Pan with an 8″ Burner – 50,000 BTUs
- 18″ Diameter Pan with a 12″ Burner – 75,000 BTUs
- 24″ Diameter Pan with an 18″ Burner – 110,000 BTUs
- 30″ Diameter Pan with a 24″ Burner – 145,000 BTUs
A minimum of 10″ of clearance is needed below the pan to accommodate the connections.
Warranty
Electronics, Gas Valves, & Pilot Assembly: Commercial – 6 Months; Residential – 1 Year
Pan: Commercial – 1 year; Residential – 3 years
Burner: Lifetime Warranty
Electrodes & Spark Igniters Not Warrantied (due to lifespan)
How does it Work?
Once installed is remarkably easy to operate using the On/Off knob and Spark Igniter button located on the Control Panel. The On/Off knob can also be used to adjust the flame height.
