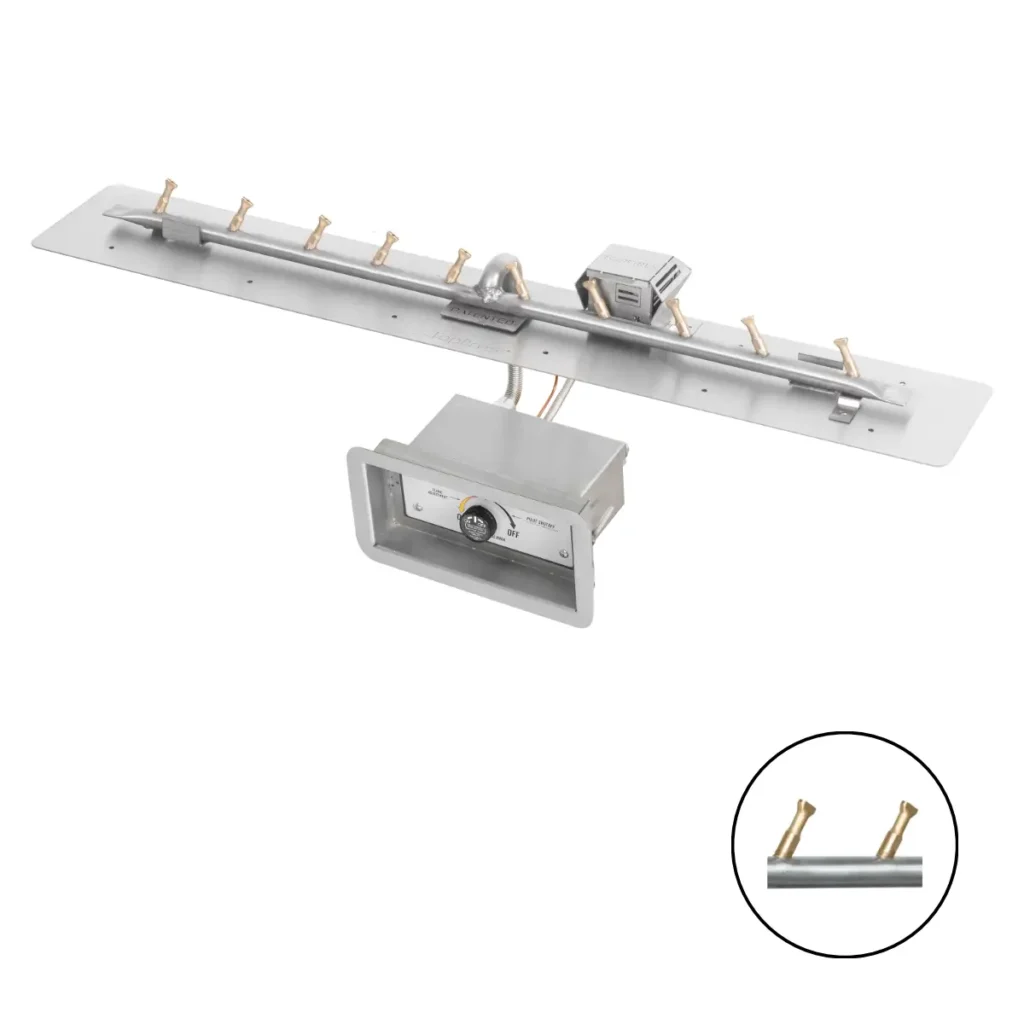

Match Lit Flame Sensing Linear Flat Fire Pit Kit with Bullet Burner
The Match-Lit Flame-Sensing Fire Pit range from The Outdoor Plus combines basic manual ignition with a key safety feature: an integrated flame-sensing system that automatically shuts off gas upon flame loss. This popular, family-friendly feature ensures peace of mind.
The Stainless Steel Linear Burner incorporates the new Aqua Guard, protecting against water ingress. While the all-brass version is still available, stainless steel is a more cost-effective option despite retaining the patented brass nozzles. In short, it’s more accessible without sacrificing performance!
The Gas Valve box is fitted within a recessed panel with a face plate, facilitating installation and delivering a polished, professional finish.
Features
- Match Lit Ignition
- Flame-Sensing Technology – Pilot Flame and Thermocouple
- Protective Gas Valve Box with accessible Control Panel
- Adjustable Flame Height via the Control Panel
- Patented Bullet Burner® Technology
- Patented Aqua Guard Technology
- Lifetime Warranty on the Burner
- LC Certified
Options
Select Size
Five sizes are available: a 24″ x 8″, a 36″ x 8″, a 48″ x 8″, a 60″ x 8″, and a 72″ x 8″.
Select Gas Type
The kits are available with options for use with natural gas or propane. Be sure to select the correct one for your setup; they are not interchangeable.
Match Lit Flame Sensing Linear Flat Fire Pit Kit with Bullet Burner Specifications
The Flat Pan is crafted from high-quality Aluminum and is fitted with a .304 Stainless Steel Linear Bullet Burner. The burner’s bullet tips remain Brass for enhanced performance.
All flat pans are 8″ wide; the length is determined by the size ordered.
Dimensions and BTU Ratings
- Size 24″ x 8″ with 18″ Burner rated at 40,000 BTUs – 1/2″ Gas Inlet
- Size 36″ x 8 with 24″ Burner rated at 50,000 BTUs – 1/2″ Gas Inlet
- Size 48″ x 8″ with 36″ Burner rated at 75,000 BTUs – 1/2″ Gas Inlet
- Size 60″ x 8″ with 48″ Burner rated at 100,000 BTUs – 1/2″ Gas Inlet
- Size 72″ x 8″ with 60″ Burner rated at 120,000 BTUs – 1/2″ Gas Inlet
Warranty
- Aluminum Pans: Commercial – 1 Year | Residential – 5 Years
- Bullet Burners are supplied with a Lifetime Warranty
- Electronics, Gas Valves, & Pilot Assembly: Commercial – 6 Months | Residential – 1 Year
Flat Pan Installation
Flat Pans require a built-in support structure, which typically takes the form of a collar around the inner parameter of the enclosure, ‘Z’ brackets, or a built-in shelf or recess.
Match Lit Flame Sensing Linear Flat Fire Pit Kit with Bullet Burner Operation
- To Light: Simultaneously press the valve control knob and use a lit taper or kitchen lighter to ignite the pilot flame. Keep the valve control knob open for another 20 seconds or so. Turn the control knob to the ON position to light the main burner.
- Flame Adjustment: The flame height can be adjusted using the valve control knob.
- Shut Down: Turn control knob to the “OFF” position.
