Linear Oil Rubbed Bronze Drop-In Fire Pit Pan with T Burner

American Fire Glass
Part #: OB-LCB-xx-config

$262.49$614.99

Free Shipping Small Logo
Within 48 Contiguious States

Linear Oil Rubbed Bronze Drop-In Fire Pit Pan with T Burner

With an artisanal approach, no two pans are ever the same, the depth of color and texture will vary from the images shown. Hand-sanding and finishing by skilled artisans add a unique touch to each piece, making them truly one-of-a-kind.

Easy installation, minimal fire glass

Linear drop-in burner pans are designed with a 1.25″ lip for easy installation. The lip or flange sits upon the top surface of the enclosure or structure with the burner secured and protected within the recessed area. The pans are 2″ deep keeping the quantity of fire glass needed down to a minimum. You get an amazing display with minimal fire glass!

Extremely durable and user-friendly

Made of stainless steel, these drop-in burner pans are extremely durable and designed to withstand extreme heat and harsh weather.

Specifications:

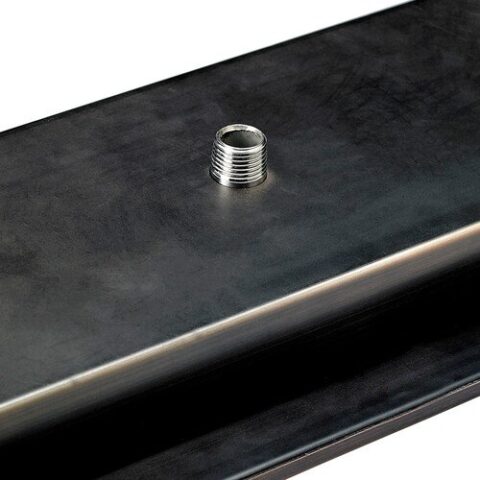

Each pan is fitted with a  1/2″ gas inlet for easy attachment to a propane or natural gas supply. Please note: For propane applications, an American Fireglass Propane Air Mixer is required

Dimensions:

These Linear trays are available in 5 sizes:

The Size of the Tray represents the internal dimensions and does not include the 1.25″ lip.

Pan size 30″ x 6″ – BTU Rating 60,000  –  Cut-Out Size 31″ x 7″  –  Fire Glass Capacity 20 lbs

Pan size 36″ x 6″ – BTU Rating 75,000  –  Cut-Out Size 37″ x 7″  –  Fire Glass Capacity 35 lbs

Pan size 48″ x 6″ – BTU Rating 120,000  –  Cut-Out Size 49″ x 7″  –  Fire Glass Capacity 40 lbs

Pan size 60″ x 6″ – BTU Rating 130,000  –  Cut-Out Size 61″ x 7″  –  Fire Glass Capacity 50 lbs

Pan size 72″ x 6″ – BTU Rating 175,000  –  Cut-Out Size 73″ x 7″  –  Fire Glass Capacity 60 lbs

Note: Fire Glass is not included

Features:

  • Pan Depth: 2″ Deep
  • Lip: 1.25″
  • Material: Hand-crafted with high-quality stainless steel
  • Finish: Hand finished Oil Rubbed Bronze
  • Burner: Holes in the burner are drilled and not punched (punched holes can cause a loud whistle)
  • Gas inlet: Built-in 1/2″ gas inlet on the bottom of burner for easy installation
  • Use in: Outdoor vented natural or propane gas burning fire feature ONLY

Warranty

Qualifies for a lifetime Warranty

Related Products

  • This component is also available as part of the American Fireglass range of Fire Pit Kits which include gas connections and ignition systems.
  • American Fireglass also manufactures Oil Rubbed Bronze Fire Pit Lids and compatible Glass Wind Guards.
