HPC Push Button Flame Sense Round Flat Insert Torpedo Penta Burner

This is HPC’s mid-range system, it sits between Match Lit and Electronic Ignition kits:

  • It incorporates safety features and a convenient ignition system. In fact the Flame Sensing feature provides the same level of safety as the Electronic Ignition Systems by constantly monitoring the fire pit’s flame.
  • It utilizes safety pilot flame control so if a loss of flame is detected, the system will turn off the gas supply preventing a potentially hazardous build-up or pooling of gas.
  • The Push Button Spark Ignition system ignites the fire pit and the valve control knob regulates the flame.
  • The ignition system is battery operated, so no AC power is required.
  • And then there’s the Torpedo Penta Burner featuring a nozzle that is precision-engineered and according to HPC develops a bigger, warmer flame without excessive gas consumption.



What are the Options when ordering

This kit comes in a range of sizes and gas options to ensure that you end up with the ideal fire pit kit for your requirements.

Select Your size
There are four sizes available
Select Your Gas
The kits are available for use with natural gas, propane or small tank propane, be sure to select the correct option.



How does it Work?

Once installed is remarkably easy to use.

  • Lighting: To light your fire pit, you simultaneously press the valve control knob, which supplies gas to the pilot light and the ignition button to create a spark. Once the pilot has lit, you can release the spark button but keep the valve control knob open for another 20 seconds or so. Then turn the valve control knob counterclockwise to light the fire pit Torpedo Penta Burner.
  • Flame Adjustment: The flame height adjusts via the valve control knob. Counterclockwise increase flame height and clockwise will reduce it.
  • Turning Off: Close down the fire pit by turning the valve control button clockwise and depress it slightly at the off position.
  • Flame Sensing: The system will turn off the gas if flame is lost.

HPC Push Button Flame Sense Round Flat Insert Torpedo Penta Burner

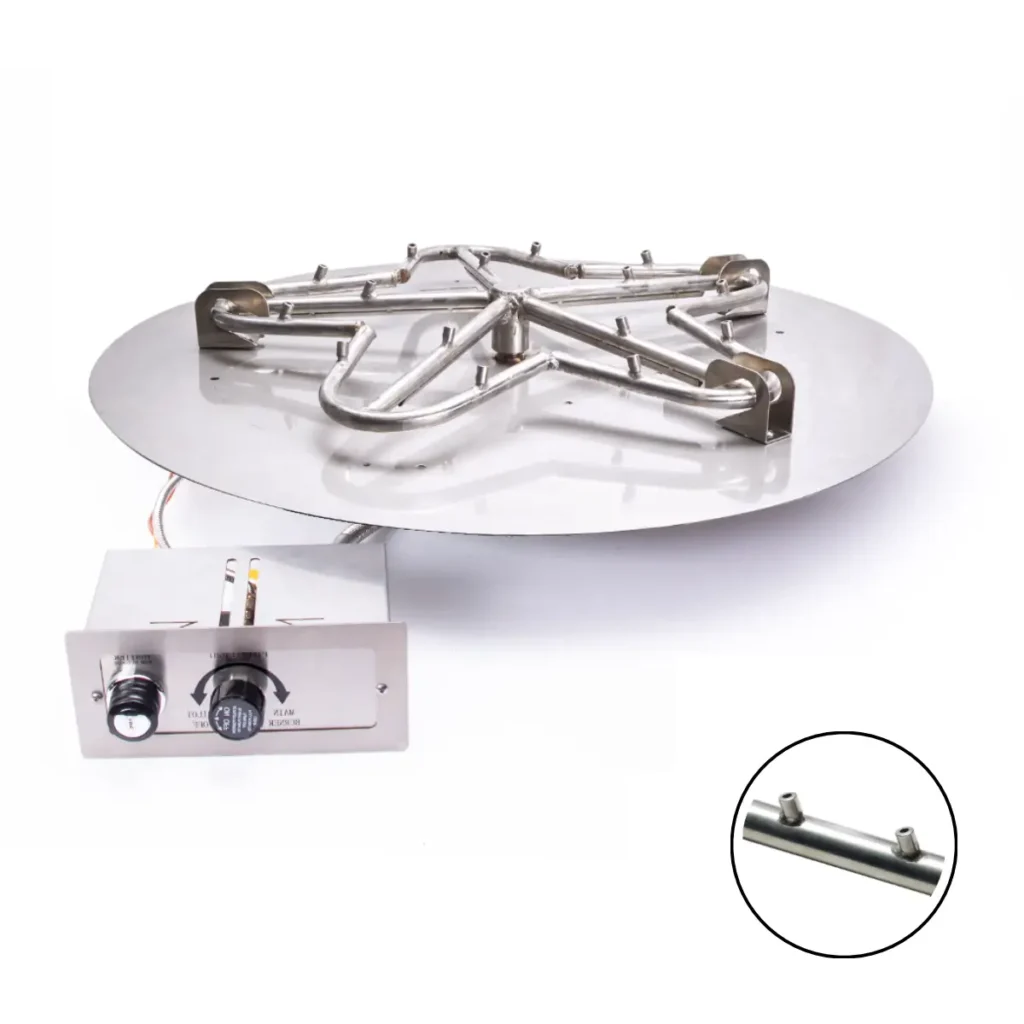

The HPC Push Button Flame Sense Round Flat Insert Torpedo Penta Burner Components

This unit comes fully assembled and ready to install with Control components protected within the valve box. These Fire Pit kits comprise of a Stainless Steel Round Flat Insert, Torpedo Penta Burner, FPPK Control Box and flex line hose.

HPC Round Flat Inserts are a little more economical than the bowl style pan and are used in fire pit structures with a built-in support structure to hold the insert in place.  Support for the flat pan, typically, takes the form of a collar around the inner parameter of the enclosure, ‘Z’ brackets, or a built-in shelf or recess.

Any type of media can be used with a flat pan including glass, but the gap between the edge of the pan and the opening must be within a 1/8” to keep the glass from falling below the pan, so the larger the pieces of media the better for a flat pan. HPC flat pans are cut ¼” smaller than the listed size. For example, the 36” flat pans measure 35.75″ in diameter. Each flat pan is cut out to size from a sheet of 18 guage .304 stainless steel and has  ¼” weep holes for drainage.



The new Torpedo Penta Burner features a nozzle that is precision-engineered and according to HPC develops a bigger, warmer flame without excessive gas consumption. For more detailed information regarding the exciting new range of Torpedo Burners, please refer to the following page https://themagicoffire.com/torpedo-burners/ or watch the video below..





The HPC Push Button Flame Sense Round Flat Insert Torpedo Penta Burner Specifications

[wptb id=45003]



Don’t Need A Torpedo Burner?

These units are also available with HPCs traditional Penta burner, The HPC Push Button Flame Sense Round Flat Insert Penta Burner.



Features:

HPC Fire incorporates several features into its designs with the objective in mind to ensure their products function safely, correctly, and have a long lifespan. Here are few examples:

  • Water infiltration into the burner and then running back through the gas lines is a significant issue. Both HPC Standard Burners and Torpedo Burners deal with this in several ways. Each of the five-burner lobes has weep holes allowing any water that got in to drain out of the burner before it flows back into the gas lines. The center hub of the burner is raised and sealed to prevent water from leaking into the burner.
  • Spiders, yes spiders! Spiders are attracted to the smell of Propane and build nests in and around Propane gas fittings, often creating a blockage. As a result, on all CSA Certified Kits, HPC supply a mesh spider guard to prevent the spiders from building their nests and creating a blockage.



Key features:

  • Kits supplied fully assembled and ready to install
  • Control Box Installation Sleeve now included
  • Easy and versatile fitting due to the flex line configuration
  • Push Button Ignition and adjustable flame height
  • Flame Sensing Safety System – gas turned off if flame extinguished
  • Battery Operated no AC power supply required
  • Fitted with Torpedo Penta Burner
  • Natural Gas version and bulk tank and small tank propane versions.
  • Fitted with Torpedo Penta Burner
  • Propane options for either small tank usage or large bulk tanks – be sure to select the correct option
  • Made from #304, 18 gauge Stainless Steel



Certification:



Warranty:

  • Stainless Steel Outdoor Burners -Lifetime Warranty
  • Stainless Steel Pan, Valve Box – Limited Warranty – Commercial 1 year – Residential 5 years
  • Electronics, Gas Valve -Limited Warranty – Commercial 1 year – Residential 3 years
  • Pilot Assembly -Limited Warranty – Commercial 1 year – Residential 2 year



Recommendations, Optional Extras and Links to the products on The Magic Of Fire

Fire pits must have a gas shutoff to allow for emergency shut off and maintenance. If you are also looking for a timer then there is an option that includes both of these features. The E STOP Gas Timer is one of the safest gas timers in the industry and its is a unique all mechanical design that requires no power supply so it is very easy to install. Available in either a 1-hour Countdown version or a 2 1/2 hour Countdown.

HPC Push Button Flame Sense Downloads

HPC Push Button Flame Sense Round Flat Insert Torpedo Penta Burner Instructions.Download
HPC Push Button Flame Sense Round Flat Insert Torpedo Penta Burner Drawing Download
HPC Flame Control System Manual    Download
HPC Round Flat Insert Drawing.   Download
HPC Valve Box FPPK Drawing.   Download
