HPC Sierra Copper Fire and Water Bowl 36 x 36 Inches

HPC Sierra Copper Fire and Water Bowl

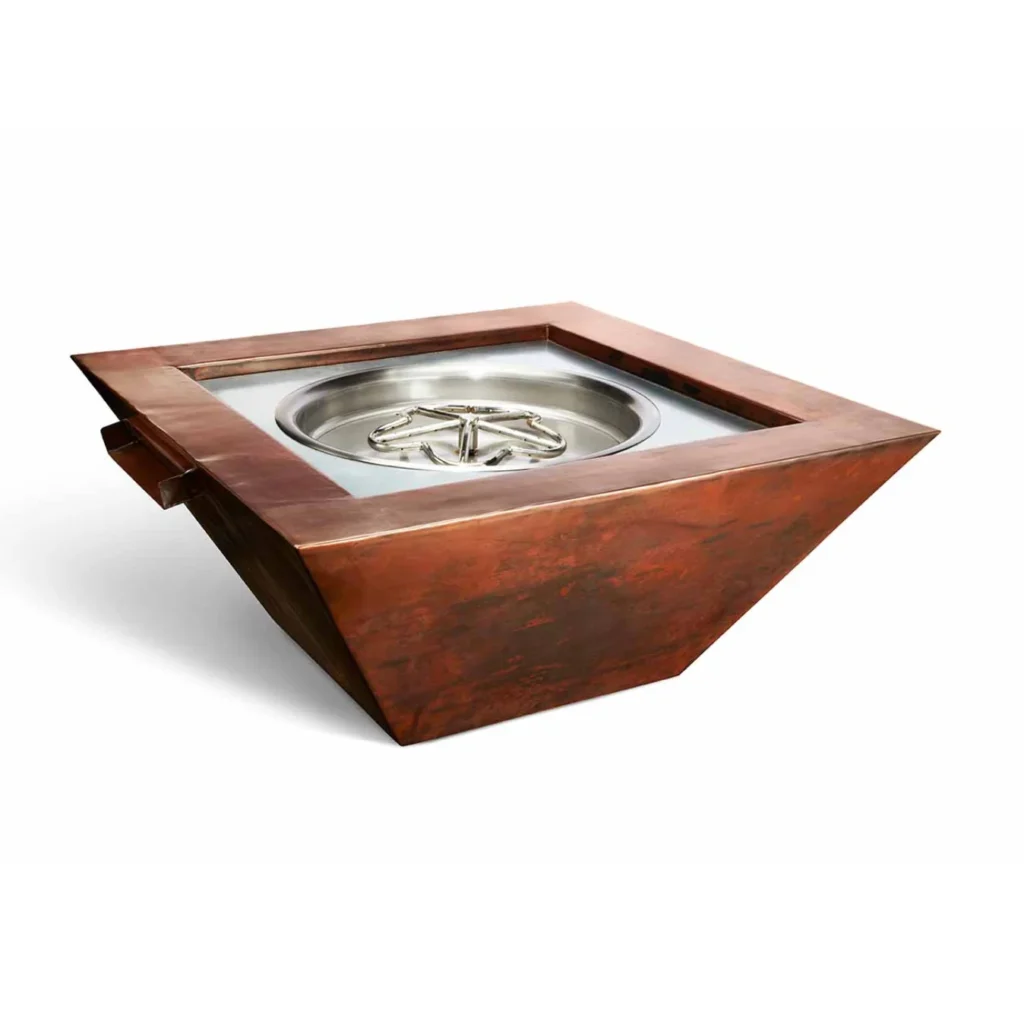

Transform your outdoor space with the striking smooth copper fire & water bowl featuring an elegant oil-rubbed finish. This captivating addition promises to make a significant visual impact on any backyard or patio design.

This CSA-certified Sierra Fire & Water model is the sister to the Sierra Copper Fire Bowl (without the water feature).

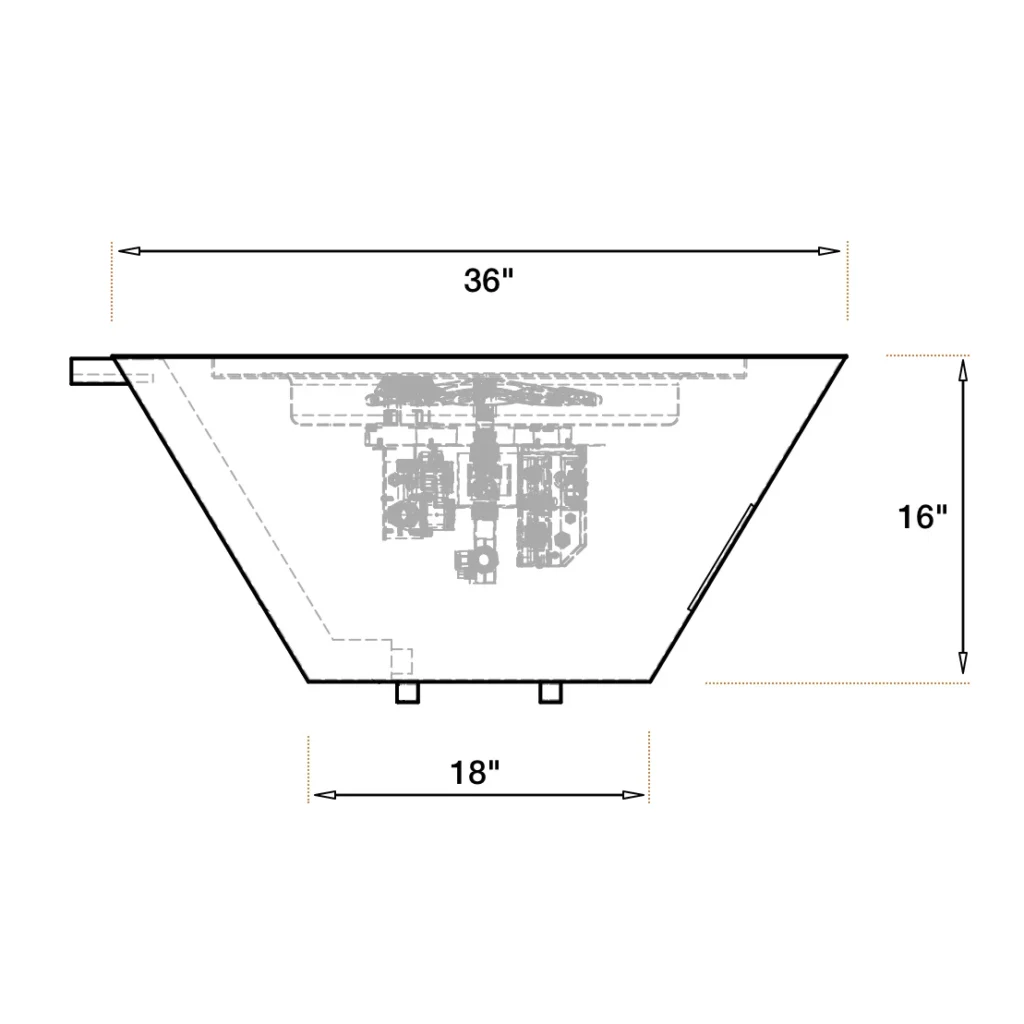

The Square Bowl is 36″ x 36″ across the top of the bowl tapering down to 18″ x 18″ at its base. It stands 16″ high.

Spacers are provided to raise the bowl by at least 3/4″, facilitating proper ventilation through the 8″ diameter hole in the base. This design ensures effective cooling of the equipment, maintaining optimal performance.

The Sierra Fire Bowl features a convenient door, providing easy access to the gas valve for lighting the burner and maintenance.

Options

Gas

Propane or Natural Gas. Please note that Electronic Ignition Systems are not for use with small LP Tanks and must utilize permanent fixed piping for fuel supply

Burner

There is a choice of either the Standard Burner or the Torpedo version. For more information on the difference between the two please see the Torpedo Burner page.

Ignition

Match-Lit

Match Lit Ignition is by far the simplest way to light a fire feature.

A 1/4 Turn Gas Valve is located behind the access door of the Match Lit Sierra Copper Fire & Water Bowl. Open the gas valve and use a lit taper to light the burner.

An easily accessible gas shutoff must also be installed outside of the fire feature for maintenance and to ensure rapid emergency shutdowns.

Electronic Ignition On/Off

The CSA Certified Electronic Ignition (EI) System, provides the highest degree of safety and control of your gas fire pit.

A Safety Pilot flame ensures the main burner gas will flow, keeping the fire pit alight. However, if the flame is blown out, the gas supply shuts down and the system will automatically commence the Start sequence to relight your fire pit. Only if this fails several times does the system shut down completely. All this without any assistance or input from the fire pit user.

To operate the fire feature it should be wired to a conveniently located on/off switch or timer. Alternatively, it can be integrated into a compatible smart home system or controlled through a hand-held remote control (add-on).

A gas shutoff must be installed to ensure quick access for emergency shutdowns and maintenance, it should not be utilized to adjust flame height.

The On/Off Electronic Ignition HPC Fire Smooth Sierra Copper Fire and Water Bowl is available in the 12VAC or 24VAC configuration and will require a corresponding Power Supply. HPC recommends using the HPC/SEBCO 100W Power Supply.

HPC Sierra Copper Fire and Water Bowl Specifications:

• BTU Rating/hr: 50,000
• Water Scupper: 10″ Wide with a 1″ NHT Water Inlet
• Finish: Smooth Copper
• Electronic Ignition Model: 12VAC or 24VAC (Requires the HPC/SEBCO 100W Power Supply)

Dimensions:

• 36” x 36” across the top
• 18” x 18” at the base
• 16” tall
• Burner: 12” Penta or Torpedo Penta
• Insert: 19” Diameter Drop-In Bowl

Water Flow

• Water flow is estimated to be 700~900 GPH.
• It is recommended to put a valve after the pump to trim water flow if desired.
• Consult your pool or pond professional for line and pump sizing.

Certification

CSA Certified

Warranty

• Burners: Lifetime Warranty
• Electronics & Gas Valve: Commercial – 1 Year; Residential – 3 Years
• Pilot Assembly: Commercial – 1 Year; Residential – 2 Years
• Stainless Steel Pan & Valve Box: Commercial – 1 Year; Residential – 5 Years

Related Products

HPC also manufactures the Sierra Copper Fire Bowl Cover

HPC Sierra Copper Fire and Water Bowl Downloads

Sierra Fire & Water Spec Sheet

Copper Fire & Water Bowl Installation & Operation Instructions

California Prop 65

WARNING: This product can expose you to Lead & Chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
