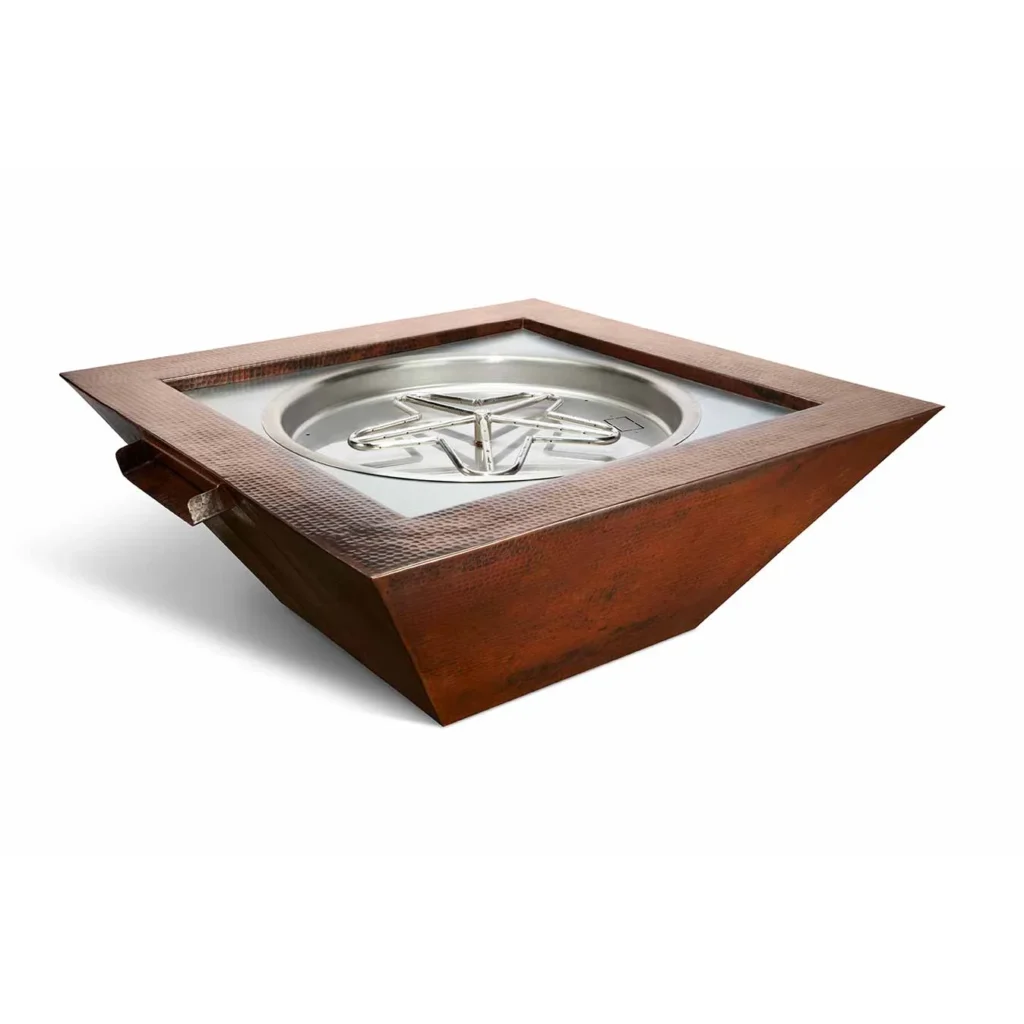

Hammered Copper Sedona Fire and Water Bowl
$6,398.38 – $9,091.03
Hammered Copper Sedona Fire and Water Bowl
Elevate your outdoor ambiance with this exquisite copper fire & water bowl, boasting an elegant oil-rubbed finish. The Sedona is a hand-hammered, square fire bowl that perfectly celebrates the timeless feel of copper, a stunning focal point for any backyard or patio design.
Copper’s allure lies in its natural patination which, over time, imparts an aged, weathered appearance transforming the once bright copper hue.
This CSA-certified Sedona Fire & Water model is the sister to the Sedona Copper Fire Bowl (without the water feature).

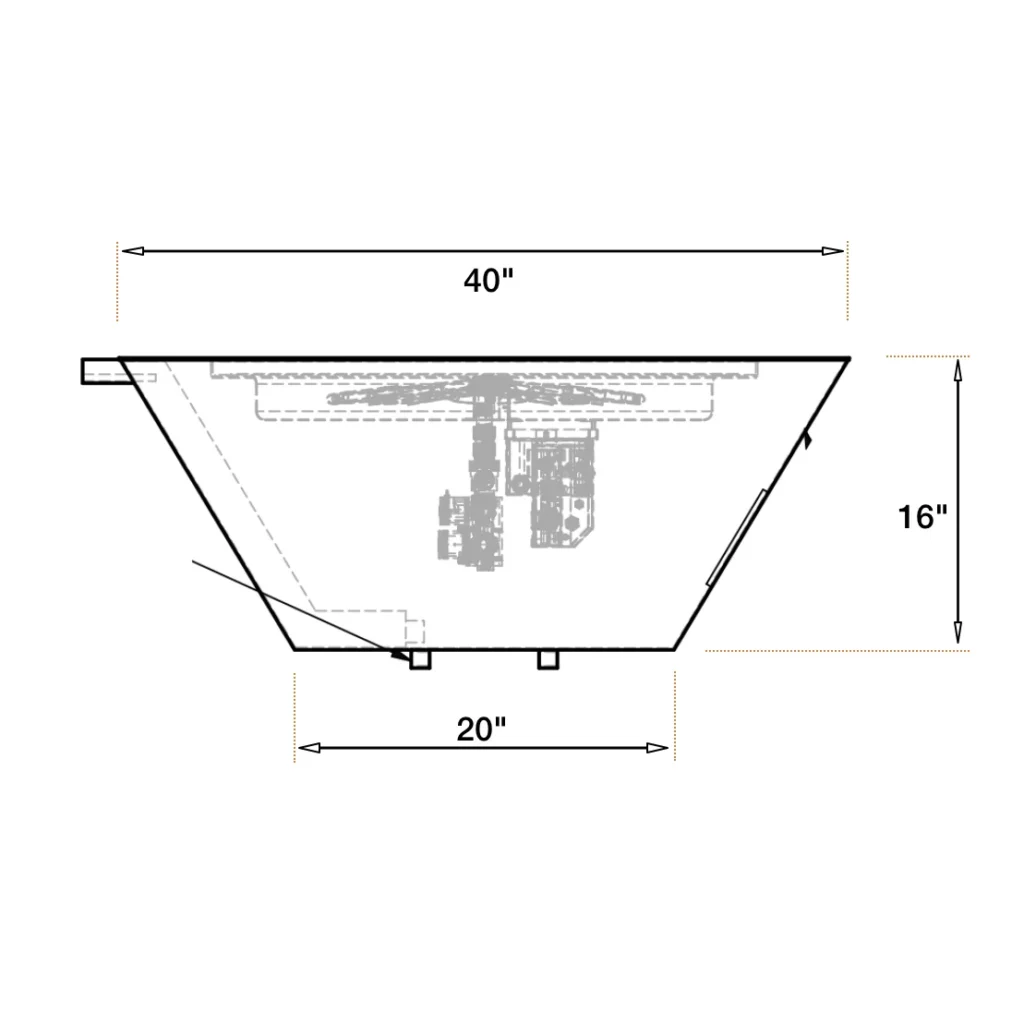

The Square Bowl is 40″ x 40″ across the top of the bowl tapering down to 20″ x 20″ at its base. It stands 16″ high.
Spacers are provided to raise the bowl by at least 3/4″, facilitating proper ventilation through the 8″ diameter hole in the base. This design ensures effective cooling of the equipment, maintaining optimal performance.
The design of the HPC Hammered Copper Sedona Fire and Water Bowl incorporates a door in the bowl’s side allowing access to the ignition system and the gas valve contained within.
Options
Gas
Propane or Natural Gas. Please note that Electronic Ignition Systems are not for use with small LP Tanks and must utilize permanent, fixed piping for fuel supply.
Burner
There is a choice of either the Standard Burner or the Torpedo version. For more information on the difference between the two please see the Torpedo Burner page.
Ignition

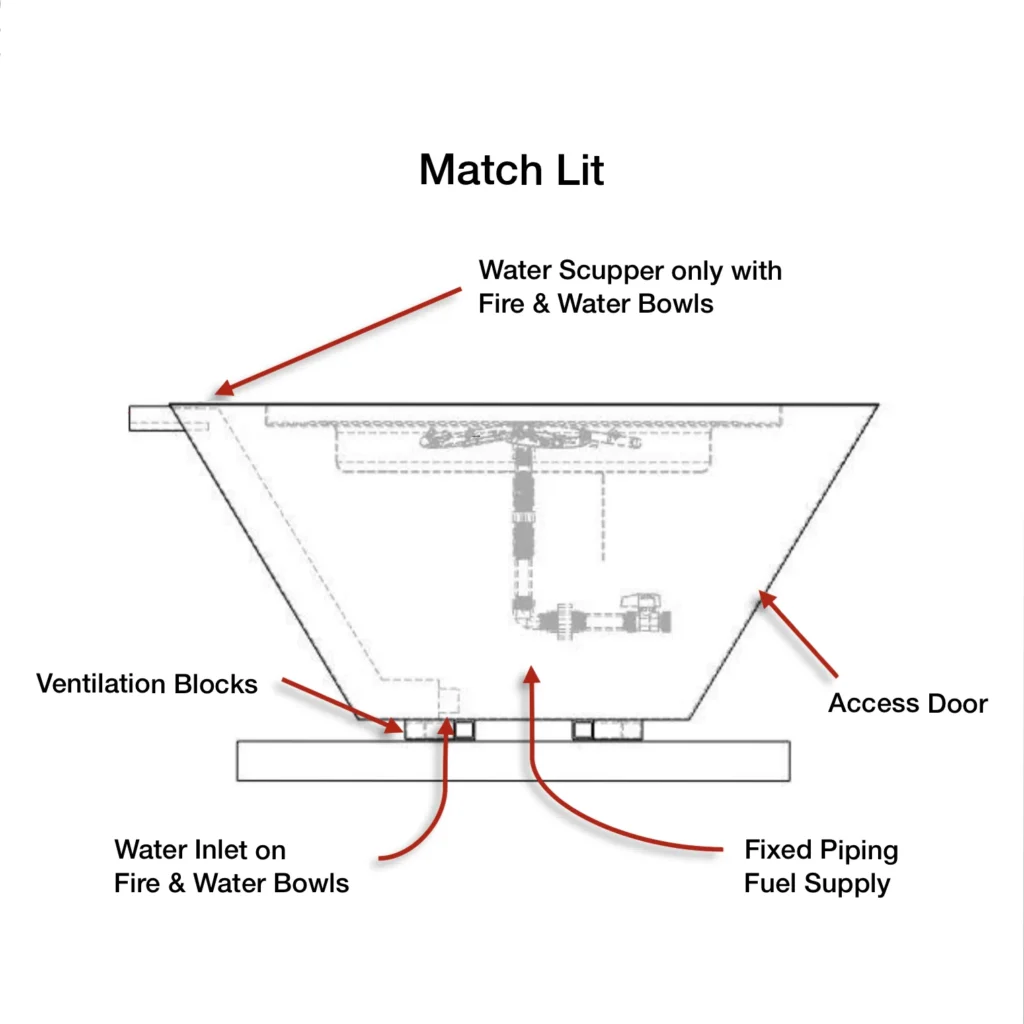

Match-Lit
Match Lit Ignition is by far the simplest way to light a fire feature.
A 1/4 Turn Gas Valve is located behind the access door of the Match Lit Sedona Copper Fire & Water Bowl. Open the gas valve and use a lit taper to light the burner.
An easily accessible gas shutoff must also be installed outside the fire feature for maintenance, and to ensure rapid emergency shutdowns.

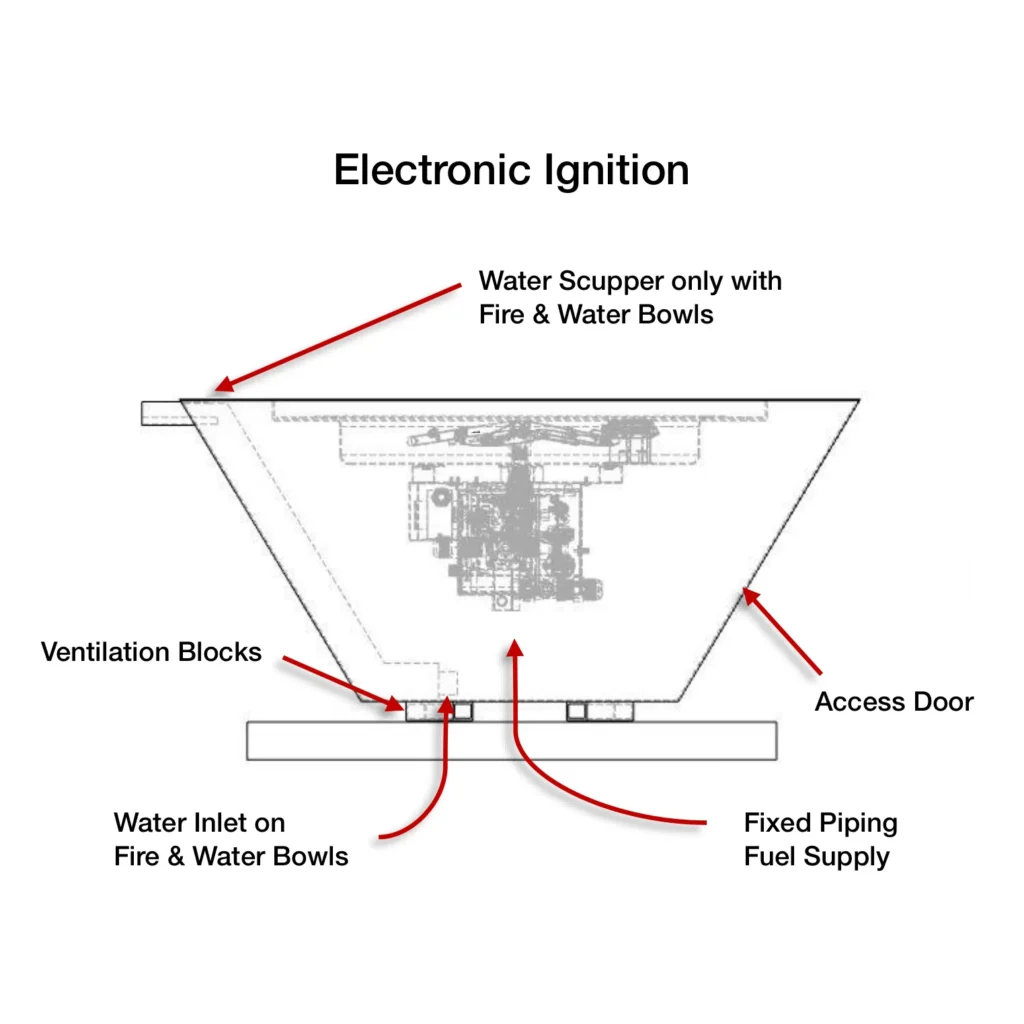

Electronic Ignition On/Off
The CSA Certified Electronic Ignition (EI) System, provides the highest degree of safety and control of your gas fire pit.
This system enables the user to turn on & off the fire pit via a wall switch, timer switch, or into a compatible smart home system (not included). Alternatively, it can be through a hand-held remote control (add-on).
While you and your family enjoy the fire pit, the Electronic Ignition System monitors the flames’ status. Should a flame loss occur, the system will turn off the gas flow, and automatically commence the ‘Start’ sequence to relight the burner.
A gas shutoff must be installed to ensure quick access for emergency shutdowns and maintenance, it should not be utilized to adjust flame height.
The Electronic Ignition Hammered Copper Sedona Fire and Water Bowl is available in the 12VAC or 24VAC configuration and will require a corresponding Power Supply. HPC recommends using the HPC/SEBCO 100W Power Supply.
Hammered Copper Sedona Fire and Water Bowl Specifications:
• 40″ x 40″ at the top
• 20″ x 20″ at the base
• 16″ high
• 18″ Penta burner mounted into a 25″ diameter bowl insert.
• 10″ Water Scupper
• Match-Lit rated at 65,000 BTUs
• Electronic Ignition rated at 100,000 BTUs
• CSA Certified
• Shipped ready for Natural Gas or Propane
• Suitable for both Commercial and Residential installations.
Water Flow
• Water flow is estimated to be 700~900 GPH.
• It is recommended to put a valve after the pump to trim water flow if desired.
• Consult your pool or pond professional for line and pump sizing.
Certification
CSA Certified
Warranty
- Burners: Lifetime Warranty
- Electronics & Gas Valve: Commercial – 1 Year; Residential – 3 Years
- Pilot Assembly: Commercial – 1 Year; Residential – 2 Years
- Stainless Steel Pan & Valve Box: Commercial – 1 Year; Residential – 5 Years
Related Products
HPC also manufactures the Sedona Copper Fire Bowl Cover
Hammered Copper Sedona Fire and Water Bowl Downloads
Sedona Fire & Water Spec Sheet
Copper Fire & Water Bowl Installation & Operation Instructions
California Prop 65
WARNING: This product can expose you to chemicals including LEAD AND LEAD COMPOUNDS, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/.
