HPC Electronic Ignition Square Flat Insert Penta Burner
This is from HPC’s top-of-the-range Electronic Ignition (EI) Series, providing a high degree of safety and control of your gas fire pit. Several features set it apart.
- The presence of the Safety Pilot flame ensures the main burner gas will flow, keeping the fire pit alight. However, if the flame is blown out, the gas supply shuts down preventing a potentially hazardous build-up or pooling of gas.
- The system will then automatically commence the Start sequence, relighting your fire pit. All this without any assistance or input by the fire pit user.
- The EI range has options that allow the fire pit to be operated and controlled by a wall switch, remote control, whole house system or even a bluetooth app (HIGH/LOW model only) on your phone!
What are the Options when ordering
There are a range of sizes and a variety of options to ensure that you end up with the ideal fire pit kit for your requirements.
Select Your size
The HPC Electronic Ignition Square Flat Insert Penta Burner has two models.
The On/Off version is available in five sizes. The Hi/Lo units are available in four sizes
Select Your Gas
The kits are available in either Natural Gas or Propane versions. Please note that the EI Series is not for use with small LP Tanks and must utilize permanent fixed piping for fuel supply.
Select Your Model
What is the difference between the two models?
On/Off – This model allows your fire pit to be switched On and Off by a wall switch, your whole house system or by Remote Control which in this case is an optional extra and only suitable for the 120 VAC models.
High/Low – Included with this model is a a Smart Remote which allows for the flame height to be set to either High or Low. The Low setting creates a 45% reduction in flame height. The remote also receives information from fire pit to advise user of fire pit status (flashing LED). Although this system cannot be for used with your whole house system it can be controlled via a Smart Device Bluetooth App. The built-in antenna enables a reliable connection to Apple and Android phones and allows for control of your fire pit from as far away as 20 feet. The free Bluetooth Smart App incorporates timer, troubleshooting codes, total operational hours, and internal temp monitoring.
Select Your Voltage
The EI range is available in 120VAC or 24VAC versions. 24VAC are typically used poolside or with other lower voltage requirements.
A Class II 24VAC, 4 amp, 100 W transformer must be used to power the fire pit and be able to be switched on and off from a remote location to allow for easy access or emergency. The Fire Pit will not perform properly if power supply rating is below 100W or the wire size is too small.
HPC highly recommends the HPC SEBCO 24vac Power Supply Transformer available in the Accessories and Components section of this website.
How does it Work?
Once installed is remarkably easy to use.
- Start-Up: Turn the Unit on using the wall switch, remote control or App depending on your model and set up. When the ON command is received, the system completes initial safety checks then starts the flow of pilot gas. After 5 seconds, the 24v Hot surface Igniter glows, igniting the pilot flame. When the system confirms the pilot flame is present, the main burner gas will flow to be ignited by the pilot flame.
- Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages, and other safety parameters. If flame loss does occur, the system will turn off all gas flow and then restart by automatically commencing the Start sequence.
- Turning off: This can be done via the wall switch, remote control, App or whole house system depending on your set up.
The HPC Electronic Ignition Square Flat Insert Penta Burner Components

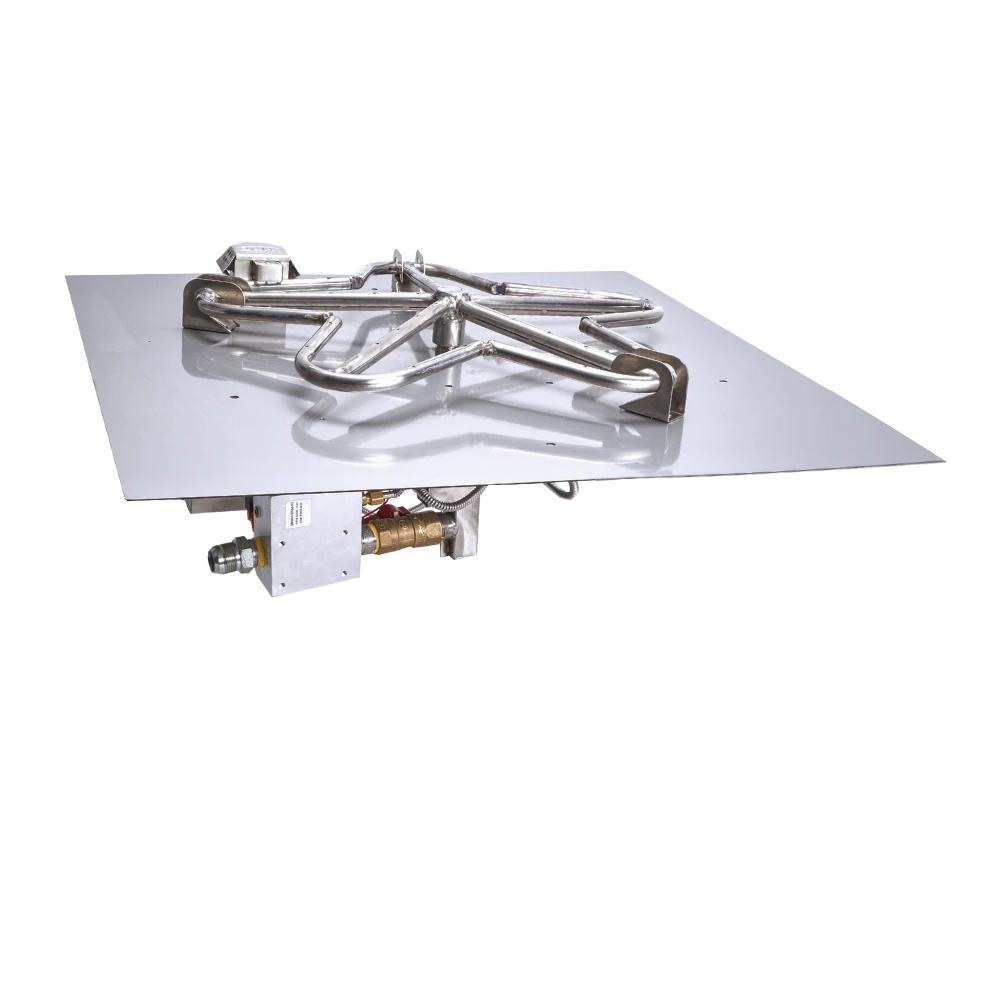

The HPC Electronic Ignition Square Flat Insert Penta Burner unit comes fully assembled and ready to install. These Fire Pit kits comprise of a Stainless Steel Square Flat Insert and Penta Burner with an EI (Electronic Ignition) system mounted to the underside protected within a stainless steel valve box.
HPC Square Flat Inserts are manufactured from 304-grade stainless steel and are used in fire pit structures with a built-in support structure to hold the insert in place. The flat pans are a little more economical than the bowl style pan, but they do not have a lip for easy installation. The installer must find a way to support the flat pan, typically, this takes the form of ‘Z’ brackets, or a built-in shelf or recess. Any type of media can be used with a flat pan including glass, but the gap between the edge of the pan and the opening must be within a 1/8” to keep the glass from falling below the pan, so the larger the pieces of media the better for a flat pan. HPC flat pans are cut ¼” smaller than the listed size. For example, the 36” flat pans measure 35-3/4”. Each flat pan is cut out to size from a sheet of 18 guage .304 stainless steel and has ¼” weep holes for drainage.
Penta Burners are made from #304, 18 gauge Stainless Steel.
The HPC Electronic Ignition Square Flat Insert Penta Burner Specifications
Also available is the HPC Electronic Ignition Square Flat Insert Torpedo Penta fitted with the spectacular new Torpedo Penta Burner, which features a nozzle that is precision-engineered and according to HPC develops a bigger, warmer flame without excessive gas consumption.
For more detailed information regarding the exciting new range of Torpedo Burners, please refer to the following page https://themagicoffire.com/sst-torpedo-burners-from-hpc-fire/
The HPC Electronic Ignition Square Flat Insert Penta Burner:
HPC Fire incorporates several features into its designs with the objective in mind to ensure their products function safely, correctly, and have a long lifespan. Here are few examples:
- Water infiltration into the burner and then running back through the gas lines is a significant issue. Both HPC Standard Burners and Torpedo Burners deal with this in several ways. Each of the five-burner lobes has weep holes allowing any water that got in to drain out of the burner before it flows back into the gas lines. The center hub of the burner is raised and sealed to prevent water from leaking into the burner.
- All HPCs Electronic Ignition models feature a ‘drip leg’ designed to divert water away from the electronics.
- The Electronic Ignition and Flame Sensing ranges feature a thermocouple sensor that will automatically turn off the gas supply should a strong wind blow out the flames. However, this would be rare because the pilot light is encased in a ‘blow out box’ that protects it from the wind, enabling the pilot to relight the flame.
- Spiders, yes spiders! Spiders are attracted to the smell of Propane and build nests in and around Propane gas fittings, often creating a blockage. As a result, on all CSA Certified Kits, HPC supply a mesh spider guard to prevent the spiders from building their nests and creating a blockage.
- Fully Assembled – ready to install.
- Start via wall switch or remote control;
- Internal temperature monitoring with overheat auto-shutoff.
- Auto re-light if the flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter.
- On/Off models: Use with optional wall switch, Remote Control, or your whole house system.
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
- 120vac: Standard outdoor grounded power cord- just plug into GFCI outlet.
- 24vac option: Typically used with lower voltage requirements.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Made from #304, 18 gauge Stainless Steel
- Stainless Steel Outdoor Burners – Lifetime Warranty
- Stainless Steel Pan, Valve Box – Limited Warranty – Commercial-1 year Residential-5 years
- Electronics, Gas Valve – Limited Warranty – Commercial-1 year Residential-3 years
- Pilot Assembly – Limited Warranty – Commercial-1 year Residential-2 years
Recommendations, Optional Extras and Links to the products on The Magic Of Fire
- HPC recommends installing a wall switch along with any of the remote controlled units as it creates layers of protection and security as when the switch is in the off position the device will not turn on. This will give our consumers peace of mind that if a child gets a hold of a remote or the frequency is synced with another device the unit will remain in the off position as long as the switch is off. A great option for this is the HPC Commercial Grade Emergency Stop
- The On/Off Remote Control which is an optional extra as stated above
- The HPC SEBCO 24vac Power Supply Transformer recommended by HPC for use with the 24VAC Option
- HPC offers several timers and even a hybrid Emergency Stop Button/Timer that allow owners to set a designated burn time and will automatically turn off the appliance once the time has expired.
HPC Electronic Ignition Square Flat Insert Penta Burner Downloads
HPC Electronic Ignition Square Flat Insert Penta Burner ON/OFF Instructions. Download
HPC Electronic Ignition Square Flat Insert Penta Burner HI/LO Instructions. Download
HPC 24 Volt Installation Diagram. Download
HPC Square Flat EI drawing Download
HPC Square Flat Pan Cut Sheet drawing. Download
