HPC Electronic Ignition Round Flat Insert Penta Burner

This is from HPC’s top-of-the-range Electronic Ignition (EI) Series, providing a high degree of safety and control of your gas fire pit. Several features set it apart.

  • The presence of the Safety Pilot flame ensures the main burner gas will flow, keeping the fire pit alight. However, if the flame is blown out, the gas supply shuts down preventing a potentially hazardous build-up or pooling of gas.
  • The system will then automatically commence the Start sequence, relighting your fire pit. All this without any assistance or input from the fire pit user.
  • The EI range has options that allow the fire pit to be operated and controlled by a wall switch, remote control, whole house system, or even a Bluetooth app ( Hi/Lo models only ) on your phone!


What are the Options when ordering

The HPC Electronic Ignition Round Flat Insert Penta Burner comes in a range of sizes and a variety of options to ensure that you end up with the ideal fire pit kit for your requirements.

Select Your Size
The HPC Electronic Ignition Round Flat Insert Penta Burner has two models.
The On/Off version is available in seven sizes. The Hi/Lo units are available in five sizes

Select Your Gas
The kits are available in either Natural Gas or Propane versions.  Please note that the EI Series is not for use with small LP Tanks and must utilize permanent fixed piping for fuel supply.

Select Your Model
What is the difference between the two models of HPC Electronic Ignition Round Flat Insert Penta Burner?
On/Off – This model allows your fire pit to be switched On and Off by a wall switch, your whole house system, or by Remote Control which in this case is an optional extra and only suitable for the 120 VAC models.

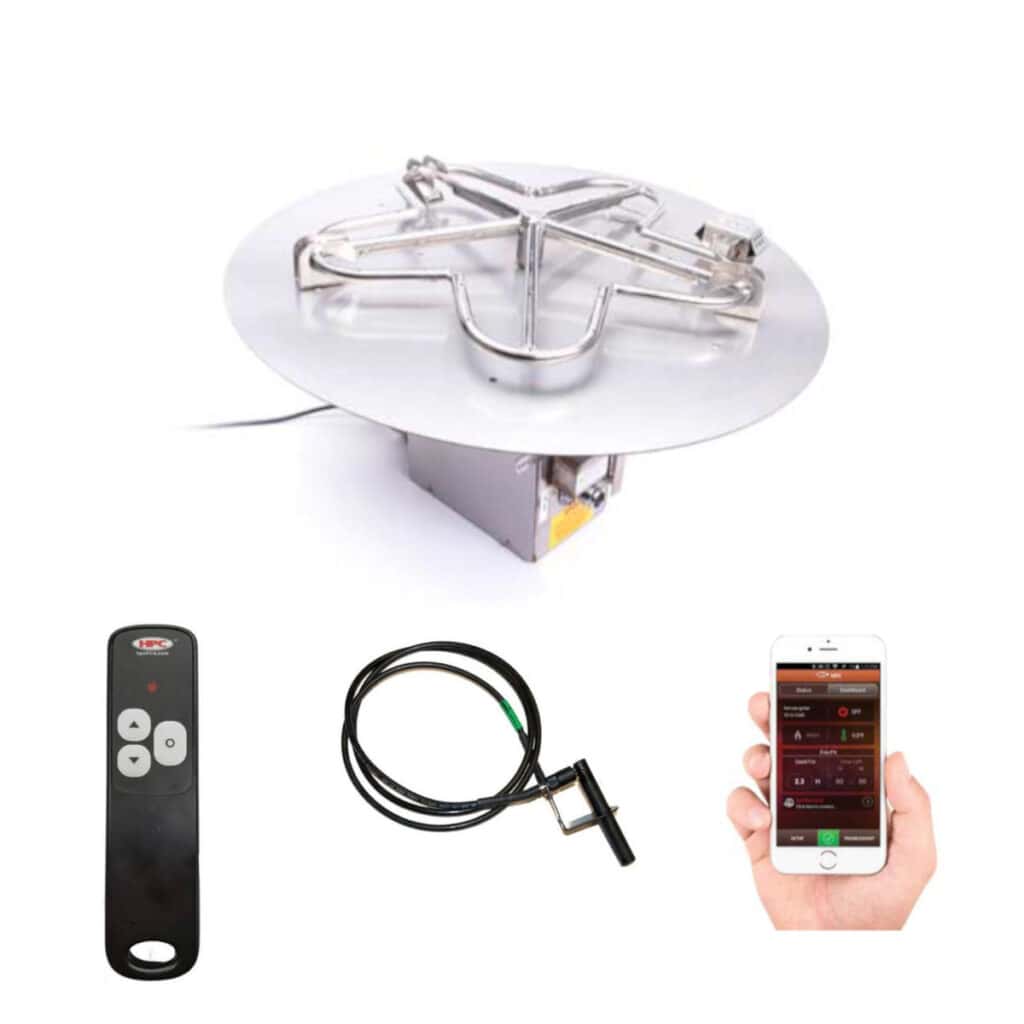

High/Low  – Included with this model is a Smart Remote which allows for the flame height to be set to either High or Low. The Low setting creates a 45% reduction in flame height. The remote also receives information from the fire pit to advise the user of the fire pit status (flashing LED).  Although this system cannot be for use with your whole house system it can be controlled via a Smart Device Bluetooth App. The built-in antenna enables a reliable connection to Apple and Android phones and allows for control of your fire pit from as far away as 20 feet.  The free Bluetooth Smart App incorporates a timer, troubleshooting codes, total operational hours, and internal temp monitoring.

Select Your Voltage
The EI range is available in 120VAC or 24VAC versions. 24VAC is typically used poolside or with other lower voltage requirements.
A Class II 24VAC, 4 amp, 100 W transformer must be used to power the fire pit and be able to be switched on and off from a remote location to allow for easy access or emergency. The Fire Pit will not perform properly if the power supply rating is below 100W or the wire size is too small.
HPC highly recommends the HPC SEBCO 24vac Power Supply Transformer available in the Accessories and Components section of this website.


How does it Work?

The HPC Electronic Ignition Round Flat Insert Penta Burner once installed is remarkably easy to use.

  • Start-Up: Turn the Unit on using the wall switch, remote control, or App depending on your model and setup. When the ON command is received, the system completes initial safety checks and then starts the flow of pilot gas. After 5 seconds, the 24v Hot surface Igniter glows, igniting the pilot flame. When the system confirms the pilot flame is present, the main burner gas will flow to be ignited by the pilot flame.
  • Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages, and other safety parameters. If flame loss does occur, the system will turn off all gas flow and then restart by automatically commencing the Start sequence.
  • Turning off: This can be done via the wall switch, remote control, App, or whole house system depending on your setup.

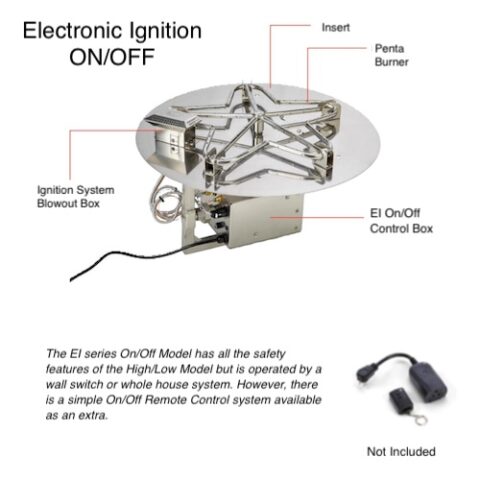

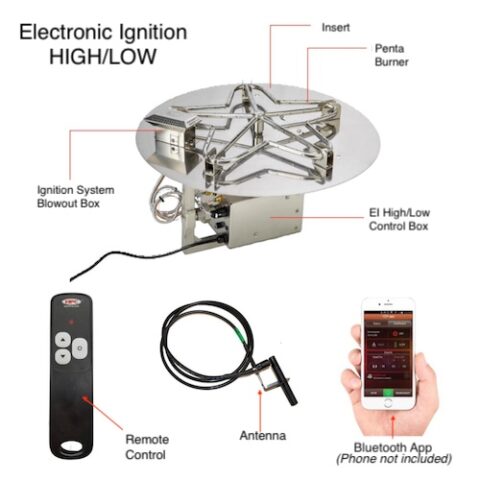

The HPC Electronic Ignition Round Flat Insert Penta Burner Components

The HPC Electronic Ignition Round Flat Insert Penta Burner unit comes fully assembled and ready to install. These Fire Pit kits comprise a Stainless Steel Round Flat Insert and Penta Burner (other than the 14″ which has a 12″ Round burner) with an EI (Electronic Ignition) system mounted to the underside protected within a stainless steel valve box.
HPC Round Flat Inserts are manufactured from 304-grade stainless steel and are used in fire pit structures with a built-in support structure to hold the insert in place. The flat pans are a little more economical than the bowl-style pan, but they do not have a lip for easy installation. The installer must find a way to support the flat pan, typically, this takes the form of a collar around the inner parameter of the enclosure, ‘Z’ brackets, or a built-in shelf or recess. Any type of media can be used with a flat pan including glass, but the gap between the edge of the pan and the opening must be within a 1/8” to keep the glass from falling below the pan, so the larger the pieces of media the better for a flat pan. HPC flat pans are cut ¼” smaller than the listed size. For example, the 36” flat pans measure 35-3/4”. Each flat pan is cut out to size from a sheet of 18 gauge .304 stainless steel and has  ¼” weep holes for drainage.
Penta Burners are made from #304, 18 gauge Stainless Steel.

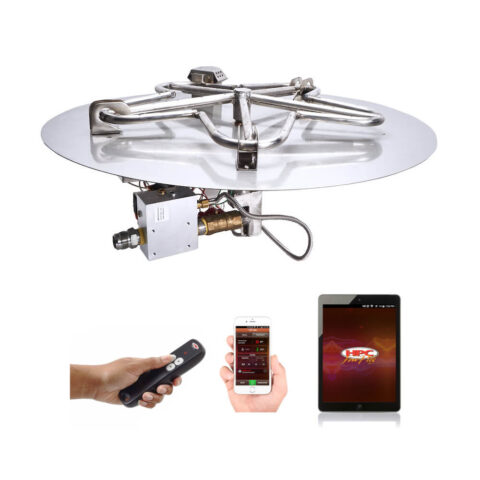

Hand with HPC Remote control, mobile phone and tablet with HPC Fire App - Options for lighting the HPC Hi/Low Electronic Ignition Fire Pit
The High/Low Electronic Ignition Fire Pit Kit includes the Smart Remote Control and the ability to operate the fire pit via the HPC Fire App from your mobile device
Hand holding a the On/off Electronic Fire Pit Ignition Remote Control
Remote Control add-on available for the On/Off Electronic Ignition Fire Pit Kit


The HPC Electronic Ignition Round Flat Insert Penta Burner Specifications

Pan Size -14″  Round Burner – 12″  BTUs/hr – 90,000
Pan Size – 18″  Penta Burner – 12″  BTUs/hr – 65,000
Pan Size – 24″  Penta Burner – 18″  BTUs/hr – 125,000
Pan Size – 30″  Penta Burner – 24″  BTUs/hr – 200,000
Pan Size – 36″  Penta Burner – 30″  BTUs/hr – 250,000
Pan Size – 42″  Penta Burner – 36″  BTUs/hr – 400,000   (On/Off model only)
Pan Size – 54″  Penta Burner – 48″  BTUs/hr – 400,000  (On/Off model only)

Also available is the HPC Electronic Ignition Round Flat Insert Torpedo Penta fitted with the spectacular new Torpedo Penta Burner, which features a nozzle that is precision-engineered and according to HPC develops a bigger, warmer flame without excessive gas consumption.
For more detailed information regarding the exciting new range of Torpedo Burners, please refer to the following page https://themagicoffire.com/torpedo-burners/


The HPC Electronic Ignition Round Flat Insert Penta Burner:

HPC Fire incorporates several features into its designs with the objective in mind to ensure its products function safely, and correctly, and have a long lifespan. Here are a few examples:

  • Water infiltration into the burner and then running back through the gas lines is a significant issue. Both HPC Standard Burners and Torpedo Burners deal with this in several ways. Each of the five-burner lobes has weep holes allowing any water that got in to drain out of the burner before it flows back into the gas lines. The center hub of the burner is raised and sealed to prevent water from leaking into the burner.
  • All HPCs Electronic Ignition models feature a ‘drip leg’ designed to divert water away from the electronics.
  • The Electronic Ignition and Flame Sensing ranges feature a thermocouple sensor that will automatically turn off the gas supply should a strong wind blow out the flames. However, this would be rare because the pilot light is encased in a ‘blow out box’ that protects it from the wind, enabling the pilot to relight the flame.
  • Spiders, yes spiders! Spiders are attracted to the smell of Propane and build nests in and around Propane gas fittings, often creating a blockage. As a result, on all CSA Certified Kits, HPC supplies a mesh spider guard to prevent the spiders from building their nests and creating a blockage.



  • Fully Assembled – ready to install.
  • Start via wall switch or remote control;
  • Internal temperature monitoring with overheating auto-shutoff.
  • Auto re-light if the flame is lost.
  • Ignition is complete using a robust and reliable Hot Surface igniter.
  • On/Off models: Use with optional wall switch, Remote Control, or your whole house system.
  • High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
  • 120vac: Standard outdoor grounded power cord- just plug into GFCI outlet.
  • 24vac Option: Typically used with lower voltage requirements.
  • Natural Gas or Liquid Propane: Factory-built & tested for either fuel.
  • Made from #304, 18 gauge Stainless Steel





  • Stainless Steel Outdoor Burners – Lifetime Warranty
  • Stainless Steel Pan, Valve Box – Limited Warranty – Commercial-1 year   Residential-5 years
  • Electronics, Gas Valve – Limited Warranty – Commercial-1 year   Residential-3 years
  • Pilot Assembly – Limited Warranty – Commercial-1 year   Residential-2 years

Recommendations, Optional Extras, and Links to the products on The Magic Of Fire

  • HPC recommends installing a wall switch along with any of the remote-controlled units as it creates layers of protection and security as when the switch is in the off position the device will not turn on. This will give our consumers peace of mind that if a child gets a hold of a remote or the frequency is synced with another device the unit will remain in the off position as long as the switch is off. A great option for this is the HPC Commercial Grade Emergency Stop
  • The On/Off Remote Control which is an optional extra as stated above
  • The HPC SEBCO 24vac Power Supply Transformer recommended by HPC for use with the 24VAC Option
  • There are timers that allow owners to set a designated burn time and will automatically turn off the appliance once the time has expired.


HPC Electronic Ignition Round Flat Insert Penta Burner Downloads

HPC Electronic Ignition Round Flat Insert Penta Burner ON/OFF Instructions.    Download
HPC Electronic Ignition Round Flat Insert Penta Burner HI/LO Instructions.  Download
HPC 24 Volt Installation Diagram.     Download
HPC Round Flat EI drawing Download
HPC Round Flat Pan Cut Sheet drawing.   Download
