HPC Electronic Ignition Interlink Torpedo T-Burner

The HPC Electronic Ignition Interlink Torpedo T-Burner is from the top-of-the-range Electronic Ignition (EI) Series, providing a highest degree of safety and control of your gas fire pit. Several features set it apart.

● The presence of the Safety Pilot flame ensures the main burner gas will flow, keeping the fire pit alight. However, if the flame is blown out, the gas supply shuts down preventing a potentially hazardous build-up or pooling of gas.

● The system will then automatically commence the Start sequence, relighting your fire pit. All this without any assistance or input from the fire pit user.

● The EI range has options that allow the fire pit to be operated and controlled by a wall switch, whole house system, or even a Bluetooth app (HIGH/LOW model only) on your phone! A remote control fire pit is by far the most impressive way to light your fire pit!

What are the Options when ordering

There is a wide selection of sizes and various options to help you find the perfect fire pit kit that suits your needs.

Select Your Size
The HPC Electronic Ignition Interlink Insert Torpedo T-Burner has two models, the On/Off and the Hi/Lo version, both are available in seven sizes: 25, 37, 49, 61, 73, 97, and 121 inches long.

Select Your Gas
The kits are available in either Natural Gas or Propane versions.  Please note that the EI Series is not for use with small LP Tanks and must utilize permanent fixed piping for fuel supply.

Select Your Ignition Type
What is the difference between the two Ignition Types for the HPC Electronic Ignition Interlink Insert Torpedo T-Burner?

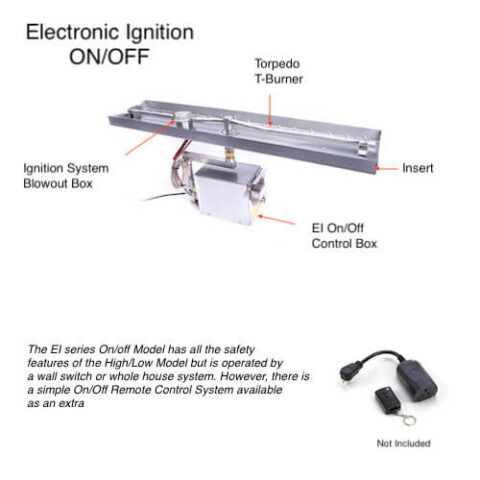

On/Off – This model allows your fire pit to be switched On and Off by a wall switch, your whole house system, or by Remote Control which in this case is an optional extra and only suitable for the 120 VAC models.

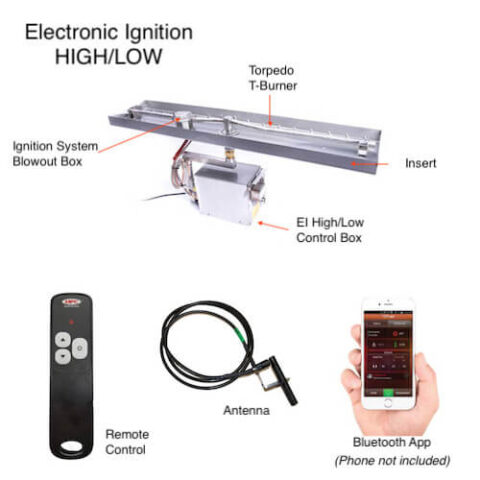

High/Low  – This remote control fire pit option includes a Smart Remote which allows for the flame height to be set to either High or Low. The remote also receives information from the fire pit to advise the user of the fire pit status (flashing LED).

Although this system cannot be for use with your whole house system it can be controlled via a Smart Device Bluetooth App. The built-in antenna enables a reliable connection to Apple and Android phones and allows for control of your fire pit from as far away as 20 feet.  The free Bluetooth Smart App incorporates a timer, troubleshooting codes, total operational hours, and internal temp monitoring.

Select Your Voltage
The EI range is available in 120VAC or 24VAC versions. 24VAC is typically used in an outdoor fire pit for pool areas with lower voltage requirements.
A Class II 24VAC, 4 amp, 100 W transformer must be used to power the fire pit and be able to be switched on and off from a remote location to allow for easy access or emergency. The Fire Pit will not perform properly if the power supply rating is below 100W or the wire size is too small.

HPC highly recommends the HPC SEBCO 24vac Power Supply Transformer available in the Accessories and Components section of this website.

How does it Work?

Once installed is remarkably easy to use.

Start-Up: Turn the Unit on using the wall switch, remote control, or App depending on your model and setup. When the ON command is received, the system completes initial safety checks and then starts the flow of pilot gas. After 5 seconds, the 24v Hot surface Igniter glows, igniting the pilot flame. When the system confirms the pilot flame is present, the main burner gas will flow to be ignited by the pilot flame.

Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages, and other safety parameters. If flame loss does occur, the system will turn off all gas flow and then restart by automatically commencing the Start sequence.

Turning off: This can be done via the wall switch, remote control, App, or whole house system depending on your setup.

HPC Electronic Ignition Interlink Torpedo T-Burner Components

The unit comes fully assembled and ready to install. These Fire Pit kits comprise of a Stainless Steel Interlink Insert and Torpedo T-Burner with an EI (Electronic Ignition) system mounted to the underside protected within a stainless steel valve box.

The Electronic Ignition Fire Pit Insert is made of #304, 18 gauge Stainless Steel. Partial sidewalls not only help with media retention they add rigidity to the structure, making them a stronger alternative to a flat pan.

Designed to be installed in a recess mount application, they can also be joined end to end to achieve a custom look. There is a removable center section on larger models.  The Inserts are 1.5″ deep, 8” wide, the length is determined by the size you order.

Torpedo T-Burners are made from #304, 18 gauge Stainless Steel and feature a nozzle that is precision-engineered and according to HPC develops a bigger, warmer flame without excessive gas consumption. For more detailed information regarding the exciting new range of Torpedo Burners, please refer to the following page https://themagicoffire.com/torpedo-burners/



Hand with HPC Remote control, mobile phone and tablet with HPC Fire App - Options for lighting the HPC Hi/Low Electronic Ignition Fire Pit
The High/Low Electronic Ignition Fire Pit Kit includes the Smart Remote Control and the ability to operate the fire pit via the HPC Fire App from your mobile device
Hand holding a the On/off Electronic Fire Pit Ignition Remote Control
Remote Control add-on available for the On/Off Electronic Ignition Fire Pit Kit

Specifications:

Insert Size 25″ – Burner Size 24″ – BTUs  75,000 – Fire Glass  20lbs

Insert Size 37″ –  Burner Size 36″ – BTUs 115,000 – Fire Glass  30lbs

Insert Size 49″ –  Burner Size 48″ – BTUs 150,000 – Fire Glass  40lbs

Insert Size 61″ –  Burner Size 60″ – BTUs 175,000 – Fire Glass  40lbs

Insert Size 73″ –  Burner Size 72″ – BTUs 200,000 – Fire Glass  50lbs

Insert Size 97″ –  Burner Size 96″ – BTUs 300,000 – Fire Glass  60lbs

Insert Size 121″ –  Burner Size 120” – BTUs 250,000 – Fire Glass  60lbs



The HPC Electronic Ignition Interlink Torpedo T-Burner Features:

HPC Fire incorporates several features into its designs with the objective in mind to ensure its products function safely, and correctly, and have a long lifespan. Here are a few examples:

●  To prevent water from flowing back further into the system the center hub of the burner is raised and sealed, and the burners have weep holes allowing any water that does get in, to drain out of the burner.

● All models feature a ‘drip leg’ designed to divert water away from the electronics.

● The range features a thermocouple sensor that will automatically turn off the gas supply should a strong wind blow out the flames. However, this would be rare because the pilot light is encased in a ‘blow out box’ that protects it from the wind, enabling the pilot to relight the flame.

● Spiders, yes spiders! Spiders are attracted to the smell of Propane and build nests in and around Propane gas fittings, often creating a blockage. As a result, HPC supplies a mesh spider guard to prevent the spiders from building their nest and creating a blockage.

Other Features:

● Fully Assembled – ready to install.
● Start via wall switch or remote control
● Internal temperature monitoring with overheating auto-shutoff.
● Auto re-light if the flame is lost.
● Ignition is complete using a robust and reliable Hot Surface igniter.
● On/Off models: Use with a wall switch, a Remote Control system, or your whole house system.
● High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
● 120vac fire pit kit: Standard outdoor grounded power cord- just plug into GFCI outlet.
● 24vac fire pit kit: Typically used with lower voltage requirements.
● Natural Gas or Liquid Propane: Factory-built & tested for either fuel.
● Made from #304, 18 gauge Stainless Steel

Certification:

CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.

Warranty:

● Stainless Steel Outdoor Burners – Lifetime Warranty
● Stainless Steel Pan, Valve Box – Limited Warranty – Commercial-1 year   Residential-5 years
● Electronics, Gas Valve – Limited Warranty – Commercial-1 year   Residential-3 years
● Pilot Assembly – Limited Warranty – Commercial-1 year   Residential-2 years

Recommendations, Optional Extras, and Links to the products on The Magic Of Fire

● HPC recommends installing a wall switch along with any of the remote-controlled units as it creates layers of protection and security when the switch is in the off position the device will not turn on. This will give our consumers peace of mind that if a child gets a hold of a remote or the frequency is synced with another device the unit will remain in the off position as long as the switch is off. A great option for this is the HPC Commercial Grade Emergency Stop
● The On/Off Remote Control which is an optional extra as stated above
● The HPC SEBCO 100W Power Supplies for low voltage installations recommended by HPC for use with the 24VAC Option

HPC Electronic Ignition Interlink Torpedo T-Burner Downloads

HPC Electronic Ignition Interlink Torpedo Fire Pit Kit ON/OFF Instructions.  Download

HPC Electronic Ignition Interlink Torpedo Fire Pit Kit HI/LO Instructions Download

HPC 24 Volt Installation Diagram.  Download

HPC Electronic Ignition Fire Pit Insert Kit.  Download

HPC Torpedo T-Burner drawings.  Download
