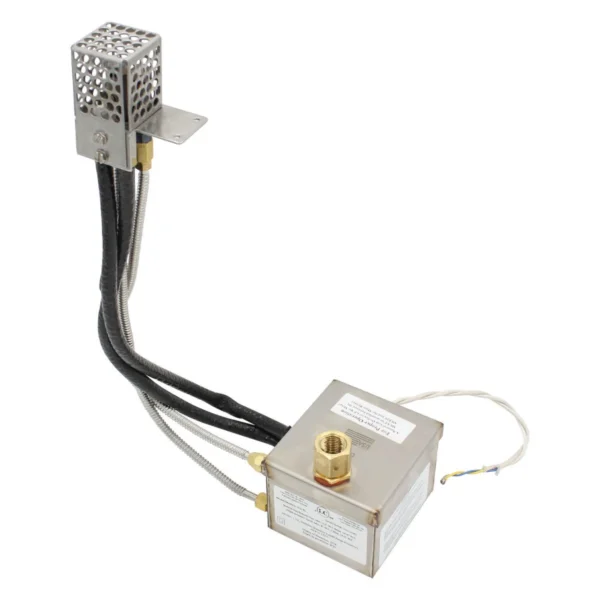

The AWEIS (All-Weather Electronic Ignition System) is engineered to bring unparalleled ease and dependability to your outdoor fire feature. Manufactured by Fire by Design, this system is so highly regarded that American Fire Products uses it as the foundation for the electronic ignition range.
Designed for standard fire features, this unit delivers up to 290,000 BTU/hr and features 1/2-inch FPT gas inlet and outlet connections, compatible with most standard-sized fire rings and burners. The control box is manufactured from 316 marine-grade stainless steel for high-humidity, salt air, and corrosive marine environments, ensuring long-term durability.
For systems requiring higher BTUs, view the high-capacity model.
Simple Operation and Effortless Ambiance
Why struggle with manual lighting when you can command your flame instantly? The AWEIS control unit seamlessly integrates with modern home automation.
- Effortless Control: On/off control via a wall switch, timer, or remote control system.
- Compact Design: Ideal for tight spaces such as smaller fire bowls.
- Low Voltage: 24VAC operation allows fire feature installations to include water-adjacent locations, including poolside features.
- Safety Features: System Monitoring, Automatic Relight, and Automatic Shutdown.
Advanced System Safety and Assurance
This safety system provides the highest level of safety for your gas feature, offering peace of mind every time you gather around the fire.
- Continuous Flame Monitoring: A sophisticated thermopile constantly monitors the main burner flame.
- Auto Relight Sequence: If the flame is temporarily extinguished (by wind or rain), the unit automatically attempts to relight the pilot and then the main burner multiple times.
- Automatic Shut-off: Should the burner fail to re-light after the sequence, the system closes the internal gas valve to prevent unburnt fuel from escaping.
Durability is engineered into every component of this all-weather control unit to ensure consistent performance over many seasons.
Installation Requirements & Safety Warnings
When incorporating this automated control unit into your fire feature, these factors are essential for proper function, safety, and code compliance:
- Vented Outdoor Use Only: The AWEIS system must only be used with outdoor, vented fire features.
- LP Gas Source: The Liquid Propane version is intended for whole-house propane supply ONLY. Never use a standard portable LP tank setup with this unit.
- Strict Fuel Type Matching: You must purchase the correct model – Natural Gas or Liquid Propane. The fuel type is not interchangeable.
- Installation Area: Requires a minimum of one cubic foot of space beneath the bottom of the pan.
- Professional Installation: NFI-Certified Professional is strongly recommended.
For more information and a deep dive into this automated system, view our comprehensive AWEIS technical guide.
Completing Your Automated Setup
AWEIS is designed for easy integration with several control components. To ensure your system is fully functional, you will also require:
- Compatible Gas Plumbing for connecting to your fuel supply.
- Control Methods: For full remote convenience, the AWEIS unit is compatible with various external control systems. Choose your preferred method:
Product Specifications:
- AWEIS: Max. Btu Output: 290K BTU/hr
- Gas Outlet Size: 1/2″

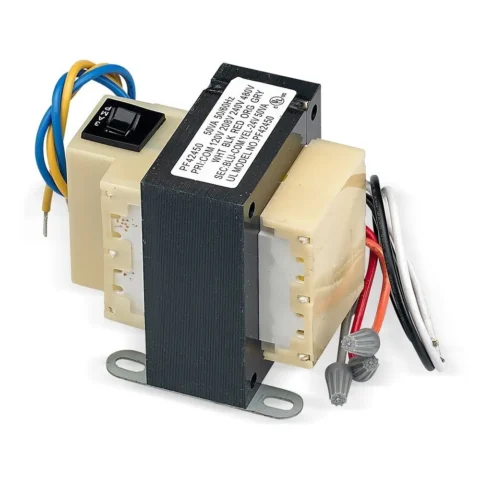

- Operating Voltage: 24 volts AC

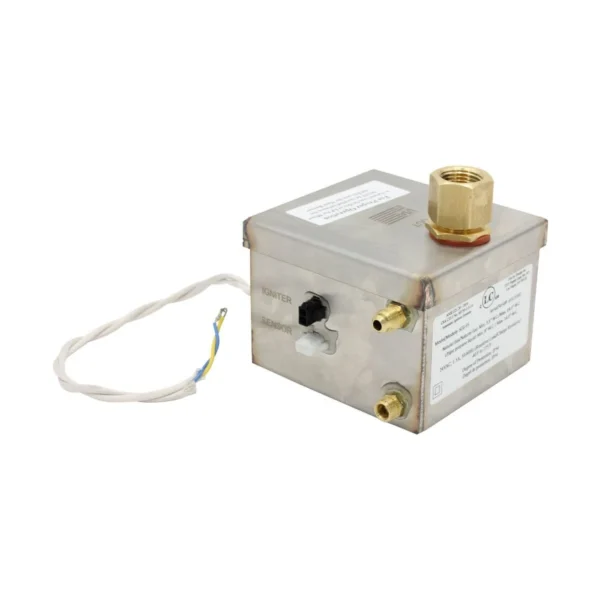

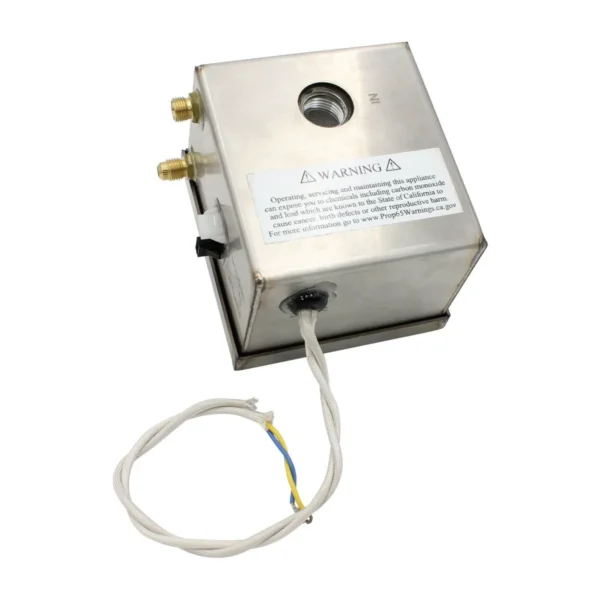

- Control Box Material: 316 marine-grade stainless steel
- Control Box Dimensions: 4 3/8″ x 4 3/8″ x 4 3/8″
- Pilot Assemblies: 18″ long – Custom lengths can be ordered.
- Withstands 50mph winds.
- Made in the USA.
- Warranty: 1-year limited warranty
