Standard Capacity Propane Gas Hookup Kit Spark Ignition

The Standard Capacity Propane Spark Ignition Gas Hook Up Kit by American Fire Products (AFP) is the comprehensive solution for safely operating a fire pit from a standard 20 lb LP tank. This system features a Key Valve for adjustable flame control, a push-button spark igniter, and all necessary hoses and fittings with standard 1/2-inch connections for optimal performance.

Looking for a different setup? Please explore our complete collection of Fire Pit Installation and Connection Kits.

Superior Control and External Access

The Key Valve system offers significant advantages over basic match-lit kits:

• Precise Control: The included Key Valve allows you to adjust the gas flow rate to control your flame height.
• External Access: The Key Valve and Push Button Igniter are both designed for external mounting on the structure.
• Pro Tip: For the cleanest, most unified look, an optional Stainless Steel Mounting Plate is available to perfectly frame both the Key Valve and the Push Button Igniter on the exterior structure of your fire pit.

Essential Propane Components

This kit includes specialized components vital for clean, safe LP operation from a portable tank:

• Regulator: Connects directly to the 20 lb tank, safely dropping the high pressure to a usable level for the fire pit.
• Air Mixer Valve: Crucial for propane burners. The Air Mixer pre-mixes air with the propane gas to prevent excessive sooting, black smoke, and clogging.

Ignition Safety and Push-Button Convenience

The push-button spark igniter provides a safer, more reliable experience:

• Distanced Lighting: Provides a safer distance from the flame flare-up (“whoomp”) that can occur when manually lighting burners.
• Simple Operation: Press the button while slowly turning the key valve to ignite the flame. No need to look for the matches!

Kit Components

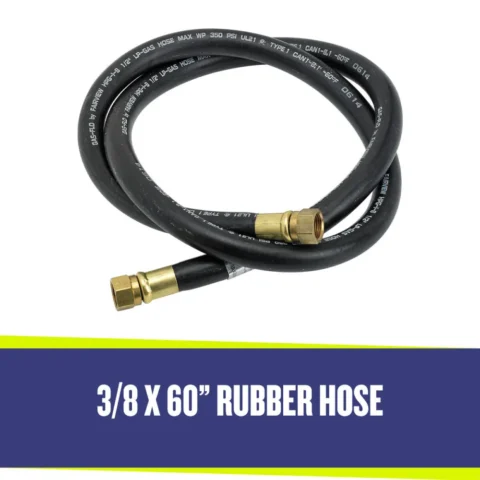

• 60-Inch Long 3/8-Inch Rubber Hose
• 48-Inch Long 3/8-Inch Rubber Hose
• 1/2-Inch Key Valve with Chrome Cover Plate and Key
• 175,000 BTU Single Stage Propane Regulator
• 1/2-Inch Air Mixer Valve

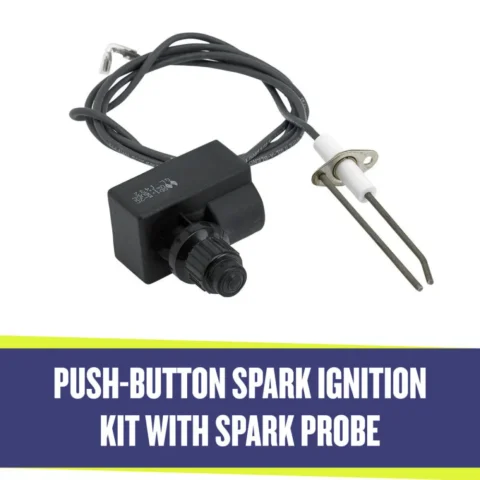

• Push Button Spark Igniter & Probe

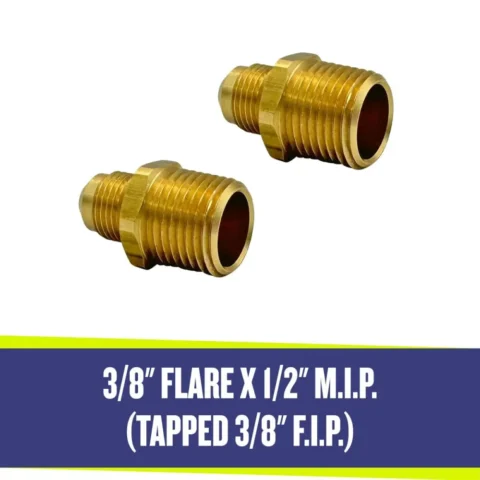

• Necessary Fittings

Complete Solution

The Spark Ignition probe and push-button assembly are also available for individual purchase for replacement or specific custom builds. However, this Natural Gas Hook Up Kit with Spark Ignition is the comprehensive, all-in-one solution that includes all the necessary hoses, key valves, and fittings, and the Push Button Ignition system.

Installation Requirements

Installation is straightforward, but safety is paramount:

• Gas Flow Arrow: The Gas Key Valve must be installed with the arrow on the outside of the valve pointing in the same direction as the gas flow (i.e., towards the fire pit burner).

Warranty

1 Year Manufacturer Warranty
