Square Stainless Steel Fire Pit Burners
Square Stainless Steel Fire Pit Burners
Square fire pit burners are ideal for a square fire pit, but oddly about ninety percent of square fire pits have round burners installed. There’s no practical or technical explanation for that, so what’s the difference?
If you imagine looking down from above over a square fire pit and visualize a round burner sitting in it, you will see how the burner cuts off the corners of the fire pit. With a square fire pit burner, you will immediately notice how the corner of the square burner would reach much deeper into the corners of the fire pit. That’s it, that’s the only difference. It all boils down to a matter of aesthetics.
Works with LP or NG
All of TOP’s burners are suitable for any fire pit or fire bowl whether they are natural gas or liquid propane. When used with Propane, an Air Mixer Valve should be attached to the burner.
Water Runoff Protection
The inlets on all TOP burners are raised and tapered so that if water does enter the burner, it will not enter the gas line. Always install with the gas holes pointing upwards.
Multiple Drain Holes
Each burner has multiple drain holes to release any water that may enter the burner through the flame holes.
Drain Hole Tab
With the drain holes pointed to the side, a tab is added to redirect the flame upward to retain the intended flame pattern. Other burners have drain holes that create an unappealing flame
.065 Wall Thickness & Stainless Steel Construction
The wall thickness of T.O.P’s stainless steel square fire pit burners is greater than most burners on the market. Along with the 304 stainless steel construction. This ensures a long burner life and resists warping.
Warranty
The Outdoor Plus hand-builds their square burners in their factory in California and provides a Lifetime Warranty.
Square Stainless Steel Fire Pit Burners Specifications
The range starts at 6 inches square with a single ring and goes up to 60 inches square with 4 rings in total. There are nine size options and can be retrofitted into existing fire pits if required.
Remember to allow 3 inches of clearance on all sides of the burner between the inner wall of the fire pit structure and the outer edge of the burner.
The 6″, 12″ and 18″ Square burners have a 1/2″ gas inlet. The larger burners have a 3/4″ gas inlet.

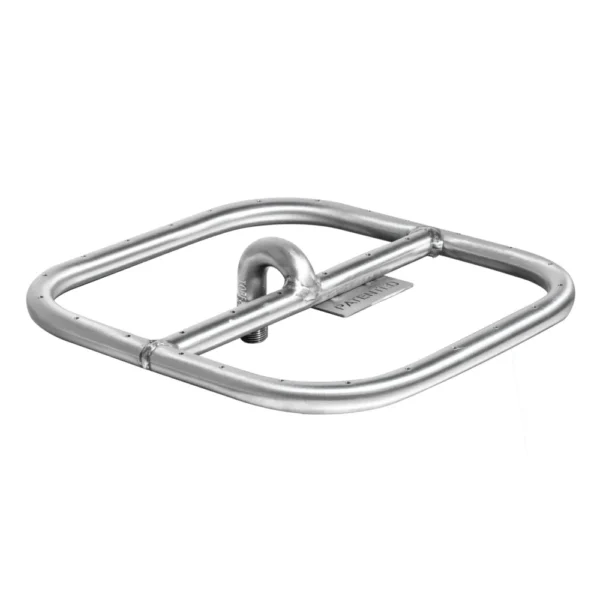

6″ X 6″ – Single-Ring Burner – 40k BTUs

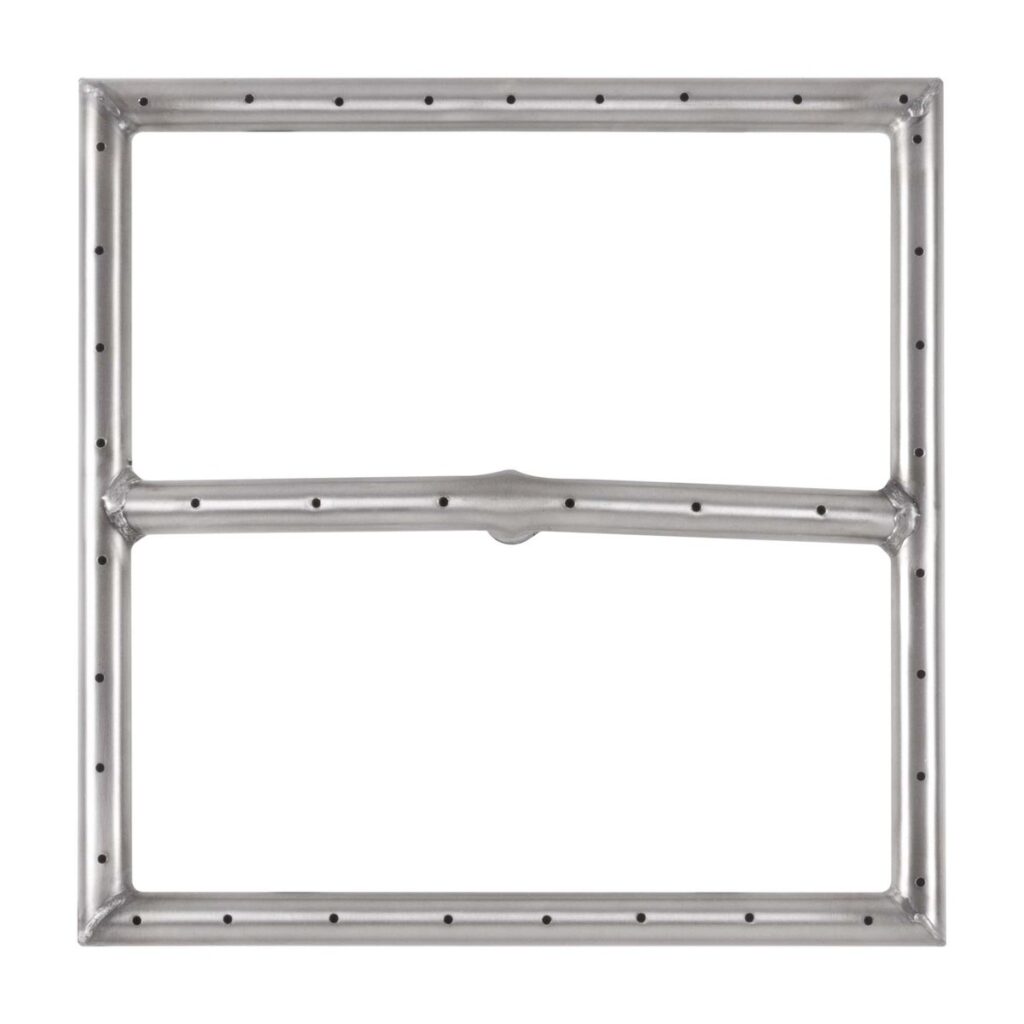

12″ X 12″ – Double-Ring Burner – 80k BTUs
18″ X 18″ – Double-Ring Burner – 200k BTUs

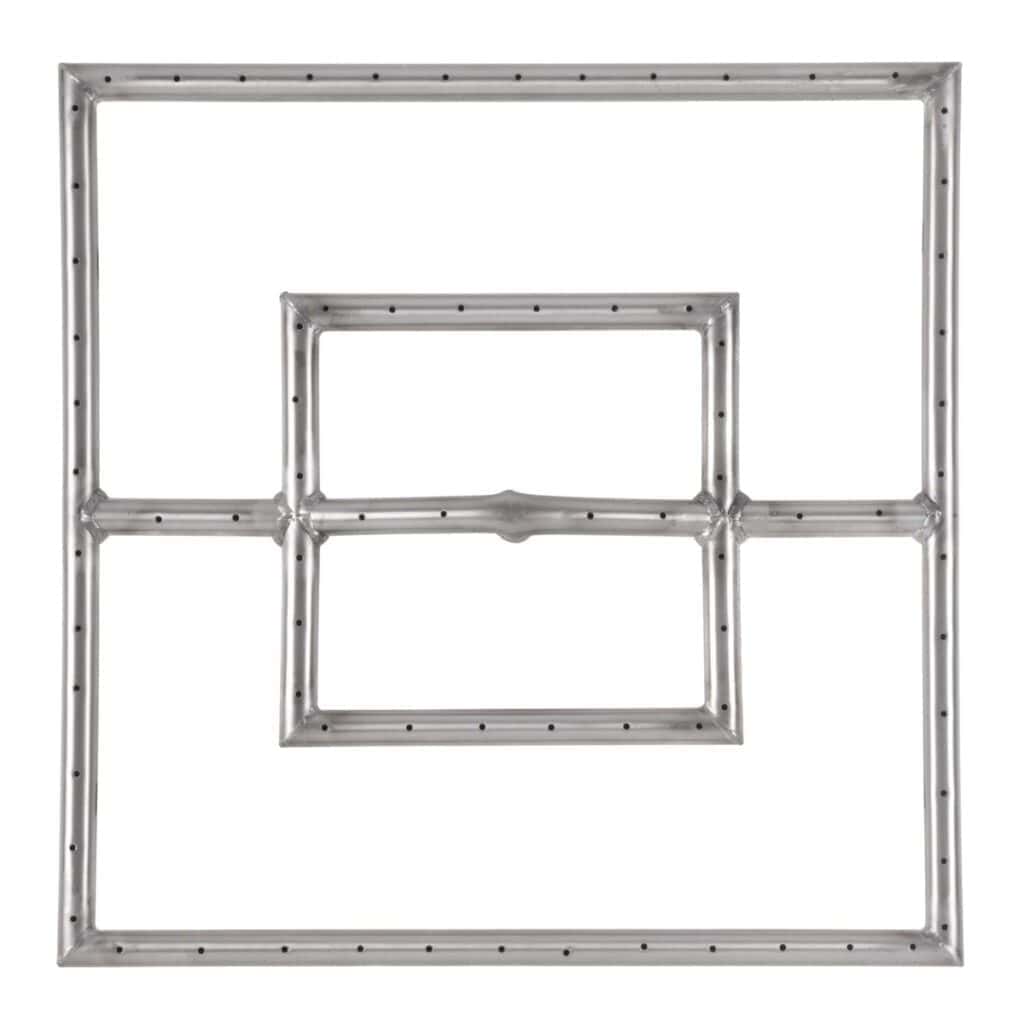

24″ X 24″ – Double-Ring Burner – 240k BTUs
30″ X 30″ – Triple-Ring Burner – 420k BTUs
36″ X 36″ – Triple-Ring Burner – 480k BTUs
42″ X 42″ – Triple-Ring Burner – 500k BTUs
48″ X 48″ – Quadruple-Ring Burner – 800k BTUs
60″ X 60″ – Quadruple-Ring Burner – 880k BTUs
Further Information regarding The Outdoor Plus Stainless Steel Burners
The Outdoor Plus Warranty Information
The Outdoor Plus Square Stainless Steel Burner – Specification Sheets
The Outdoor Plus General-Fire-Pit-Manual-2019
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the state of California to cause cancer, and Carbon Monoxide, Lead and Lead Compounds which are known to the state of California to cause birth defects or other reproductive harm.
