Square Drop-In Fire Pit Pan with SS Triple S Bullet Burner by The Outdoor Plus

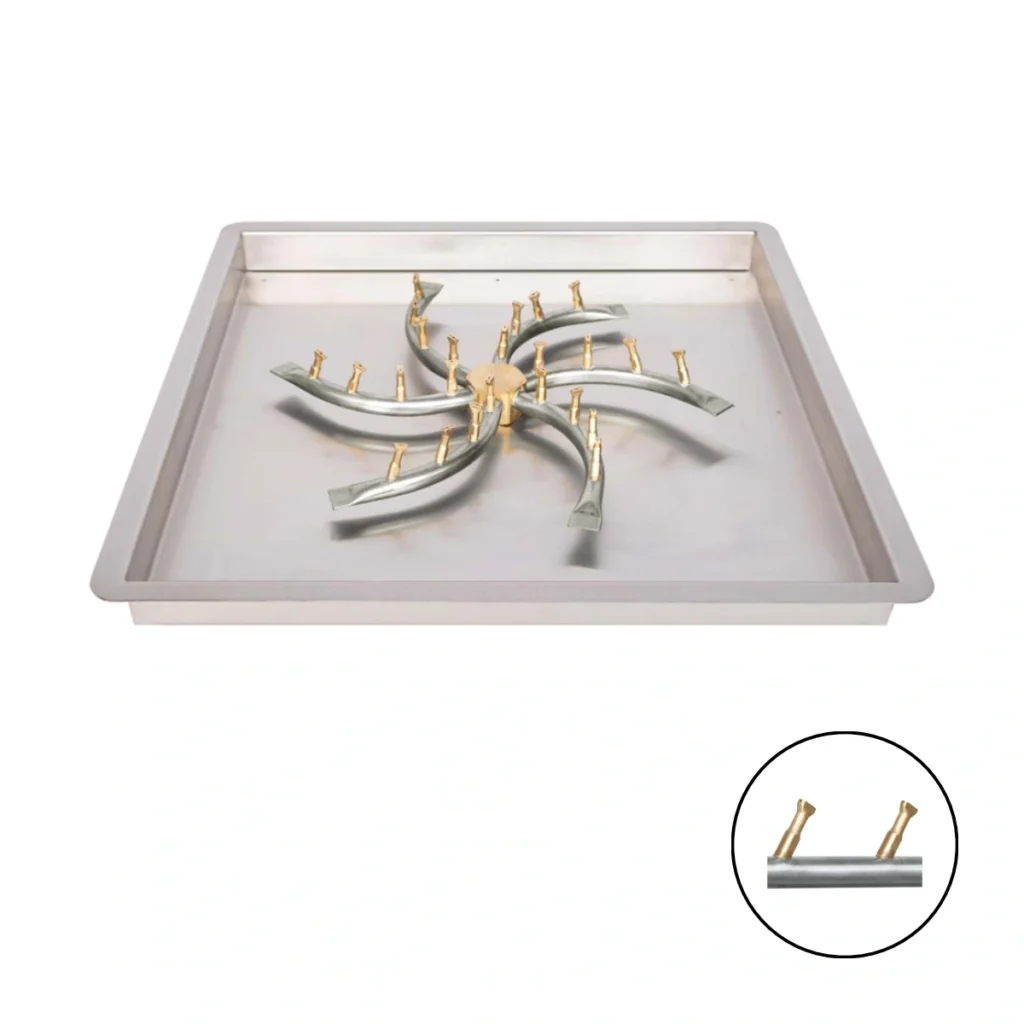

Square Drop-In Fire Pit Pan with SS Triple S Bullet Burner

Bullet Burners present a blend of stunning aesthetics, efficiency, and top-notch craftsmanship, making them an attractive option for individuals or businesses seeking visually striking and efficient outdoor fire features.

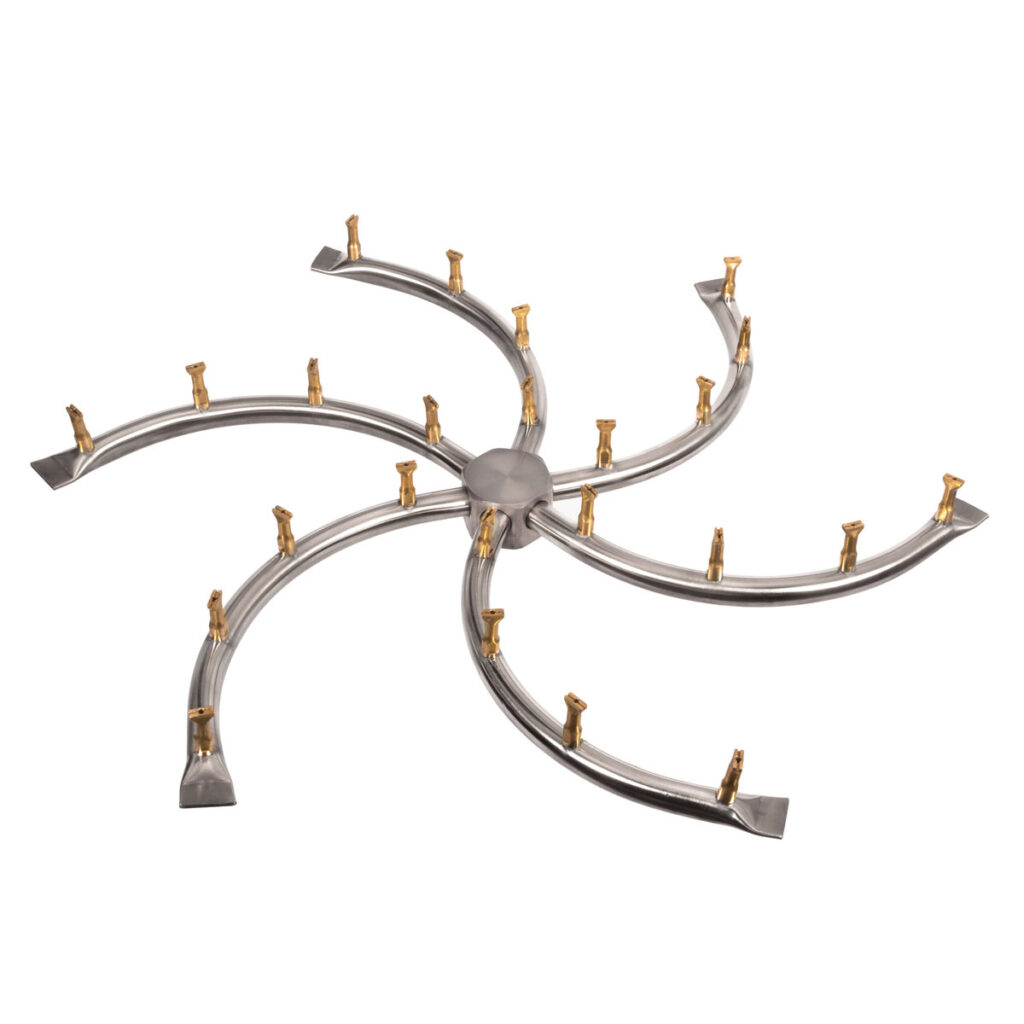

Fire Pit Bullet Burner Features

• Flame Height:  A Bullet Burner creates flames twice as tall as standard burners its size, enhancing outdoor ambiance with visually striking aesthetics.
• Efficiency:  Bullet Burners are more gas-efficient when producing the same-sized flame as standard burners.
• Handcrafted and Unique: The Outdoor Plus Company handcrafts Stainless Steel Fire Pit Burners, ensuring meticulous attention to detail and superior quality. The distinctive design and performance of the Bullet Burner distinguish it from conventional options. For more info, visit our Bullet Burners page.
• Gas Compatability: Suitable for either Nat. Gas or Propane. Bullet Burners don’t require an Air Mixer Valve for use with Propane.
• Warranty: Bullet Burners have a Limited Lifetime Warranty.

The gas consumption factor makes Bullet Burners an efficient choice for commercial installations where the burner will operate over long hours. The savings in gas usage will quickly offset the higher initial outlay.

Stainless Steel Drop-In Pan Features

• Built to Last: Made from 304-grade stainless steel.
• Tough in Any Weather: Designed to endure the elements.
• Drainage: The Square Fire Pit Pan features weep holes in the tray base to prevent flooding.

A Fire Pit Drop-In Pan seats the burner approximately two inches lower than the pan’s flange which is visible when the structure is complete and forms a handsome framing of the burn area.

The Lip On A Drop-In Pan Neatly Frames the Burn Area

Square Drop-In Fire Pit Pan with SS Triple S Bullet Burner Specifications:

• Gas: Natural Gas or Liquid Propane
• Material Pan: Stainless Steel
• Material Burner: Stainless Steel
• Pan Depth: 2.5″
• Lip Size: 1″
• Gas inlet: 1/2″ for  12″, 18″, 24″, and 30″ pans
• Gas inlet: 3/4″ for 36″ and 48″ pans

Dimensions and BTU Ratings

The Pan dimension refers to the internal length/width and does not include the lip

• 12″ Kit – Pan Dimensions 12″ x 12″ – Burner Diameter  8″  – BTUs – 50,000
• 18″ Kit – Pan Dimensions 18″ x 18″ – Burner Diameter 12″ – BTUs – 75,000
• 24″ Kit – Pan Dimensions 24″ x 24″ – Burner Diameter 18″ – BTUs – 110,000
• 30″ Kit – Pan Dimensions 30″ x 30″ – Burner Diameter 24″ – BTUs – 145,000
• 36″ Kit – Pan Dimensions 36″ x 36″ – Burner Diameter 30″ – BTUs – 180,000
• 48″ Kit – Pan Dimensions 48″ x 48″ – Burner Diameter 36″ – BTUs – 220,000

Warranty:

Bullet Burners from the Outdoor Plus Company have a Limited Lifetime Warranty.

Links to compatible accessories

• For a compatible Gas Connection Kit manufactured by The Outdoor Plus please follow this link to The Outdoor Plus Gas Connection Kits
• This Pan/Burner combo also comes as part of the Ready to Finish range of Fire Pit Enclosures from The Outdoor Plus. A ready-to-finish Enclosure is a pre-fabricated fire pit structure minus the final cladding. Any necessary ventilation, access panels, doors, and ignition systems form part of the package.  All you need to provide is the final cladding to suit your patio decor!
• Alternatively, these pans & burners are also sold in complete Fire Pit Kits with Ignition Systems and connections included, such as Match Lit Kits, Spark Ignition Kits, Electronic Ignition Kits, and Flame Sensing Kits.

Downloads:

Drop-In Pan with Stainless Steel Bullet Burner Specification Sheet

Video -The Bullet Burner | More Flame Less Gas
