Round Flat Pan with Spark Ignition Kit

Round Flat Pan with Spark Ignition Kit

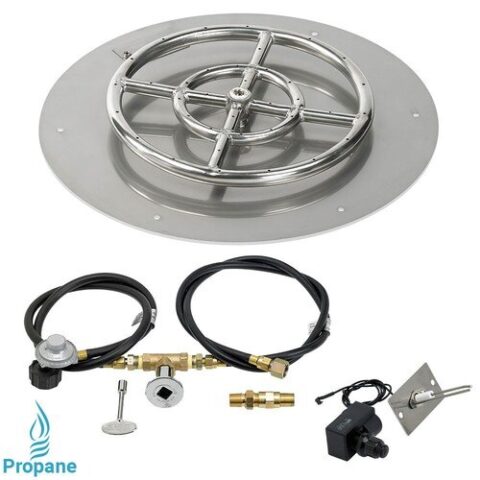

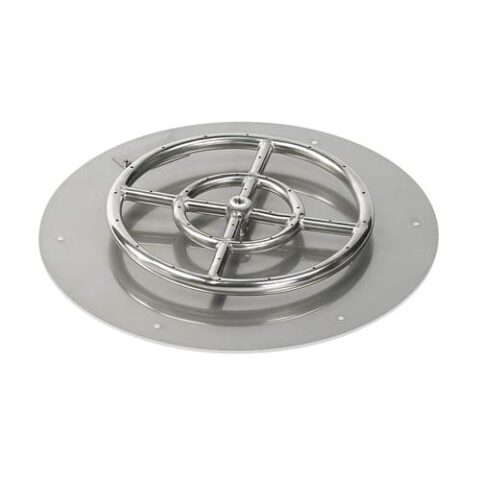

These Round Flat Pan Spark Ignition Kits are manufactured by American Fireglass, using high-quality materials to ensure quality and durability. They include a Pan, a Burner, a Spark Ignition Kit, and Gas Connections and are available in 5 sizes from 12″ diameter up to 36″ diameter.
Building a gas fire pit with these easy-to-install kits has never been simpler or easier to achieve a professional-looking fire pit.
The Spark Ignition System
The Spark Ignition System is a push-button system, that creates a spark at the tip of the Ignition Probe to ignite the gas. It is battery-powered, so no mains electricity supply is needed.
The battery is located within the push-button itself and is easily replaceable. This is the modern civilized way to light your Gas Fire Pit. The system is easily installed and comes with complete instructions.
Gas Connections
Available in either the Natural Gas version or Propane, the gas connection kit provides everything you need for the basic hook-up; a gas hose to connect your gas feed to the valve, the valve, and another hose to connect to the pan.
The gas valve includes a chrome key valve cover plate and a chrome Key used to turn on the gas to the burner.
The Propane option comes with a Propane Gas Regulator (small tank)and an air mixer valve to be fitted to the underside of the fire pit tray.
The High-Capacity units are for use with Whole House Natural Gas only.
BTUs and Flame Height
BTU ratings are particularly relevant if you are planning on using your domestic gas supply to fuel your fire pit. To avoid disappointment you need to ensure that your domestic gas supply has sufficient pressure to generate a decent flame on your fire pit. Our article on BTUs and Flame Height gives you the full low down on BTUs and flame height.
See below for the BTU ratings.
Round Flat Pan with Spark Ignition Kit – Specification
Standard Capacity
These units are available for either Natural Gas or Liquid Propane (small tank). The Propane version includes an air mixer.
The gas inlet on the pan is 1/2″.
- 12″ Diameter Pan with a 6″ Burner – 88,000 BTU rating – 12lbs of fire glass.
- 18″ Diameter Pan with a 12″ Burner – 92,000 BTU rating – 27lbs of fire glass.
- 24″ Diameter Pan with an 18″ Burner – 147,000 BTU rating – 48lbs of fire glass.
- 30″ Diameter Pan with an 18″ Burner – 147,000 BTU rating – 75lbs of fire glass.
- 36″ Diameter Pan with an 18″ Burner -147,000 BTU rating – 108lbs of fire glass.
High Capacity
These Kits are only available for use with Natural Gas and come with an additional Shut-Off Valve for installing on the gas feed to the fire feature.
The gas inlet on the pan is 3/4″.
- 30″ Diameter Pan with a 24″ Burner – 297,000 BTU rating – 75lbs of fire glass.
- 36″ Diameter Pan with a 24″ Burner – 297,000 BTU rating – 108lbs of fire glass.
Details
- Made from 304-grade Stainless Steel.
- Includes Key valve, Chrome cover plate, and Key
- Available for either Natural Gas or Propane (20lb tank)
- Push Button Spark Ignition Kit
We strongly recommend that all Gas Installations are performed by qualified professionals and that the installation conforms to all Local and State Codes
Round Flat Pan with Spark Ignition Kit – Downloads
Further information
All that’s remaining is to select your favorite fire glass to finish your fire pit project.
Warranty
Burner & Pans – 5 years from the date of purchase.
Fittings – 1 years from the date of purchase.
Ignition System & Parts– 1 year from date of purchase.
California Prop 65
Prop 65 Warning
WARNING: This product may contain compounds known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
