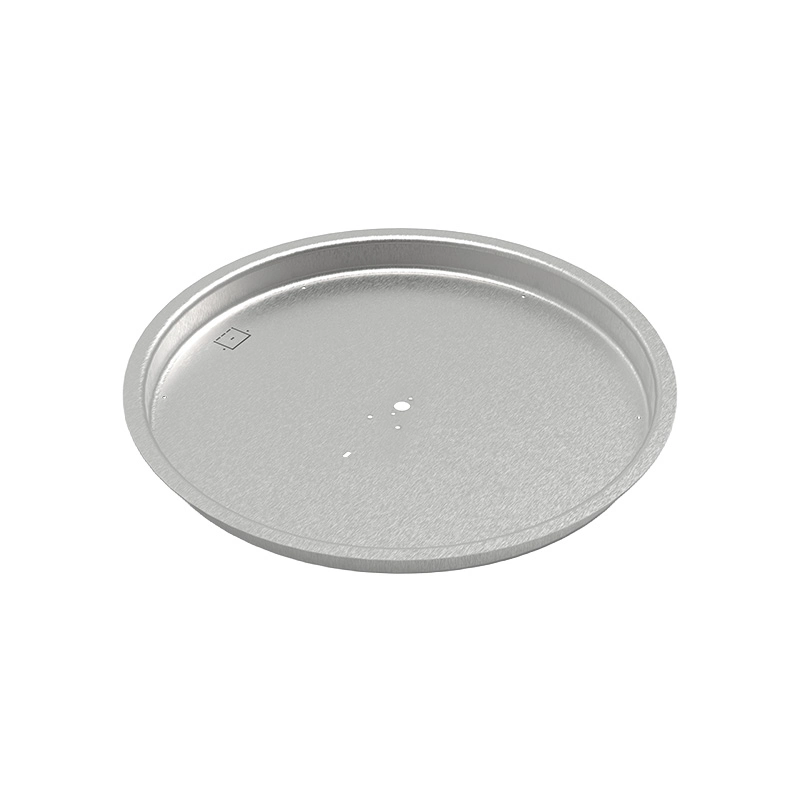

Round Drop-In Fire Pit Pan – Stainless Steel – by HPC Fire

SKU 570-RD Categories , Tag


Free Shipping Logo

Round Drop-In Fire Pit Pan – Stainless Steel – by HPC Fire

A Round fire pit pan with a range of sizes from 13″ to 43″ in diameter (excluding the rim).

The Pans are manufactured from 304-grade stainless steel and have a welded nipple for a durable connection between the fire ring and gas source. Suitable for use with either Natural Gas or Propane.

The trays are 2 3/8’s inches deep and have a 1 3/8’s -inch rim around the upper circumference of the pan.

Round Drop-In Fire Pit Pan - Stainless Steel - by HPC Fire

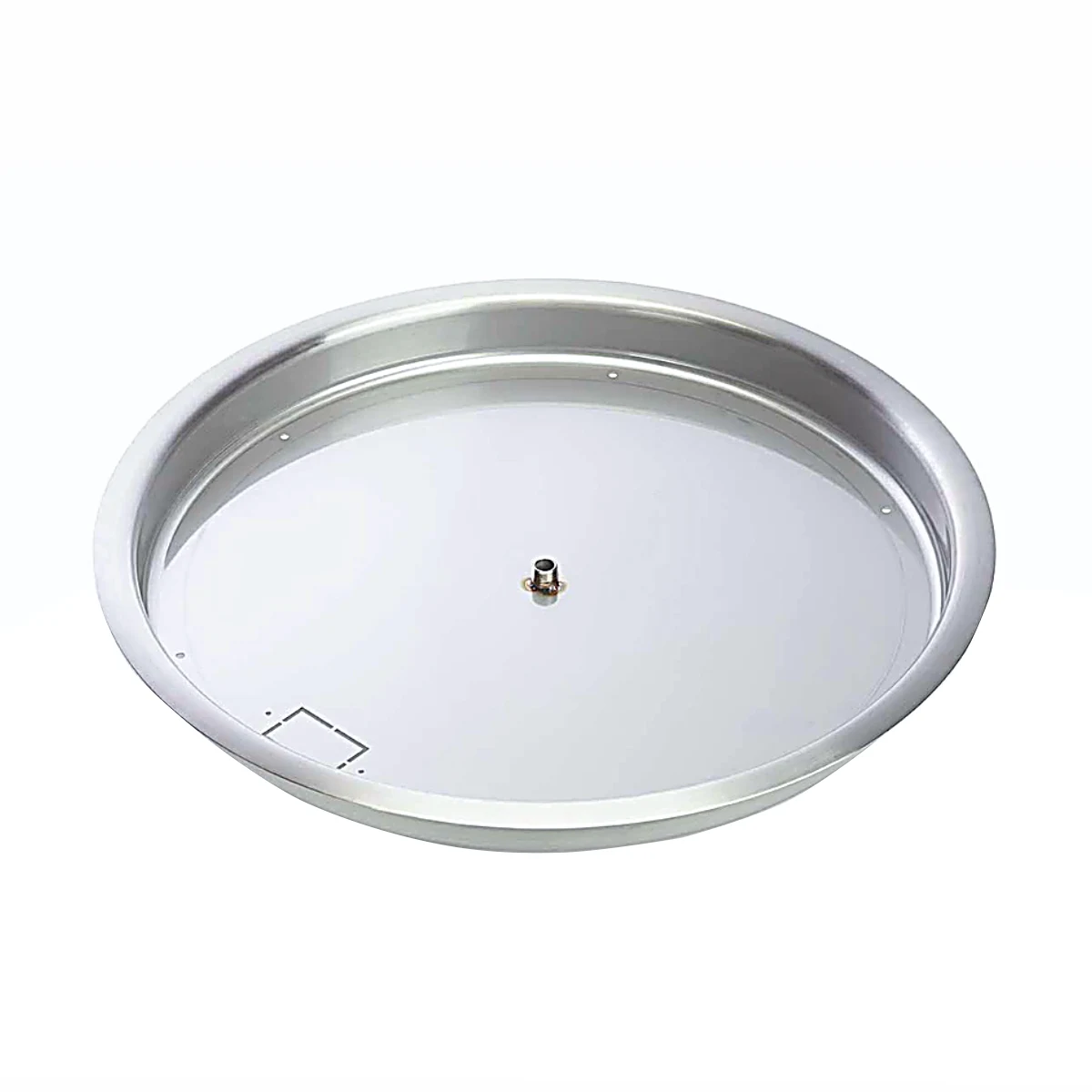

Three trays, the 507-31HC, 507-37HC, and the 507-43HC, are designed to accommodate larger High Capacity burners, which require a 3/4″ gas connection.

All the other sizes are designed for Standard Capacity burners ( SC ) and have a 1/2-inch gas connection.

Round Drop-In Fire Pit Pan – Stainless Steel – by HPC Fire Specification:

Round Fire Pit Insert Specification

Drop-In trays make the construction of the fire pit structure much simpler by providing a stable mounting for the burner, and a container to contain your fire glass or lava rock.

As the name suggests, they drop into a cutout within the top surface of the fire pit structure, sitting securely on the rim or lip of the pan.

These Round Fire Pit Pans have drainage holes drilled into the base to prevent them from filling with water.

When selecting a burner for the Round Fire Pit Insert, allow at least a 2-inch margin between the burner and the sidewall of the drop in-tray.

Select from our range of Fire Pit Burners to suit this pan.

The HPC Penta Gas Burner is the ideal partner for these trays.


Please note burners are sold separately.

Download HPC Product Catalog

Additional information

Weight 0.32000003527396587 lbs
Dimensions 0.0000 × 0.0000 × 0.0000 in
Select Size

25 Inch Diameter, 31 Inch Diameter, 13 Inch Diameter, 19 Inch Diameter, 31 Inch Diameter HC, 37 Inch Diameter HC, 43 Inch Diameter HC


HPC Fire

HPC Fire, over the years, has become synonymous with innovation and quality within the Fire Pit Industry. All their products are offered with a broad range of control and styling options. Their designs are elegant and packed with innovative technology. Like all leading manufacturers in the fire pit industry, stainless steel features strongly as their primary production material, allowing HPC Fire to back all of their burners and fire pit trays with a Lifetime Warranty. HPC Fire is proud that its product range carries the most CSA Certifications of any company in the industry. Of course, they are best known for their Penta Burner, which has gained almost a cult following due to its excellent performance when the gas is turned down low and its very realistic campfire-style flame pattern. HPC Fire manufacture very high-quality products with innovative technology and elegant designs. You can't go wrong using HPC Fire products as the basis of your fire pit project, whether for home installation or a commercial project.
