Round Drop-In Spark Ignition Fire Pit Kit – Flame Sensing Safety System

These Round CSA Certified Fire Pit Flame Sensing Kits are the perfect choice for both professionals and DIYers looking to create a high-quality outdoor fire pit. They are easy to install and offer convenient and hassle-free battery-operated Ignition.

Available in just 2 sizes, 19″ and 25″ diameter it comes equipped with an appropriately sized, round burner to ensure optimal flame performance.

The kits are for use in outdoor vented natural gas or propane Fire Features ONLY.

Key Features

• The Flame Sensing Technology enhances the safety of your fire pit by monitoring the flame’s presence. If the flame is extinguished, the system automatically shuts off the gas flow to prevent any hazards.
• The unit arrives pre-assembled. It is shipped ready for use with propane; the natural gas option comes with a simple conversion kit.
• The system features a battery-powered (AA), rapid spark ignition for quick and reliable fire pit lighting.

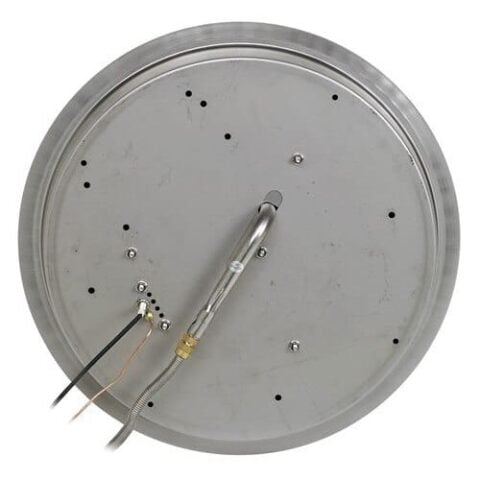

• Easy-to-install drop-in style pan – During the construction of your fire pit structure,  a cutout in the structure’s top surface will allow the pan to be dropped into position. The connections and plumbing are out of sight below the pan which can easily be removed for maintenance.

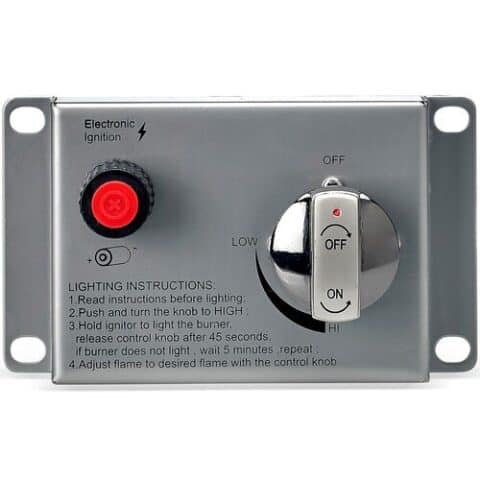

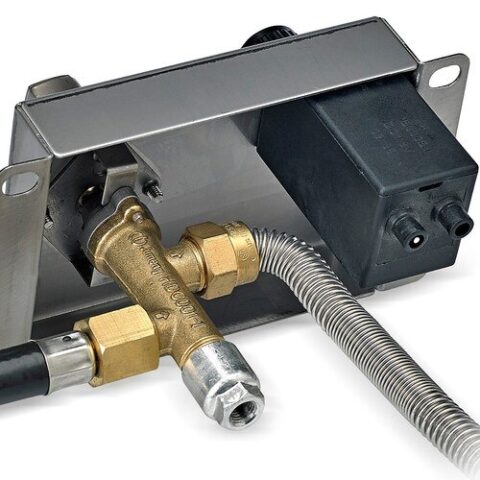

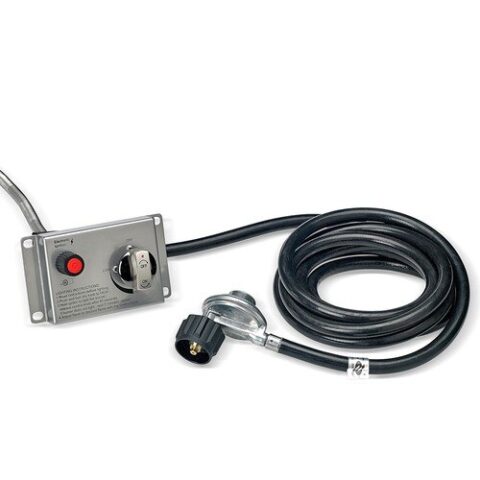

Ignition Control Panel

To turn on your fire pit, turn the control knob to the “on” position and push the red button. You can use the knob to control the flame height.

Product Specifications

The sizes below relate to the internal dimensions of the pan and exclude the 1.25″ wide lip/flange. The Pans are 2″ deep.

The Pan and Burner are manufactured from 304-grade stainless steel.

Dimensions and BTU Ratings

• 19″ Diameter Pan with 12″ Burner rated at 55,000 BTUs – 20″ diameter cutout and 30lbs of fire glass
• 25″ Diameter Pan with 12″ Burner rated at 55,000 BTUs – 26″ diameter cutout and 50lbs of fire glass

The fire glass quantities are the manufacturer-recommended quantities.

Installation by a Certified NFI Professional Recommended

CSA Certification

CSA certification ensures that an accredited laboratory has thoroughly tested a product to meet safety standards. Local authorities may require this certification, especially for fire pits used in commercial and public settings.

Warranty

Qualifies for the American Fire Glass Lifetime Guarantee.
