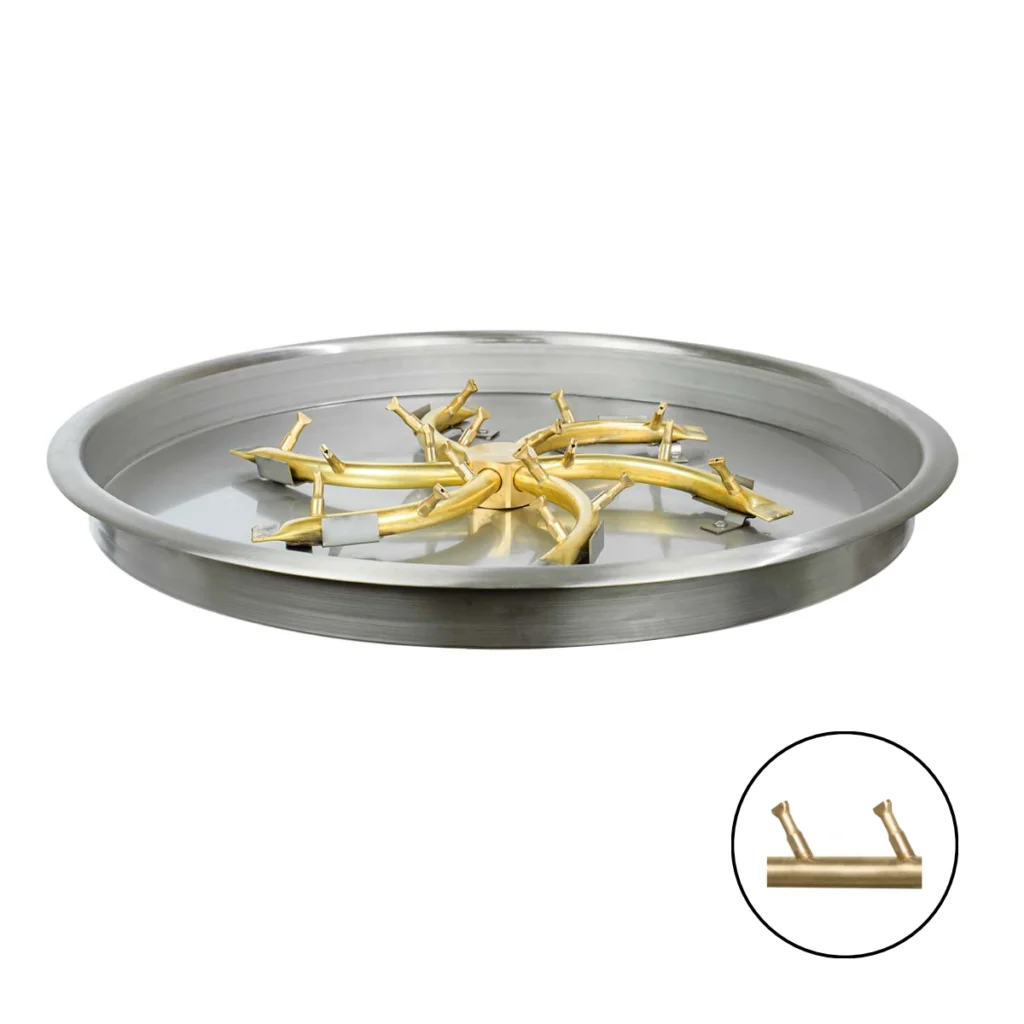

Round Drop In Fire Pit Pan with Triple S Brass Bullet Burner

The Outdoor Plus
Part #: OPT-BPxRD

$600.00$2,422.00

Free Shipping Small Logo
Within 48 Contiguious States
Product Description
Product Reviews

Round Drop In Fire Pit Pan with Triple S Brass Bullet Burner ​

By combining a Drop-In Pan with a Brass Bullet Burner, The Outdoor Plus Company has created a very durable, easy-to-install, and virtually maintenance-free unit.

The Brass Bullet Burner is a patented technology that creates a much bigger flame than the standard burner.

The Bullet Burner consumes considerably less gas to achieve an equivalent-sized flame with a standard Burner!

The Original All Brass Triple S Bullet Burner

The Original All-Brass Bullet Burner

Bullet Burner

This amazing flame is created by patented technology that evenly distributes the gas to all ports of the burner via the Hexagonal Uniform Hub. The precisely placed Bullet orifice provides the most efficient and effective flame by compressing the gas flow and forcing it out via the Flame Spreader.

The Bullet Orifice eliminates the need for an Propane Air Mixer when using Propane.

These burners are also available with LC Certification if required and are fitted with a 1/2-inch gas input.

Bullet Burner vs Standard Fire Pit Burner Flame Height Comparison

Standard Burner Flame vs. Bullet Burner Flame

Drop-In Pan

Manufactured from 304 Grade Stainless Steel, Drop-In pans are the ideal solution for some fire pit projects. They are durable, easy to install and maintain, and can considerably reduce the quantity of fire glass needed to finish off the project.

The Pan drops into an opening within the fire pit’s top surface. The opening or cut-out is made only slightly wider than the pan’s base allowing it to drop through the opening whilst allowing the lip to sit upon the structure’s top surface, supporting the pan.

The Round Fire Pit Pan and Burner come in 6 sizes ranging from 13 inches in diameter to 43 inches, the lip is 1″ wide and the pan depth is 2.5″.

The Pan Size includes the 1″ Lip dimension.

Sequoia Fire Pit-60-x-16-with Ebony finish

A drop-in pan simply drops into the top surface of the structure, resting upon and supported by the lip!

Fire Pit Pan and Burner Specifications

The 13″, 19″, 25″ and 31″ diameter pans have a ½” gas inlet.
The 37″ & 43″ diameter Pans have a ¾” gas inlet.

● 13″ Pan with 8″ Burner – BTU Rating 50,000

● 19″ Pan with 12″ Burner – BTU Rating 75,000

● 25″ Pan with 18″ Burner – BTU Rating 110,000

● 31″ Pan with 24″ Burner – BTU Rating 145,000

● 37″ Pan with 30″ Burner – BTU Rating 180,000

● 43″ Pan with 36″ Burner – BTU Rating 220,00

Triple S Brass Bullet Burner Diagram

Warranty

All burners have a Lifetime Warranty from The Outdoor Plus

Stainless Steel Pans have a 1-Year warranty for Commercial use and a 5-Year Warranty for Residential use.

Pan & Burner Specs & Manual Downloads

Bullet Burner Manual

Round Drop-In fire Pit Pan with Triple S Bullet Burner Spec Sheet

The Outdoor Plus – Bullet Burner Test – Video

https://themagicoffire.com/wp-content/uploads/2019/01/Bullet-Burner-Test-2.mp4

Prop 65WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the state of California to cause cancer, and Carbon Monoxide, Lead and Lead Compounds which are known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
