Rectangular Drop In Fire Pit Pan with Linear Bullet Burner by The Outdoor Plus

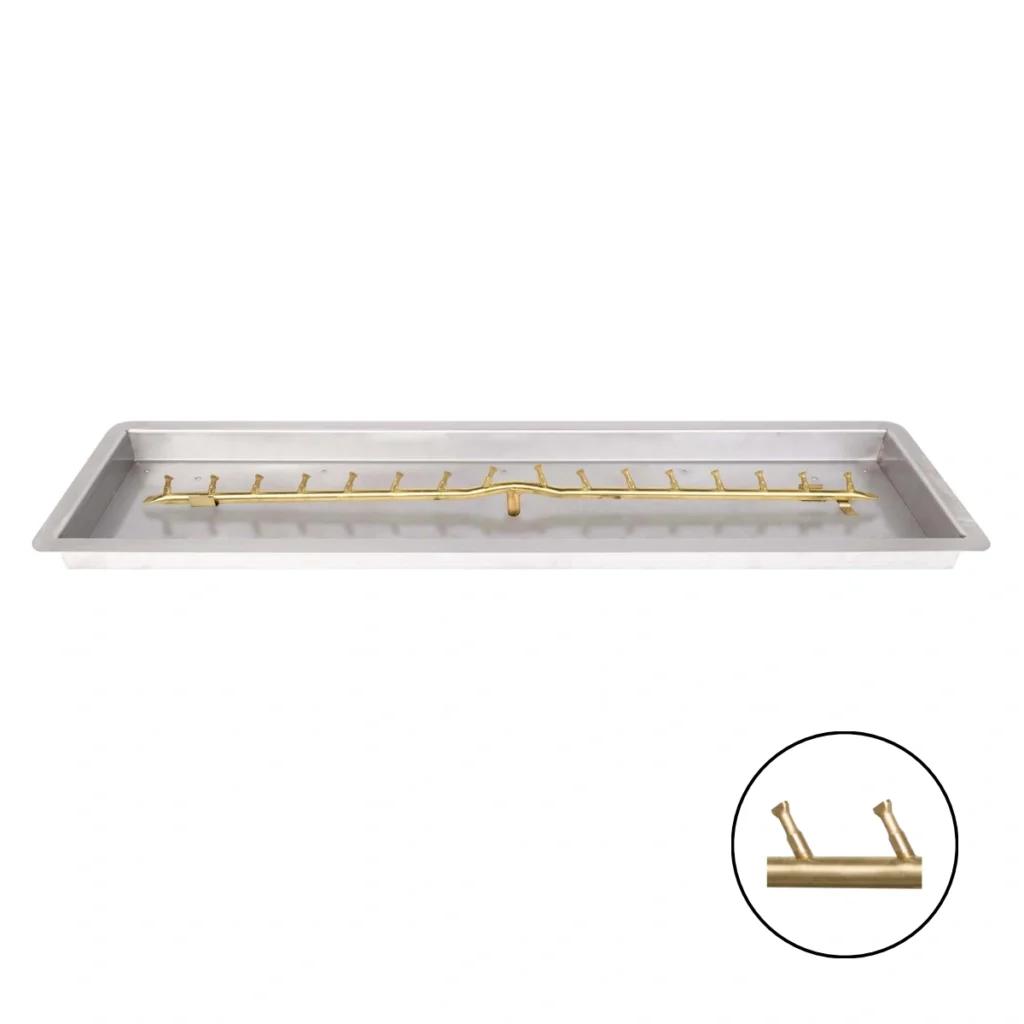

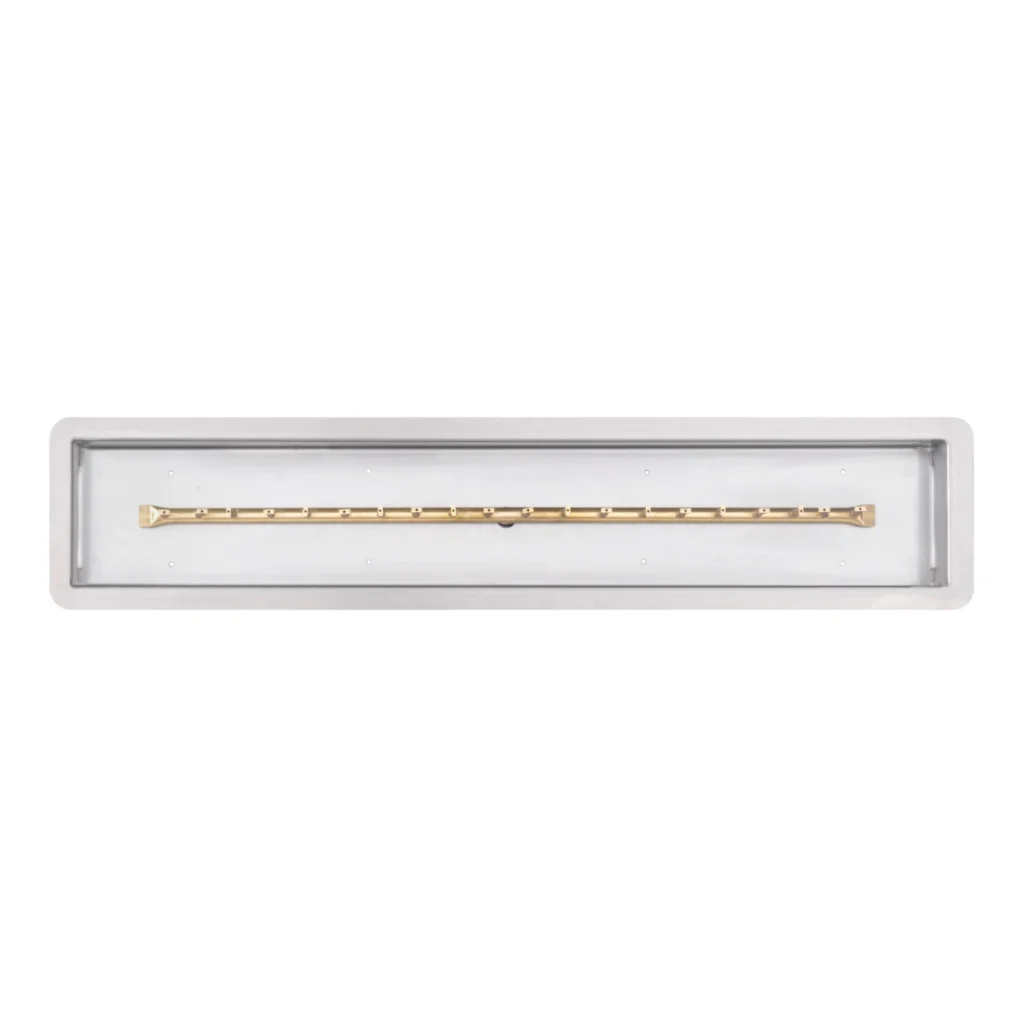

Rectangular Drop In Fire Pit Pan with Linear Bullet Burner

With this model, the width of the pan remains constant throughout the range of sizes with a  Bullet T-Burner running down its length. This design is ideal for long and narrow fire pits and fire tables.

The Drop-In style is an excellent way to simplify your fire pit design and construction. The pan provides a stable platform for the burner, neatly contains your fire glass and all pipework and connections can be hidden within the fire pit structure below. If maintenance is required, it can be easily removed to provide access to the plumbing.

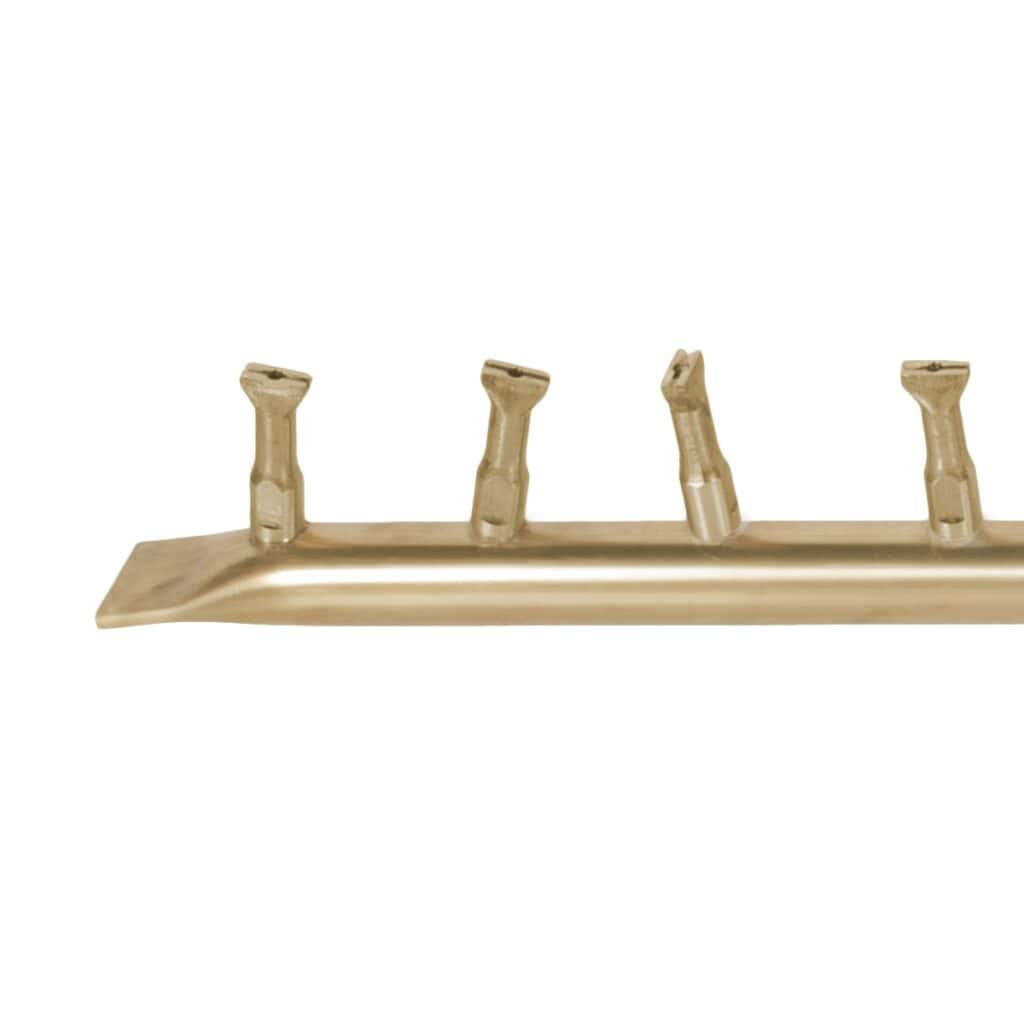

The unique Patented Bullet Burner from The Outdoor Plus produces 50% more flame than an equivalent standard burner and is available in Brass or Stainless Steel (SS). Click the link to view the SS version.

For more information on the pros and cons of the two materials please read the information provided on the Bullet Burner page.

If you are using propane you do NOT need an air mixer valve with a Bullet Burner.

Rectangular Drop In Fire Pit Pan with Linear Bullet Burner Specifications

Available in 7 sizes ranging from 24″ x 8″ to 96″ x 8″.

The Pans are manufactured from 304-grade Stainless Steel for durability with weep holes for drainage.

The sizes relate to the internal dimensions of the pan (base) and do not include the 1″ lip or flange. The pans are 2″ deep.

• Pan Size 24″ x 8″ – Burner 18″- BTU rating 40,000 – Gas inlet 1/2″
• Pan Size 36″ x 8″ – Burne 24″ – BTU rating 50,000, – Gas inlet 1/2″
• Pan Size 48″ x 8″ – Burner 36″ – BTU rating 75,000 – Gas inlet 1/2″
• Pan Size 60″ x 8″ – Burner 48″ – BTU rating 100,000 – Gas inlet 1/2″
• Pan Size 72″ x 8″ – Burner 60″ – BTU rating 120,000 – Gas inlet 3/4″
• Pan Size 84″ x 8″ – Burner 72″ – BTU rating 145,000 – Gas inlet 3/4″
• Pan Size 96″ x 8″ – Burner 84″ – BTU rating 170,000 – Gas inlet 3/4″

Warranty

Lifetime Warranty on the Burner

Downloadable Specs & Technical Drawing:

Drop In Fire Pit Pan with Linear Bullet Burner Spec Sheet.
