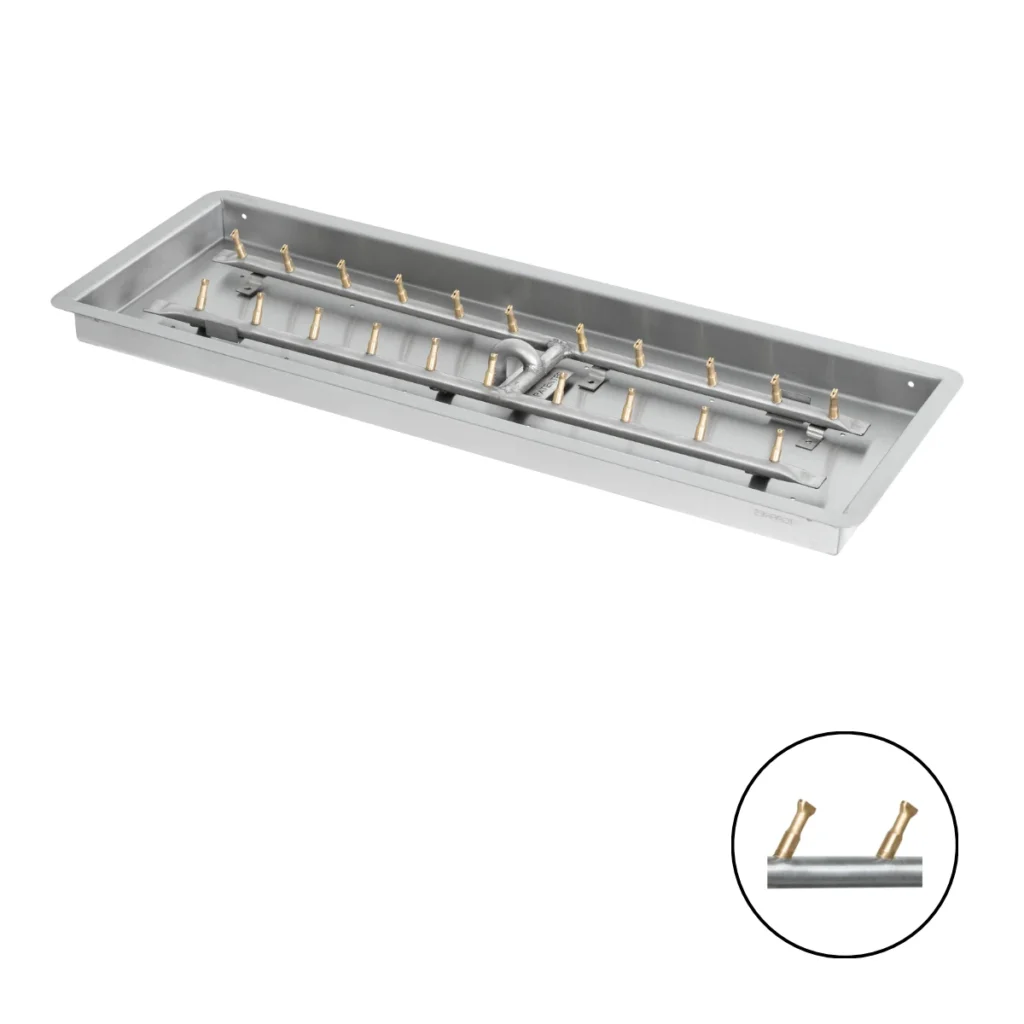

Rectangular Drop In Fire Pit Pan with Stainless Steel Bullet Burner
Rectangular Drop In Fire Pit Pan with Stainless Steel Bullet Burner
This pan and burner combo by the Outdoor Plus Pans offers a unique combination of striking aesthetics, efficiency, and craftsmanship, appealing for residential and commercial projects seeking efficient and visually captivating outdoor fire features.
Key Features
- Flame Height: Twice the height of standard burners, enhancing the aesthetics.
- Efficiency: More gas-efficient when producing the same-sized flame as standard burners.
- Handcrafted: Crafted by The Outdoor Plus Company with meticulous attention to detail and superior quality, distinguishing them from conventional options.
- Gas Compatibility: Suitable for natural gas or propane without needing an Air Mixer Valve for propane use.
Rectangular Drop In Fire Pit Pan with Stainless Steel Bullet Burner Specifications:

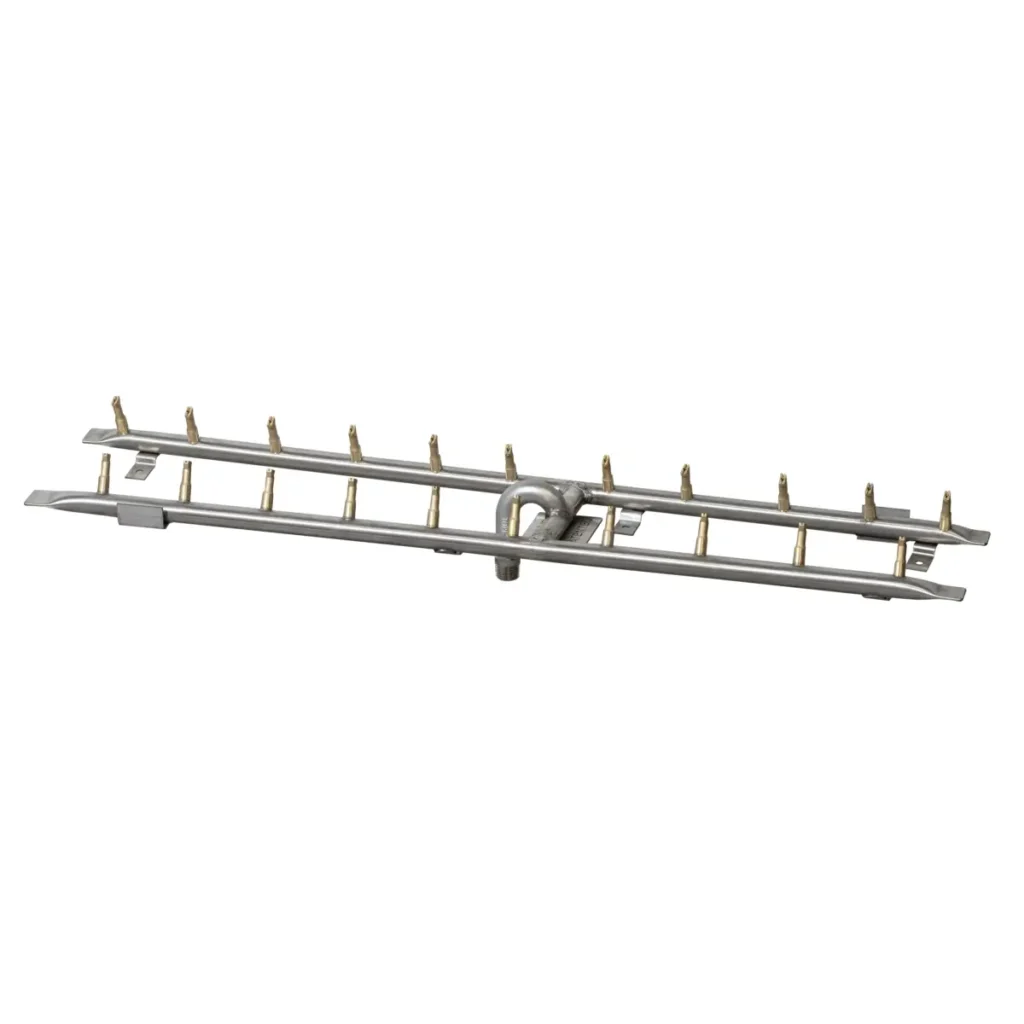

The Drop-In Pan is crafted from durable 304 stainless steel and features an H-burner made of the same high-quality material, with brass bullet tips for enhanced performance.
The pan sizes range from 24″ to 96″ long with a constant width of 12″. As the fire pit pans increase in length, the burner also grows longer, however, the burner maintains a consistent 6″ width across all size options.
The H-burners of the 72″, 84″, and 96″ length pans have an additional crossbar(H) with a gas inlet for proper gas distribution and require a manifold.
The clearance needed below the pans is 10″ however, this increases to 15″ for the larger sizes that require a manifold.
Details:
The sizes correspond to the internal length and width, excluding the 1″ lip. Each pan has a depth of 2.5″.
- Size 24″ x 12″ with 18″ x 6″ Burner rated at 85,000 BTUs – 1/2″ Gas Inlet
- Size 36″ x 12″ with 24″ x 6″ Burner rated at 110,000 BTUs – 1/2″ Gas Inlet
- Size 48″ x 12″ with 36″ x 6″ Burner rated at 160,000 BTUs – 1/2″ Gas Inlet
- Size 60″ x 12″ with 48″ x 6″ Burner rated at 205,000 BTUs – 1/2″ Gas Inlet
- Size 72″ x 12″ with 60″ x 6″ Burner rated at 255,000 BTUs (Manifold) – 3/4″ Gas Inlets
- Size 84″ x 12″ with 72″ x 6″ Burner rated at 300,000 BTUs (Manifold) – 3/4″ Gas Inlets
- Size 96″ x 12″ with 84″ x 6″ Burner rated at 350,000 BTUs (Manifold) – 3/4″ Gas Inlets
Warranty:
- Burner: Lifetime Warranty.
- Stainless Steel Pan: Residential 5-Years, Commercial 1-Year
