Rectangular Flat Fire Pit Pan with Linear Burner by The Outdoor Plus

Rectangular Flat Fire Pit Pan with Linear Burner by The Outdoor Plus

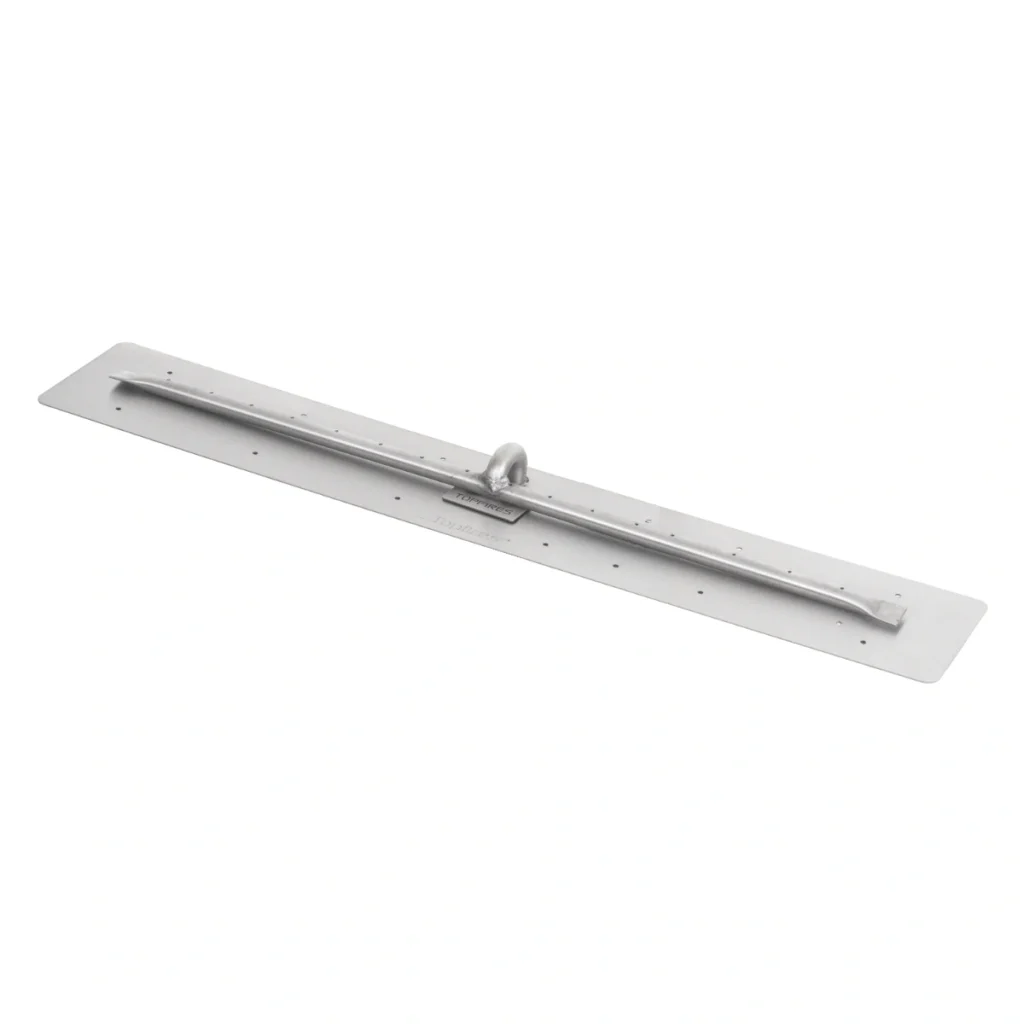

Perfect for long, narrow fire pits and tables, this linear setup features an aluminum pan available in two widths – 6″ or 8″ – and offers nine length options ranging from 24 to 96 inches. The pan is equipped with a Linear Bullet T-Burner.

Compatible with both natural gas and liquid propane setups, this system requires an air mixer when using propane for optimal performance.

The Standard Burner offers a lower BTU rating than the equivalent size Bullet Burner version of this model.

Rectangular Flat Fire Pit Pan with Linear Burner Specifications

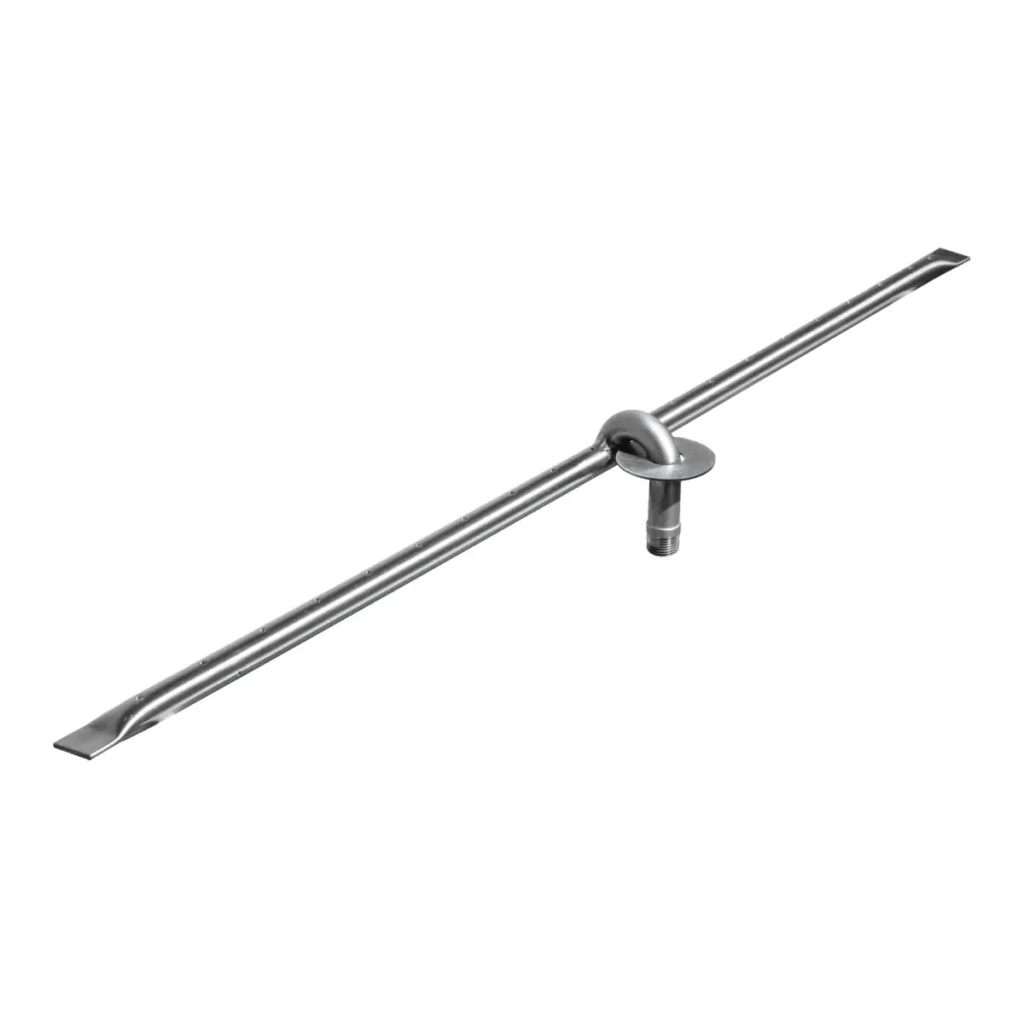

The Flat Pan is crafted from durable aluminum, paired with a Standard T-Style Linear Burner made from high-quality 304 stainless steel.

Choose from 9 lengths, each available in 6″ or 8″ widths.

Gas Inlet: All pans feature a 1/2″ inlet, except for the 96″ long pan, which comes with a 3/4″ inlet.

• 24″ x 6″ Pan with 18″ Burner – BTU’s 30,000
• 24″ x 8″ Pan with 18″ Burner – BTU’s 30,000
• 30″ x 6″ Pan with 24″ Burner – BTU’s 40,000
• 30″ x 8″ Pan with 24″ Burner – BTU’s 40,000
• 36″ x 6″ Pan with 30″ Burner – BTU’s 50,000
• 36″ x 8″ Pan with 30″ Burner – BTU’s 50,000
• 42″ x 6″ Pan with 36″ Burner – BTU’s 60,000
• 42″ x 8″ Pan with 36″ Burner – BTU’s 60,000
• 48″ x 6″ Pan with 42″ Burner – BTU’s 70,000
• 48″ x 8″ Pan with 42″ Burner – BTU’s 70,000
• 60″ x 6″ Pan with 48″ Burner – BTU’s 80,000
• 60″ x 8″ Pan with 48″ Burner – BTU’s 80,000
• 72″ x 6″ Pan with 60″ Burner – BTU’s 100,000
• 72″ x 8″ Pan with 60″ Burner – BTU’s 100,000
• 84″ x 6″ Pan with 72″ Burner – BTU’s 120,000
• 84″ x 8″ Pan with 72″ Burner – BTU’s 120,000
• 96″ x 6″ Pan with 84″ Burner – BTU’s 140,000
• 96″ x 8″ Pan with 84″ Burner – BTU’s 140,000

Warranty:

• Burner: Lifetime Warranty.
• Aluminum Pan: Residential 5-Years, Commercial 1-Year

Rectangular Flat Fire Pit Pan with Linear Burner Downloadable PDFs

Rectangular Flat Fire Pit Pan with Linear Burner Specification Sheets

General Fire Pit Manual
