Mesa Hammered Copper Gas Fire and Water Bowl by HPC

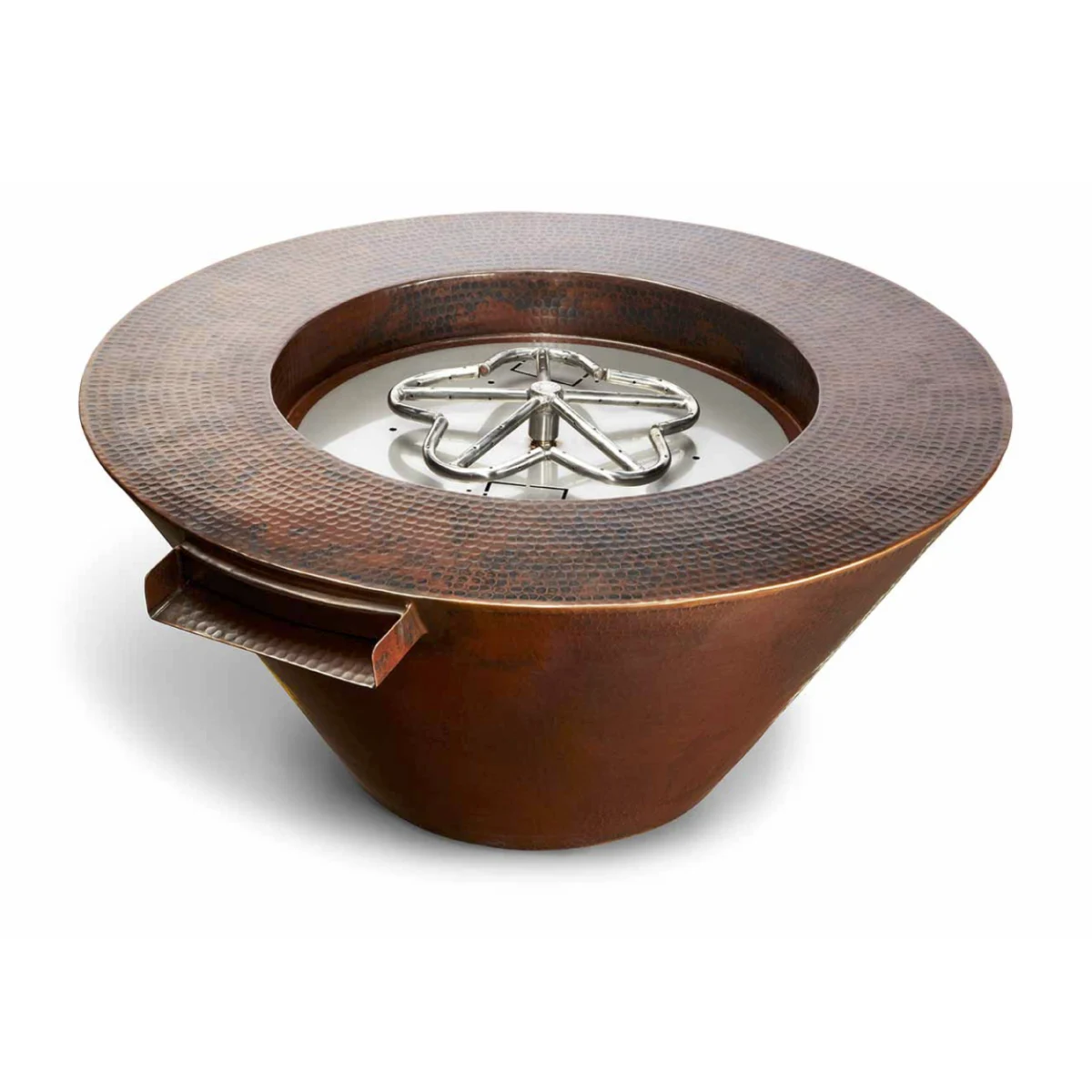

Mesa Hammered Copper Gas Fire and Water Bowl

Enhance your outdoor atmosphere with this stunning outdoor fire & water feature. Hand-hammered with an oil-rubbed finish, it embodies the enduring charm of copper, becoming a captivating centerpiece worthy of any backyard or patio setting.

The combination of two powerful elements, fire and water results in a spectacular outdoor feature.

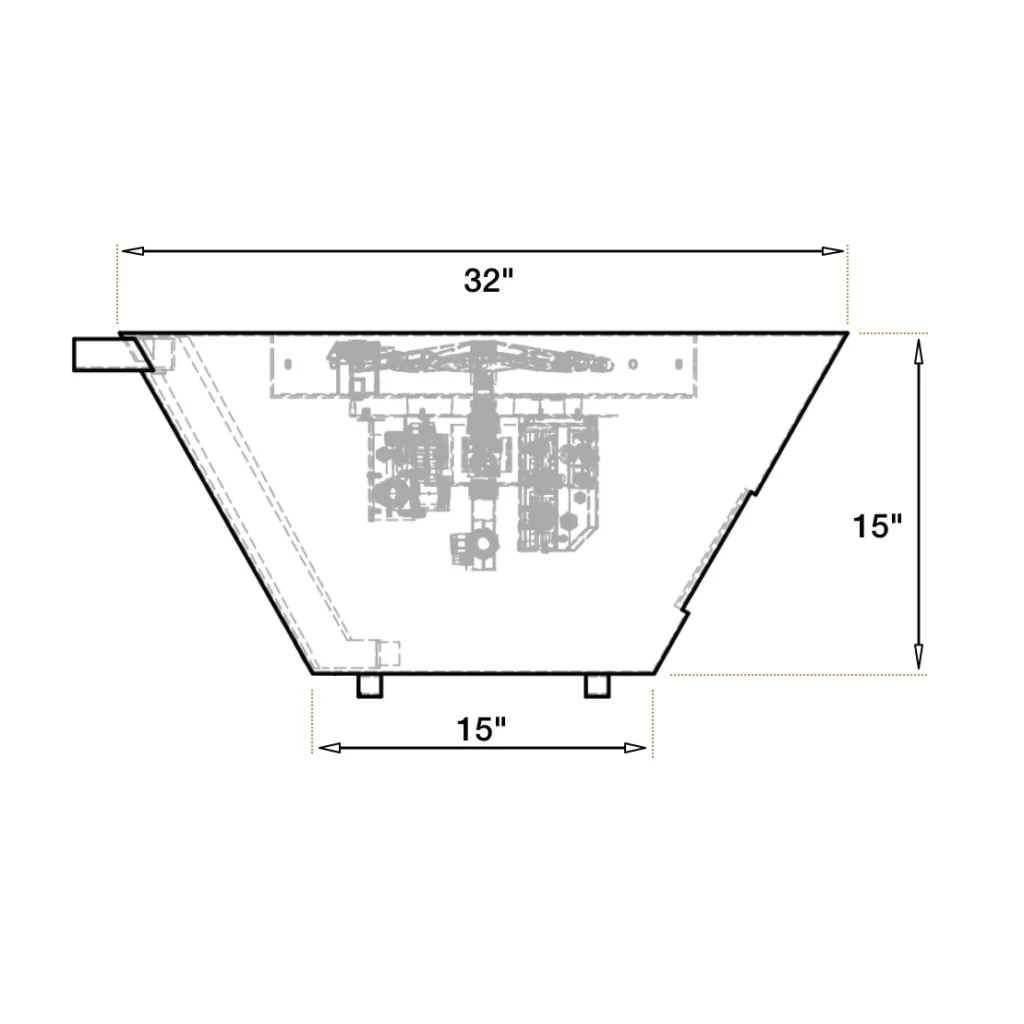

The tapered design of the CSA-certified Mesa Hammered Copper Gas Fire and Water Bowls measures 32 inches in diameter across the top, 15 inches in diameter at the base, and stands 15 inches tall.

The Mesa is also available without the water scupper. See the Mesa Hammered Copper Gas Fire Pit Bowl listing for details.

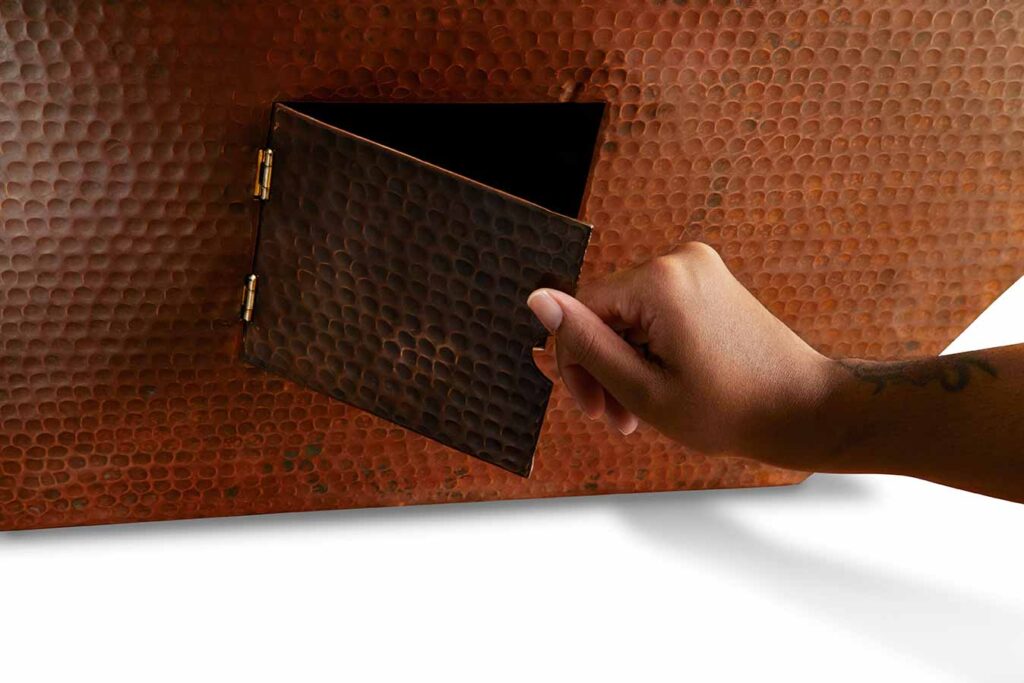

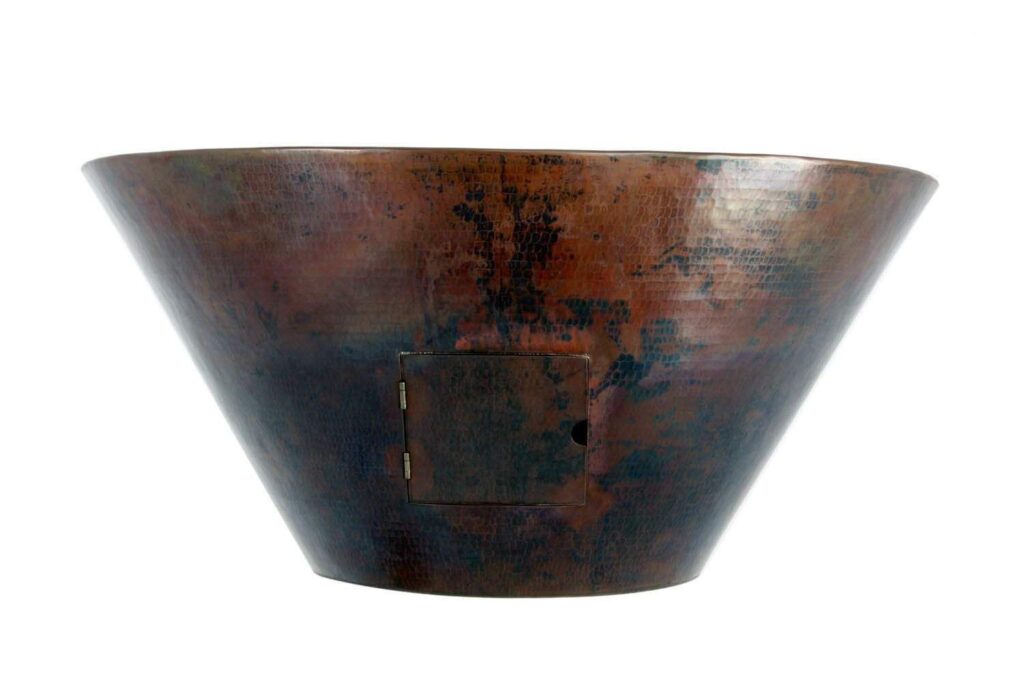

The round fire bowl incorporates a side door allowing access for maintenance and easy lighting of the fire feature.

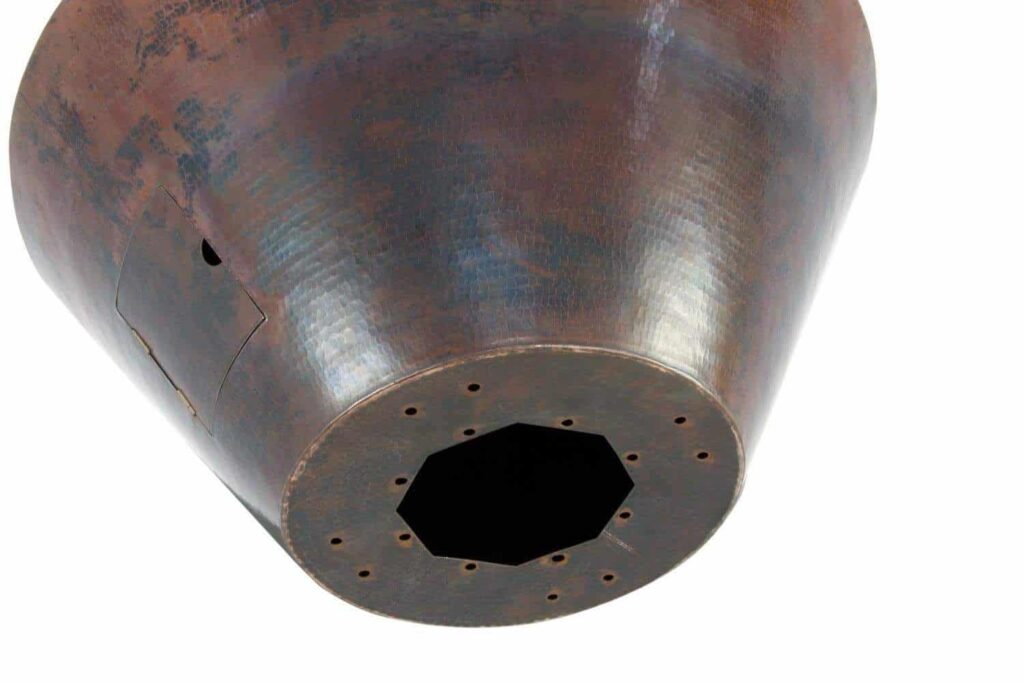

Spacers are provided to raise the bowl by at least 3/4″, facilitating proper ventilation through the hole in the base. This design ensures effective cooling of the equipment, maintaining optimal performance.

The Mesa Hammered Copper Gas Fire and Water Bowl Oiled Finish

Options

Gas

Propane or Natural Gas. The Electronic Ignition Model is not for use with small LP Tanks and must utilize permanent, fixed piping for fuel supply.

Burner

There are two options, the Standard or Torpedo Burner. For more information on the difference between the two please see the Torpedo Burner page.

Ignition

Match-Lit

Match Lit Ignition is the simplest way to light a fire feature.

A 1/4 Turn Gas Valve is located behind the access door of the Mesa Hammered Copper Gas Fire and Water Bowl. Open the gas valve and use a lit taper to light the burner.

An easily accessible gas shutoff must also be installed outside the fire feature for maintenance, and to ensure rapid emergency shutdowns.

Electronic Ignition On/Off

The CSA Certified Electronic Ignition (EI) System, provides the highest degree of safety and control of your gas fire pit.

This system enables the user to turn on & off the fire pit via a wall switch, timer switch, or into a compatible smart home system (not included). Alternatively, it can be through a hand-held remote control (add-on).

While you and your family enjoy the fire pit, the Electronic Ignition System monitors the flames’ status. Should a flame loss occur, the system will turn off the gas flow, and automatically commence the ‘Start’ sequence to relight the burner.

A gas shutoff must be installed to ensure quick access for emergency shutdowns and maintenance, it should not be utilized to adjust flame height.

The Electronic Ignition Mesa Hammered Copper Gas Fire and Water Bowls are available in the 12VAC or 24VAC configuration and will require a corresponding Power Supply. HPC recommends using the HPC/SEBCO 100W Power Supplies.

Mesa Hammered Copper Gas Fire and Water Bowl Specifications:

• 32 Inches in diameter across the top
• 15 inches in diameter across the base
• 15″ high
• 12″ diameter Penta burner mounted into an 18″ diameter flat pan
• Rated at 50,000 BTUs
• CSA Certified
• Available in a Natural Gas or Propane version.
• Suitable for both Commercial and Residential installations.

Water Flow

• Water flow is estimated to be 700~900 GPH.
• It is recommended to put a valve after the pump to trim water flow if desired.
• Consult your pool or pond professional for line and pump sizing.

Certification

CSA Certified

Warranty

• Burners: Lifetime Warranty
• Electronics & Gas Valve: Commercial – 1 Year; Residential – 3 Years
• Pilot Assembly: Commercial – 1 Year; Residential – 2 Years
• Stainless Steel Pan & Valve Box: Commercial – 1 Year; Residential – 5 Years

Related Products

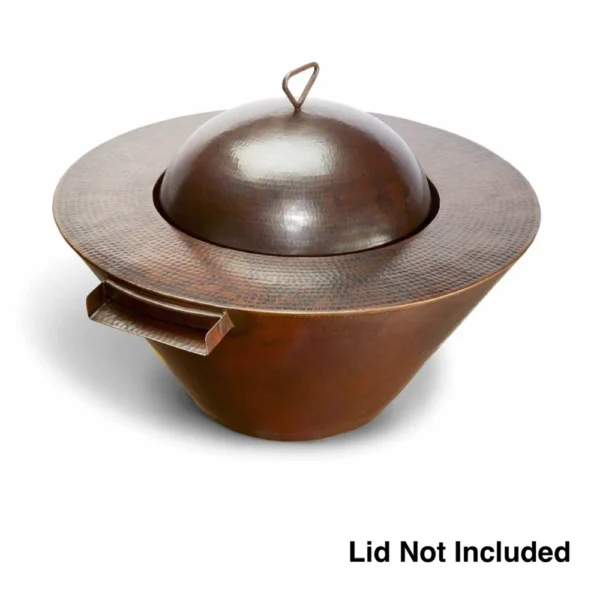

HPC also manufactures the Mesa Copper Fire Bowl Cover.

HPC Fire and Water Bowl Information:

Copper Fire & Water Bowl Installation & Operation Instructions

Mesa Fire Pit Drawings & Specifications

WARNING: This product can expose you to chemicals including LEAD AND LEAD COMPOUNDS, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/.
