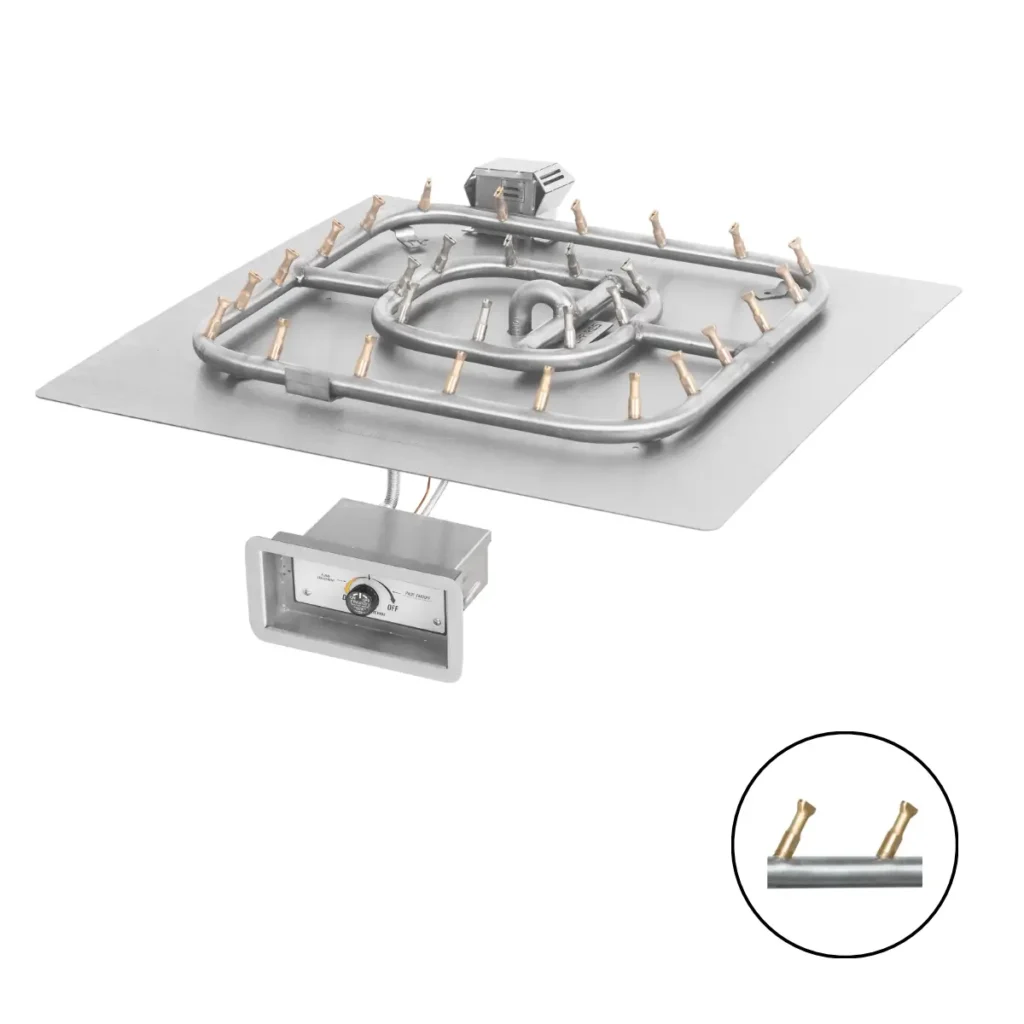

Match Lit Flame Sensing Square Flat Fire Pit Kit with Bullet Burner
Match Lit Flame Sensing Square Flat Fire Pit Kit with Bullet Burner
The Outdoor Plus’ Match-Lit Flame-Sensing Fire Pit Kits provide a user-friendly manual ignition system coupled with a key safety feature: an integrated flame sensor that automatically halts gas flow if the flame extinguishes, offering peace of mind for households.

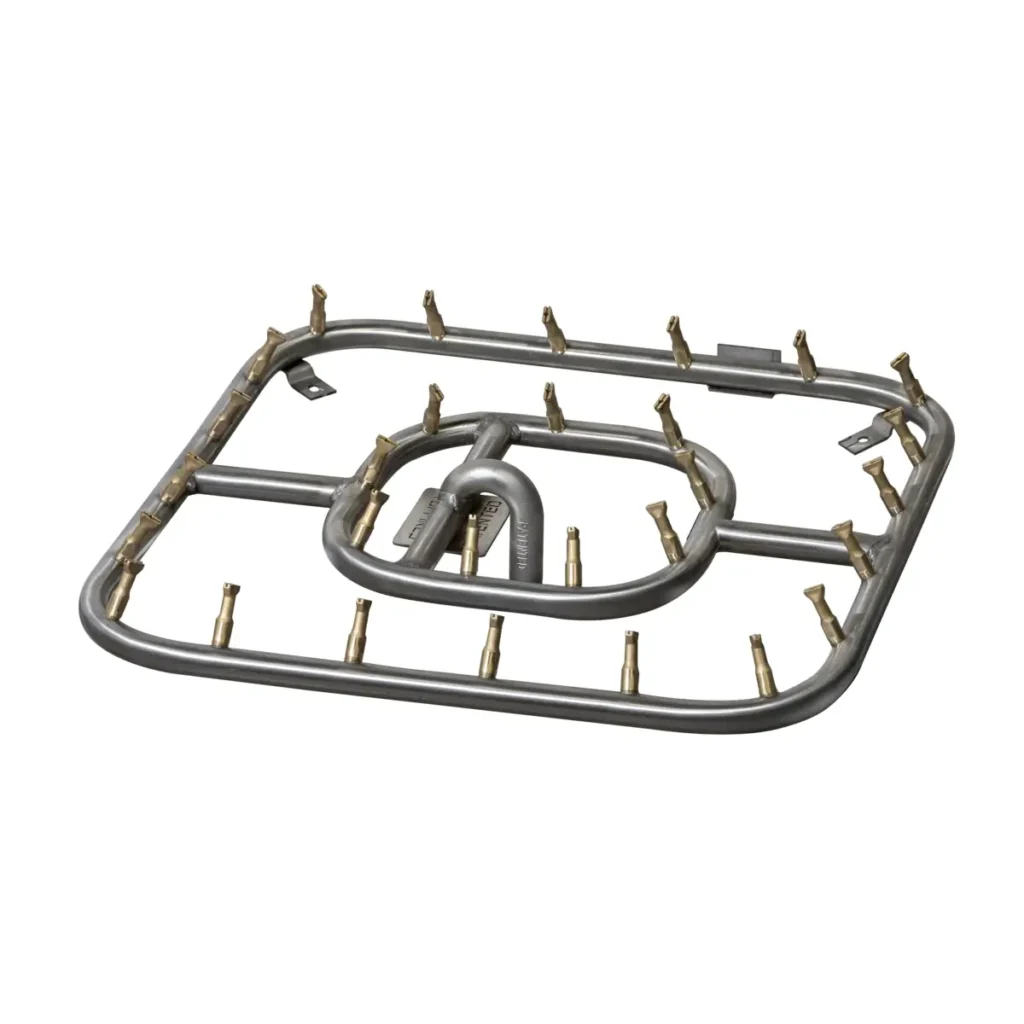

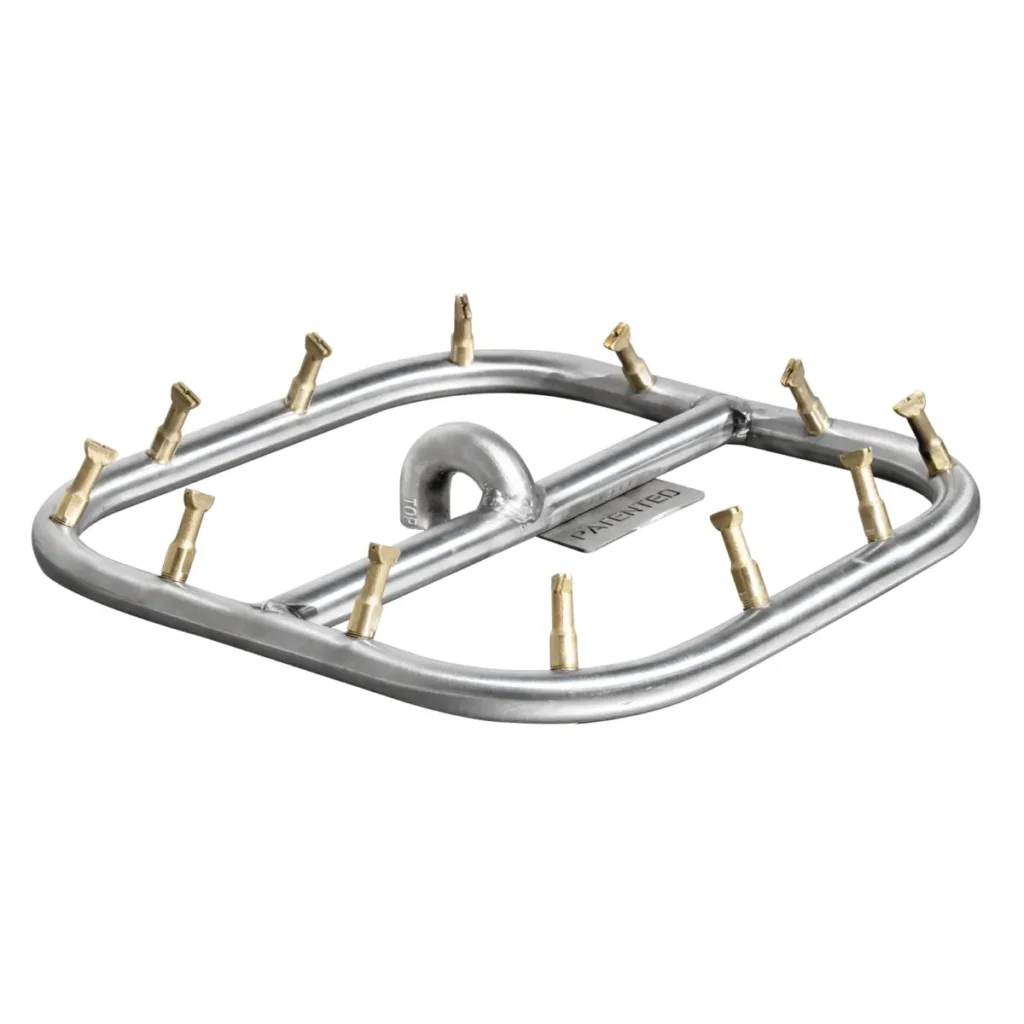

The durable Stainless Steel Square Bullet Burner, featuring new Aqua Guard water protection, delivers the same high performance as the all-brass version but at a more appealing price point.
Installation is streamlined with the gas valve box recessed panel and face plate, which delivers a polished, professional finish.
Features
- Match Lit Ignition
- Flame-Sensing Technology – Pilot Flame and Thermocouple
- Protective Gas Valve Box with accessible Control Panel
- Adjustable Flame Height via the Control Panel
- Patented Bullet Burner® Technology
- Patented Aqua Guard Technology
- Lifetime Warranty on the Burner
- LC Certified
Options
Select Size
Three sizes are available: 18″ x 18″ (with two single-ring burner options) and 24″ x 24″ with a double-ring burner.
Select Gas Type
The kits are available with options for use with natural gas or propane. Be sure to select the correct one for your setup; they are not interchangeable.
Match Lit Flame Sensing Square Flat Fire Pit Kit with Bullet Burner Specifications
The Flat Pan is crafted from high-quality Aluminum and is fitted with a .304 Stainless Steel Square Bullet Burner. The burner’s bullet tips remain Brass for enhanced performance.
Dimensions and BTU Ratings
- Size 18″ x 18″ with 8″ x 8″ Single-Ring Burner rated at 80,000 BTUs – 1/2″ Gas Inlet
- Size 18″ x 18″ with 12″ x 12″ Single-Ring Burner rated at 120,000 BTUs – 1/2″ Gas Inlet
- Size 24″ x 24″ with 18″ x 18″ Double-Ring Burner rated at 280,000 BTUs – 1/2″ Gas Inlet
Warranty
- Stainless Steel Pans: Commercial – 1 Year | Residential – 5 Years
- Bullet Burners are supplied with a Lifetime Warranty
- Electronics, Gas Valves, & Pilot Assembly: Commercial – 6 Months | Residential – 1 Year
Flat Pan Installation
Flat Pans require a built-in support structure, which typically takes the form of a collar around the inner parameter of the enclosure, ‘Z’ brackets, or a built-in shelf or recess.
Match Lit Flame Sensing Square Flat Fire Pit Kit with Bullet Burner Operation
- To Light: Simultaneously press the valve control knob and use a lit taper or kitchen lighter to ignite the pilot flame. Keep the valve control knob open for another 20 seconds or so. Turn the control knob to the ON position to light the main burner.
- Flame Adjustment: The flame height can be adjusted using the valve control knob.
- Shut Down: Turn control knob to the “OFF” position.
