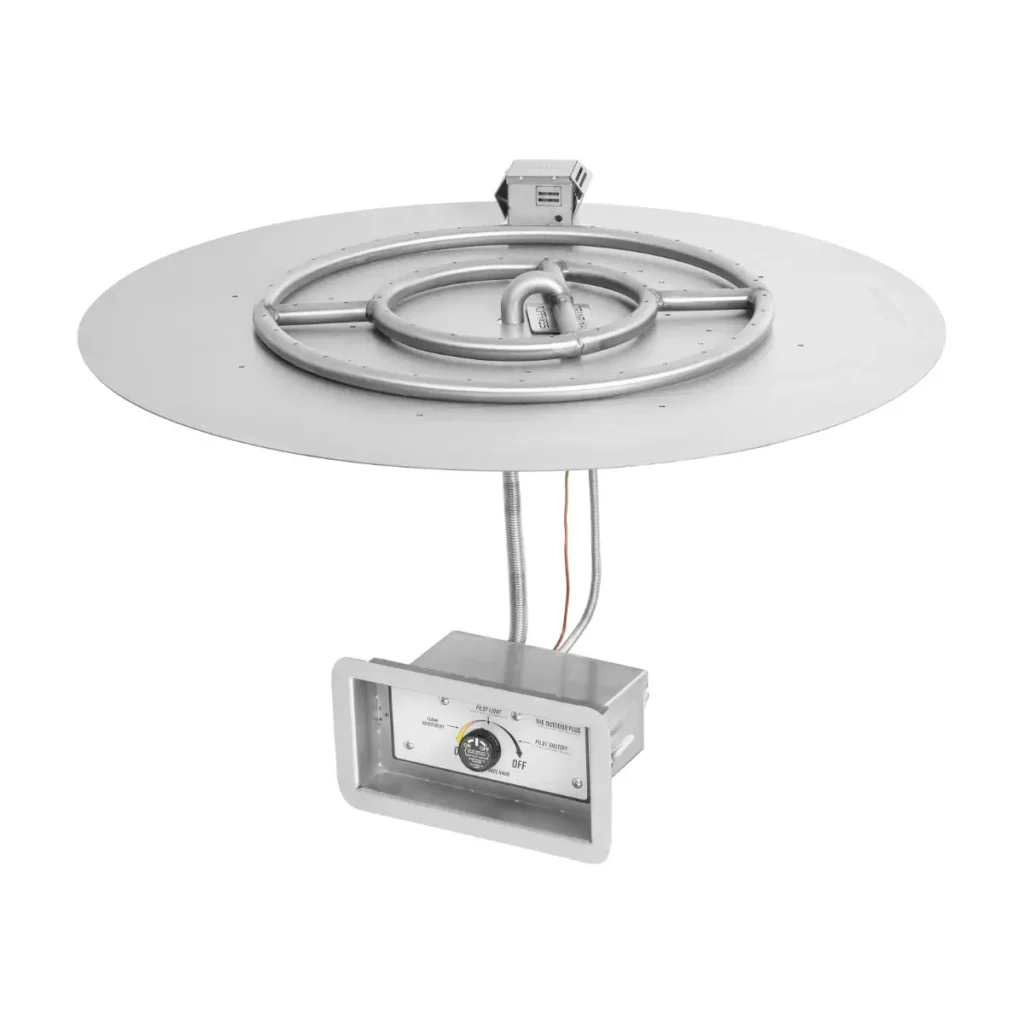

Match Lit Flame Sensing Round Flat Fire Pit Kit by The Outdoor Plus
Combining the convenience of Match-Lit Ignition with the added safety of a Flame-Sensing feature makes these kits an excellent choice for households. The family-friendly safety system automatically shuts off the gas flow to the main burner if the flame goes out, offering extra peace of mind.
The stainless steel round burner features the new Aqua Guard design for enhanced weather resistance and maintains a Lifetime Warranty.
A recessed panel with a face plate houses the valve box, simplifying installation and ensuring a polished, professional finish.
Features
- Match Lit Ignition
- Flame-Sensing Technology
- Protective Gas Valve Box with accessible Control Panel
- Adjustable Flame Height via the Control Panel
- Patented Aqua Guard Technology
- Lifetime Warranty on the Burner
- LC Certified
Options
Select Size
There are three sizes available: A 12″ diameter Pan with a 6″ single-ring Burner, an 18″ Pan with a 12″ single-ring Burner, and a 24″ Pan with an 18″ double-ring Burner.
Select Gas Type
The kits are available with options for use with natural gas or propane. Be sure to select the correct one for your setup; they are not interchangeable.
Match Lit Flame Sensing Round Flat Fire Pit Kit by The Outdoor Plus – Specifications
The Pan is crafted from high-quality Aluminum and is fitted with a .304 Stainless Steel Square Burner.
Dimensions and BTU Ratings

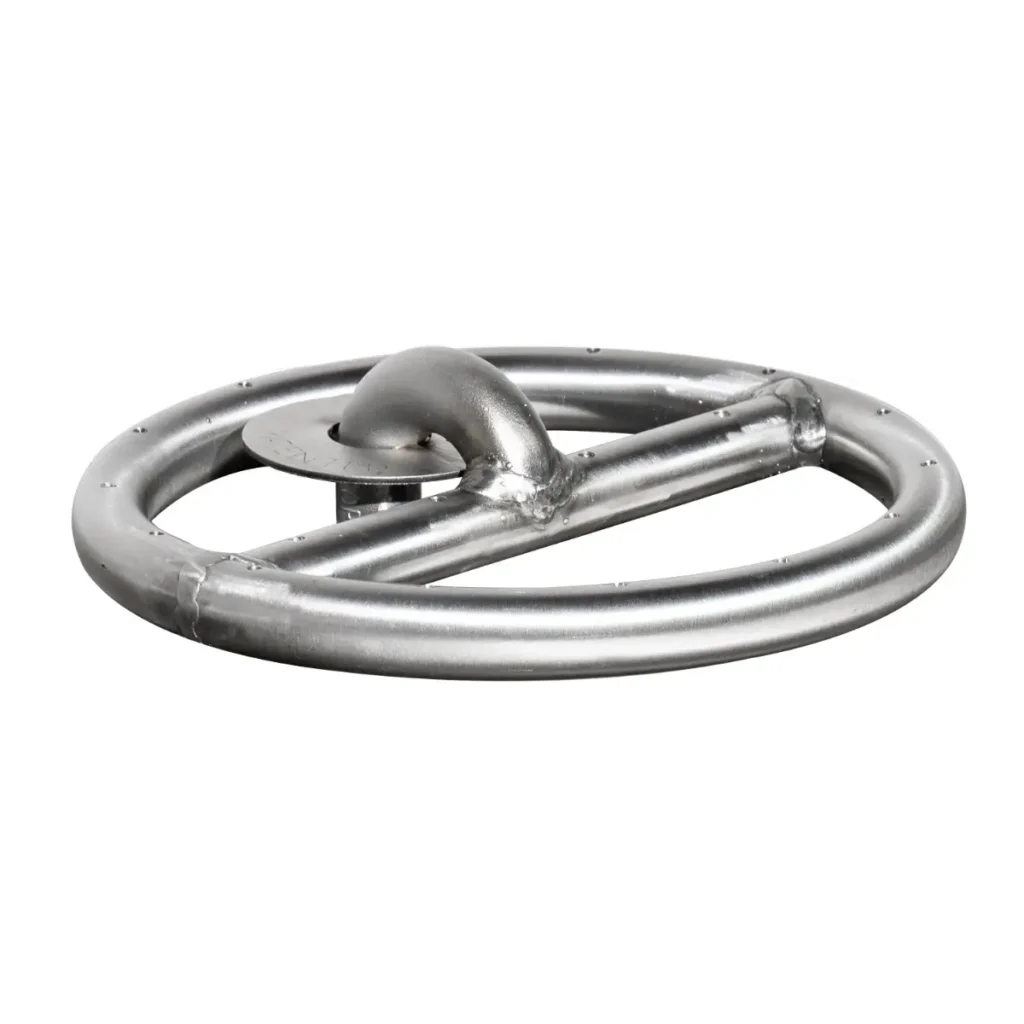

- Size 12″ diameter with 6″ Single-Ring Burner rated at 35,000 BTUs – 1/2″ Gas Inlet
- Size 18″ diameter with 12″ Single-Ring Burner rated at 65,000 BTUs – 1/2″ Gas Inlet

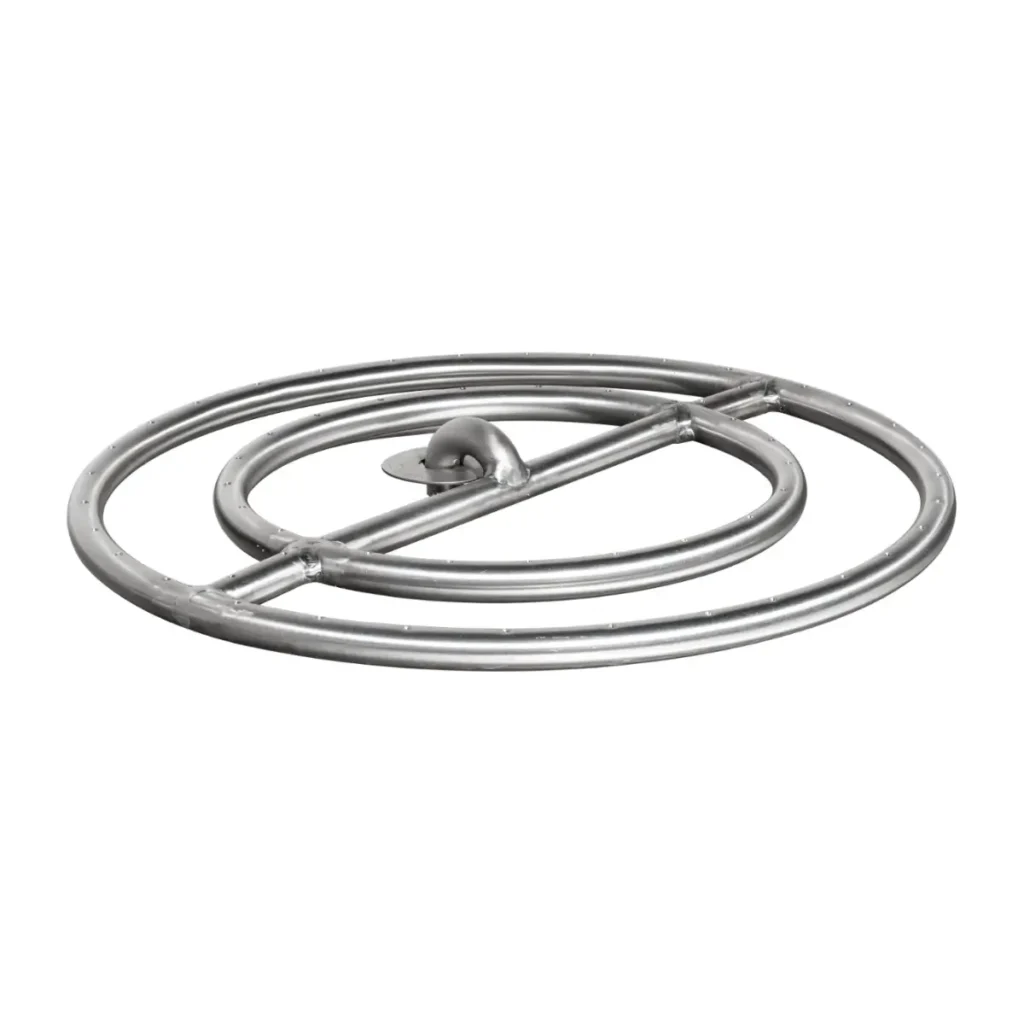

- Size 24″ diameter with 18″ Double-Ring Burner rated at 160,000 BTUs – 1/2″ Gas Inlet
Warranty
- Aluminum Pans: Commercial – 1 Year | Residential – 5 Years
- All Burners are supplied with a Lifetime Warranty
- Electronics, Gas Valves, & Pilot Assembly: Commercial – 6 Months | Residential – 1 Year
Flat Pan Installation
Flat Pans require a built-in support structure, which typically takes the form of a collar around the inner parameter of the enclosure, ‘Z’ brackets, or a built-in shelf or recess.
Match Lit Flame Sensing Round Flat Fire Pit Kit by The Outdoor Plus – Operation
- To Light: Simultaneously press the valve control knob and use a lit taper or kitchen lighter to ignite the pilot flame. Keep the valve control knob open for another 20 seconds or so. Turn the control knob to the ON position to light the main burner.
- Flame Adjustment: The flame height can be adjusted using the valve control knob.
- Shut Down: Turn control knob to the “OFF” position.
