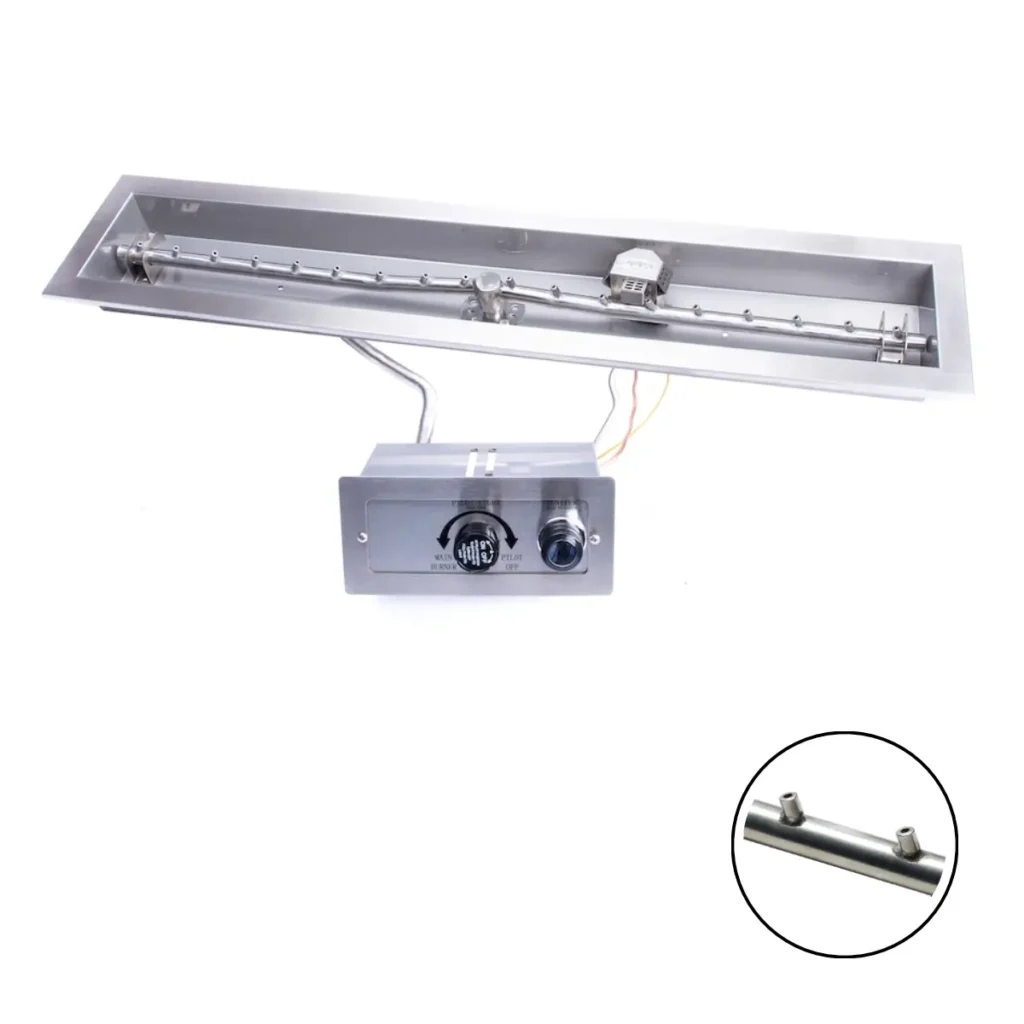

Linear Trough Torpedo Fire Pit Kit with Flame Sensing

Linear Fire Pit Trough with Torpedo Burner and Spark Probe Guard close up

Push Button flame sensing fire pit control panel by HPC

Torpedo Fire Pit Burner Vs. Standard Fire Pit Burner Flame

HPC Push Button Flame Sensing Valve Box Sleeve

Linear Trough Torpedo Fire Pit Kit with Flame Sensing Spark Ignition by HPC

SKU:

SKU: FPPKx-TRGH-FLEX-config

FROM:

$1,609.68 – $2,965.51

Select Size

Select Gas Type

Clear

Within 48 Contiguious States

Connect With Us!

Linear Trough Torpedo Fire Pit Kit with Flame Sensing Spark Ignition by HPC

At The Magic Of Fire, we highly recommend the Flame Sensing Push Button Spark Ignition range. It strikes an excellent balance of quality, safety, and value. Ideal for fire pits without electricity and a need for flame sensing, this CSA-certified range offers battery-powered push-button ignition.

Features

Fully assembled and ready to install.

Easy Installation.

The flame-sensing safety system will turn off the gas if the flame is extinguished.

Flame height is adjustable using a valve control knob.

The spark probes are protected by the blow-out box.

Battery-Powered Ignition (AA battery).

Torpedo Linear Burner.

LP version features Spider Guard screen around orifice/air mixer.

CSA Certified.

View the Torpedo Burners page for more information on the burner.

Operation

To Light: Press the Control Knob to start the pilot gas flow, then press the Ignition Push to create the spark to light the pilot, keeping the knob pressed in for 20 seconds. Turn the knob counterclockwise to light the main burner.

Flame adjustment: Use the control knob to adjust the flame height.

To Shut down: Lightly depress the knob and turn to the OFF position.

Linear Trough Torpedo Fire Pit Kit with Flame Sensing Specifications

The Kit comprises a pan and burner manufactured from #304 stainless steel, a FPPK-HC control box with pilot assembly, and a 36″ whistle-free flex line.

The ignition system comprises a manual spark igniter (AA battery), a standing pilot with a thermocouple, and a safety pilot valve.

Propane configurations feature an air mixer. The 24″ to 60″ models offer a small lp tank option, which includes an additional Gas Line, 6′ total length (2′ Stainless Steel, 4′ Rubber Hose), and a regulator.

Dimensions and BTU Ratings

The pan dimensions below correspond to the internal length of the pan. The Pan’s Lip is 1.3″ wide all around. The Pan Depth is 2.5″.

24″ Kit – Trough length 24.5″ – width 5.4″ – 75,000 BTUs

36″ Kit – Trough length 36.5″ – width 5.4″ – 115,000 BTUs

48″ Kit – Trough length 48.5″ – width 5.4″ – 150,000 BTUs

60″ Kit – Trough length 60.5″ – width 5.4″ – 175,000 BTUs

72″ Kit – Trough length 72.5″ – width 5.4″ – 200,000 BTUs

Propane Small Tank Option

24″ Kit – Trough length 24.5″ – width 5.4″ – 65,000 BTUs

36″ Kit – Trough length 36.5″ – width 5.4″ – 75,000 BTUs

48″ Kit – Trough length 48.5″ – width 5.4″ – 90,000 BTUs

60″ Kit – Trough length 60.5″ – width 5.4″ – 90,000 BTUs

Dimensions and BTU Ratings

Warranty:

Stainless Steel Outdoor Burners -Lifetime Warranty

Stainless Steel Pan – Limited Warranty – Commercial 1 year – Residential 5 years

Gas Valve – Commercial 1 year – Residential 3 years

Pilot Assembly -Commercial 1 year – Residential 2 year

Installation

A Linear Trough Torpedo Fire Pit Kit with Flame Sensing is designed to simply “drop” into a pre-cut opening in your fire pit structure. The insert’s lip or flange provides support and frames the burn area.
