Discontinued Notice
This product has been discontinued by the manufacturer. See our current selection of Match Light Ignition Fire Pit Kits or contact us for personalized recommendations.

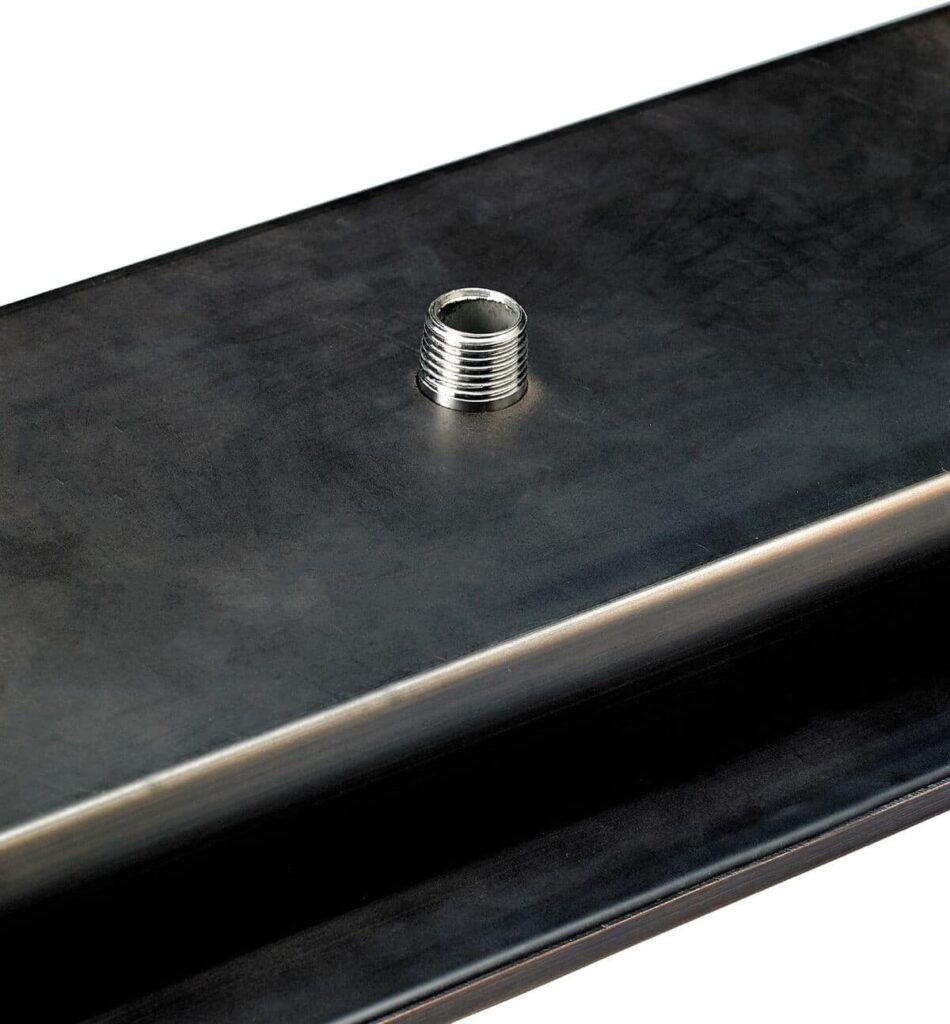

The Linear Bronze Drop In Pan Match Lit Kit, manufactured by American Fire Products, featuring a T-Burner, is ideal for narrow fire features. Unlike the rectangular model, the Linear Pan remains 6 inches wide across all sizes, providing a single line of flames from one end to the other.
The Oil Rubbed Bronze finish is applied by hand to the Stainless Steel Pan and can withstand extreme heat and harsh weather conditions. No two are identical. Expect unique variations in color and texture for a truly one-of-a-kind piece.
The pan & burner are supplied with basic gas line connections. Lighting the fire pit is incredibly simple. Just turn on the gas via the shut-off valve, and use a taper or long match to light the flame. When you’re done for the evening, turn off the gas, and you’re all set. It’s as easy as that!
Easy installation, minimal fire glass
This style of pan is the easiest to install and maintain, making it ideal for DIY projects.
The Pan features a 1.25″ lip that rests on the top surface of the enclosure or structure, supporting its weight, providing a stable platform for the burner.
Product Specifications:
To be used in an outdoor, vented, natural, or propane gas burning fire feature ONLY.
Pan & Burner
- Manufactured from high-quality stainless steel.
- Built-in removable cover plate for a spark ignition assembly (not included).
- Weep holes in the base for drainage.
Gas Line Connections
- Natural Gas: 34-inch Quiet-Flex Gas Line with safety shut-off valve and required fittings.
- Propane: 36-inch-long, 3/8-inch Rubber Gas Hose with straight ball valve, a 175,000 BTU propane tank regulator, and fittings including an air mixer.
Dimensions and BTUs:
The sizes correspond to the internal dimension of the pan and exclude the flange/lip. The lip is 1.25″. The pans are 2″ deep. The Gas Inlet is 1/2″.
The Cut-Out dimensions refer to the opening into which the pan “drops”.
- Size 30″ x 6″ – BTU Rating 60,000 – Cutout 31″ x 7″ – *Fire Glass 20 lbs
- Size 36″ x 6″ – BTU Rating 75,000 – Cutout 37″ x 7″ – *Fire Glass 35 lbs
- Size 48″ x 6″ – BTU Rating 120,000 – Cutout 49″ x 7″ – *Fire Glass 40 lbs
- Size 60″ x 6″ – BTU Rating 130,000 – Cutout 61″ x 7″ – *Fire Glass 50 lbs
- Size 72″ x 6″ – BTU Rating 175,000 – Cutout 73″ x 7″ – *Fire Glass 60 lbs
Note: * Manufacturer’s recommended Fire Glass quantity – not included
Warranty
Qualifies for a lifetime Warranty
