HPC Square Match Lit Drop-In Kit – Penta Burner (CSA Certified)

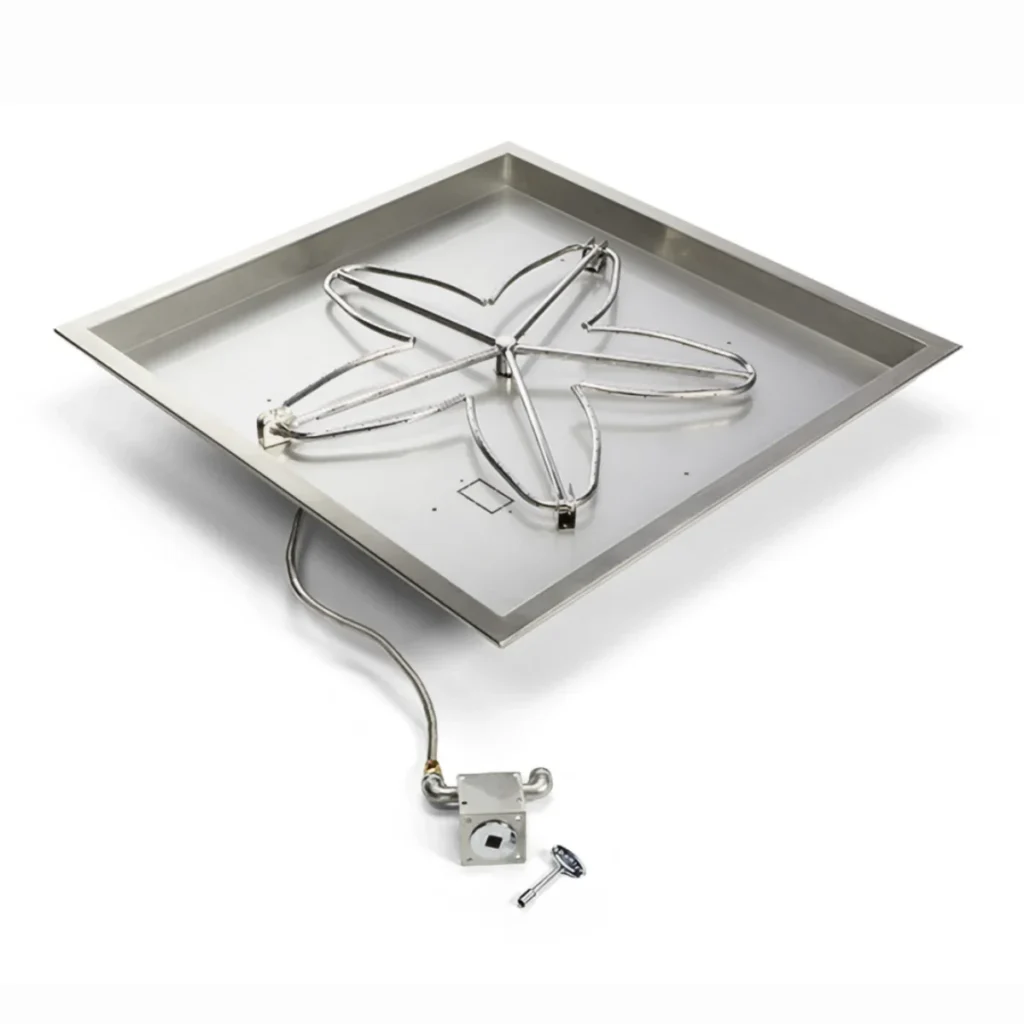

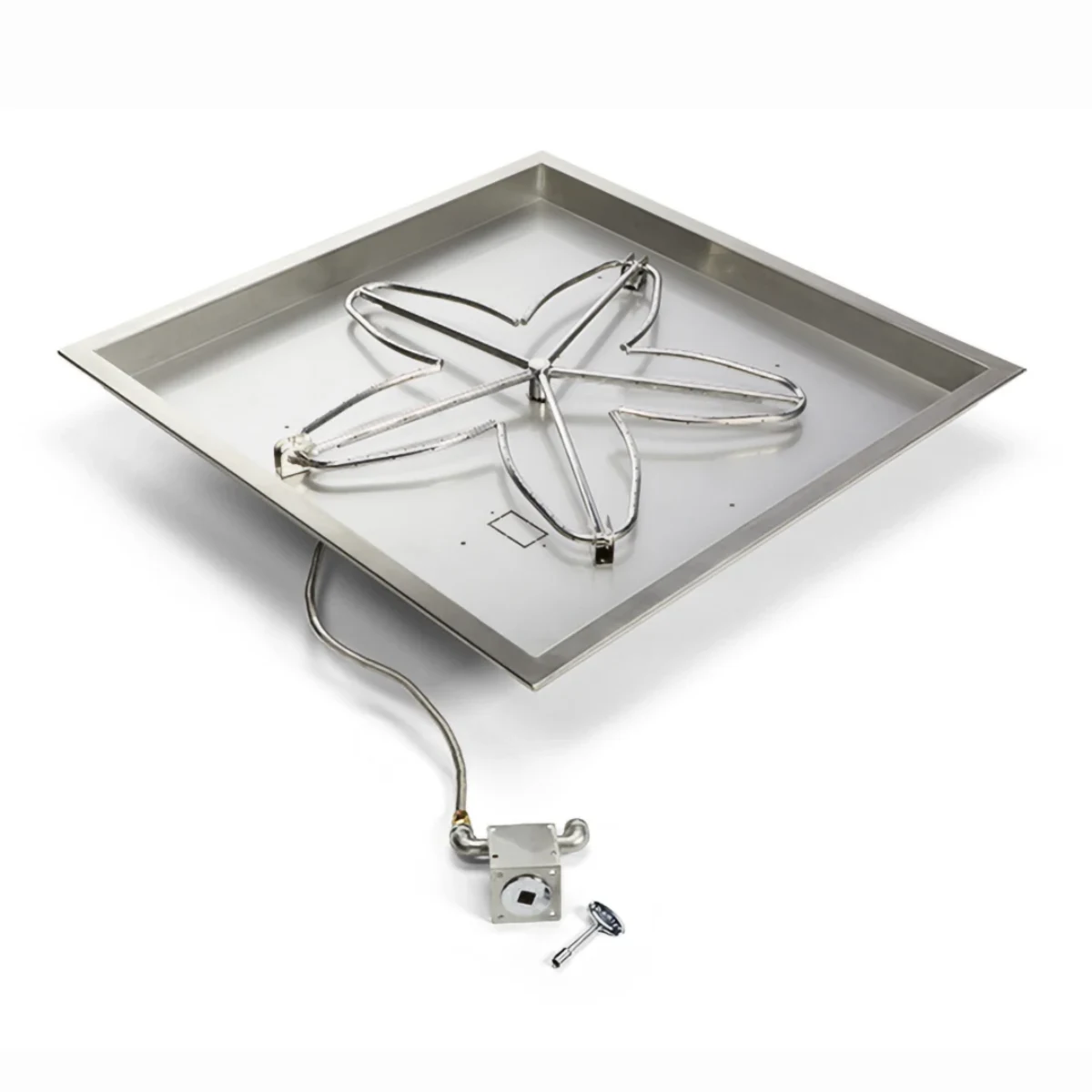

The HPC Square Match Lit Drop-In Kit with Standard Penta Burner is a square-format gas fire pit system designed for custom outdoor installations. Built from 304 stainless steel, this complete drop-in assembly includes a burner pan, burner system, valve control, and flex line components configured for certified match-lit performance.

This CSA-certified version meets ANSI Z21.97-2014 / CSA 2.41-2014 standards and comes as a factory-built, tested kit. It features a 36″ whistle-free flex line and key valve control for adjustable flame height.

Available in 18″, 24″, and 30″ square formats, the kit can be configured for various gas-type applications depending on installation requirements.

View the full range of match-lit fire pit kits↗ to compare shapes, burner types, and configurations.

Features

• Fully assembled and ready to install.
• Flex line configuration provides simple installation.
• The key valve includes a mounting bracket for easy installation.
• Adjustable flame height via the key valve.
• Lifetime Warranty on the Burner.

Options

Select Size

• 18″ x 18″
• 24″ x 24″
• 30″ x 30″

Select Gas Type

• Natural Gas (NG)
• Whole-House Propane (WHP)
• Small-Tank Propane (STP)

Propane Selection Note

For use with a 20lb LP cylinder, select Small-Tank Propane (STP) when ordering. For bulk tank installations, select Whole-House Propane (WHP).

Small-Tank Propane Includes

The Small-Tank Propane option includes 20 lb tank connections (tank not included), consisting of a 90-degree regulator and 48″ hose.

Product Specifications

Sizes relate to the pan’s internal dimensions, with the flange at 1.25 inches wide on all sides, increasing the overall dimensions. The pan itself is 2.5″ deep.

Pan & Burner constructed of .304 stainless steel. The pans have  ¼” weep holes for drainage.

• 18″ x 18″ Pan – 12″ Penta Burner – 65,000 BTUs
• 24″ x 24″ Pan – 18″ Penta Burner – 65,000 BTUs
• 30″ x 30″ Pan – 18″ Penta Burner – 65,000 BTUs
