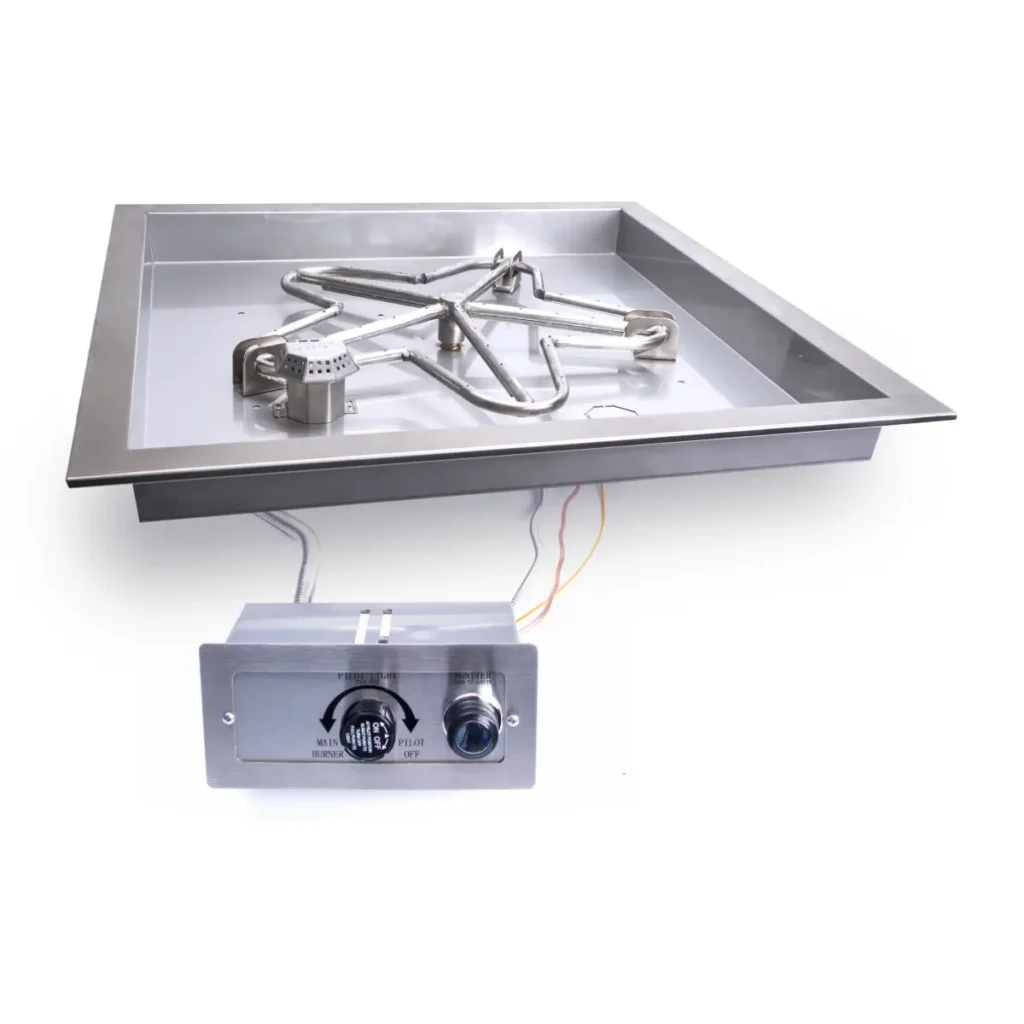

HPC Square Drop In Fire Pit Kit with Flame Sensing Spark Ignition
Flame Sensing Push-Button Spark Ignition Kits provide a balanced combination of performance, safety, and affordability. They deliver a practical battery-powered ignition alongside the automated safety system, which shuts down the gas supply to the burner if the pilot flame goes out. Additionally, the Kit is CSA-certified, meeting requirements for many HOAs, local authorities, building codes, and insurance companies.
HPC Square Drop In Fire Pit Kit with Flame Sensing Spark Ignition Features
- Arrives fully assembled.
- Easy to install, easy to operate.
- Control Box Installation Sleeve included.
- Push Button Ignition with adjustable flame height.
- Flame Sensing Safety System – gas is turned off if the flame is extinguished
- Battery Operated, no mains power required.
- Lifetime Warranty on the Burner.
- CSA certified.
Operation
- Light: Press and hold the knob, press ignition, hold knob 20 seconds, turn knob to light.
- Adjust: Turn knob for flame height.
- Off: Turn knob to OFF.
HPC Square Drop In Fire Pit Kit with Flame Sensing Spark Ignition Specifications
The Kit comprises a drop-in pan and penta burner manufactured from #304 stainless steel, a FPPK-HC control box with pilot assembly, and a 36″ whistle-free flex line.
The ignition system comprises a push-button spark igniter (AA battery), a standing pilot with a thermocouple, and a safety pilot valve.
Propane configurations feature an air mixer. The 18″ and 24″ models also offer a small LP tank option, which includes an additional Gas Line, 6′ total length (2′ Stainless Steel, 4′ Rubber Hose), and a regulator.
BTU Ratings & Dimensions
Sizes correspond to the internal diameter of the pans and do not include the 1.5″ wide lip. The recessed, bowl area of the Insert is 2.5 ” deep.
- 18″ x 18″ Pan has a 12″ Penta Burner – 65,000 BTUs
- 24″ x 24″ Pan has an 18″ Penta Burner – 125,000 BTUs
- 30″ x 30″ Pan has an 24″ Penta Burner – 200,000 BTUs
- 36″ x 36″ Pan has an 30″ Penta Burner – 250,000 BTUs
Propane Small Tank Option
- 18″ x 18″ Pan has a 12″ Penta Burner – 65,000 BTUs
- 24″ x 24″ Pan has an 18″ Penta Burner – 90,000 BTUs
Warranty:
- Stainless Steel Outdoor Burners -Lifetime Warranty
- Stainless Steel Pan, Valve Box – Limited Warranty – Commercial 1 year – Residential 5 years
- Gas Valve – Limited Warranty – Commercial 1 year – Residential 3 years
- Pilot Assembly -Limited Warranty – Commercial 1 year – Residential 2 year
Installation
HPC Round Drop-In Inserts are designed to simply “drop” into a pre-cut opening in your fire pit structure. The insert’s lip or flange provides support and frames the burn area.
