HPC Round Drop In Fire Pit Kit with Flame Sensing Spark Ignition

This Flame Sensing Push Button Spark Ignition Kit balances performance and affordability, delivering a practical battery-powered ignition and automated safety system. The flame sensing feature provides automatic gas shut-off for added safety, and the CSA certification ensures compliance with various safety mandates.

HPC Round Drop In Fire Pit Kit with Flame Sensing Spark Ignition Features

Arrives fully assembled.

Easy to install, easy to operate.

Control Box Installation Sleeve included.

Push Button Ignition with adjustable flame height.

Flame Sensing Safety System – gas is turned off if the flame is extinguished

Battery Operated, no mains power required.

Lifetime Warranty on the Burner.

CSA certified.

Operation

To Light: Press the Control Knob to start the pilot gas flow, then press the Ignition Push to create the spark to light the pilot, keeping the Control Knob pressed in for 20 seconds after which you can turn the Knob counterclockwise to light the main burner.

Flame adjustment: Flame height may be adjusted using the Control Knob.

Shutting down: Turn the Control Knob to the OFF position.

HPC Round Drop In Fire Pit Kit with Flame Sensing Spark Ignition Specifications

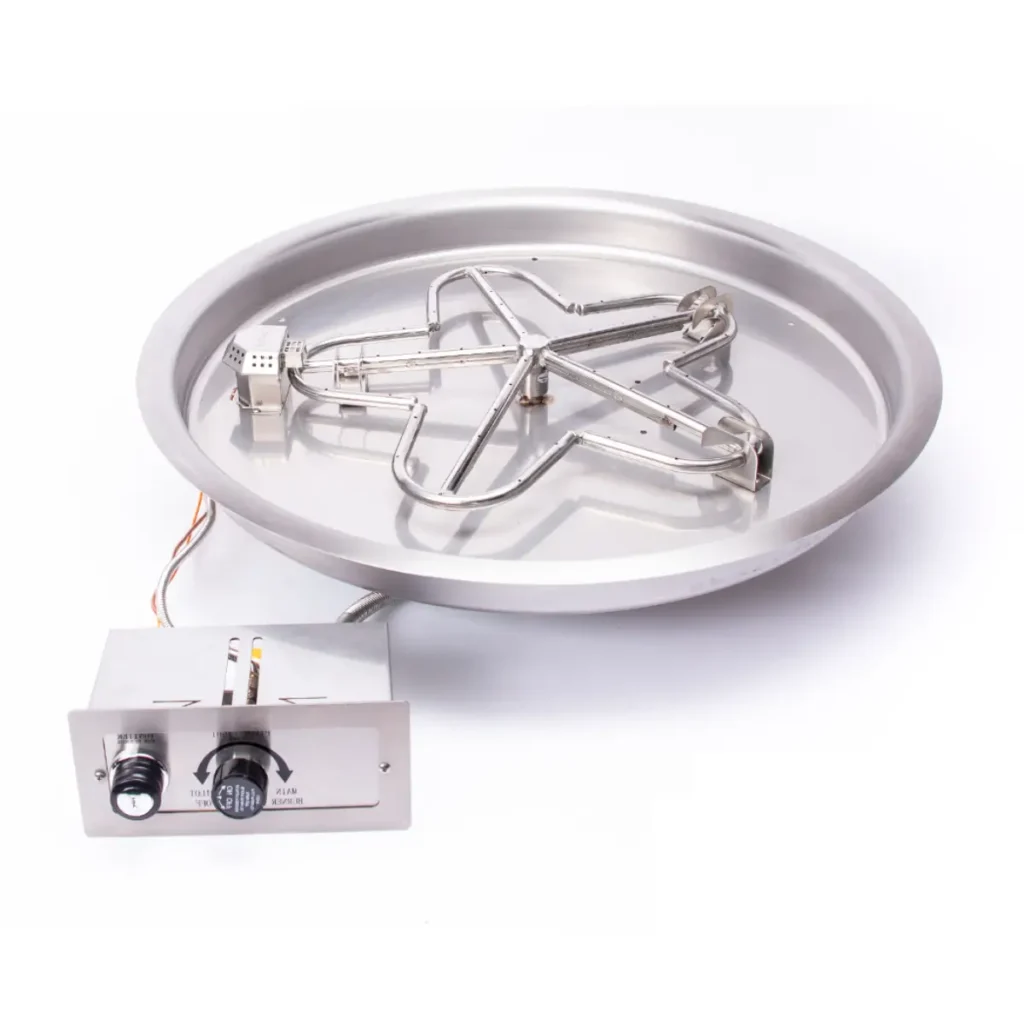

The Kit comprises a drop-in pan and *penta burner manufactured from #304 stainless steel, a FPPK-HC control box with pilot assembly, and a 36″ whistle-free flex line.

* Exception- The 13″ is fitted with a round burner.

The ignition system comprises a push-button spark igniter (AA battery), a standing pilot with a thermocouple, and a safety pilot valve.

Propane configurations feature an air mixer. The 13″, 19″, and 25″ models also offer a small lp tank option, which includes an additional Gas Line, 6′ total length (2′ Stainless Steel, 4′ Rubber Hose), and a regulator.

BTU Ratings & Dimensions

Sizes correspond to the internal diameter of the pans and do not include the 1.25″ wide lip. The recessed, bowl area of the Insert is 2.5 ” deep.

13″ Pan has a 12″ Round Burner – 90,000 BTUs

19″ Pan has a 12″ Penta Burner – 65,000 BTUs

25″ Pan has an 18″ Penta Burner – 140,000 BTUs

31″ Pan has an 18″ Penta Burner – 185,000 BTUs

37″ Pan has an 18″ Penta Burner – 185,000 BTUs

Propane Small Tank Option

13″ Pan has a 12″ Round Burner – 90,000 BTUs

19″ Pan has a 12″ Penta Burner – 65,000 BTUs

25″ Pan has an 18″ Penta Burner – 90,000 BTUs

Warranty:

Stainless Steel Outdoor Burners -Lifetime Warranty

Stainless Steel Pan, Valve Box – Limited Warranty – Commercial 1 year – Residential 5 years

Gas Valve – Limited Warranty – Commercial 1 year – Residential 3 years

Pilot Assembly -Limited Warranty – Commercial 1 year – Residential 2 year

Looking for a Torpedo Penta Burner?

These units are also available with HPC’s Torpedo Penta burner, the HPC Round Drop In Torpedo Fire Pit Kit with Flame Sensing Spark Ignition.

Installation

HPC Round Drop-In Inserts are designed to simply “drop” into a pre-cut opening in your fire pit structure. The insert’s lip or flange provides support and frames the burn area.
