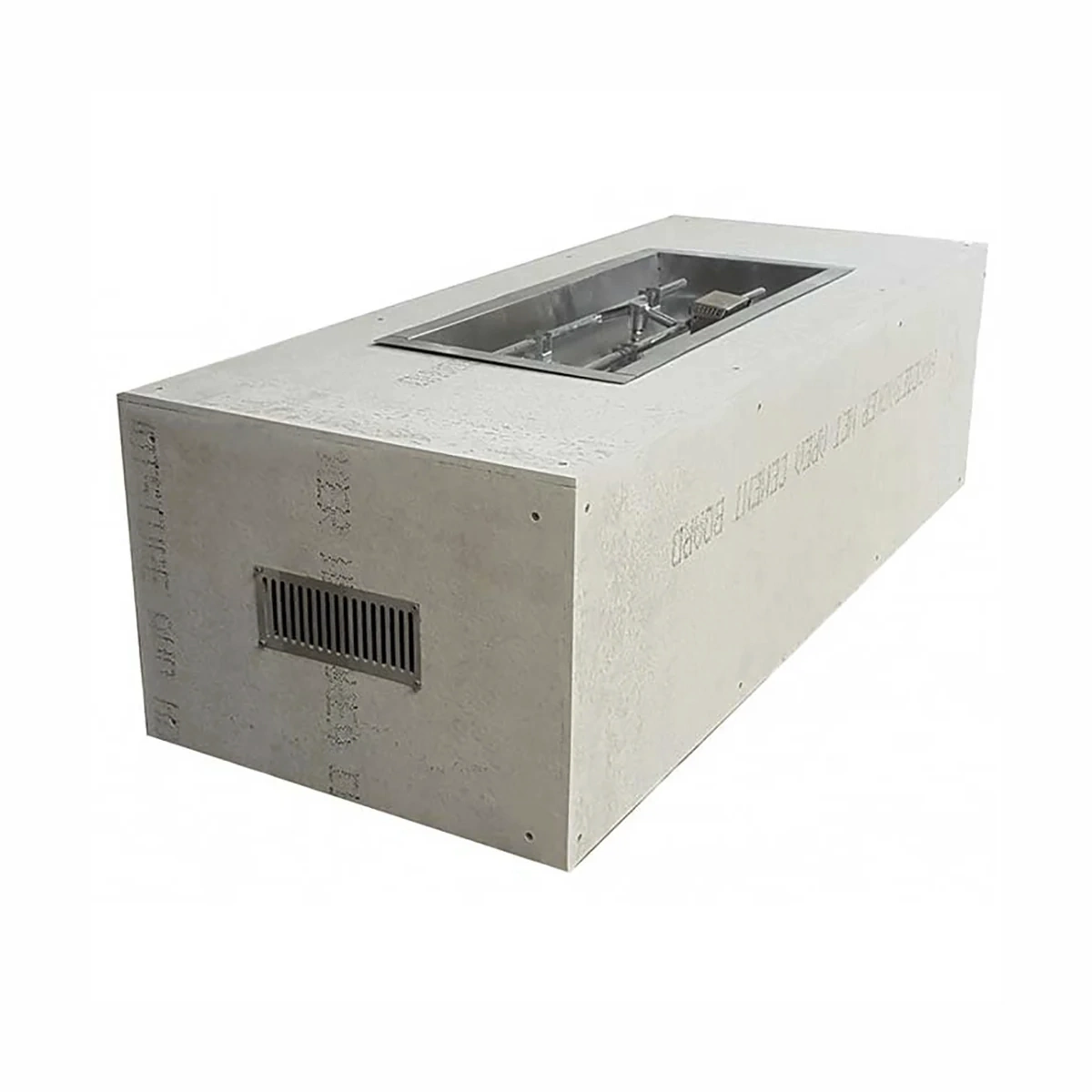

This HPC Rectangular Ready-to-Finish Fire Pit DIY Kit delivers a complete linear fire pit package in a 60″ x 24″ footprint, standing 18 inches tall. The fully assembled housing with pre-installed cement board walls serves as a blank canvas, allowing you to tailor the exterior appearance using tile, paint, or stone cladding. With code-compliant integrated ventilation, along with a CSA-certified insert, this DIY unit removes construction guesswork so you can move straight to applying your final finish. All that is required on-site is bringing your gas line to the location.
The commercial-grade core utilizes a .065 mild steel welded frame wrapped in a 1/2-inch cement board shell. Supplied exclusively with HPC H-Style or Linear Torpedo burners, the kit features factory pre-cut openings for ventilation plates and certified inserts, with three burner pan styles (Rectangular, Trough, and Interlink) available in two lengths.
Custom shapes and tailored dimensions are also available upon request. Browse other shapes and sizes within our Ready-to-Finish Fire Pit Enclosure selection.
Options
Select Gas Type
There are two models, one for use with Natural Gas and the other for Propane. They are not interchangeable.
Select Pan
Rectangular Insert with H Burner
Fitted with a Torpedo H-Burner, this rectangular insert utilizes two parallel burner legs to produce a deep, double-width flame profile. The integrated outer rim sits on the top surface of the enclosure, framing the burn area.
Available Insert Dimensions:
- 30″ x 12″ (24″ x 6″ H-Burner)
- 36″ x 14″ (30″ x 8″ H-Burner)
Linear Trough Insert with T Burner
This linear trough insert features a constant 8-inch width paired with a single-leg Torpedo T-Burner to create a long, streamlined flame profile. The integrated outer rim sits on the top surface of the enclosure, framing the burn area.
Available Insert Dimensions:
- 36″ x 8″ (35.5″ T Burner)
- 48″ x 8″ (47.5″ T Burner)
Linear Interlink Insert with T Burner
Designed for a seamless look, this linear interlink insert features a lipless design. Once fire glass or lava rock is installed, the pan becomes completely hidden, leaving only the continuous flame line produced by the Torpedo T-Burner.
Available Insert Dimensions:
- 37″ x 8″ Pan (36″ T-Burner)
- 49″ x 8″ Pan (48″ T-Burner)
Select Ignition
HPC keeps ignition options focused and practical, with three systems to suit different installation requirements.
Match Lit – CSA Certified
A simple, manual system operated using a key valve. The burner is lit with a long match or lighter, with flame adjustment controlled at the valve.
Push Button Ignition – CSA Certified
Battery-powered ignition using a spark probe and control panel. Includes flame-sensing technology that automatically shuts off the gas supply if the flame is extinguished.
A practical option where added safety is required, but mains power is not available. The flame height can be adjusted using the knob on the control panel.
Electronic Ignition On/Off – CSA Certified
An automated ignition system designed for installations with access to power. Provides reliable ignition and integrated flame monitoring.
Suitable for projects where convenience and consistent operation are priorities.
The Electronic Ignition will automatically relight if the flame is blown out.
120VAC
Typically operated via a wall switch or by Remote Control – not included. It can also be wired to a timer, an emergency stop button, or your whole-house system.
LOW VOLTAGE – 24VAC
24VACis suitable for fire features near water and is commonly used in poolside installations.
Typically operated via a wall switch, it can also be wired into a timer, the pool controller, or your whole-house system.
A Class II 24VAC, 4-amp, 100 W transformer must be used to power the fire pit. HPC highly recommends the HPC SEBCO 24VAC Power Supply
What’s Included
- .065 mild steel welded frame
- 1/2″ Hardie board shell, pre-cut for vents and insert
- Stainless steel ventilation components
- Stainless steel trough, interlink or rectangular insert (matched to enclosure size)
- H-style or Linear Torpedo Stainless Steel Burner
- Selected Ignition System
All core components are shipped assembled and ready for installation. The fire pit insert, burner, and ignition system are also pre-assembled but shipped separately to prevent damage in transit and to simplify handling during installation.
Installation Considerations
- Adequate drainage must be provided within the enclosure to prevent water build-up
- Ventilation openings must not be obstructed
- Gas supply must be sized appropriately for the selected BTU output
Cladding Requirements
The exterior surface arrives ready for custom finishing using your choice of natural stone, tile, stucco, or other non-combustible cladding to seamlessly match your landscape. These finishing materials are not included.
The figure below serves as a general guide. Actual coverage requirements will vary based on your selected material, tile or stone thickness, pattern joint spacing, and installation waste.
- 60″ x 24″ Model: ~31 sq ft
Specifications
- Diameters: 60″ x 24″
- Height: 18″
- Fuel Type: Natural Gas or Propane
- Ignition Options: Match Lit, Push Button Flame Sensing, Electronic Ignition (24VAC or 120VAC)
Burner Performance
Burner output varies depending on the ignition system selected:
Rectangular
30″ x 12″ Pan (24″ x 6″ H-Burner)
- Match Lit: 65,000 BTU/hr
- Push Button Spark: 150,000 BTU/hr
- Electronic Ignition: 150,000 BTU/hr
36″ x 14″ Pan (30″ x 8″ H-Burner)
- Match Lit: 65,000 BTU/hr
- Push Button Spark Ignition: 150,000 BTU/hr
- Electronic Ignition: 175,000 BTU/hr
Linear Trough
36″ x 8″ Pan (35.5″ T-Burner)
- Match Lit: 65,000 BTU/hr
- Push Button Spark Ignition: 115,000 BTU/hr
- Electronic Ignition: 150,000 BTU/hr
48″ x 8″ Pan (47.5″ T-Burner)
- Match Lit: 65,000 BTU/hr
- Push Button Spark Ignition: 115,000 BTU/hr
- Electronic Ignition: 150,000 BTU/hr
Linear Interlink
37″ x 8″ Pan (36″ T-Burner)
- Match Lit: 65,000 BTU/hr
- Push Button Spark Ignition: 115,000 BTU/hr
- Electronic Ignition: 150,000 BTU/hr
49″ x 8″ Pan (48″ T-Burner)
- Match Lit: 65,000 BTU/hr
- Push Button Spark Ignition: 115,000 BT/hr
- Electronic Ignition: 150,000 BTU/hr
Warranty
Warranty coverage includes:
- Stainless steel burners: Lifetime
- Stainless steel components: up to 5 years (residential)
- Valves and electronic components: 1 to 3 years, depending on use
- Enclosure structure: 3 years
(Commercial applications may carry reduced coverage periods)
