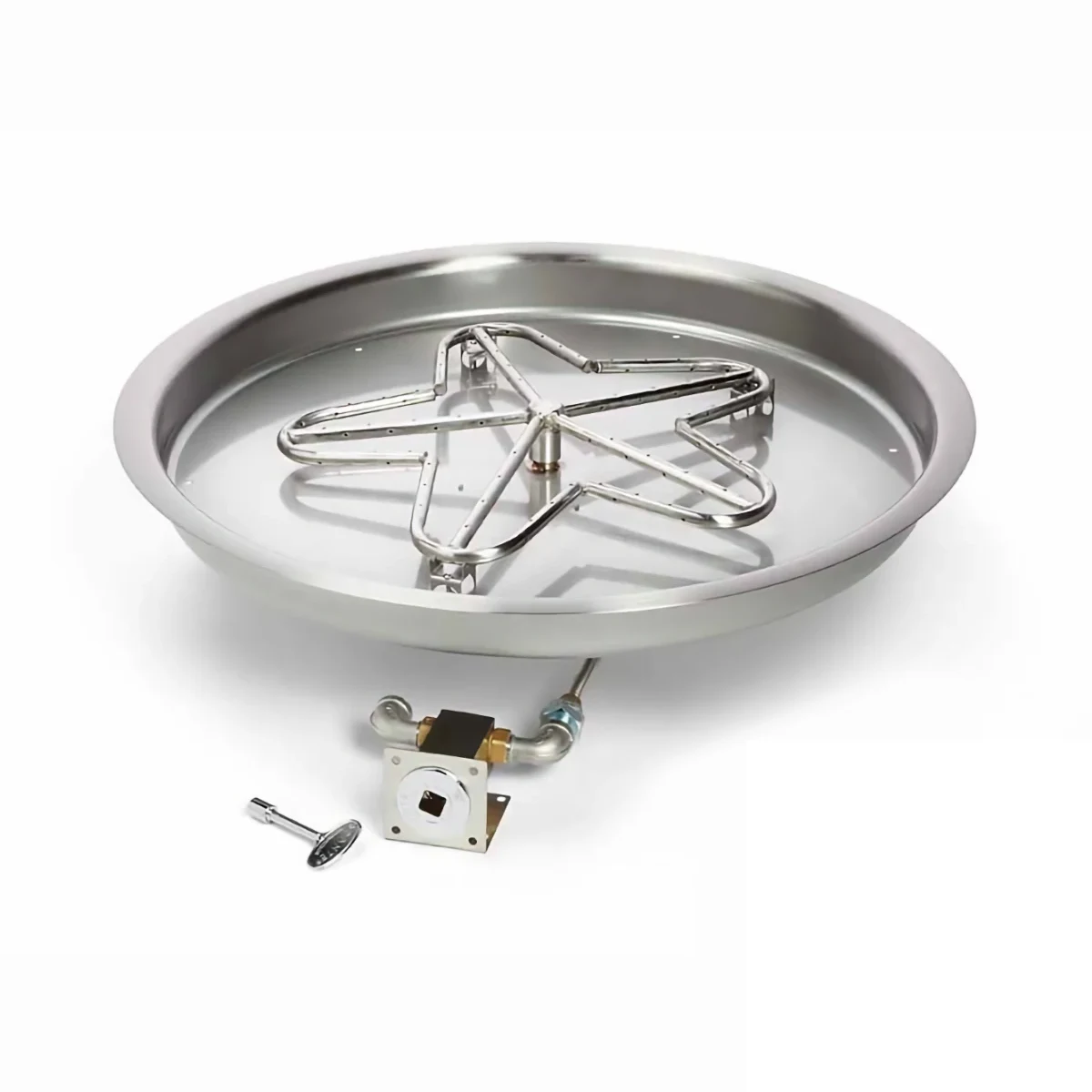

HPC Round Drop In Fire Pit Pan – Penta Burner – Match Lit

HPC Fire
Part #: PENTAxMLFPK-FLEX-x

$661.15$1,121.97

Free Shipping Small Logo
Within 48 Contiguious States

HPC Round Drop In Fire Pit Pan – Penta Burner – Match Lit – Certified

This is a CSA Certified fire pit kit.

The pan sizes relate to the internal diameter of the pans which come in 13″, 19″, 25″, and 31″.  The lip or rim of the pan is 1.3″ wide and the pan itself is 2.5 ” deep.

The fire pit kits are available for either Natural Gas, whole-house Propane, or small-tank Propane.

HPC Round Drop In Fire Pit Pan - Penta Burner - Match Lit

The gas fire pit pan & burner concept gives you the true flexibility to design the size, shape, and feel of your own fire pit with the ease and simplicity of using gas – no more stocking or carrying wood…and that smell of smoke – gone!

Imagine your own creative and unique design as the focal point of your backyard – with the performance and safety technology of HPC.

HPC has over forty years in the hearth industry, and that experience has taught them that not all fire pit applications require electronics or flame sensing. Or maybe less maintenance is a top priority. The Certified Match Lit Fire Pit series is constructed of robust #304 stainless steel, with manual valve control allowing full flame adjustment.

HPC Round Drop In Fire Pit Pan – Penta Burner – Match Lit Features:

  • Fully Assembled and ready to install.
  • 36″ Whistle-free flex line.
  • Flex Line configuration provides versatile and simple installation.
  • Valve mounting bracket included- for safe mounting of control Valve.
  • The flame height is adjustable using the key valve.
  • Natural Gas or Liquid Propane: Factory-built & tested for either fuel.
  • CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.



Technical Details:

Important Note For Propane Use:

If you are going to connect these units to a Small Propane Tank ( i.e. a 20lb LP Bottle ) select the Small Tank version when ordering. This kit will include a certified Small Tank connection kit that will maintain the integrity of the Certification. Designed for models rated at less than 90k Btu. The kit includes a 90-degree regulator with a 48” hose and a 24” Flex Line.

If connecting to a large ( bulk ) domestic propane tank select the LP version NOT the LP-ST version when ordering.

HPC Penta Round Match Light Flex Fire Pit Insert Specifications:



Match Lit Certified Inserts Spec Chart



Important Please Note:

The table above refers to Structure Size ‘C’. As per the diagram below, this is the overall size of the structure that the unit is to be fitted into. These are the manufacturers’ recommendations.

Installation Diagram



Required Gas Pressure:

Gas pressure and type should be checked prior to installation and use.

Natural Gas Fire Pit:
Supply Pressure: Minimum: 3.5 inches W.C.;
Maximum: 7.0 inches W.C.

LP Gas:
Supply Pressure: Minimum: 8.0 inches W.C.;
Maximum: 11.0 inches W.C.



Download Manuals:



HPC Round Drop In Fire Pit Pan – Penta Burner – Match Lit Installation Instructions – Download



HPC Round Drop In Fire Pit Pan – Penta Burner – Match Lit  – Specifications – Download
