HPC Match Lit Round Flat Insert Torpedo Penta Burner

HPC Match Lit Round Flat Insert Torpedo Penta Burner

The Match Lit series from HPC is the basic entry-level fire pit kit:

• It is the simplest of the certified fire pit kits from HPC
• Straight forward and easy to operate.
• Requires the least amount of maintenance.
• And then there’s the Torpedo Penta Burner featuring a nozzle that is precision-engineered and according to HPC develops a bigger, warmer flame without excessive gas consumption.



What are the Options when ordering

The HPC Match Lit Round Flat Insert Torpedo Penta Burner comes in a range of sizes and gas options to ensure that you have the ideal fire pit kit for your requirements.

Select Your size
There are four sizes available
Select Your Gas
The kits are available for use with natural gas, propane or small tank propane, be sure to select the correct option.



How does it Work?

The HPC Match Lit Round Flat Insert Torpedo Penta Burner once installed is remarkably easy to use.

Lighting: Hold a long stem taper or lighter over the edge of the Torpedo Burner, then slowly open the key valve (the key is locked in the valve when the gas is open and can only be removed when in the off position).
Flame Adjustment: The flame height can be easily adjusted by turning the key, anti-clockwise increases the flame, and clockwise will reduce the flame.
Turning Off: To shut down the fire pit, turn the key clockwise to the Off position, and remove the key. With the key removed, the gas can not be turned on.



The HPC Match Lit Round Flat Insert Torpedo Penta Burner Components

The HPC Match Lit Round Flat Insert Torpedo Penta Burner unit comes fully assembled and ready to install. These Fire Pit kits comprise of a Stainless Steel Round Flat Insert, Torpedo Penta Burner, Chrome Valve mounting bracket, Key Valve, Chrome Key and flex line connection.

HPC Round Flat Inserts are a little more economical than the bowl style pan and are used in fire pit structures with a built-in support structure to hold the insert in place.  Support for the flat pan, typically, takes the form of a collar around the inner parameter of the enclosure, ‘Z’ brackets, or a built-in shelf or recess.

Any type of media can be used with a flat pan including glass, but the gap between the edge of the pan and the opening must be within a 1/8” to keep the glass from falling below the pan, so the larger the pieces of media the better for a flat pan. HPC flat pans are cut ¼” smaller than the listed size. For example, the 36” flat pans measure 35-3/4”.

Each flat pan is cut out to size from a sheet of 18 guage .304 stainless steel and has  ¼” weep holes for drainage.

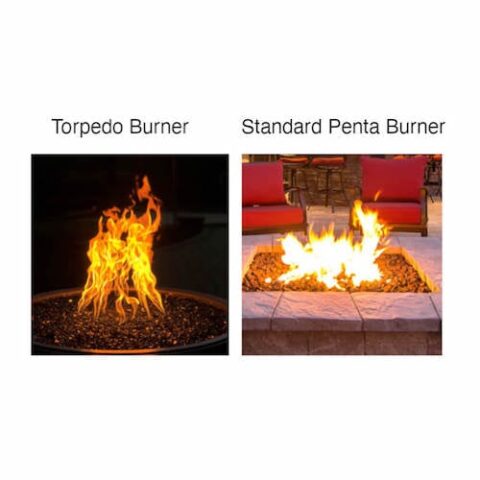

The new Torpedo Penta Burner features a nozzle that is precision-engineered and according to HPC develops a bigger, warmer flame without excessive gas consumption. For more detailed information regarding the exciting new range of Torpedo Burners, please refer to the following page https://themagicoffire.com/torpedo-burners/ or watch the video below.





The HPC Match Lit Round Flat Insert Torpedo Penta Burner Specifications

[wptb id="45544" not found ]



Don’t Need A Torpedo Burner?

These units are also available with HPCs traditional Penta burner, The HPC Match Lit Round Flat Insert Penta Burner.



The HPC Match Lit Round Flat Insert Torpedo Penta Burner Features:

HPC Fire incorporates several features into its designs with the objective in mind to ensure their products function safely, correctly, and have a long lifespan. Here are few examples:

• Water infiltration into the burner and then running back through the gas lines is a significant issue. Both HPC Standard Burners and Torpedo Burners deal with this in several ways. Each of the five-burner lobes has weep holes allowing any water that got in to drain out of the burner before it flows back into the gas lines. The center hub of the burner is raised and sealed to prevent water from leaking into the burner.
• Spiders, yes spiders! Spiders are attracted to the smell of Propane and build nests in and around Propane gas fittings, often creating a blockage. As a result, on all CSA Certified Kits, HPC supply a mesh spider guard to prevent the spiders from building their nests and creating a blockage.



Key features:

• The HPC Match Lit Round Flat Insert Torpedo Penta Burner a is fully assembled at the factory and arrive ready to install with easy to follow instructions
• The flex line between the pan and the key valve creates a very versatile and straightforward installation process.
• The kit includes a valve mounting bracket to ensure that the valve is securely and safely fixed in position
• The Key Valve can be safely used to adjust the flame height
• These kits are built and tested for use with either Nat. Gas or Propane.

• Propane options for either small tank usage or large bulk tanks – be sure to select the correct option
• Made from #304, 18 gauge Stainless Steel



Certification:

• CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.



Warranty:

• Stainless Steel Outdoor Burners -Lifetime Warranty
• Stainless Steel Pan, Valve Box – Limited Warranty – Commercial 1 year – Residential 5 years
• Electronics, Gas Valve -Limited Warranty – Commercial 1 year – Residential 3 years
• Pilot Assembly -Limited Warranty – Commercial 1 year – Residential 2 year



Recommendations, Optional Extras and Links to the products on The Magic Of Fire

• Fire pit must have a gas shutoff to allow for emergency shut off and maintenance. If you are also looking for a timer then there is an option that includes both of these features. The E STOP Gas Timer is one of the safest gas timers in the industry and its is a unique all mechanical design that requires no power supply so it is very easy to install. Available in either a 1-hour Countdown version or a 2 1/2 hour Countdown.
• If you wish to retro fit a Spark Ignition Button at a later date look no further than the HPC Fire Spark Ignition Kit.
• The Paver Bracket makes installing the key valve itself into the fire pit enclosure a much simpler task, the faceplate is adjustable from 8″ to 12″ wide.



HPC Match Lit Round Flat Insert Torpedo Penta Burner Downloads

HPC Match Lit Round Flat Insert Torpedo Penta Burner Instructions.    Download
HPC Match Lit Round Flat Insert Torpedo Penta Burner Drawing.   Download
HPC Round Flat Insert Drawing. Download
