HPC Linear Interlink Fire Pit Kit with Flame Sensing Spark Ignition

HPC Linear Trough - Match Lit Fire Pit Kit

Torpedo Fire Pit Burner Vs. Standard Fire Pit Burner Flame

HPC Push Button Flame Sensing Valve Box Sleeve

Push Button flame sensing fire pit control panel by HPC

HPC Linear Interlink Fire Pit Kit with Flame Sensing Spark Ignition

SKU:

SKU: FPPKxX8-L-FLEX-config

FROM:

$1,532.27 – $2,708.55

Select Size

Select Gas Type

Clear

Within 48 Contiguious States

Connect With Us!

HPC Linear Interlink Fire Pit Kit with Flame Sensing Spark Ignition

This Flame Sensing Push Button Spark Ignition offers a practical and reliable solution for fire pits. With battery-driven spark ignition and integrated flame sensing, this CSA-certified kit provides secure, push-button lighting in areas without electrical access.

HPC Fire’s Interlink Linear design provides exceptional adaptability, enabling end-to-end fire pan connections for a continuous, stunning flame. The 8″ wide pans, ranging from 25″ to 61″ with T-burners designed for seamless alignment, this system simplifies installation while offering customizable linear fire features.

The CSA-certified HPC Linear Interlink Fire Pit Kit with Flame Sensing Spark Ignition empowers the creation of semi-custom fire pits, offering a unique opportunity to design a show-stopping, continuous flame feature.

HPC Round Drop In Torpedo Fire Pit Kit with Flame Sensing Spark Ignition Features

Kits are fully assembled and easy to install

Control Box Installation Sleeve

Push Button Ignition and adjustable flame height

Flame Sensing Safety System – gas is turned off if the flame is extinguished

Battery Operated, no AC power supply required

The latest Torpedo Burner Technology

Lifetime Warranty on the Burner

CSA certified

Operation

Light: Press and hold the knob, press ignition, hold knob 20 seconds, turn knob to light.

Adjust: Turn knob for flame height.

Off: Turn knob to OFF.

HPC Linear Interlink Fire Pit Kit with Flame Sensing Spark Ignition Specifications:

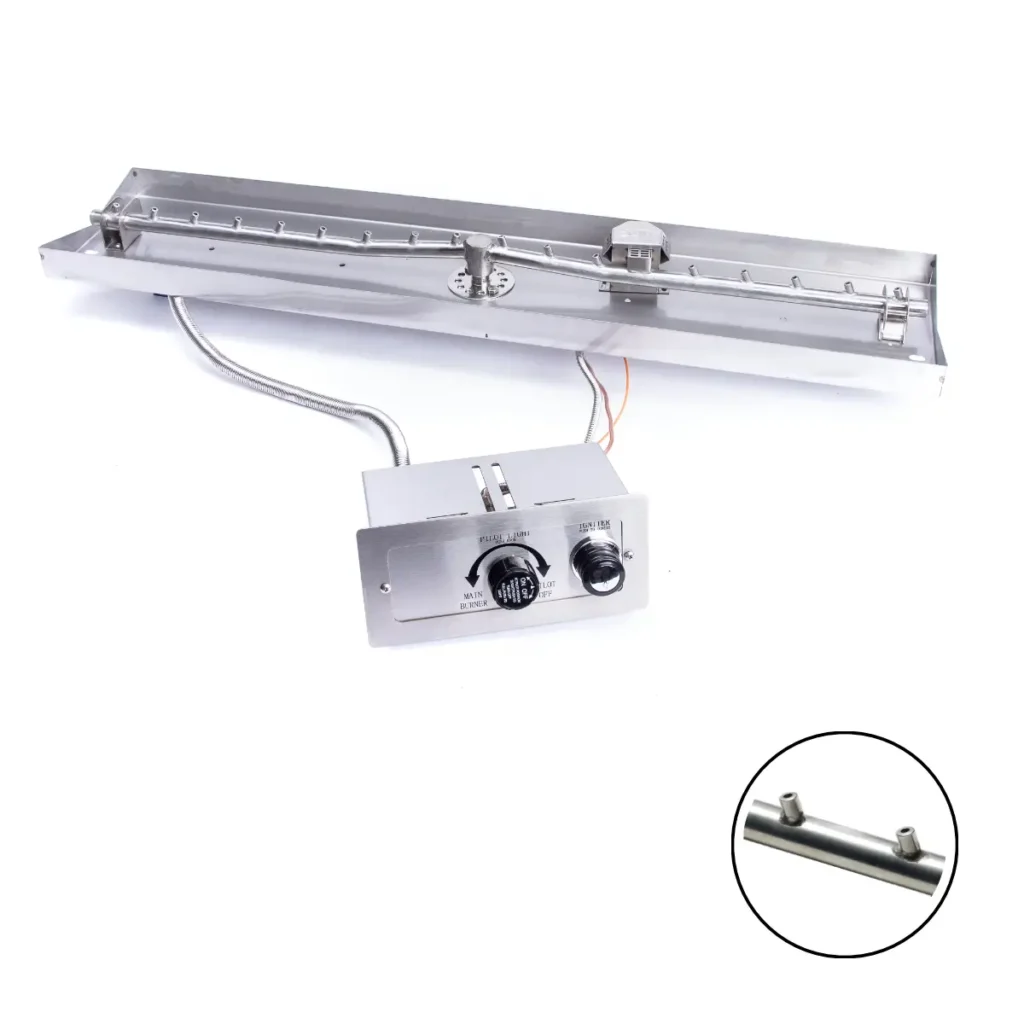

The Kit comprises a lipless-style linear Interlink Pan and Torpedo Penta Burner manufactured from #304 stainless steel, a FPPK-HC control box with pilot assembly, and a 36″ whistle-free flex line.

The ignition system comprises a push-button spark igniter (AA battery), a standing pilot with a thermocouple, and a safety pilot valve.

Propane configurations feature an air mixer. The 25″ to 61″ models offer a small lp tank option, which includes an additional Gas Line, 6′ total length (2′ Stainless Steel, 4′ Rubber Hose), and a regulator.

The larger sizes of the HPC Linear Interlink Fire Pit Pan with Torpedo Burner are constructed in three sections, a center section as seen in the main image, with an extension at each end.

The sidewalls are 1.5″ high.

BTU Ratings & Dimensions

25″ x 8″ Pan has a 24″ Burner rated 75,000 BTUs

37″ x 8″ Pan has a 36″ Burner rated 115,000 BTUs

49″ x 8″ Pan has a 48″ Burner rated 150,000 BTUs

61″ x 8″ Pan has a 60″ Burner rated 175,000 BTUs

73″ x 8″ Pan has a 72″ Burner rated 200,000 BTUs

Propane Small Tank Option

25″ x 8″ Pan has a 24″ Burner rated 75,000 BTUs

37″ x 8″ Pan has a 36″ Burner rated 90,000 BTUs

49″ x 8″ Pan has a 48″ Burner rated 90,000 BTUs

61″ x 8″ Pan has a 60″ Burner rated 90,000 BTUs

Warranty:

Stainless Steel Outdoor Burners -Lifetime Warranty

Stainless Steel Pan, Valve Box – Limited Warranty – Commercial 1 year – Residential 5 years

Gas Valve – Limited Warranty – Commercial 1 year – Residential 3 years

Pilot Assembly -Limited Warranty – Commercial 1 year – Residential 2 year

Installation

An Interlink Pan requires a built-in collar or shelf for support. The collar should be positioned so that the pan is recessed below the top surface of the structure. Once installed with fire media, the pan, gas connections, and plumbing are hidden.
