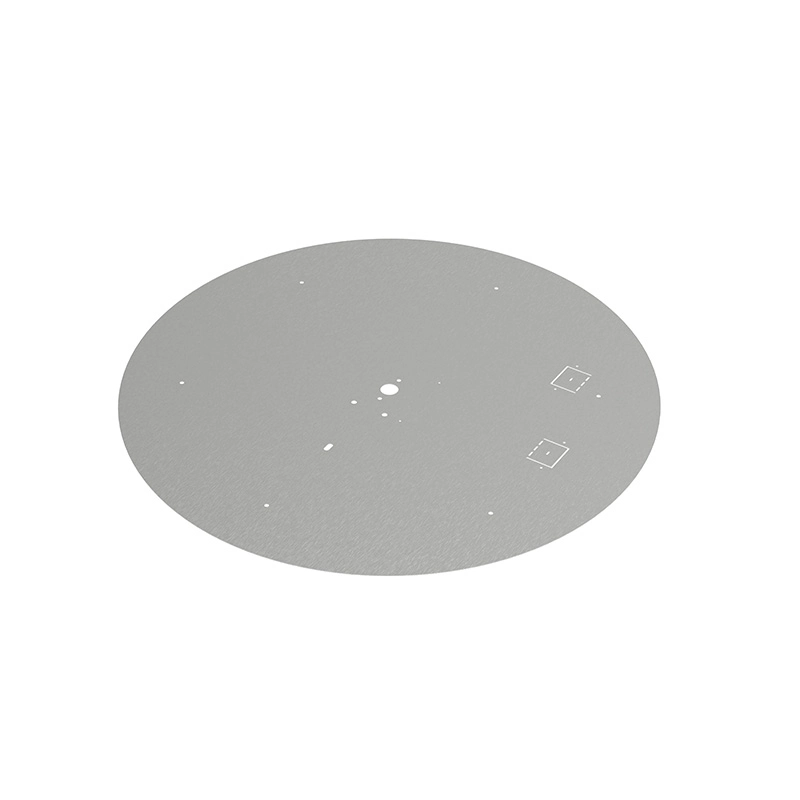

HPC Round Flat Stainless Steel Fire Pit Pan

The Round Flat Stainless Steel Fire Pit Pan from HPC Fire is designed for recessed installations in circular fire features, creating a clean, flush appearance with the pan completely hidden once the fire media is added. This configuration requires a built-in support beneath the pan to ensure proper installation and stability.

The pan is available in nine diameters, allowing you to select the correct fit for your fire pit application.

For a broader overview of available styles and configurations, view our full range of fire pit pans and trays.

Pan Features

Constructed from durable 304 stainless steel, this pan provides a long-lasting and reliable foundation for your burner system. Key features include:

• Pre-cut knockouts for optional ignition system installation
• Integrated weep holes to assist with drainage

Design Update

Previously, pans were manufactured with fixed welded nipples for burner connection. This updated design removes that limitation, allowing for greater flexibility with different burner gas inlet sizes. All pans now require a compatible Hub Plate.

Compatible Hub Plates

Hub plates are not included (linked at the bottom of the page) and must be selected based on the burner gas inlet size. Two options are available:

• 1/2″ gas inlet – Standard capacity
• 3/4″ gas inlet – High capacity

This allows larger pans (35.75″ and over in this range) to be used with either standard or high-capacity burners.

When sizing your burner, allow a minimum 2-inch clearance between the burner and the pan sidewall. This helps ensure proper flame performance, safe operation, and reduces the risk of overheating or structural damage.

Available Sizes

• 7.75″ diameter
• 13.75″ diameter
• 17.75″ diameter
• 23.75″ diameter
• 29.75″ diameter
• 35.75″ diameter
• 41.75″ diameter
• 53.75″ diameter

Warranty

• 5 Years for Residential
• 1 Year Commercial Applications
