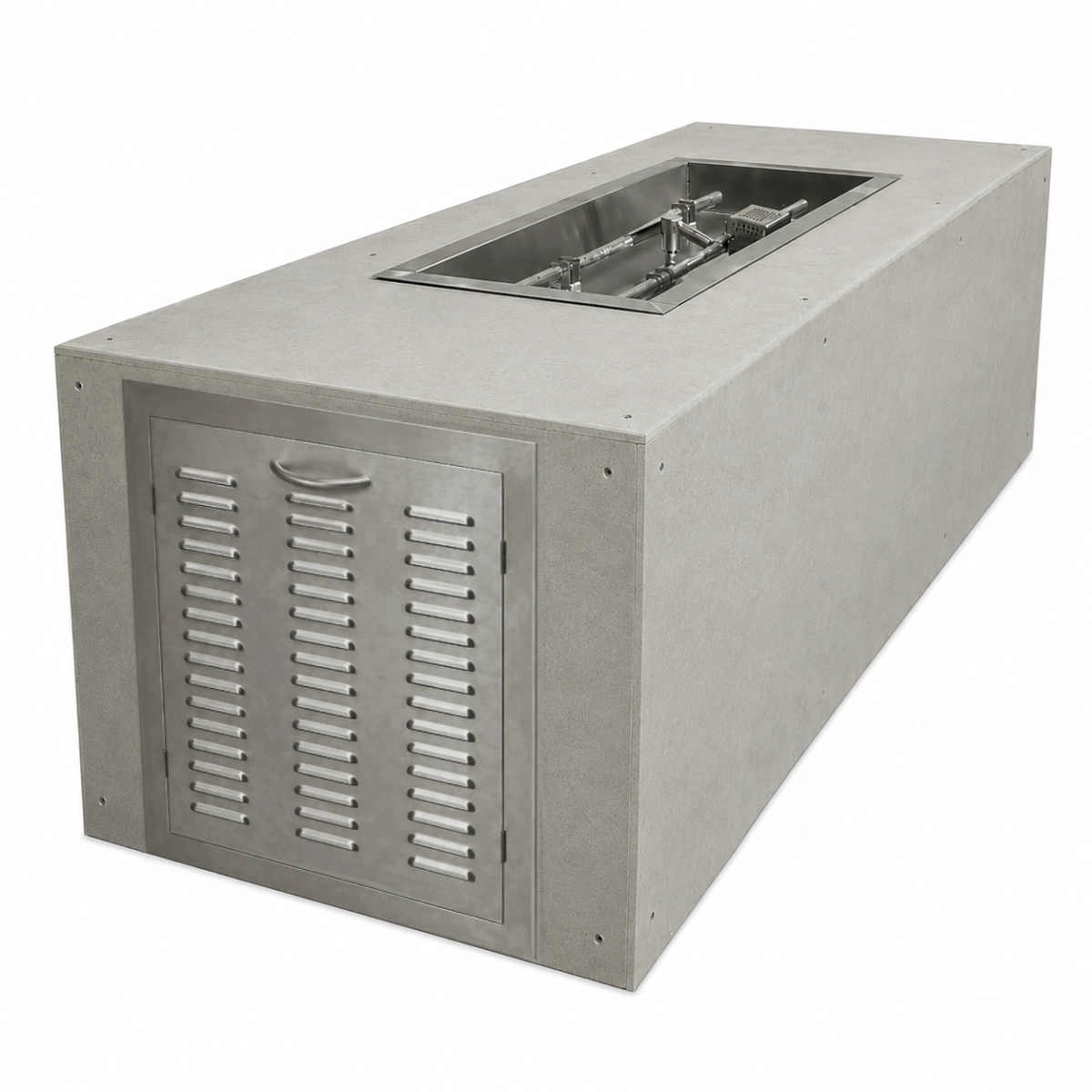

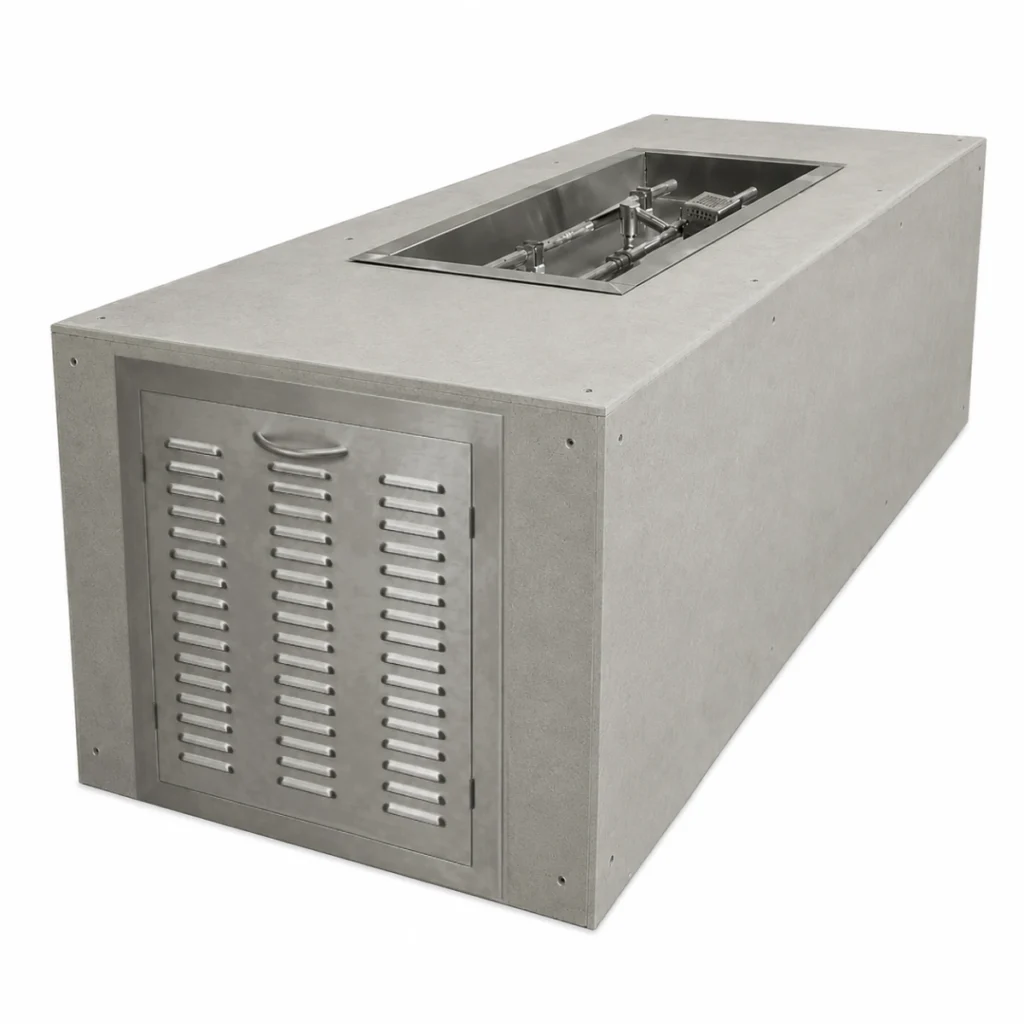

This 70″ x 24″ Rectangular HPC Gas Tank Series fire pit enclosure, built to an elevated 23.5″ height to house a standard 20 lb liquid propane cylinder internally, delivers a fully assembled unfinished structural shell that serves as a blank canvas for tile, paint, or stone cladding. By supplying the housing frame, factory-installed Hardie Board substrate, ventilation, 13.5″ x 17.5″ stainless steel access hatch panel, and certified gas components, this unit removes construction guesswork so you can move straight to applying the final finish.
Each unit includes a fully assembled, factory-tested, CSA-certified burner insert. This 70″ model is available with either Rectangular or Trough Inserts with match-lit or push-button flame-sensing ignition options. Custom shapes and tailored dimensions are also available upon request. If your project calls for a larger footprint, see our 80 x 24 propane tank access model. You can also explore our full ready-to-finish enclosure selection to compare all available shapes and sizes.
Options
Select Pan
There are two pan options for this 70 Inch rectangular gas tank series model:

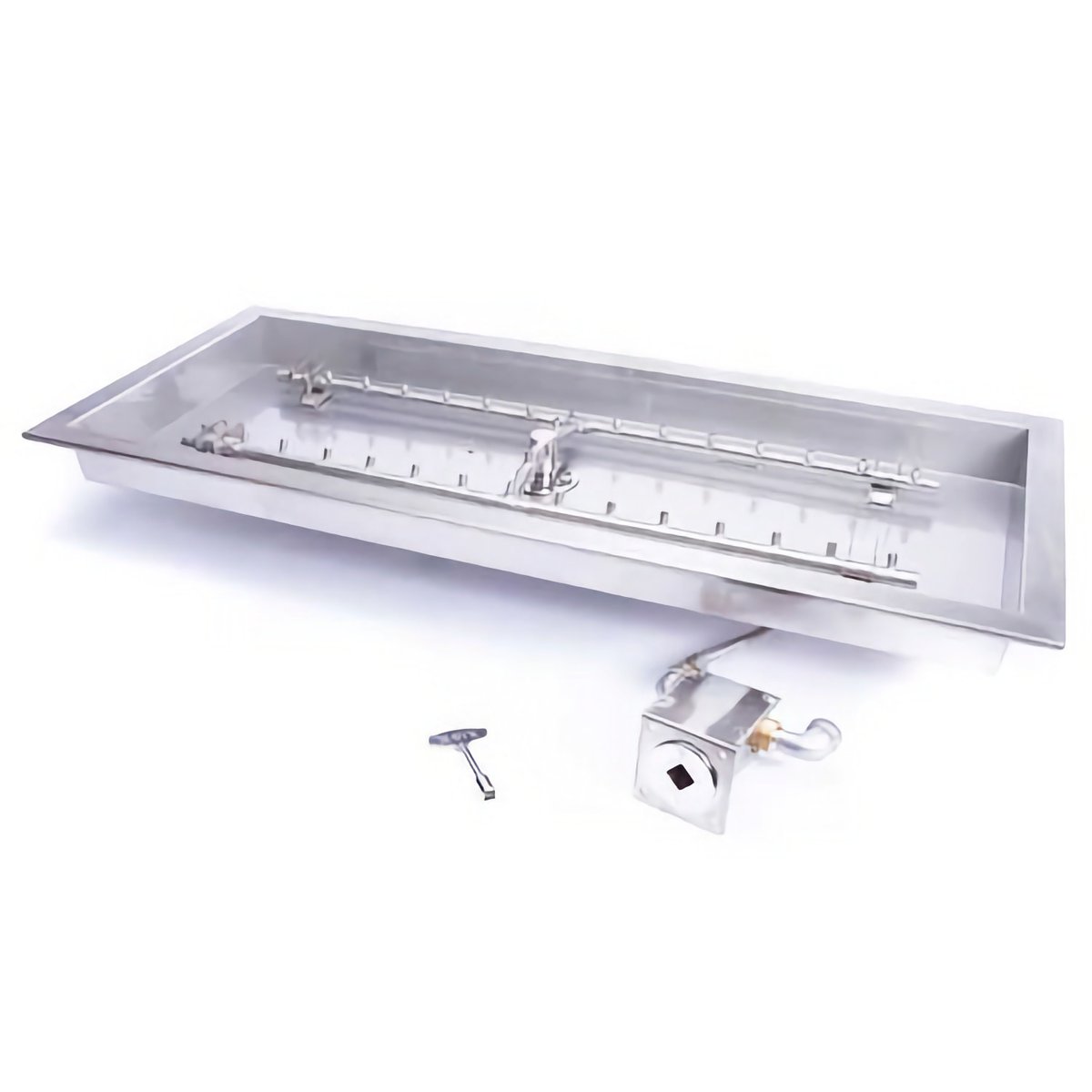

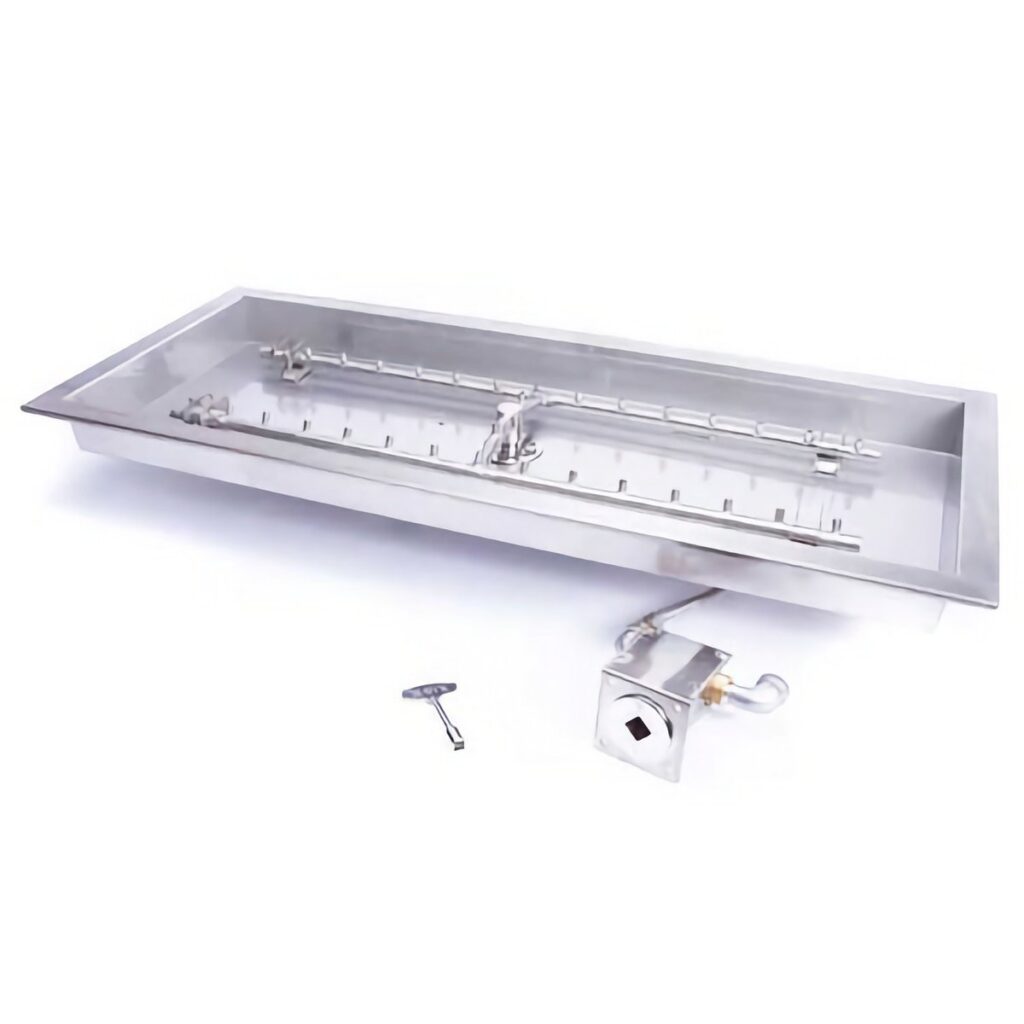

36″ x 14″ Rectangular Pan with H-Burner
Fitted with a Torpedo H-Burner, this pan utilizes two parallel burner legs to produce a deep, double-width flame profile. The outer rim sits upon the upper finished surface, framing the burn area.

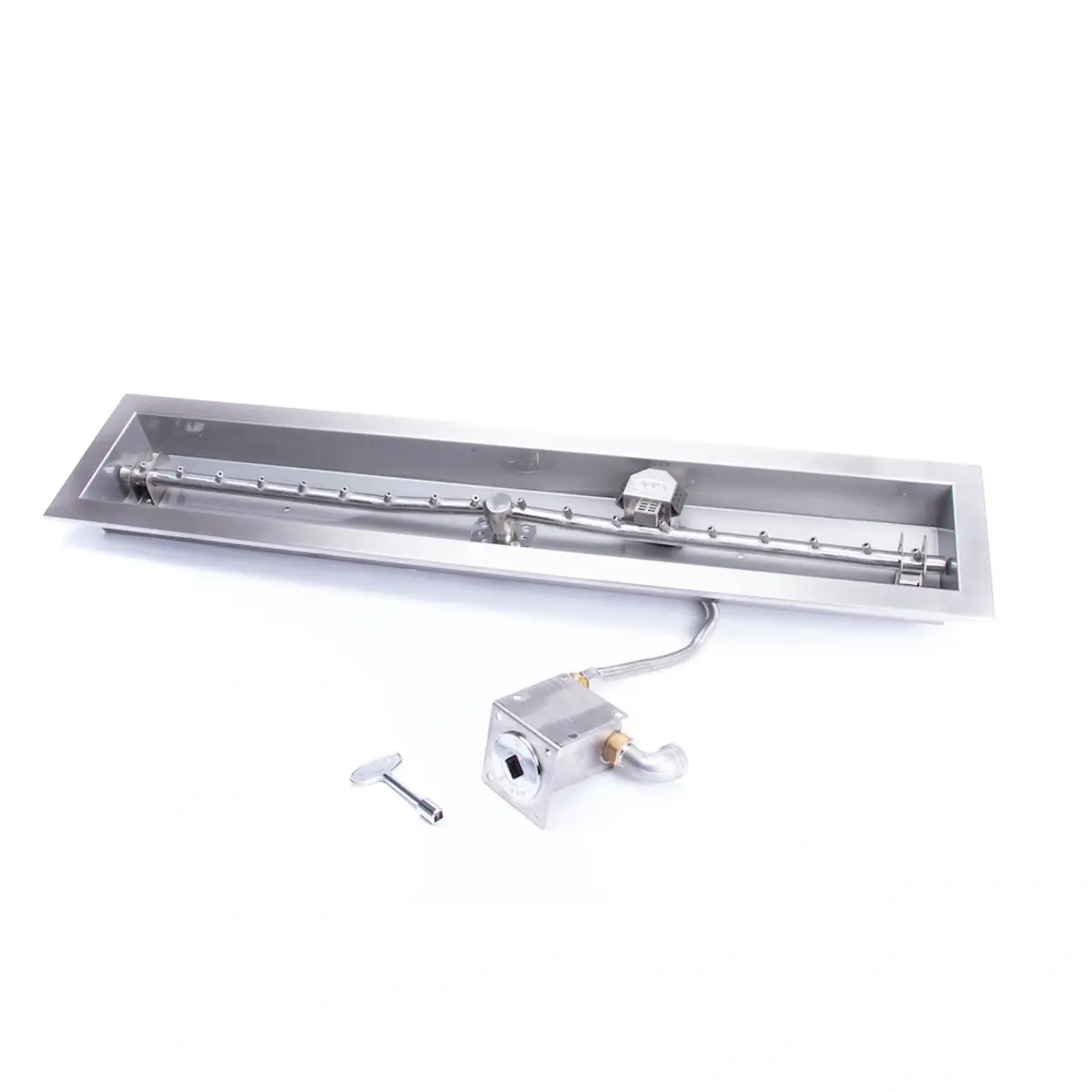

36″ x 8″ Trough with T-Burner
This narrower Trough style pan features a single-leg, linear Torpedo T-Burner to create a long, streamlined flame profile. The outer rim sits upon the upper finished surface, framing the burn area.
Select Ignition
HPC keeps ignition options focused and practical, with two systems to suit different installation requirements.

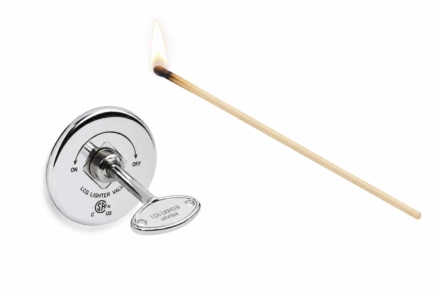

Match Lit – CSA Certified
A simple, manual system operated using a key valve. The burner is lit with a long match or lighter, with flame adjustment controlled at the valve.

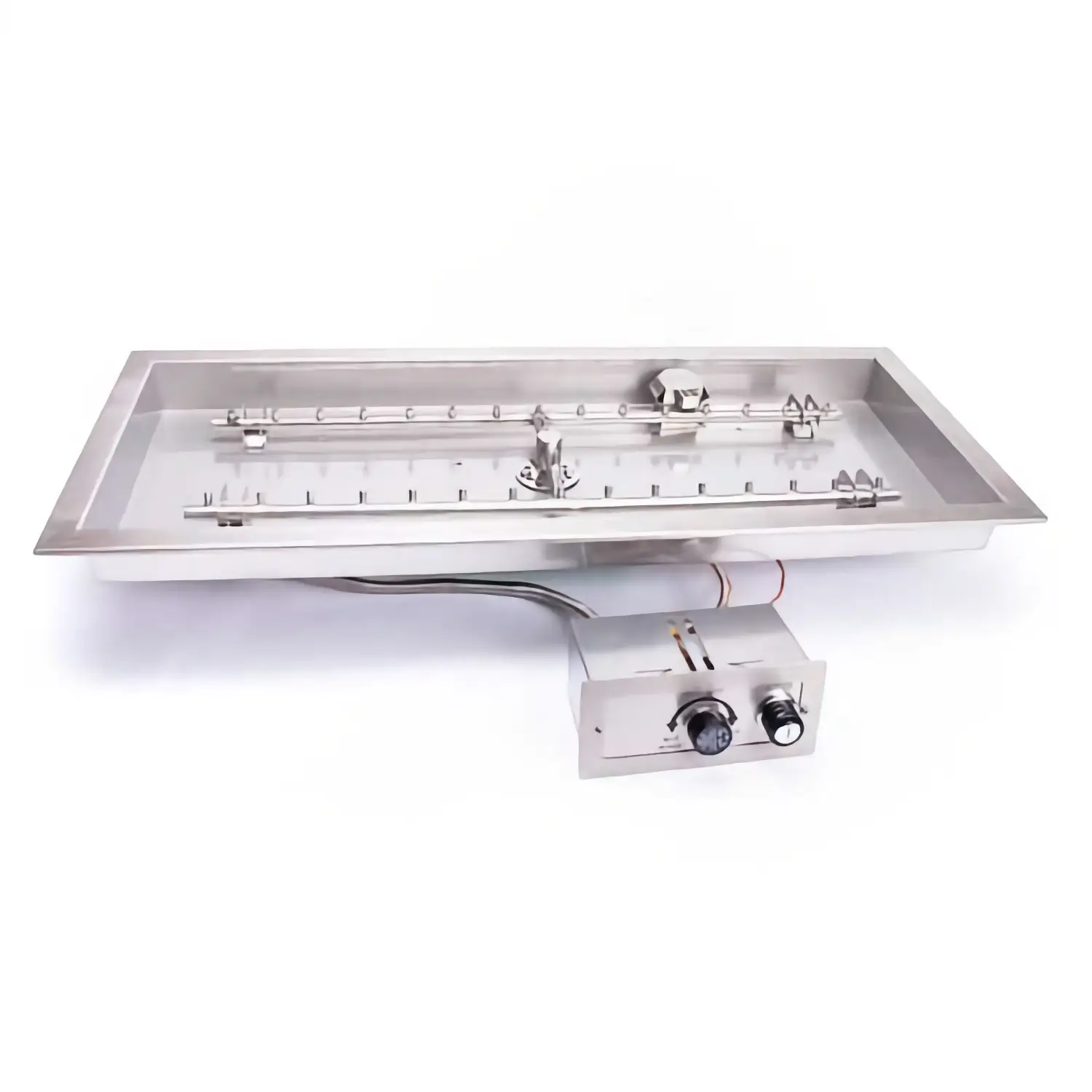

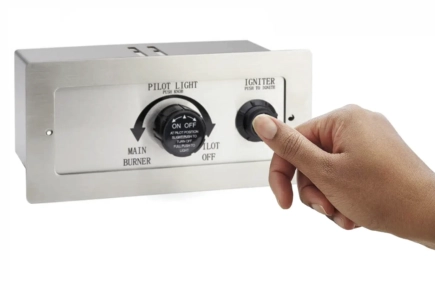

Push Button Ignition – CSA Certified
Battery-powered ignition using a spark probe and control panel. Includes flame-sensing technology that automatically shuts off the gas supply if the flame is extinguished.
A practical option where added safety is required, but mains power is not available. The flame height can be adjusted using the knob on the control panel.
What’s Included
- .065 mild steel welded frame
- 1/2″ Hardie Board shell, pre-cut for vents and insert
- Stainless steel trough, interlink or rectangular insert
- H-style or Linear Torpedo Stainless Steel Burner
- Selected ignition system
- Stainless steel ventilation components
- Stainless Steel Access Panel
All core components are shipped assembled and ready for installation. The fire pit insert, burner, and ignition system are also pre-assembled but shipped separately to prevent damage in transit and to simplify handling during installation.

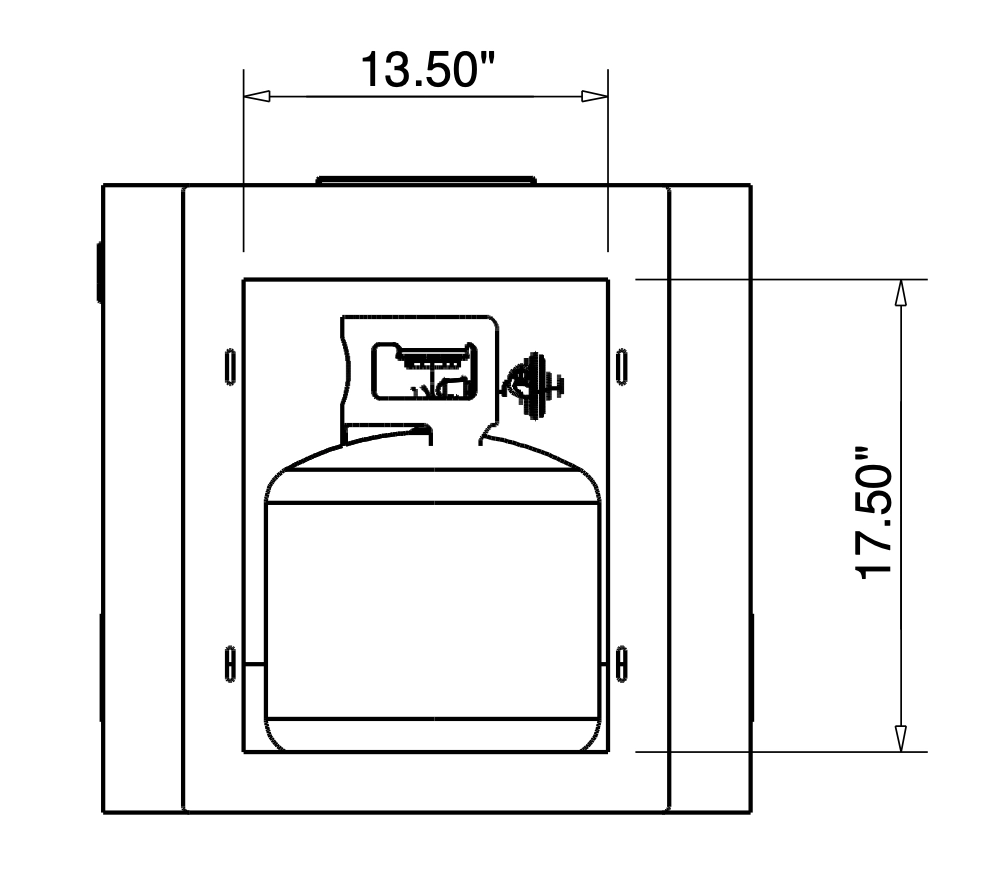

Access Panel for Hidden Gas Tank
Dimensions: 13.5″ x 17.5″
Installation Considerations
- Adequate drainage must be provided within the enclosure to prevent water build-up
- Ventilation openings must not be obstructed
Cladding Requirements
The exterior surface arrives ready for custom finishing using your choice of natural stone, tile, stucco, or other non-combustible cladding to seamlessly match your landscape. These finishing materials are not included.
The figure below serves as a general guide. Actual coverage requirements will vary based on your selected material, tile or stone thickness, pattern joint spacing, and installation waste.
- 70″ x 24″ Model: ~31 sq ft
Specifications
- Dimensions: 70″ x 24″
- Height: 23.5″
- Fuel Type: 20lb Tank Liquid Propane (not included)
- Ignition Options: Match Lit or Push Button Flame Sensing
- Approximate weight: 150 lbs
BTU Output
Varies depending on the configuration selected:
Rectangular Pan
- 30″ x 8″ Torpedo H-Burner
- Match Lit: 65,000 BTU/hr
- Push Button Spark Ignition: 150,000 BTU/hr
Trough
- 35.5″ Torpedo T-Burner
- Match Lit: 65,000 BTU/hr
- Push Button Spark Ignition: 115,000 BTU/hr
Warranty
Warranty coverage includes:
- Stainless steel burners: Lifetime
- Stainless steel components: up to 5 years (residential)
- Valves and electronic components: 1 to 3 years, depending on use
- Enclosure structure: 3 years
(Commercial applications may carry reduced coverage periods.)
Product Documents
- PDF – Rectangular Enclosure Gas Tank Series Drawings and Spec Sheet
- PDF – Rectangular Match Lit Insert Drawings and Spec Sheet
- PDF – Rectangular Push Button Insert Drawings and Spec Sheet
- PDF – Trough Enclosure Drawings and Spec Sheet
- PDF – Trough Match Lit Insert Drawings and Spec Sheet
- PDF – Trough Push Button Insert Drawings and Spec Sheet
- PDF – Interlink Enclosure Drawings and Spec Sheet
- PDF – Interlink Match Lit Insert Drawings and Spec Sheet
- PDF – Interlink Push Button Insert Drawings and Spec Sheet
- PDF – Match Lit Installation Manual
- PDF – Push Button Installation Manual
