Coronado Wood Grain GRFC Gas Fire Pit
The Coronado Wood Grain fire pit is manufactured using GFRC (Glass Fiber Reinforced Concrete) with a woodgrain finish.
GFRC is significantly lighter than standard concrete making the transportation and installation of the fire pit that much easier. It has a high strength-to-weight ratio, excellent flexural strength, and is weather resistant making the fire pit remarkably durable!
All products from The Outdoor Plus Company are custom-made in their USA facilities, ensuring quality craftsmanship, with a manufacturing timeframe of 2 to 3 weeks.
The Coronado Fire Pit is also available in Hammered Copper, Corten Steel, Stainless Steel, and Powder-Coated Steel.
Options

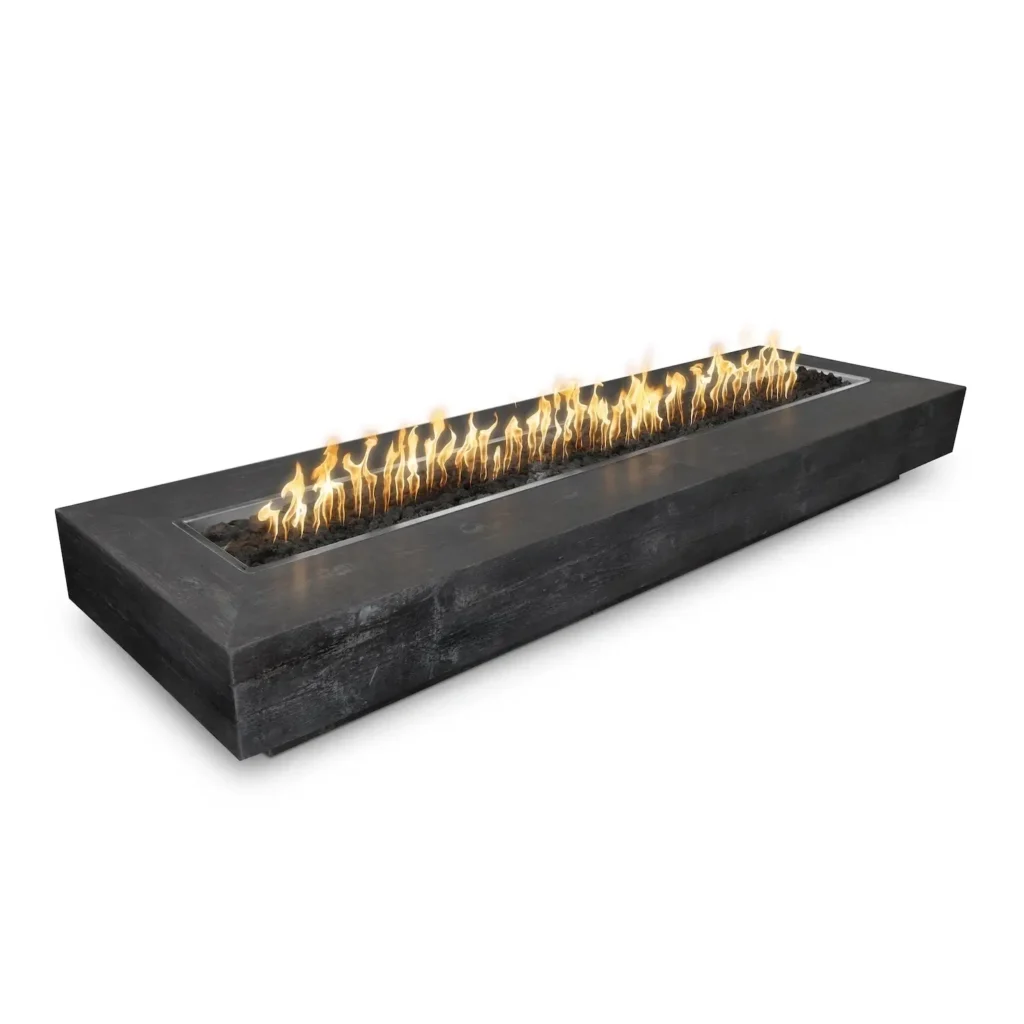

This version of the Coronado Fire Pit comes in seven length options, 48, 60, 72, 84, 96, 108, and 120 inches long. All are 28 inches wide and stand 15 inches tall. There are three color options and 5 ignition Options
Gas Type
Available for use with Natural Gas and Propane. Be sure to select the correct gas type as the Natural Gas setup cannot be used with Propane and vice versa.
Ignition Type
There are 5 options
Match Lit
The Match Lit system utilizes the chrome key valve installed on the fire pit structure to light the burner.
Simply turn the key to the on position and light the gas with a match, taper, or lighter. The flame can be adjusted and turned off using the key valve.

Match Lit with Flame Sensing (LC Certified)
These systems operate in the same manner as the standard Match Lit systems. However, they also incorporate technology that monitors the flame.
If the flame were to extinguish accidentally, the gas supply would be shut off. This action prevents the build-up of a potentially dangerous gas cloud.

Flame Sensing with Spark Ignition
Spark Ignition systems utilize battery power to provide a push-button ignition of the flame via a control panel on the fire pit.
This unit also incorporates Flame Sensing technology which will automatically turn off the gas supply if the flame accidentally extinguishes.

110VAC Electronic Ignition – Plug & play (CSA Certified)
Standard Voltage (110 Volt) Electronic Ignition systems can be used with fire pits anywhere that power can be installed but not close to water (see Low Voltage below).
The Electronic Ignition has Flame Sensing but will also automatically relight if the flame is blown out.
The Units can be wired up to a standard light switch, a dial timer or an emergency stop button, and a smart house system. An upgrade to include a Remote Control system is available.

12VAC Electronic Ignition – Low Voltage (CSA Certified)
Low-voltage Electronic Ignition systems should be utilized when the installation is close to water features, fountains, etc., and are ideal to use with fire pits for pools.
The Electronic Ignition system has Flame Sensing that will automatically relight if the flame is blown out.
The Units can be wired up to an on/off switch, a timer, a remote control, a pool controller, or a smart house system. Upgrades to a remote-controlled unit or a Bluetooth system are available. Bluetooth is both Android and Apple iOS compatible.

Choosing The Color
Because The Outdoor Plus Fire Pits are made to order, there will be slight variations in each order’s final color and texture.
Once you have selected your color, we recommend you request a sample of your color choice be sent to you for your final approval. Each of The Outdoor Plus Company’s fire pits is made to order; therefore, all sales are final.
You can call using our toll-free number which you can find at the top of the page or use the Contact Us form to provide an address where we can have a color sample sent.

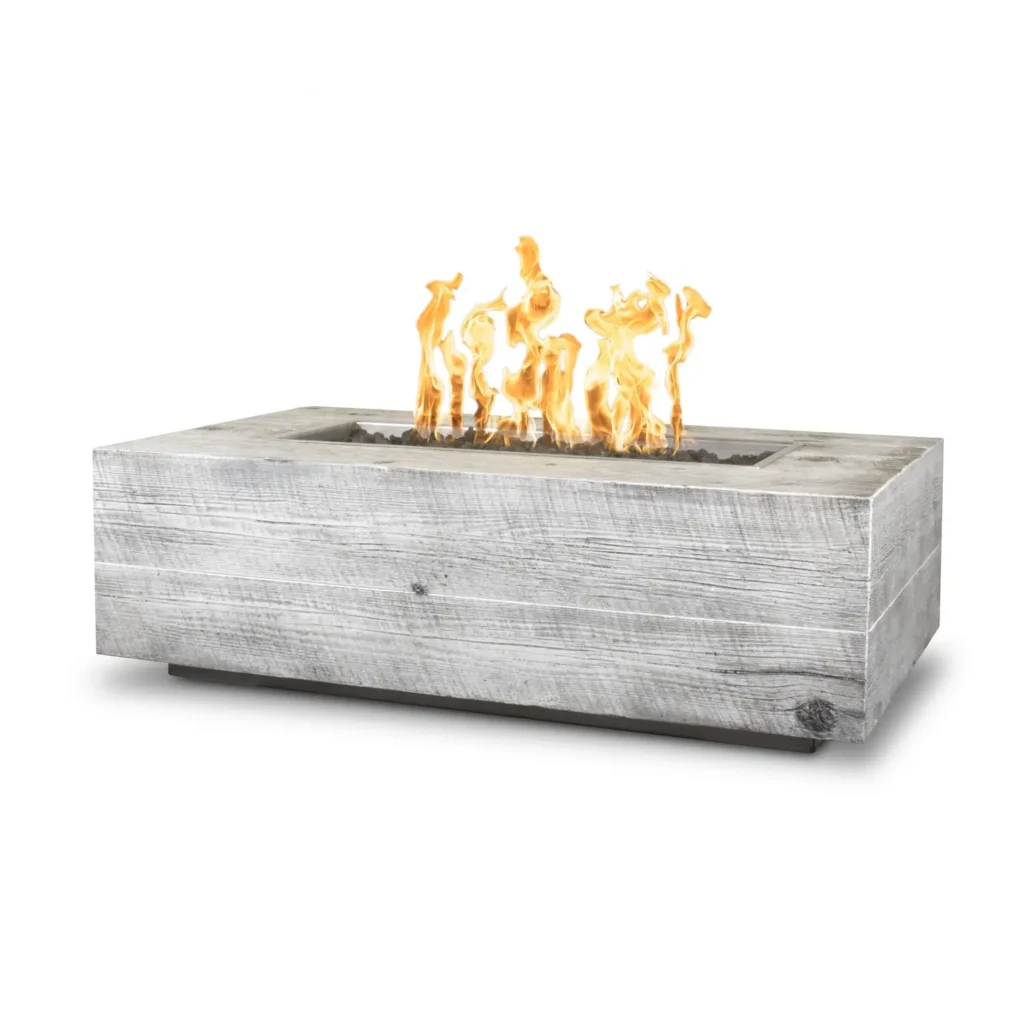

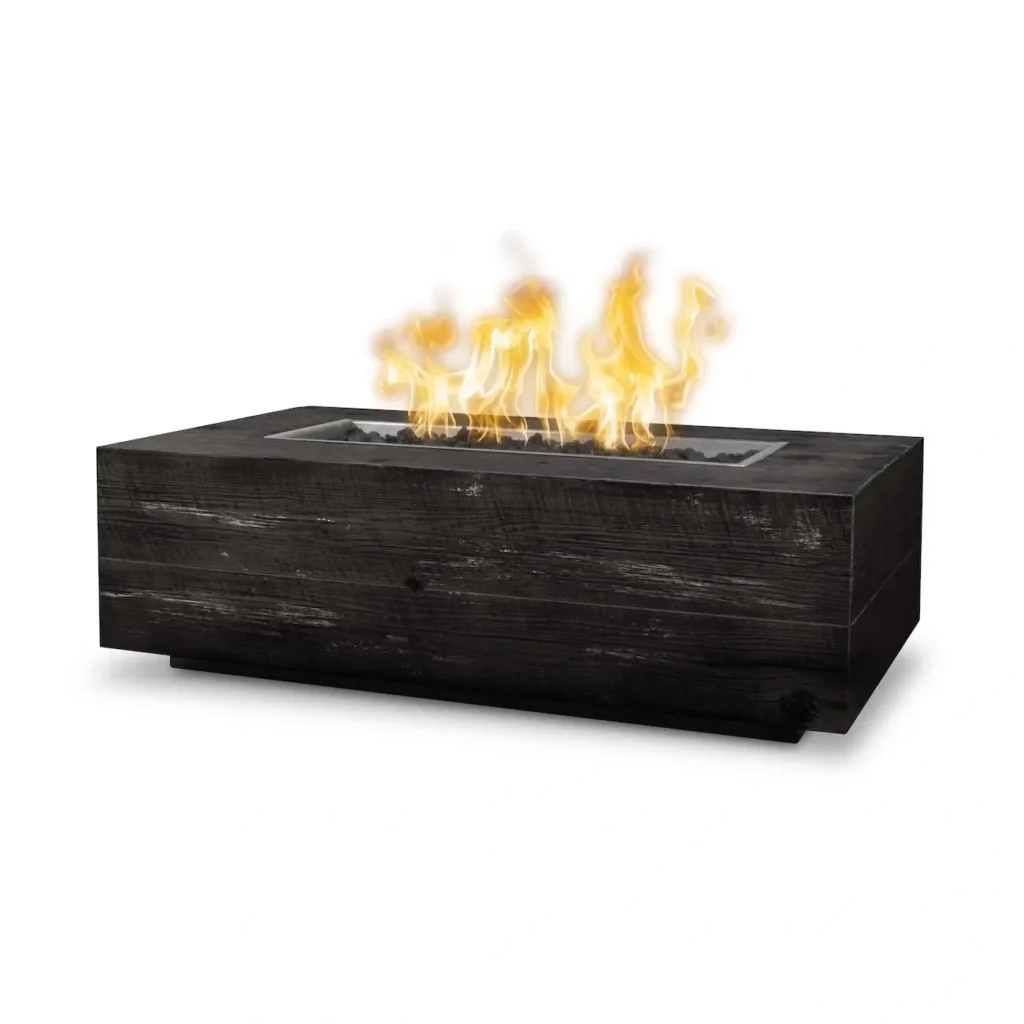

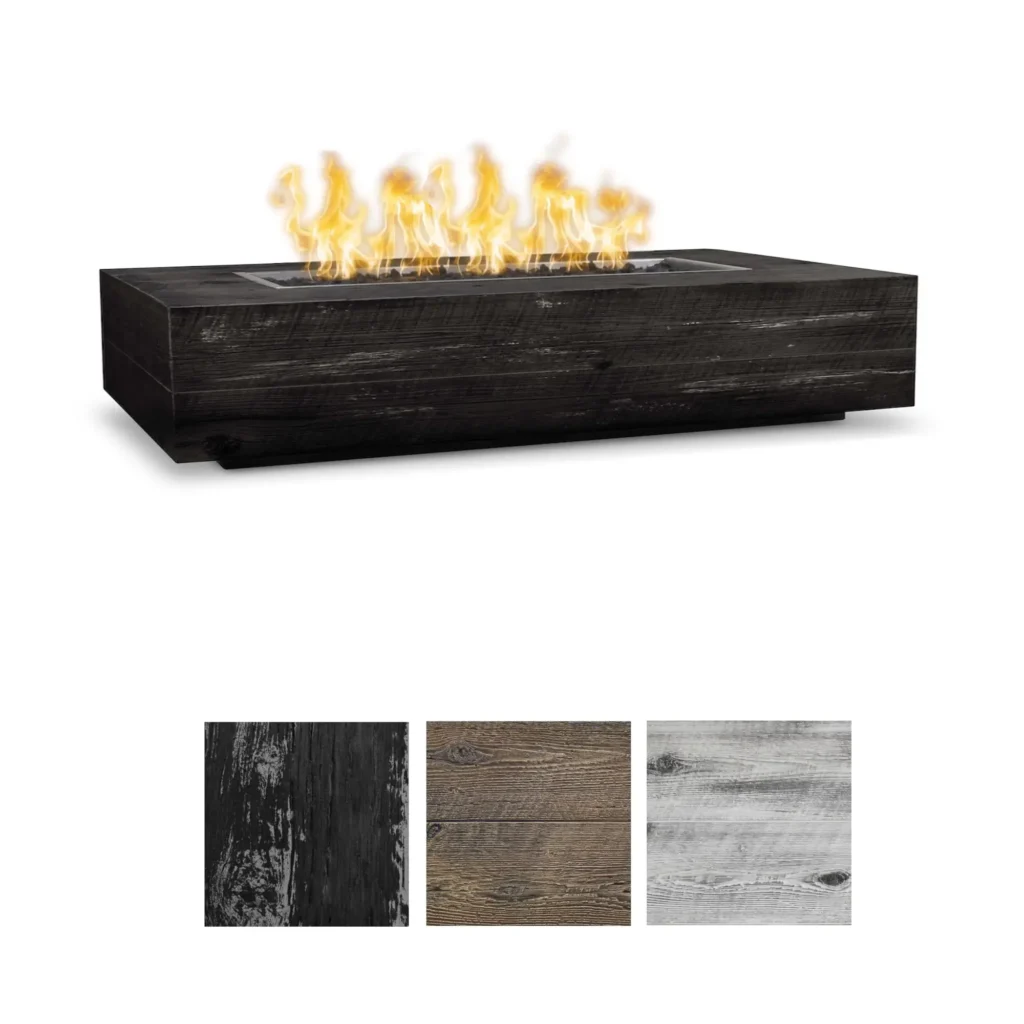

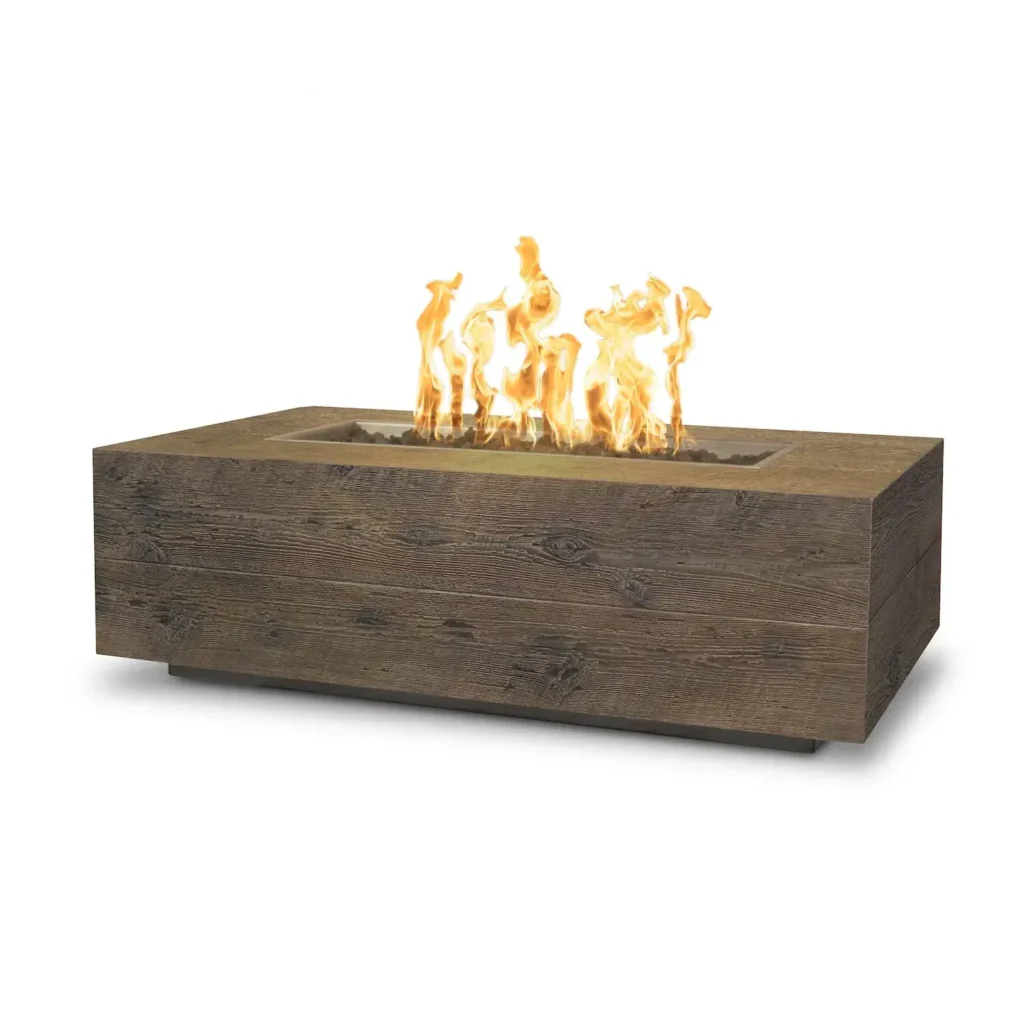

There are 3 Colors Available

Coronado Wood Grain GRFC Gas Fire Pit Specifications:
Pan & Burner
- Both Pan & Burner are made from 304 stainless steel.
- The Burner Has a Lifetime Warranty.
- *Fire Glass is not included, the quantities below are the Manufacturer’s suggested quantities.
- **Rectangular Wind Guards are not included, the sizes below are for your reference. See the Rectangular Glass Wind Guards OPT listing for details.
Size: 48″
- Dimensions: (L) 48″ x (W) 28″ x (H) 15″
- Burn area: 30″ x 10″
- Burner: 24″
- BTUs: 40,000
- Weight: 235
- *Fire Glass: 50 Lbs
- **Wind Guard: 34″ x 14″
Size: 60″
- Dimensions: (L) 60″ x (W) 28″ x (H) 15″
- Burn area: 42″ x 10″
- Burner: 30″
- BTUs: 50,000
- Weight: 375
- Fire Glass: 50 Lbs
- **Wind Guard: 46″ x 14″
Size: 72″
- Dimensions: (L) 72″ x (W) 28″ x (H) 15″
- Burn area: 54″ x 10″
- Burner: 42″
- BTUs: 70,000
- Weight: 455
- Fire Glass: 75 Lbs
- **Wind Guard: 58″ x 14″
Size: 84″
- Dimensions: (L) 84″ x (W) 28″ x (H) 15″
- Burn area: 66″ x 10″
- Burner: 54″
- BTUs: 90,000
- Weight: 610
- *Fire Glass: 100 Lbs
- **Wind Guard: 70″ x 14″
Size: 96″
- Dimensions: (L) 96″ x (W) 28″ x (H) 15″
- Burn area: 78″ x 10″
- Burner: 60″
- BTUs: 100,000
- Weight: 690
- *Fire Glass: 100 Lbs
- **Wind Guard: 82″ x 14″
Size: 108″
- Dimensions: (L) 108″ x (W) 28″ x (H) 15″
- Burn area: 90″ x 10″
- Burner: 72″
- BTUs: 120,000
- Weight: 765
- *Fire Glass: 100 Lbs
- **Wind Guard: 94″ x 14″
Size: 120″
- Dimensions: (L) 120″ x (W) 28″ x (H) 15″
- Burn area: 102″ x 10″
- Burner: 84″
- BTUs: 125,000
- Weight: 835
- *Fire Glass: 125 Lbs
- **Wind Guard: 106″ x 14″
Bullet Burner Upgrade
The Standard Linear T Burner can be upgraded to a Linear Bullet Burner which produces approximately twice the flame height of an equivalently rated Standard Burner.
For more information head on over to our Bullet Burners page. If you want to upgrade, contact us at the phone number at the top of the page or via the “Contact Us Form” at the bottom for details.
Warranty
The Outdoor Plus Warranty Policy
Coronado Wood Grain GRFC Gas Fire Pit Downloads
Coronado Wood Grain GRFC Fire Pit Specification Sheet Dimensions
Low Voltage – 12VAC Electronic Ignition Manual
Plug & Play – 110VAC Electronic Ignition Manual
Flame Sense with Spark Ignition
