Catalina Wood Grain GRFC Gas Fire Pit by The Outdoor Plus

The Outdoor Plus
Part #: OPT-CTL

$3,418.00$11,346.00

Free Shipping Small Logo
Within 48 Contiguious States
Product Description
Product Reviews

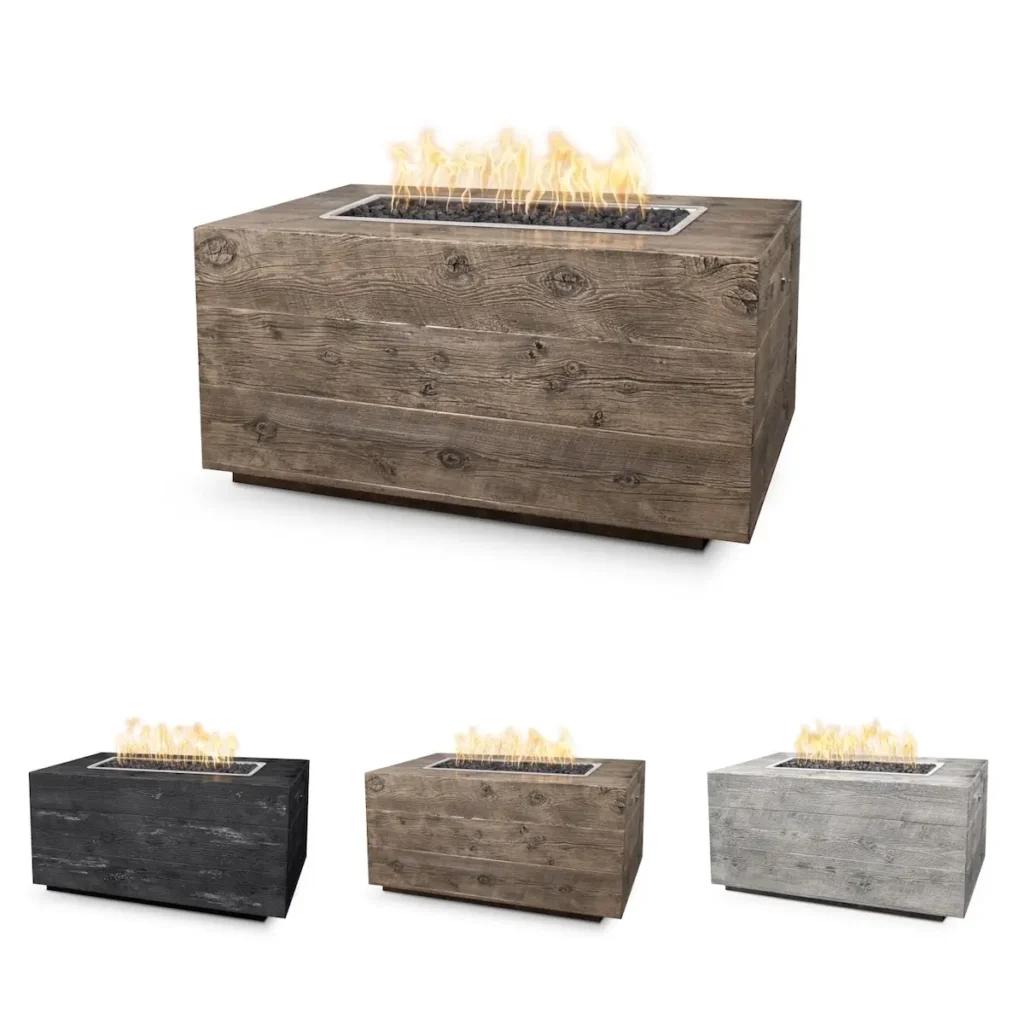

Catalina Wood Grain GRFC Gas Fire Pit

Introducing the enchanting Catalina Wood Grain Fire pit, crafted with GFRC (Glass Fiber Reinforced Concrete) and adorned with a mesmerizing woodgrain finish.

GFRC is lighter than standard concrete making the transportation and installation of the fire pit a little easier. At the same time, its exceptional strength-to-weight ratio and weather resistance ensure lasting durability for the fire pit!

Every piece from The Outdoor Plus Company is expertly tailored in their USA workshop, guaranteeing superior craftsmanship within a production period of 2 to 3 weeks.

Options

The Catalina Fire Pit is available in seven length variations: 48, 60, 72, 84, 96, 108, and 120 inches, uniformly 28 inches wide and standing at a height of 24 inches. Choose from three color selections and five ignition options to customize your perfect fire pit experience.

Gas Type

Choose between Natural Gas and Propane. It’s crucial to select the appropriate gas type, as the Fire Pit Natural Gas configuration is incompatible with Propane, and vice versa.


Ignition Type

There are 5 options

Match Lit

The Match Lit system utilizes the chrome key valve installed on the fire pit structure to light the burner.

Simply turn the key to the on position and light the gas with a match, taper, or lighter. The flame can be adjusted and turned off using the key valve.

The Outdoor Plus OPT-25634 3/4-Inch Full Flow Ball Valve

Match Lit with Flame Sensing (LC Certified)

These systems operate in the same manner as the standard Match Lit systems. However, they also incorporate technology that monitors the flame.

If the flame were to extinguish accidentally, the gas supply would be shut off. This action prevents the build-up of a potentially dangerous gas cloud.

Fire Pit Ignition System with Flame Sense

Flame Sensing with Spark Ignition

Spark Ignition systems utilize battery power to provide a push-button ignition of the flame via a control panel on the fire pit.

This unit also incorporates Flame Sensing technology which will automatically turn off the gas supply if the flame accidentally extinguishes.

Flame Sense Fire Pit Ignition System

110VAC Electronic Ignition – Plug & play (CSA Certified)

Standard Voltage (110 Volt) Electronic Ignition systems can be used with fire pits anywhere that power can be installed but not close to water (see Low Voltage below).

The Electronic Ignition has Flame Sensing but will also automatically relight if the flame is blown out.

The Units can be wired up to a standard light switch, a dial timer or an emergency stop button, and a smart house system.  An upgrade to include a Remote Control system is available.

Fire Pit Electronic-Ignition-Plug-and-Play-System

12VAC Electronic Ignition – Low Voltage (CSA Certified)

Low-voltage Electronic Ignition systems should be utilized when the installation is close to water features, fountains, etc., and are ideal to use with fire pits for pools.

The Electronic Ignition system has Flame Sensing that will automatically relight if the flame is blown out.

The Units can be wired up to an on/off switch, a timer, a remote control, a pool controller, or a smart house system. Upgrades to a remote-controlled unit or a Bluetooth system are available. Bluetooth is both Android and Apple iOS compatible.

SWEIS-System-12V-electronic ignition system for fire pits

Choosing The Color

Because The Outdoor Plus Fire Pits are made to order, there will be slight variations in each order’s final color and texture.

Once you have selected your color, we recommend you request a sample of your color choice be sent to you for your final approval. Each of The Outdoor Plus Company’s fire pits is made to order; therefore, all sales are final.

You can call using our toll-free number which you can find at the top of the page or use the Contact Us form to provide an address where we can have a color sample sent.

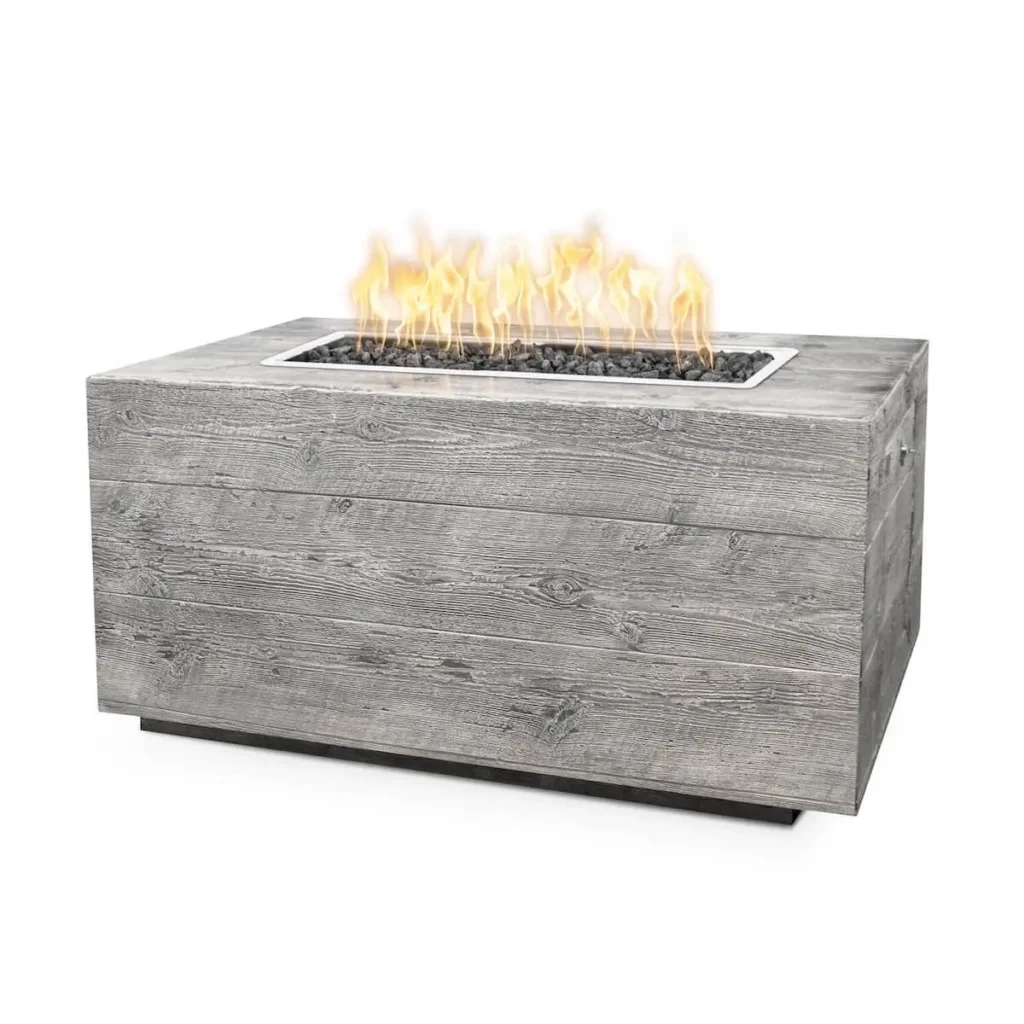

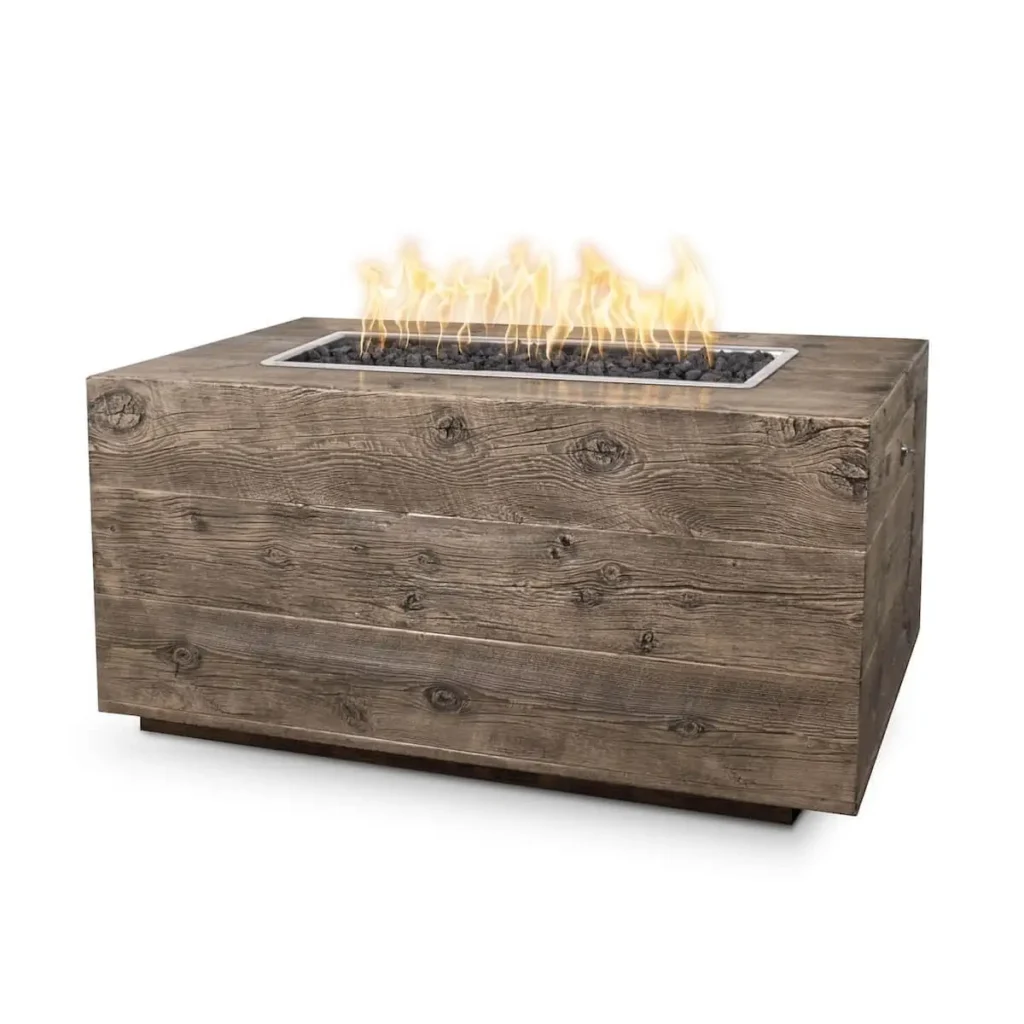

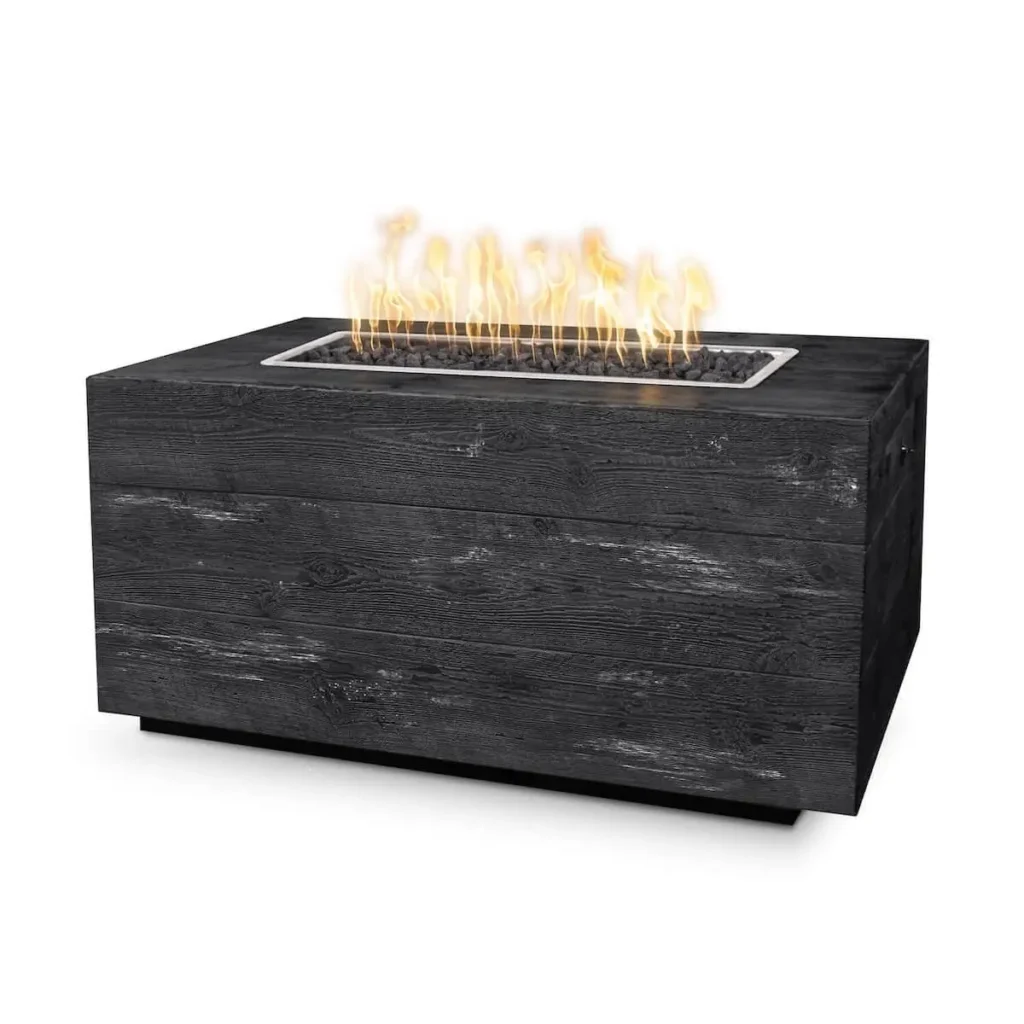

There are 3 Colors Available

Wood Grain Colors

Catalina Wood Grain GRFC Gas Fire Pit Specifications:

Pan & Burner

  • Both Pan & Burner are made from 304 stainless steel.
  • The Burner Has a Lifetime Warranty.
  • *Fire Glass is not included, the quantities below are the Manufacturer’s suggested quantities.
  • **Rectangular Wind Guards are not included, the sizes below are for your reference. See the Rectangular Glass Wind Guards OPT listing for details.

Size: 48″

  • Dimensions: (L) 48″ x (W) 28″ x (H) 24″
  • Burn area: 30″ x 10″
  • Burner: 24″
  • BTUs: 40,000
  • Weight: 235lbs
  • *Fire Glass: 50lbs
  • **Wind Guard: 34″ x 14″

Size: 60″

  • Dimensions: (L) 60″ x (W) 28″ x (H) 24″
  • Burn area: 42″ x 10″
  • Burner: 30″
  • BTUs: 50,000
  • Weight: 375lbs
  • Fire Glass: 50lbs
  • **Wind Guard: 46″ x 14″

Size: 72″

  • Dimensions: (L) 72″ x (W) 28″ x (H) 24″
  • Burn area: 54″ x 10″
  • Burner: 42″
  • BTUs: 70,000
  • Weight: 455lbs
  • Fire Glass: 75lbs
  • **Wind Guard: 58″ x 14″

Size: 84″

  • Dimensions: (L) 84″ x (W) 28″ x (H) 24″
  • Burn area: 66″ x 10″
  • Burner: 54″
  • BTUs: 90,000
  • Weight: 610lbs
  • *Fire Glass: 100lbs
  • **Wind Guard: 70″ x 14″

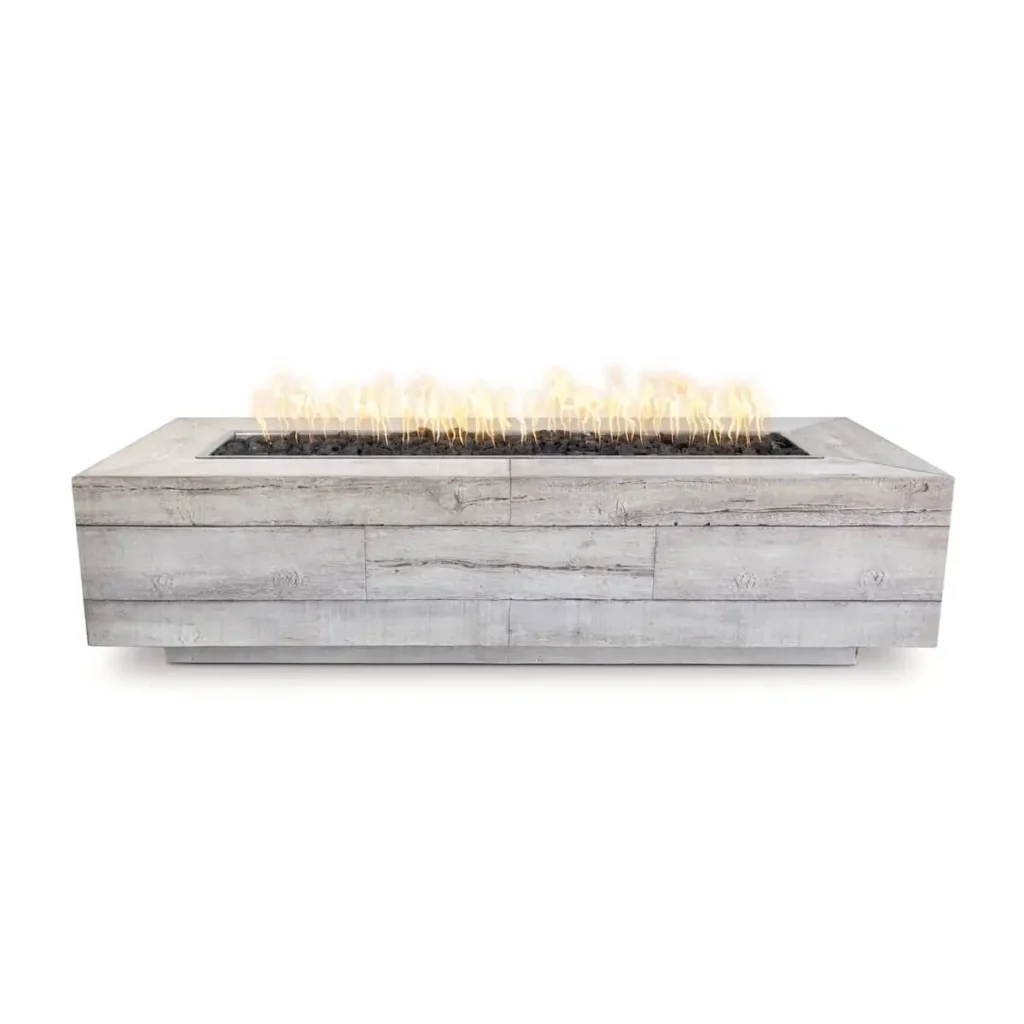

Size: 96″

  • Dimensions: (L) 96″ x (W) 28″ x (H) 24″
  • Burn area: 78″ x 10″
  • Burner: 60″
  • BTUs: 100,000
  • Weight: 690lbs
  • *Fire Glass: 100lbs
  • **Wind Guard: 82″ x 14″

Size: 108″

  • Dimensions: (L) 108″ x (W) 28″ x (H) 24″
  • Burn area: 90″ x 10″
  • Burner: 72″
  • BTUs: 120,000
  • Weight: 765lbs
  • *Fire Glass: 100lbs
  • **Wind Guard: 94″ x 14″

Size: 120″

  • Dimensions: (L) 120″ x (W) 28″ x (H) 24″
  • Burn area: 102″ x 10″
  • Burner: 84″
  • BTUs: 125,000
  • Weight: 835
  • *Fire Glass: 125lbs
  • **Wind Guard: 106″ x 14″

Bullet Burner Upgrade

The Standard Linear T Burner can be upgraded to a Linear Bullet Burner which produces approximately twice the flame height of an equivalently rated Standard Burner.

For more information head on over to our Bullet Burners page. If you want to upgrade, contact us at the phone number at the top of the page or via the “Contact Us Form” at the bottom for details.

Warranty

The Outdoor Plus Warranty Policy

Catalina Wood Grain GRFC Gas Fire Pit Downloads



Catalina Wood Grain Fire Pit Specification Sheet Dimensions

Low Voltage – 12VAC Electronic Ignition Manual

Plug & Play  – 110VAC Electronic Ignition Manual

Match Lit with Flame Sense

Flame Sense with Spark Ignition
