Carmen Gas Fire Pit GFRC by The Outdoor Plus

The Outdoor Plus
Part #: OPT-CRM72xx-xxx-xx


Free Shipping Small Logo
Within 48 Contiguious States
Product Description
Product Reviews

Carmen Gas Fire Pit GFRC Concrete

The sleek linear design of the Carmen Fire Pit focuses on clean lines and understated simplicity, allowing the burner’s flames to become the focal point of any outdoor space.

The Carmen is a long narrow fire pit. It is 72 Inches long with 2 height options, 16 Inches and 24 Inches. The 24-inch high model has an access door for storing a 20lb Propane gas bottle within the structure.

All products by The Outdoor Plus are meticulously crafted in the USA and tailored to order, reflecting a commitment to quality and customization. Most items entail a manufacturing timeline of 2 to 3 weeks, ensuring attention to detail and precision in every creation.

Every Carmen Fire Pit is handcrafted utilizing color-matched GFRC ensuring durability and aesthetic longevity, as the color is integrated throughout the concrete.

Glass Fiber Reinforced Concrete (GFRC) offers numerous benefits that set it apart from traditional concrete materials. The manufacturing process of GRFC Concrete Fire Pits results in a lighter yet more resilient product compared to standard concrete.


Gas Type

Available for use with Natural Gas and Propane. It’s essential to choose the appropriate gas type since the Fire Pit Natural Gas setup is incompatible with Propane, and vice versa.

Ignition Type

There are 5 options

Match Lit

The Match Lit system utilizes the chrome key valve installed on the fire pit structure to light the burner.

Simply turn the key to the on position and light the gas with a match, taper, or lighter. The flame can be adjusted and turned off using the key valve.

The Outdoor Plus OPT-25634 3/4-Inch Full Flow Ball Valve

Match Lit with Flame Sensing (LC Certified)

These systems operate in the same manner as the standard Match Lit systems. However, they also incorporate technology that monitors the flame.

If the flame were to extinguish accidentally, the gas supply would be shut off. This action prevents the build-up of a potentially dangerous gas cloud.

Fire Pit Ignition System with Flame Sense

Flame Sensing with Spark Ignition

Spark Ignition systems utilize battery power to provide a push-button ignition of the flame via a control panel on the fire pit.

This unit also incorporates Flame Sensing technology which will automatically turn off the gas supply if the flame accidentally extinguishes.

Flame Sense Fire Pit Ignition System

110VAC Electronic Ignition – Plug & play (CSA Certified)

Standard Voltage (110 Volt) Electronic Ignition systems can be used with fire pits anywhere that power can be installed but not close to water (see Low Voltage below).

The Electronic Ignition has Flame Sensing but will also automatically relight if the flame is blown out.

The Units can be wired up to a standard light switch, a dial timer or an emergency stop button, and a smart house system.  An upgrade to include a Remote Control system is available.

Fire Pit Electronic-Ignition-Plug-and-Play-System

12VAC Electronic Ignition – Low Voltage (CSA Certified)

Low-voltage Electronic Ignition systems should be utilized when the installation is close to water features, fountains, etc., and are ideal to use with fire pits for pools.

The Electronic Ignition system has Flame Sensing that will automatically relight if the flame is blown out.

The Units can be wired up to an on/off switch, a timer, a remote control, a pool controller, or a smart house system. Upgrades to a remote-controlled unit or a Bluetooth system are available. Bluetooth is both Android and Apple iOS compatible.

SWEIS-System-12V-electronic ignition system for fire pits

Choosing The Color

Because a GFRC Concrete Fire Pit is made to order, there will be slight variations in each order’s final color and texture.

Once you have selected your color, we recommend you request a sample of your color choice be sent to you for your final approval. Each of The Outdoor Plus Company’s fire pits is made to order; therefore, all sales are final.

You can call using our toll-free number which you can find at the top of the page or use the Contact Us form to provide an address where we can have a color sample sent.

There are eighteen colors, comprising nine Standard colors, four Rustic colors, and five Metallic colors.

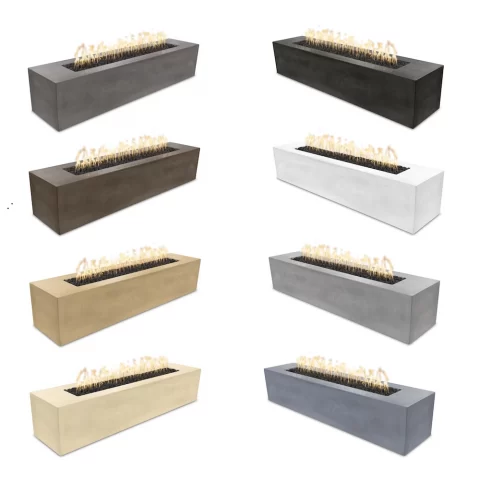

Standard Color Options

The Outdoor Plus Standard GFRC Color options for Fire Pits

Premium Metallic Color Options

The Outdoor Plus Premium Metallic Color Options For Fire Pits

Rustic Color Options

The Outdoor Plus Fire Pit Color options with Rustic Finish

Carmen Gas Fire Pit GFRC Specifications

  • Both Pan & Burner are made from 304 stainless steel.
  • The Burner Has a Lifetime Warranty.
  • *Fire Glass is not included, the quantities below are the Manufacturer’s suggested quantities.
  • **Rectangular Wind Guards are not included, the sizes below are for your reference. See the Rectangular Glass Wind Guards OPT listing for details.

16 Inch High Model

  • Dimensions: (L) 72″ x (W) 16″ x (H) 16″
  • Burn area: 52″ x 9″
  • Burner: 24″
  • BTUs: 40,000
  • Weight: 465lbs
  • *Fire Glass: 75lbs
  • **Wind Guard: 48″ x 12″

24 Inch High Model

  • Dimensions: (L) 72″ x (W) 16″ x (H) 24″
  • Burn area: 52″ x 9″
  • Burner: 24″
  • BTUs: 40,000
  • Weight: 465lbs
  • Fire Glass: 75lbs
  • **Wind Guard: 48″ x 12″

Bullet Burner Upgrade

The Standard Burner can be upgraded to a Bullet Burner which produces approximately twice the flame height of an equivalently rated Standard Burner.

For more information head on over to our Bullet Burners page. If you are interested in upgrading, please contact at us the phone number at the very top of the page or via the “Contact Us Form” at the very bottom.

Fire Pit with Concealed Gas Bottle

The 24″ high fire pit with concealed gas bottle capability has an access door at one end.

Door dimensions – 14″ x 16″

Access Door for Gas Bottle Storage - Carmen Fire Pit

Download Manuals & Specifications

Carmen Fire Pit  – Specifications

Low Voltage – 12VAC Electronic Ignition Manual

Plug & Play  – 110VAC Electronic Ignition Manual

Match Lit with Flame Sense

Flame Sense with Spark Ignition

Warranty Information

Prop 65 Prop 65 Warning: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the state of California to cause cancer, and Carbon Monoxide, Lead, and Lead Compounds which are known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
