Standard Capacity Fire Pit Electronic Ignition System

Specifically engineered for outdoor fire features, these robust, CSA-certified Electronic Ignition Systems provide highly reliable, sophisticated ignition and comprehensive flame management for fire pits with gas outputs reaching up to 290,000 BTU/hr.

Discover unparalleled peace of mind and seamless command with the 30V DC Standard Capacity Fire Pit Electronic Ignition System. This system incorporates a high level of gas safety by constantly monitoring the flame. Should the flame unexpectedly extinguish, it will initiate multiple attempts to reignite; only if these attempts are unsuccessful will the gas supply be safely and automatically shut off.

For ultimate convenience, you can effortlessly manage your fire pit’s operation through a variety of control options. These range from the simplest — an ON/OFF switch, Electric Timer, or Emergency Stop Button — to more advanced methods like wireless remote controls, smart wireless light switches, or even full integration with your existing swimming pool or home automation system.

The Outdoor Plus Electronic Ignition for fire pits with the Plug and Play - High Capacity unit on the left and a Low Voltage - Standard Capacity unit on the right. — Plug and Play unit on the left and Low Voltage unit on the right.

Options

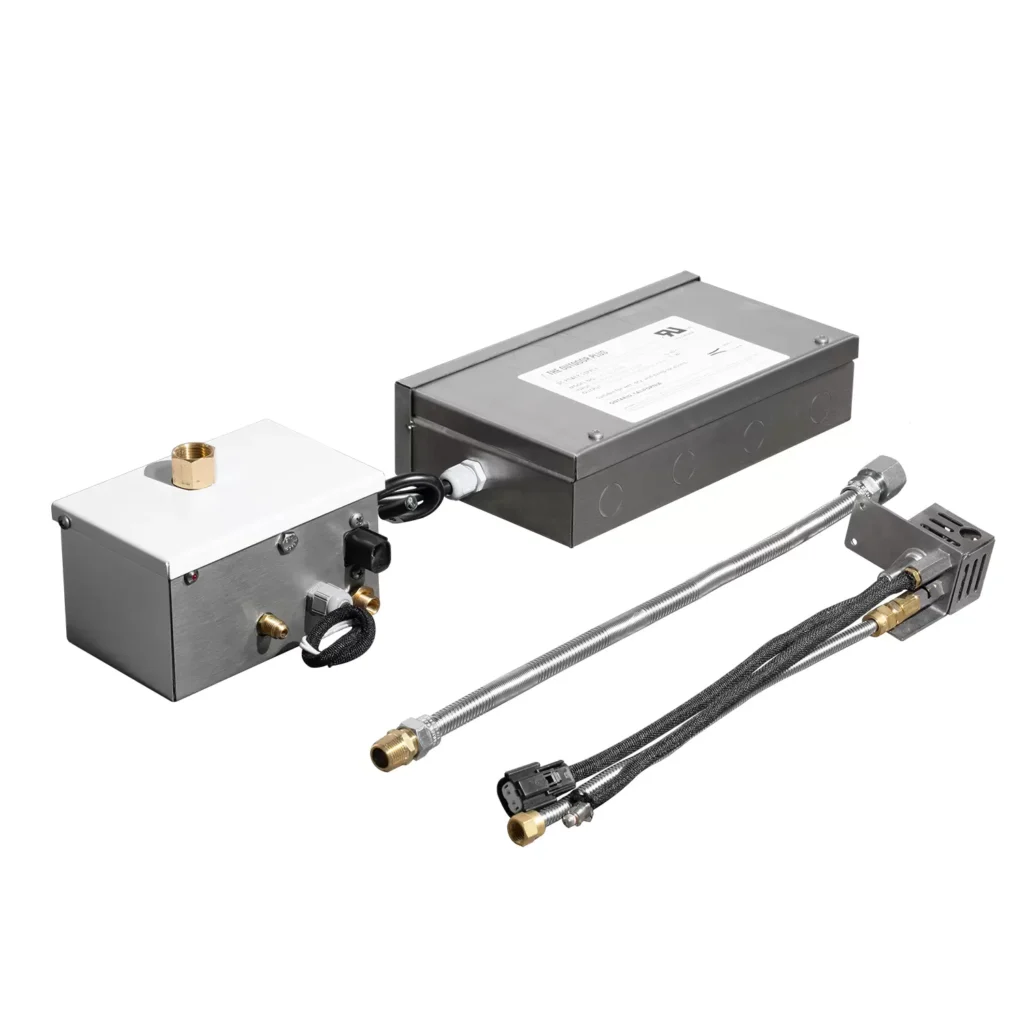

Low Voltage – DC – (TOP-500EIS-200-30DC)

Ideal for installations situated within five feet of water features such as swimming pools, fountains, or other aquatic elements.

This configuration includes the electronic valve, pilot igniter, and a dedicated external transformer capable of powering up to two fire features.

Plug and Play – DC – (TOP-500EIS-200-30DC-110V)

This unit comes complete with the pilot igniter and an electronic valve, featuring a standard 3-prong plug for straightforward setup.

Basic operation of the fire feature is managed via an external ON/OFF switch, which is wired directly into the electrical supply line.

Features

Electronics

Enhanced safeguarding against moisture and potential damage.

Reliable ignition sequence powered by Hot Surface Ignition (HSI).

Rapid-response Thermocouple Flame Sense system for immediate detection.

Integrated LED diagnostics to simplify field service and troubleshooting.

Gas Valve and Pilot Components

Constructed with moisture-resistant features for increased durability.

Thermocouple features a nickel-plated coating for extended lifespan.

Hot Surface Igniter (HSI) includes a protective cage and a waterproof connection.

Standard Capacity Fire Pit Electronic Ignition System Specs:

Maximum Gas Output: 290,000 BTU/hr

Inlet / Outlet Size: 1/2” FIP

Electrical Rating: 30V DC

-20° to 175° Temp Range with safety shutoff at 175°F

LED diagnostics for field service and troubleshooting

These units are also available for mini-capacity burners with a maximum BTU rating of 190,000. See our Mini-Capacity Listing for details.

Also available are units for High-Capacity burners with a BTU rating of up to 510,000.

Further Information

Fuel Compatibility: Compatible with both Natural Gas (NG) and Liquid Propane (LP), whether from a portable LP tank or a hard-lined LP system.

Venting Requirements: All gas fire pit enclosures necessitate a minimum of 18 square inches of ventilation on two opposing sides. Higher BTU units or those with extended operating hours may require increased ventilation.

LP Applications: For liquid propane setups, fire media smaller than 1/2″ is not recommended.

Propane Air Mixer: An air mixer is advised for optimal performance with propane burners.

Mandatory Shutoff: Installation of a listed manual gas shutoff device is required prior to the appliance’s location.

Heat Protection: A heat shield/plate or burner pan must be installed between the ignition unit and the burner ring to prevent overheating.

Professional Installation: Installation and servicing of this product must be performed exclusively by a qualified installer, service agent, or your local gas supplier.
