Stainless Steel T Burner OPT-16x The Outdoor Plus

The Outdoor Plus
Part #: OPT-16XX-config

$46.00$332.00

Free Shipping Small Logo
Within 48 Contiguious States

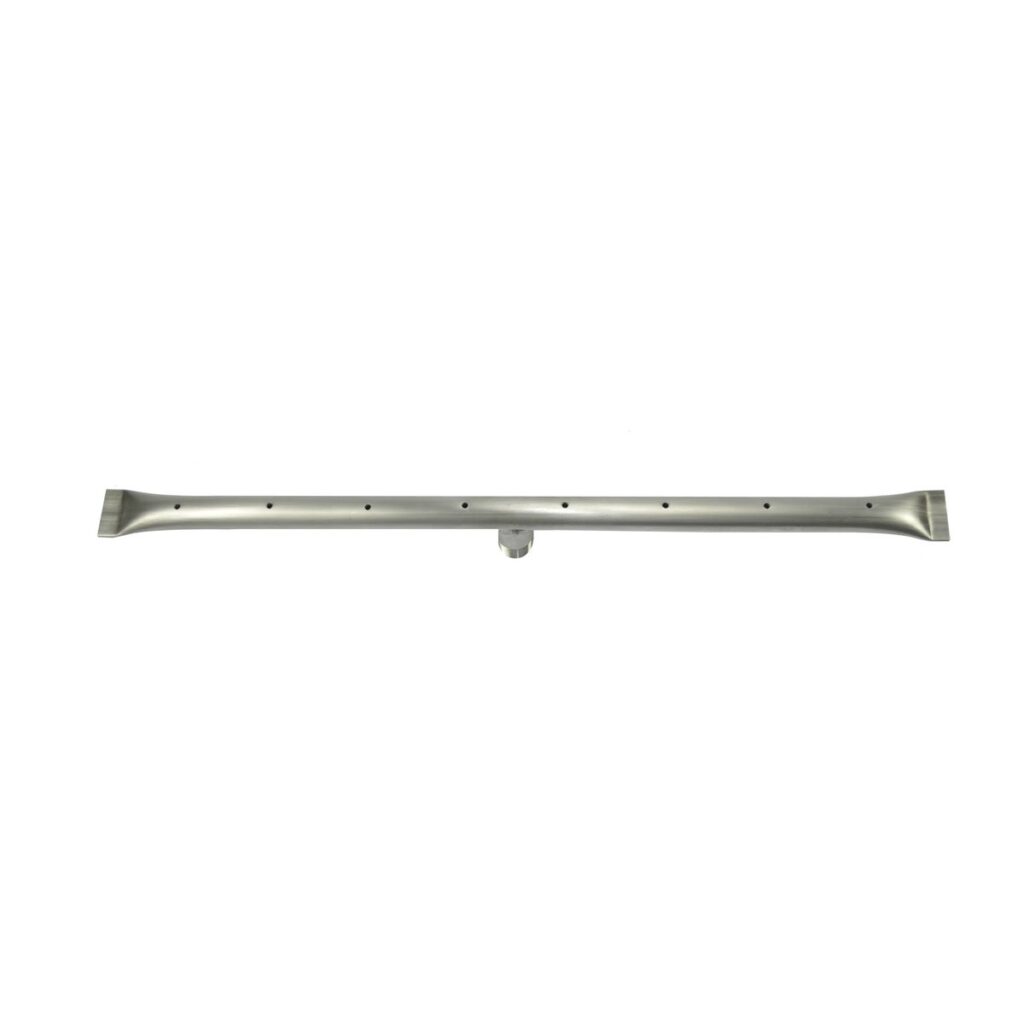

Stainless Steel T Burner from The Outdoor Plus Company

Stainless Steel T Burners or Linear Burners create a single line of flame, which makes them ideal for narrow fire pit structures.

Slimline fire pit structures are perfect for confined spaces, but conversely, they are often used in large open spaces to delineate areas. You often see this in Hotel Foyers, Casinos and Restaurants.

Stainless Steel T Burner

Another popular use of the linear fire pit burner is in fire pit tables. The Linear Burner creates a line of flame running down the center of the table.

Linear Light Brass Bullet Burner

The Stainless Steel T burner from The Outdoor Plus company is available in 12 sizes ranging from 16 inches to 120 inches and ratings from 50,000 to 240,000 Btu’s. It can also be easily retrofitted into existing fire features.

The gas ports for these burners are drilled creating a smoother gas flow and better flame than punched holes. The gas inlets are slightly raised to prevent water getting into your gas line.

Stainless Steel T Burner Specifications:

  • Burner Length: 16″ – BTU Rating: 30,000 – Gas Inlet: 1/2″
  • Burner Length: 24″ – BTU Rating: 50,000 – Gas Inlet: 1/2″
  • Burner Length: 30″ – BTU Rating: 50,000 – Gas Inlet: 1/2″
  • Burner Length: 36″ – BTU Rating: 60,000 – Gas Inlet: 1/2″
  • Burner Length: 48″ – BTU Rating: 80,000 – Gas Inlet: 1/2″
  • Burner Length: 60″ – BTU Rating: 100,000 – Gas Inlet: 1/2″
  • Burner Length: 72″ – BTU Rating: 120,000 – Gas Inlet: 3/4″
  • Burner Length: 84″ – BTU Rating: 140,000 – Gas Inlet: 3/4″
  • Burner Length: 108″ (M) – BTU Rating: 180,000 – Gas Inlet: 3/4″
  • Burner Length: 120″ (M) – BTU Rating: 200,000 – Gas Inlet: 3/4″
  • (M) indicates that the burner requires a manifold for the correct mixture of air and gas

Downloads

T Burner Stainless Steel Specification

Video of the Stainless Steel T Burner
