Round Flat Pan with Stainless Steel Round Bullet Burner

Round Flat Pan with Stainless Steel Round Bullet Burner
All products from The Outdoor Plus are made-to-order and handcrafted in their California factory, proudly showcasing their ‘Made in America’ craftsmanship.
This Round Fire Pit Pan and Burner features advanced Bullet Burner Technology, delivering a flame that reaches twice the height of a standard burner of equivalent size.

Round Flat Pan with Stainless Steel Round Bullet Burner Specifications
Details

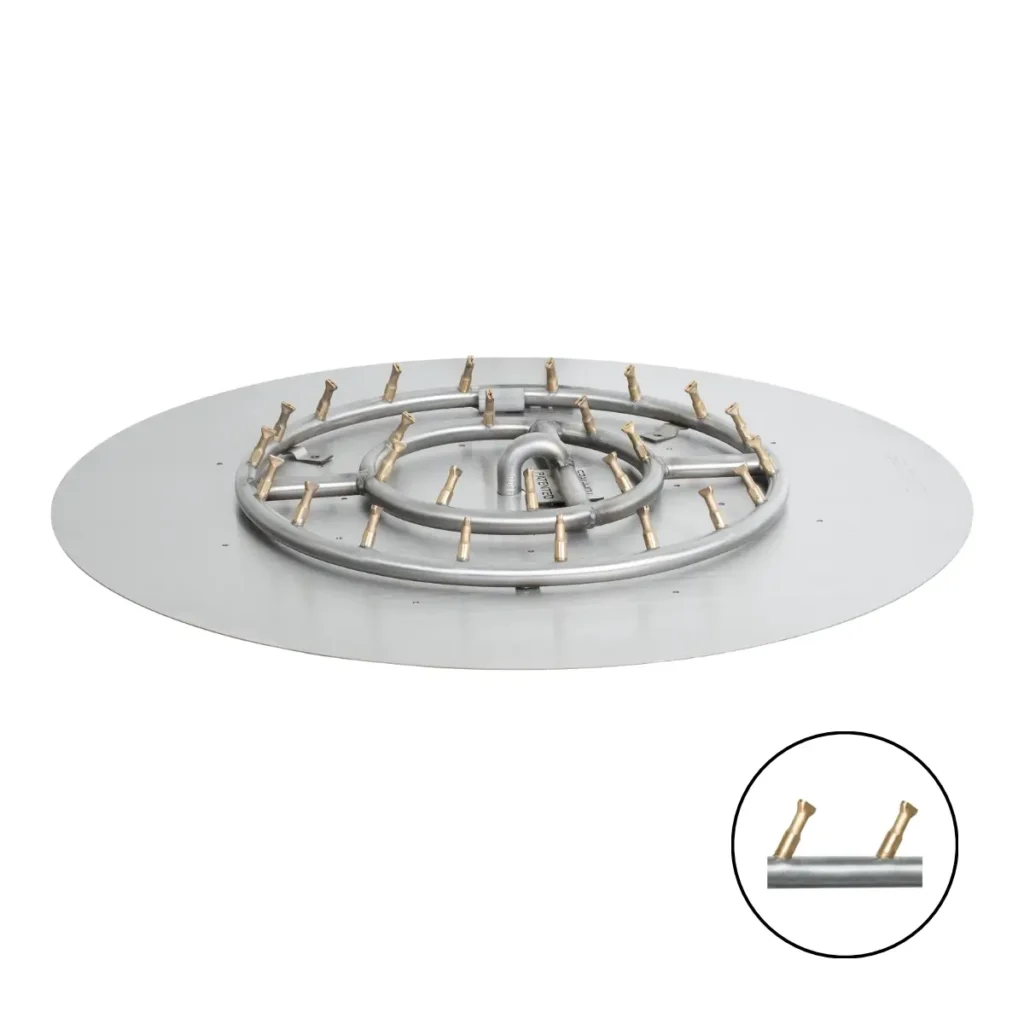

The pan is made from aluminum and the round fire ring with raised hub is manufactured from 304 Stainless Steel with the patented brass bullet tips.
The pan sizes range from 18 inches to 60 inches in diameter, with the burner design expanding from a single ring to double and triple rings as the size increases, enhancing both performance and flame aesthetics.
A clearance of 10″ below the pan is required for gas connections, except for the 60″ pan, which needs 15″ to allow for a manifold (M).
Dimensions and BTU Ratings
- Size 18″ with an 8″ Single Ring Burner rated 65,000 BTU/hr with 1/2″ gas inlet
- Size 18″ with a 12″ Single Ring Burner rated 100,000 BTU/hr with 1/2″ gas inlet
- Size 24″ with an 18″ Double Ring Burner rated 225,000 BTU/hr with 1/2″ gas inlet
- Size 30″ with a 24″ Double Ring Burner rated 275,000 BTU/hr with 3/4″ gas inlet
- Size 36″ with a 30″ Triple Ring Burner rated 460,000 BTU/hr with 3/4″ gas inlet
- Size 48″ with a 36″ Triple Ring Burner rated 525,000 BTU/hr with 3/4″ gas inlet
- Size 60″ with a 48″ Quad Ring Burner (M) rated 850,000 BTU/hr with 3/4″ gas inlets
Warranty:
- Burner: Lifetime Warranty.
- Aluminum Pan: Residential 5-Years, Commercial 1-Year
Round Flat Pan with Stainless Steel Round Bullet Burner Downloadable PDFs
Round Flat Pan with Stainless Steel Round Bullet Burner Specification Sheets
