Round Flat Fire Pit Pan with Round Burner by The Outdoor Plus OPT-1100xxBP

Round Flat Fire Pit Pan with Round Burner by The Outdoor Plus OPT-1100xxBP

Like all products by The Outdoor Plus, this burner & pan are made-to-order and manufactured in the USA.

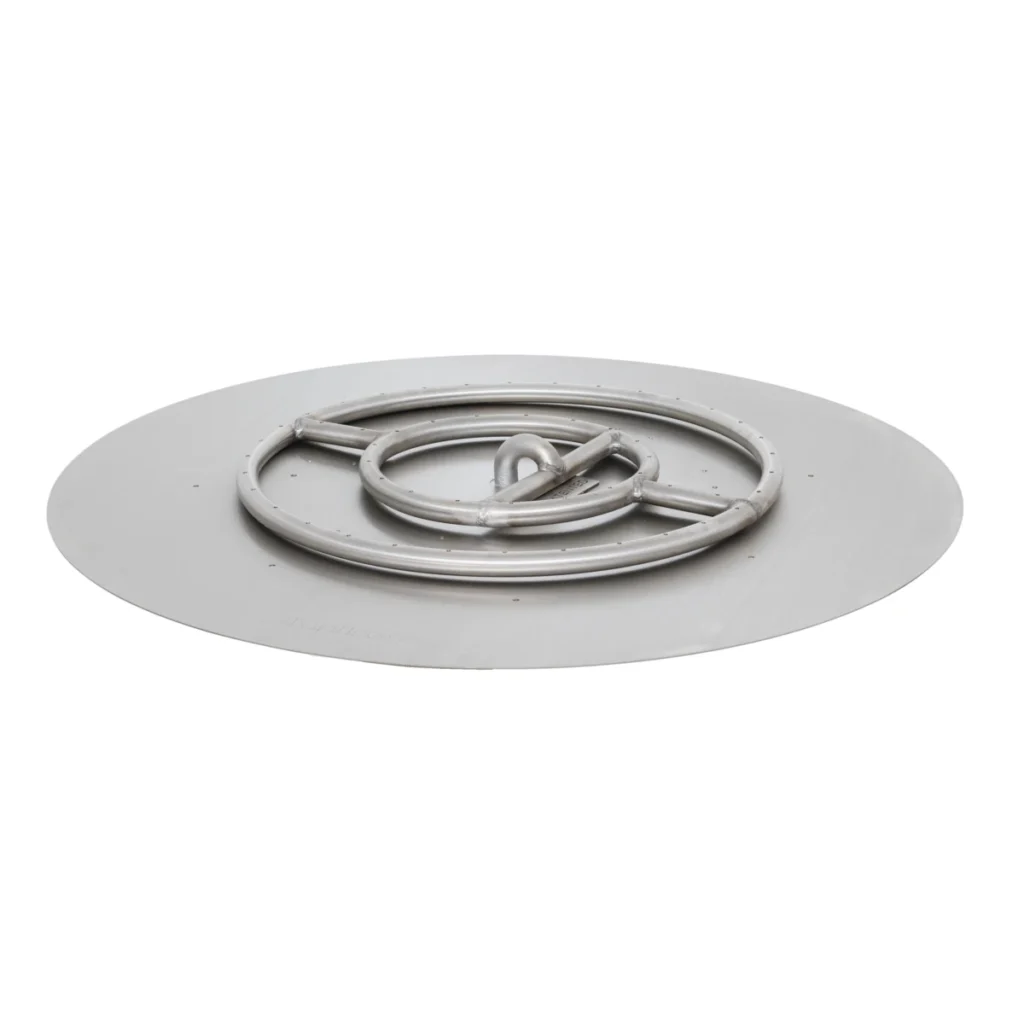

The Flat Pans range from 12 to 48 inches in diameter and are fitted with single, double, and triple-ring stainless steel burners as appropriate.

These burners are compatible with both Natural Gas and Propane. However, when using Propane, an Air Mixer Valve (sold separately) is required to ensure safe and efficient combustion by properly balancing the air-to-fuel ratio.

Features

• The fire pit burner is equipped with the Aqua Guard system, specifically designed to prevent water ingress into the gas feed and ignition components (if installed). Strategically placed drain holes in the burner ring allow any accumulated water within the tubing to escape, promoting optimal performance and extending the burner’s lifespan.
• The gas holes in the burner are carefully drilled, not punched, resulting in smoother gas flow and a more efficient flame, reducing whistling noises during operation.
• Anchoring tabs are securely fitted to the burner to ensure stability, preventing movement or distortion over time.

Round Flat Fire Pit Pan with Round Burner by The Outdoor Plus Specifications:

The pan is made from aluminum, and the round fire ring is manufactured from 304 Stainless Steel.

The pan sizes range from 12 to 48 inches in diameter, with the burner design expanding from a single ring to double and triple rings as the size increases.

A clearance of 10″ below the pan is required for gas connections.

Dimensions and BTU Ratings

• Size 12″ with a 6″ Single Ring Burner rated 45,000 BTU/hr with 1/2″ gas inlet
• Size 18″ with a 12″ Single Ring Burner rated 65,000 BTU/hr with 1/2″ gas inlet
• Size 24″ with an 18″ Double Ring Burner rated 160,000 BTU/hr with 1/2″ gas inlet
• Size 30″ with a 24″ Double Ring Burner rated 190,000 BTU/hr with 1/2″ gas inlet
• Size 36″ with a 30″ Triple Ring Burner rated 330,000 BTU/hr with 3/4″ gas inlet
• Size 48″ with a 36″ Triple Ring Burner rated 380,000 BTU/hr with 3/4″ gas inlet

Warranty

• Burner: Lifetime Warranty
• Aluminum Pan: Residential 5-Years, Commercial 1-Year

Round Flat Fire Pit Pan with Round Burner by The Outdoor Plus Documents

• General Fire Pit Manual
