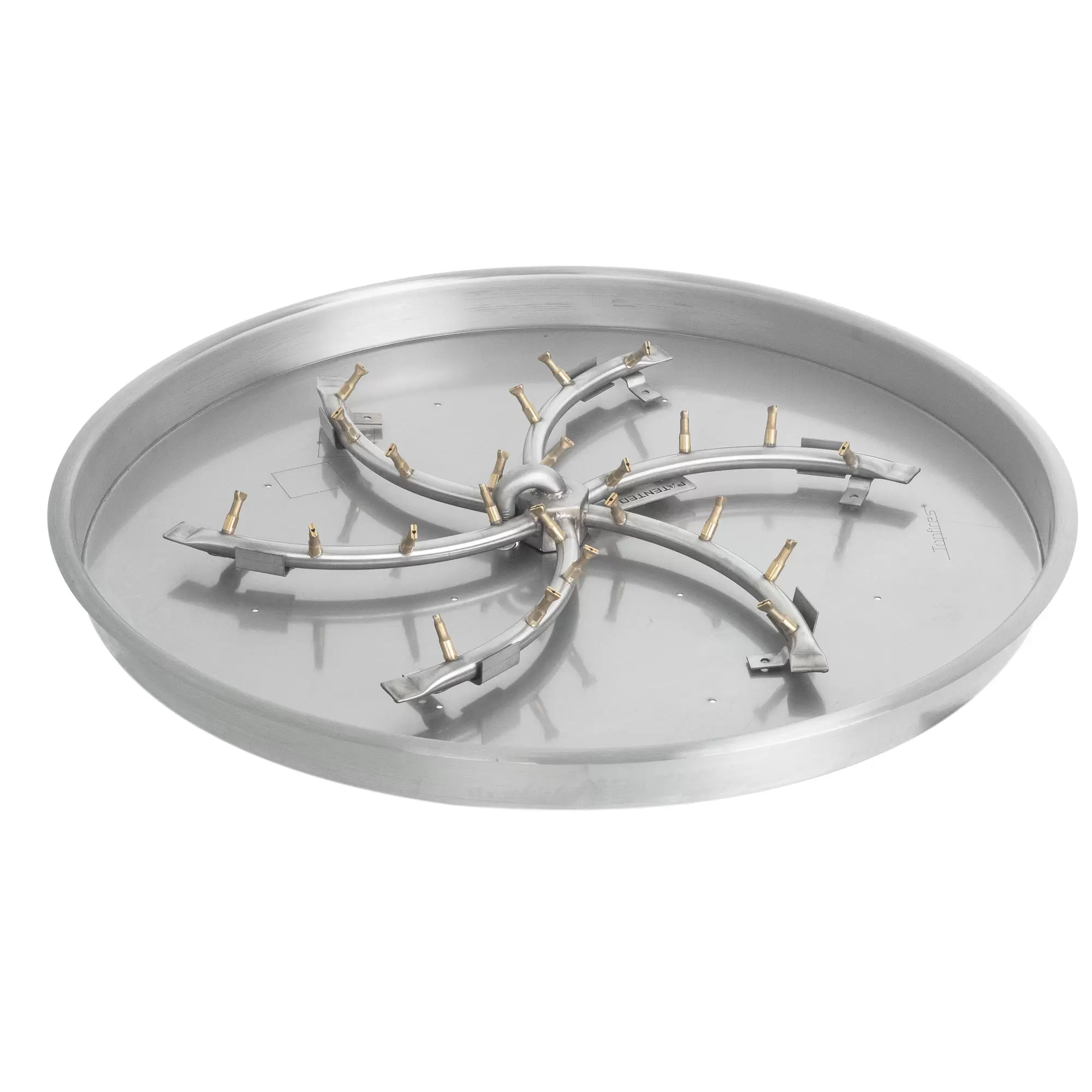

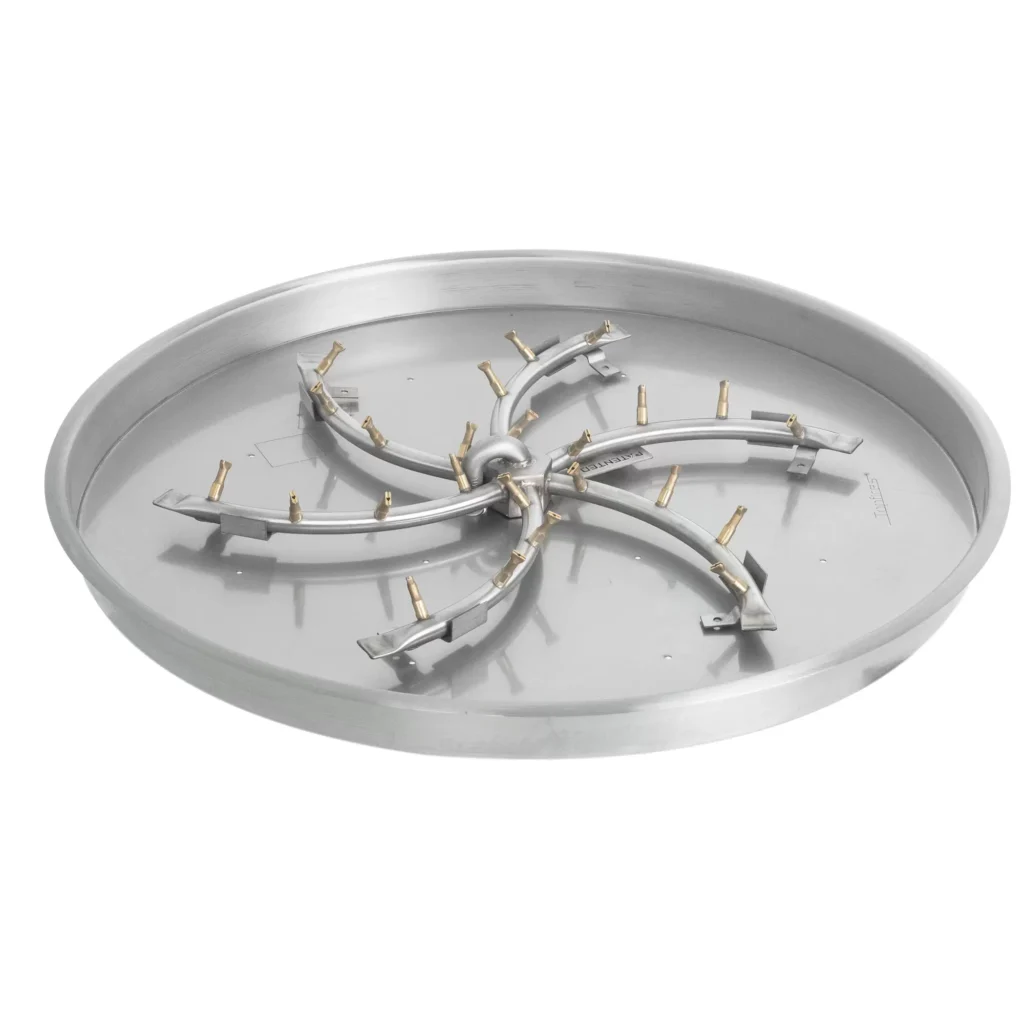

The Electronic Ignition Round Drop-In Fire Pit Kit with Triple S Bullet Burner by TOP delivers a focused, highly efficient flame display for custom fire feature builds. While naturally paired with circular enclosures, the round drop-in pan also works well inside square or octagonal fire pits, where it creates a balanced central flame cluster with clean visual symmetry.
Utilizing TOP’s patented bullet burner technology, this system produces taller, fuller flames while consuming less fuel than standard commercial burners.
The drop-in pan design offers the simplest installation method, with an integrated lip that supports the unit within a cut-out in the fire pit structure. This self-supporting format reduces the need for additional internal support and allows for a more straightforward build process, making it a practical and reliable choice for a wide range of installations.
Configured for electronic ignition, this kit provides consistent and dependable lighting, along with built-in safety features that monitor flame presence and automatically shut off the gas supply if the flame is lost. Electronic ignition offers a high level of control and flexibility, from simple wall switches or timers to integration with pool controllers, smart home systems, or optional remote and Wi-Fi controls.
To browse more automated setups, view all electronic ignition fire pit kit options.
Options
Select Size
Six sizes are available to match your custom fire pit enclosure dimensions and heating output requirements.
Select Gas Type
Available for Natural Gas and Propane. Ensure the correct gas type is selected, as systems are not interchangeable.
Select Ignition
Electronic Ignition – Low Voltage (CSA Certified)
Low-voltage electronic ignition systems are suitable for fire features near water and are commonly used in poolside installations. The system will automatically relight if the flame is extinguished.
These systems can be connected to a wall switch, timer, remote control, pool controller, or smart home system. Remote control upgrades are available.
Electronic Ignition – Plug & play (CSA Certified)
Standard voltage (110V) electronic ignition systems are suitable for installations where mains power is available, but are not intended for use near water.
The system features flame sensing and will automatically attempt to relight if the flame is extinguished.
These systems can be connected to a standard wall switch, timer, emergency stop, or smart home system. Remote control upgrades are available.
Product Specification
The pan is built from high-quality .304 stainless steel. The burner is all brass.
The pans are 2″ deep with a 1″ lip. All sizes refer to the pan’s internal dimensions and do not include the lip.
Sizes and BTU Rating
- 13″ Pan: 8″ Burner – 1/2″ Gas Inlet – 50,000 BTU
- 19″ Pan: 12″ Burner – 1/2″ Gas Inlet – 75,000 BTU
- 25″ Pan: 18″ Burner – 1/2″ Gas Inlet – 110,000 BTU
- 31″ Pan: 24″ Burner – 3/4″ Gas Inlet – 145,000 BTU
- 37″ Pan: 30″ Burner – 3/4″ Gas Inlet – 180,000 BTU
- 43″ Pan: 36″ Burner – 3/4″ Gas Inlet – 220,000 BTU
TOP Electronic Ignition Components
Low Voltage – 12VAC
Includes pan and burner assembly, 30DC electronic gas valve, pilot igniter, and 12V transformer.
Plug & Play – 110VAC
Includes pan and burner assembly, 30DC electronic gas valve, and pilot igniter.
