Round Drop In Pan Stainless Steel Triple S Bullet Burner Flame Sense Spark Ignition

The Outdoor Plus
Part #: OPT-BPxxRDSSFSEN-xx config

$1,774.00$2,242.00

Free Shipping Small Logo
Within 48 Contiguious States
Connect With Us!

Round Drop In Pan Stainless Steel Triple S Bullet Burner Flame Sense Spark Ignition

This Outdoor Plus fire pit kit sits between Flame Sense with Match Lit Ignition and the all-singing, all-dancing Electronic Ignition options that are available on the market.

  • These kits have Push-Button Spark Ignition built into the Valve Control Box/Panel
  • They incorporate the important flame-sensing safety feature that you would find in top-of-range Electronic Ignition Systems whereby the flame is being monitored.
  • It utilizes safety pilot flame control so if a loss of flame is detected, the system will turn off the gas supply preventing a potentially hazardous build-up or pooling of gas.
  • Features the patented Bullet Burner®
  • Stainless Steel Round Drop In Pan

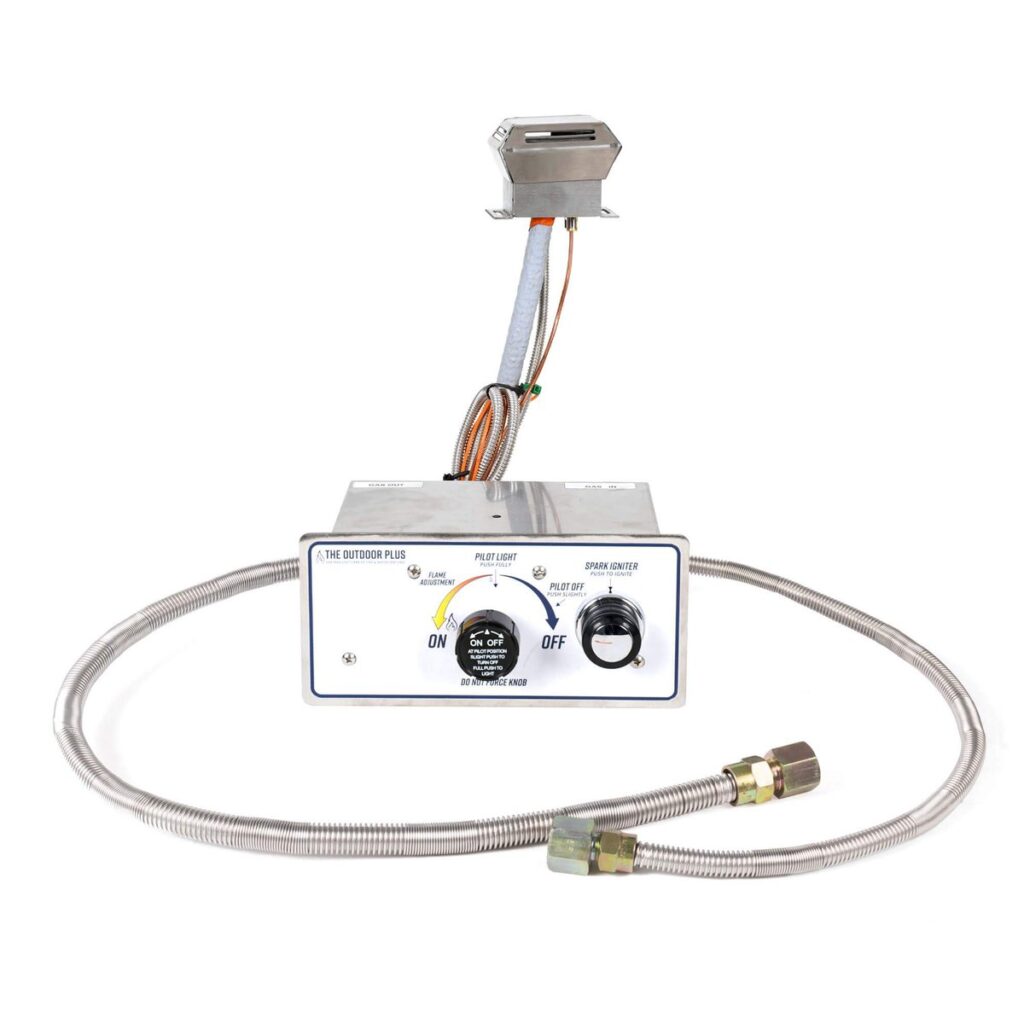

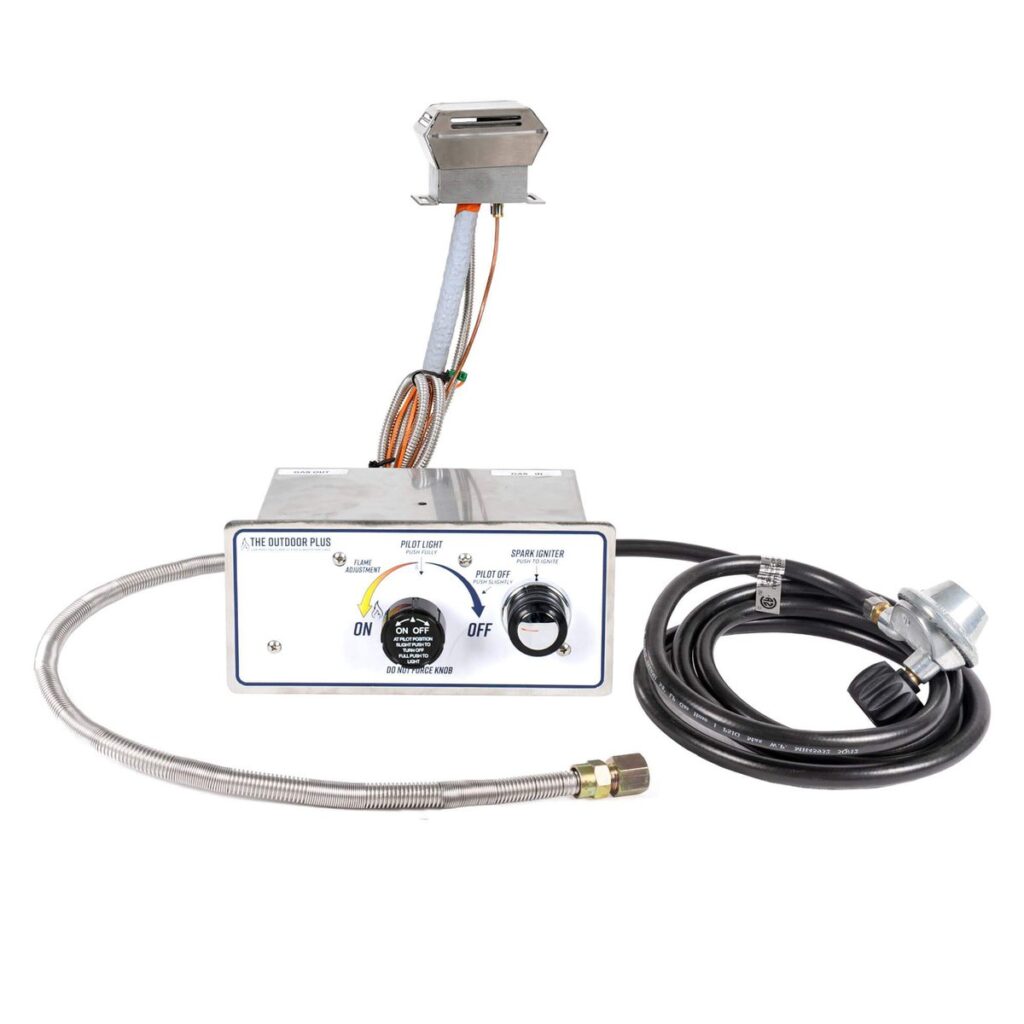

Round Drop In Pan Stainless Steel Triple S Bullet Burner Flame Sense Spark Ignition Valve Control Box

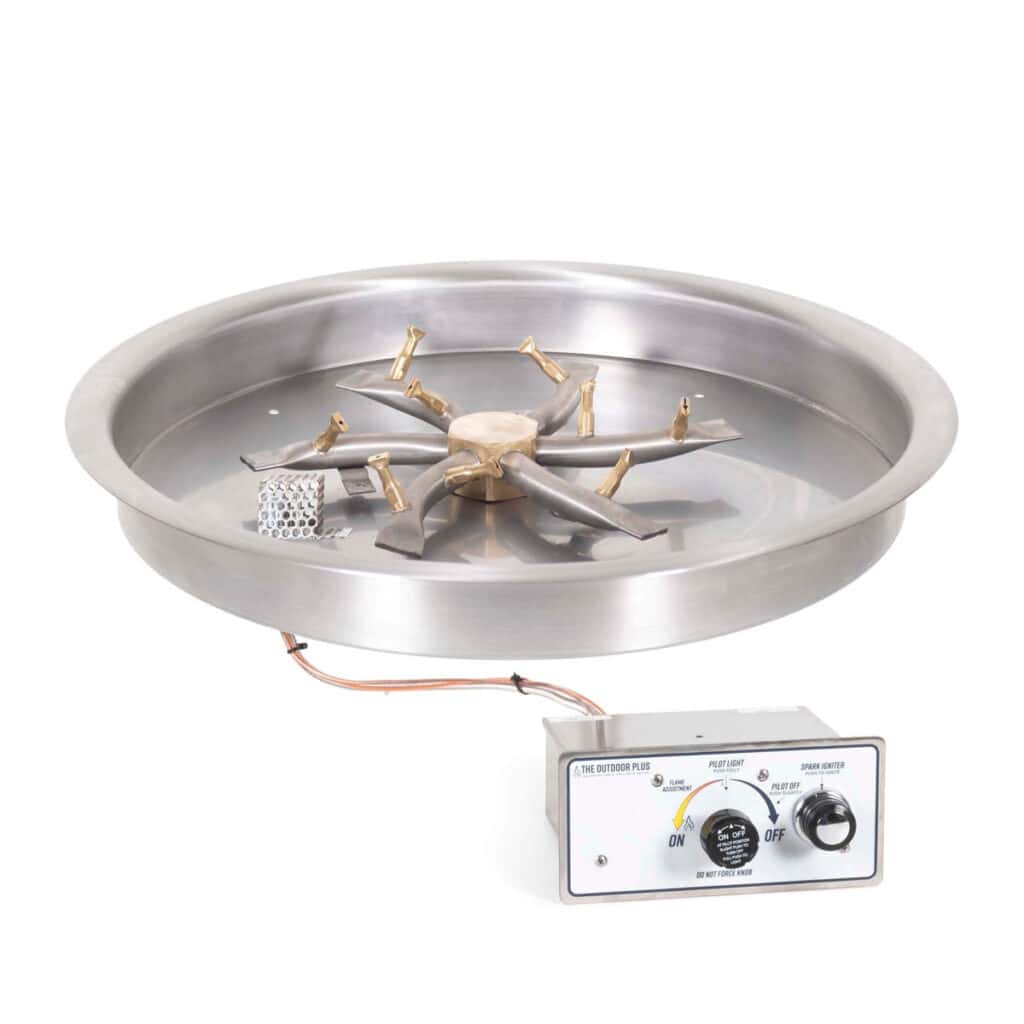

Round Drop-In Pan, Stainless Steel Triple S Bullet Burner, and Flame Sense Spark Ignition from the Outdoor Plus

What is a Bullet Burner?

The patented Bullet Burner® is the perfect way to get more out of any fire pit.

What makes this so good is that you can expect to get the same flame height while using less gas than your standard fire pit burner. However, if a taller, more impressive fire pit flame is what you are looking for then simply open up the gas for dramatic effect.

The 1/2″ gas inlet makes it easy to swap out and the Bullet Orifice, which compresses the gas flow, also incorporates oxygen thus eliminating the need for an additional LP air mixer. Bullet Burners are suitable for either natural gas or liquid propane applications.

Stainless Steel vs All-Brass

The All-Brass Bullet Burner version is available, but this new variation makes the Bullet Burner more accessible because the gas ring is manufactured from stainless steel ( the all-important patented Gas Orifice remains Brass ) thereby reducing the cost.

Standard Burner Flame vs Bullet Burner Flame height

Stainless Steel Round Drop In Pan

The round drop in pan is designed with a 1″ lip or flange upon which the pan is supported when dropped into a cut-out in the top surface of your fire pit structure. The lip sits flush with the top of your fire pit surface with the base of the pan and burner suspended beneath. The pan is 2.5″ deep. The advantage of a drop in pan is that it can be easily removed for maintenance.  Weep holes are drilled into the base of the pan to prevent water accumulation.

What are the Options when ordering

This kit comes in a range of sizes and gas options to ensure that you end up with the ideal fire pit kit for your requirements.

Select Your Size
There are three sizes available: a 13″ Pan + 8″ Burner, a 19″ Pan + 12″ Burner and a 25″ Pan + 18″ Burner
Select Your Gas
The kits are available for use with natural gas or propane, be sure to select the correct option.

How does it Work?

Once installed is remarkably easy to use.

  • Lighting: To light your fire pit, rotate the On/Off knob to the pilot light position (12 o’clock). Depress and hold in, which opens the gas supply to the pilot light whilst simultaneously depressing the spark igniter button in short bursts until the pilot lights. Once lit, release the spark igniter button while continuing to depress the On/Off knob for a further 20 seconds or so. Turn the On/off knob counterclockwise to the ON position to light the main burner.
  • Flame Adjustment: The flame height adjusts via the valve control knob.
  • Turning Off: Turn “off” the fire pit by slightly pressing and turning the valve clockwise to the “OFF” position. Slightly push in the ON/OFF knob and turn clockwise to extinguish the pilot.
  • Flame Sensing: The system will turn off the gas if the flame is lost.

  • The Spark Ignition runs off an AA battery. The battery is easily accessible by unscrewing the spark ignitor button on the front panel.

Round Drop In Pan Stainless Steel Triple S Bullet Burner Flame Sense Spark Ignition

Specifications:

Stainless Steel Bullet Burners are built to the same specifications as the original all Brass range of burners in all other respects. Each Bullet Burner is hand-crafted to order utilizing the same Patented Flat Flame Technology.

Just like the all-Brass Bullet Burners, these new burners are supplied with a Lifetime Warranty.

Size of Pan + Burner ( inches )

Flame Sense

Gas Inlet

BTU

13 Pan + 8 Burner

yes

1/2 Iinch

50k

19 Pan + 12 Burner

yes

1/2 Iinch

75k

25 Pan + 18 Burner

yes

1/2 Iinch

110k

Video of a Bullet Burner in action:

YouTube video

Warranty :

Electronics, Gas Valves, & Pilot Assembly: Commercial – 6 Months; Residential – 1 Year

Stainless Steel & Aluminum Pans: Commercial – 1 year; Residential – 3 years

Burner Ring & Burner Bars: Lifetime Warranty

Electrodes & Spark Igniters Not Warrantied (due to lifespan)

Round Drop In Pan Stainless Steel Triple S Bullet Burner Flame Sense Spark Ignition

Downloads:

Flame-Sense-Ignition-Installation-Manual

Round-Drop-In-Pan-Triple-S-Bullet-Burner

Bullet Burner Manual

Warranty

Links:

See our article ‘How to Successfully Build a Gas Fire Pit Part 1
