Discontinued Notice
This product has been discontinued by the manufacturer. See our current selection of Match Light Ignition Fire Pit Kits or contact us for personalized recommendations.
This American Fire Products range of kits features its unique Oil Rubbed Bronze finish.
The pan is manufactured from 304 Grade Stainless Steel, hand-sanded, and finished by artisans. The resulting deep, rich texture beautifully completes any outdoor decor theme.
Easy to Install
Match Light ignition is the most straightforward system to install, operate, and maintain. When paired with a drop-in style pan, it provides a simple setup process for your outdoor fire feature.
To install the unit, create a circular opening in the top surface of your fire pit structure. The cutout should be exactly one inch larger than the pan diameter to allow for a proper fit:
Once the opening is prepared, the assembly is lowered into position. The base of the pan drops below the surface, while the 1/4-inch lip rests securely on the top of the structure to support the weight and provide a finished look.
The included gas components facilitate the connection between the fire pit burner and your fuel source, whether you are using a fixed gas supply line or a portable propane tank.
Easy to Operate
- To light your fire pit, turn on the gas via the supplied gas shut-off valve and ignite the gas with a taper or match.
- You can adjust the flame height via the gas valve.
- To turn the fire pit off, shut the gas valve.
Options

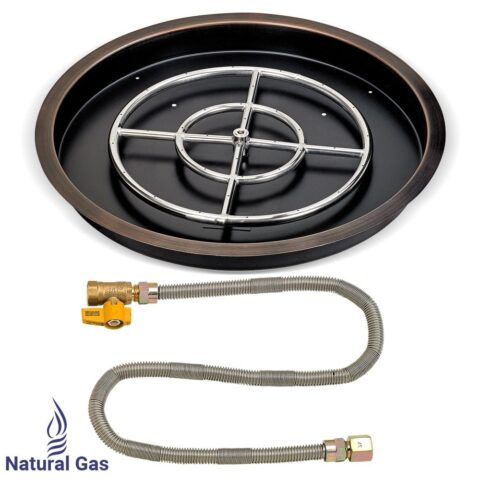

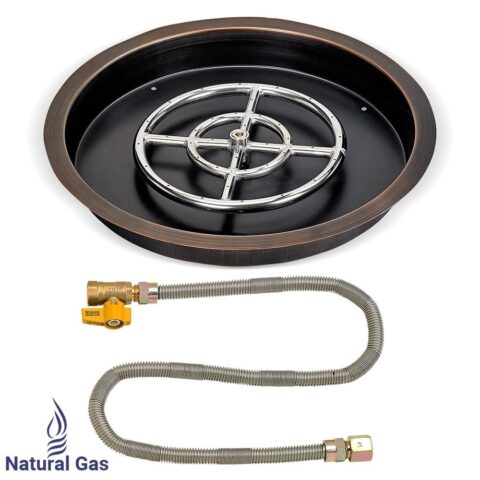

This kit is available in 19-inch and 25-inch diameters, with dedicated configurations for either Natural Gas or Propane.
The kits comprise the following connections:
- Natural Gas – 34″ Quiet-Flex Gas Line with safety shut-off valve and required fittings.

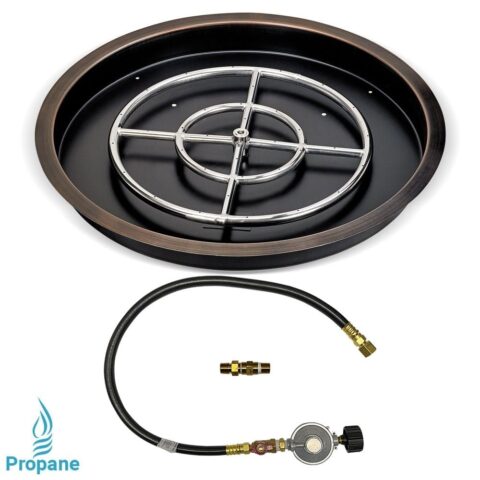

- Propane – 36″ Rubber Gas Hose with regulator, shut-off valve, an air mixer, and required fittings.
Product Specifications
Both the Pan and the Burner are manufactured from high-quality Stainless Steel, making both extremely durable and long-lasting.
Both Models have a 1/2″ Gas Inlet.
The pan dimensions relate to the internal diameter and do not include the 1.25″ Flange or Lip upon which the pan is supported.

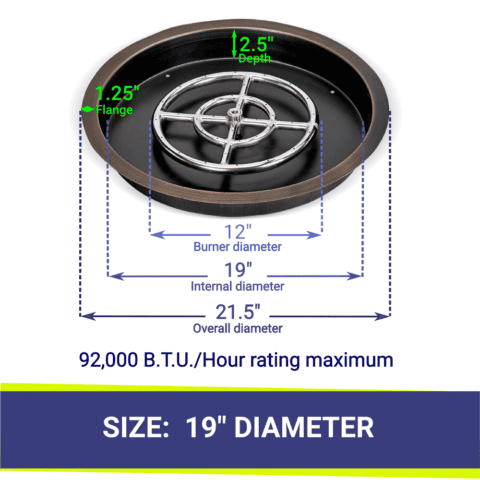

- The 19″ Diameter Round Fire Pit Pan has a 12″ Burner with a 90,000 BTU/hr rating. It requires a 20″ Diameter Cutout.

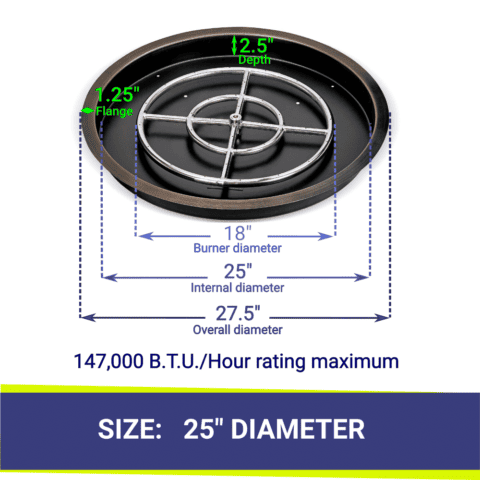

- The 25″ Diameter Round Fire Pit Pan has an 18″ Burner with a 147,000 BTU/hr rating. It requires a 26″ Diameter Cutout.
Warranty
This product qualifies for the American Fire Products Lifetime Warranty.
Accessories Available
To complement and protect this unique-looking fire pit tray, American Fireglass has created matching Oil Rubbed Bronze Fire Pit Lids to straddle over the fire pit tray, keeping out the dust, dirt, and water so your fire pit is always ready for use.
