The American Fire Products Rectangular Flat Fire Pit Kit with AWEIS (All Weather Electronic Ignition System) is designed for custom-built fire features that require a clean, recessed installation and reliable electronic ignition.
Electronic ignition systems provide the highest level of safety, combined with the convenience of operating your fire feature at the flick of a switch or press of a button.

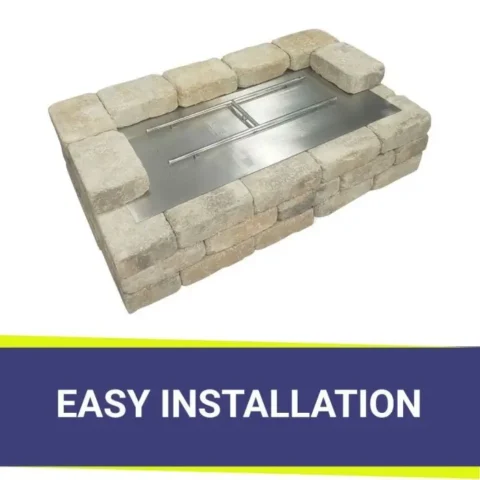

The flat pan supports the stainless steel H burner, pilot assembly, and AWEIS valve box mounted beneath, creating a stable and serviceable installation that remains completely hidden from view.
Available in multiple linear sizes and configured for Natural Gas only, this kit is ideal for larger residential and commercial fire features.
This Flat Pan Fire Pit Kit with AWEIS forms part of a wider range from American Fire Products. For alternative shapes and configurations, view the full Electronic Ignition Kit collection.

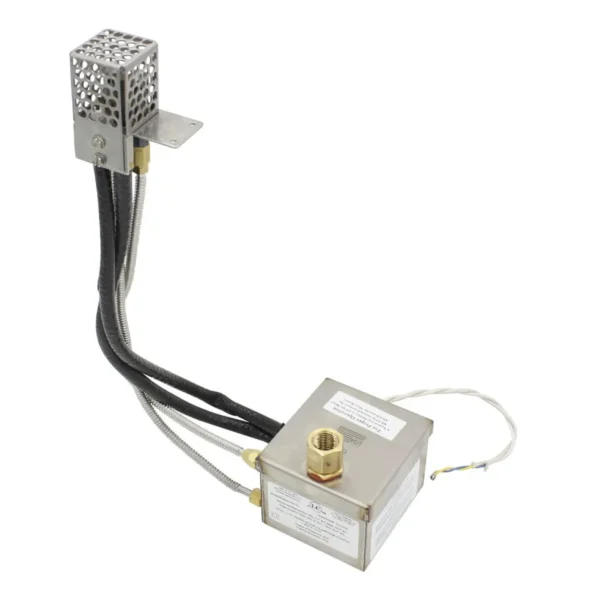

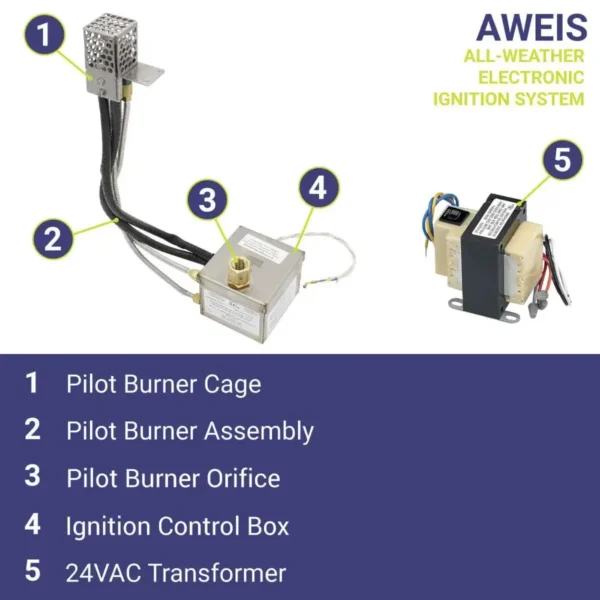

AWEIS Electronic Ignition System
The AWEIS system is specifically designed for outdoor fire features, delivering reliable ignition and continuous flame monitoring in all weather conditions.
Using hot-surface ignition with an intermittent pilot sequence, the system detects the presence of flame at all times. If the flame is lost, it will automatically attempt re-ignition. If unsuccessful, the gas supply is shut off as a safety precaution.
The system can be wired to a wall switch or paired with an optional remote control for simple on/off operation. A manual gas shut-off valve should always be installed upstream and turned off when not in use.
Rectangular Flat Pan and H Burner Construction
Each kit includes a rectangular flat pan and a matching H burner, both constructed from 100% 304 stainless steel for long-term durability in outdoor environments.
The flat pan design creates a recessed platform for fire media while keeping all components hidden. Integrated weep holes help prevent water accumulation, supporting proper drainage and long-term performance.
The H burner design is ideal for rectangular fire features, producing an even, linear flame pattern across the length of the pan.
Available Sizes and Burner Configurations
Rectangular Flat Fire Pit Kits are available in:
- 48 inch x 24 inch
- 60 inch x 24 inch
- 72 inch x 24 inch
Each size includes a proportionally matched H burner to ensure balanced flame distribution and performance.
All models are configured for Natural Gas only.
Product Specifications
General
- Pan and Burner: 304 Stainless Steel
- Ignition System: AWEIS hot surface ignition
- Flame Monitoring: Thermopile safety shut-off
- Power: 24V AC
- Gas Type: Natural Gas only
- Gas Inlet: 1/2 inch
Pan and Burner Configurations
- 48″ x 24″ Pan – 32″ x 8″ H Burner – 128,000 BTU
- 60″ x 24″ Pan – 44″ x 8″ H Burner – 176,000 BTU
- 72″ x 24″ Pan – 56″ x 8″ H Burner – 224,000 BTU
Included Components

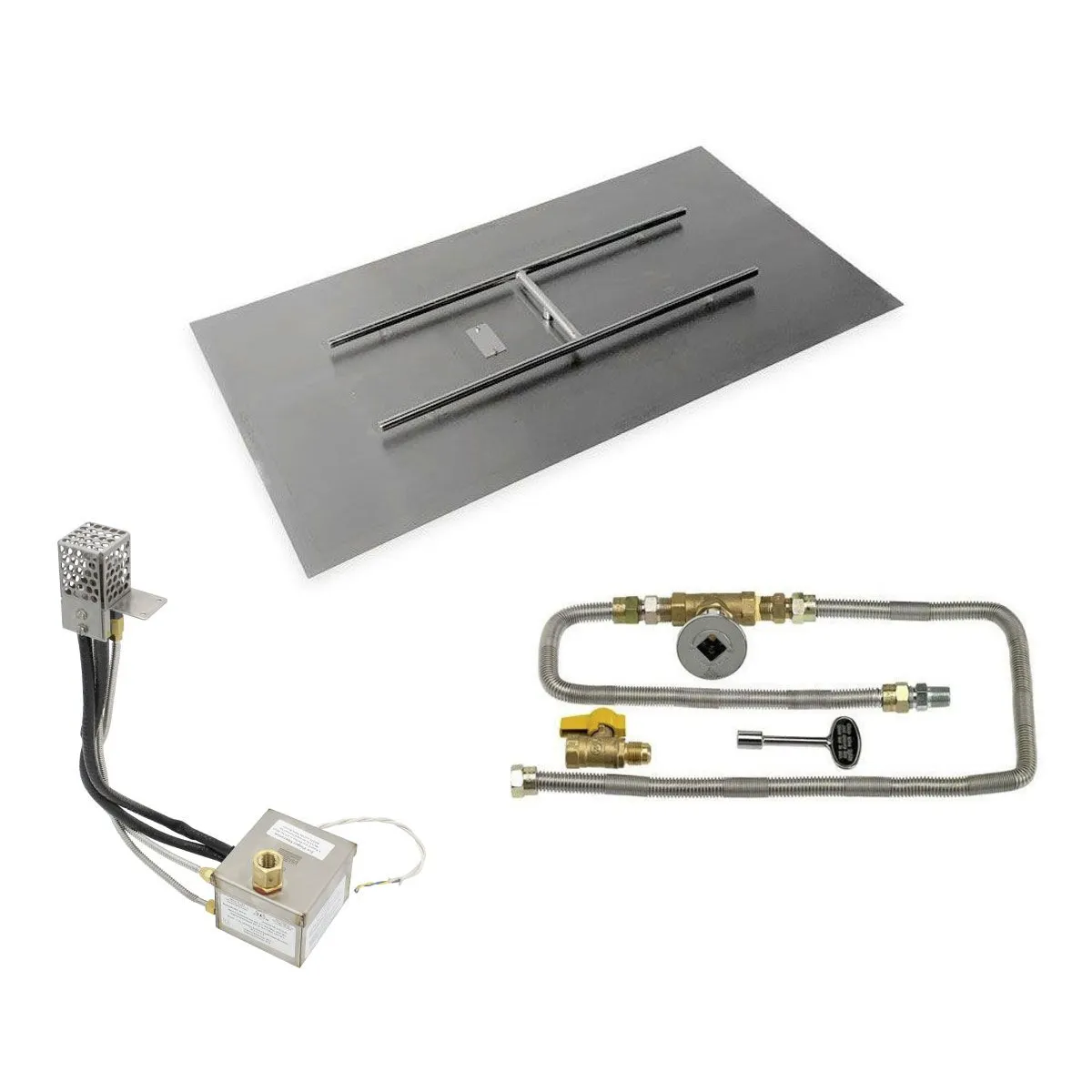

Each kit includes:
- Rectangular flat stainless steel pan
- Matching stainless steel H burner
- AWEIS ignition system
- Safety shut-off valve
- Key valve

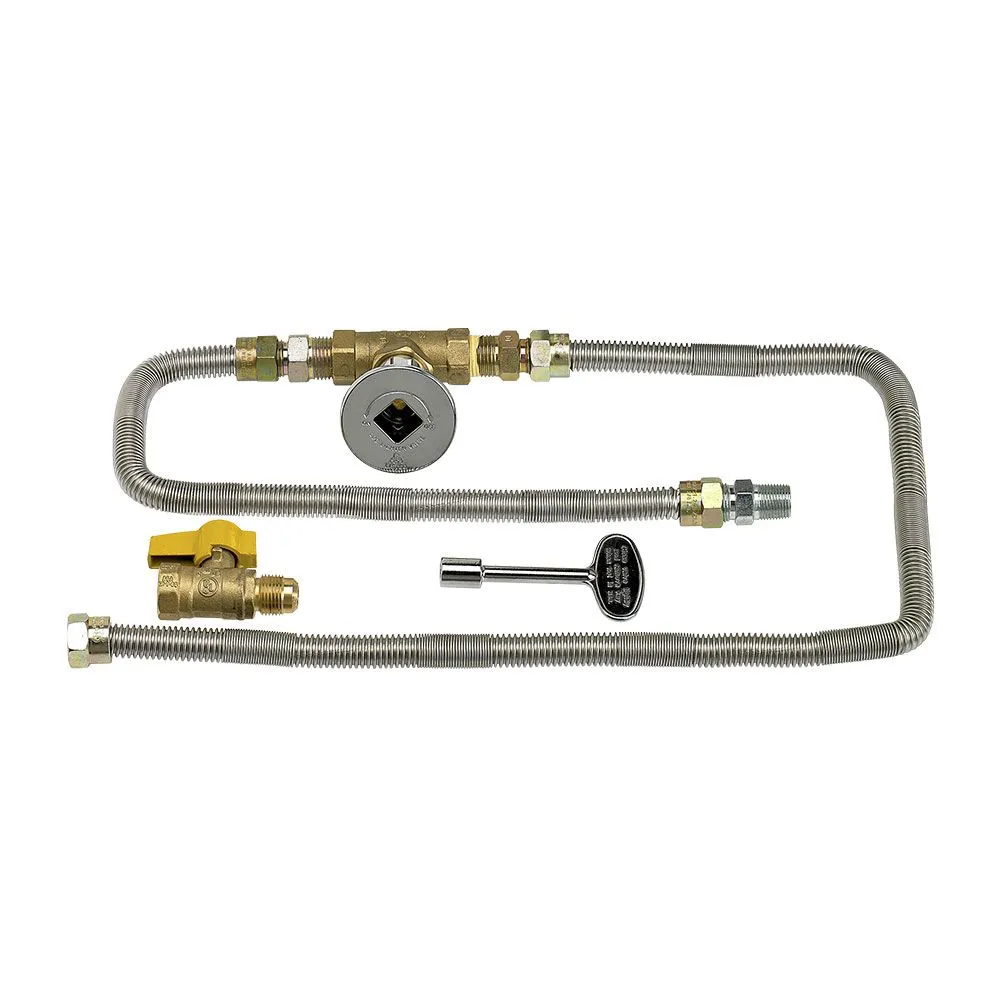

- Gas connection hose

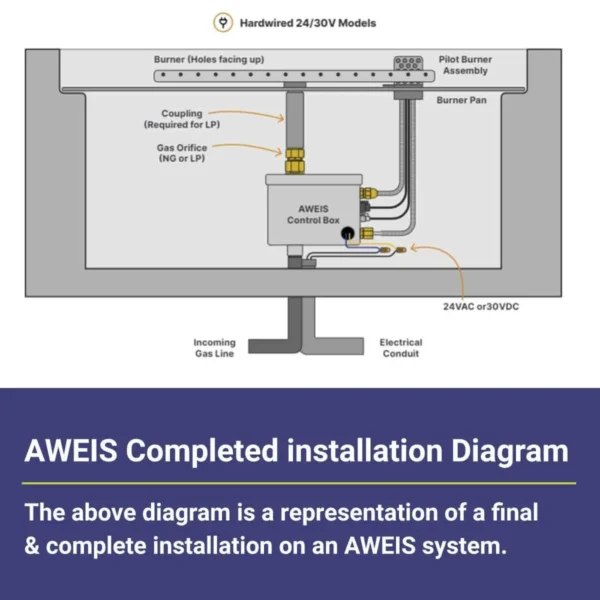

Installation Considerations
These kits are designed for outdoor, vented fire features only.
Before selecting your size:
- Confirm available gas supply and BTU capacity
- Ensure proper ventilation, minimum 18 square inches on two opposing sides
- Allow at least 1 cubic foot of space beneath the pan for ignition components
- Include adequate drainage to prevent water accumulation
Installation by a certified NFI professional is strongly recommended.
Warranty
- Burner: Lifetime Limited Warranty
- Pan: Manufacturer Limited Warranty
- AWEIS System: 1 Year Limited Warranty
