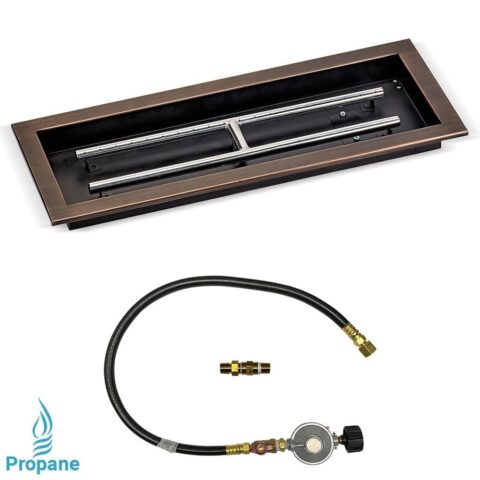

Rectangular Bronze Match Light Fire Pit Kits

The Rectangular Bronze Match Light Fire Pit Kits, feature a factory-installed H-Burner. The width of the pan increases with its length, differing from an American Fire Glass Linear pan where the width remains constant. The beautiful finish starts with a proprietary coating process and is hand-finished, the depth of color and texture vary for each item.

Made from high-quality stainless steel, these Match Light Kits are designed to withstand extreme heat and harsh weather conditions.

The pan & burner are supplied with a basic gas connection kit. Lighting the fire pit is incredibly simple. Just turn on the gas via the shut-off valve, and use a taper or long match to light the flame. When you’re done for the evening, turn off the gas, and you’re all set. It’s as easy as that.

Easy installation, minimal fire glass

Match Light, or Match Lit Kits as often referred to, are the simplest form of kit and the drop-in style is the easiest to install and maintain making them ideal for DIY projects.

Drop-in burner pans feature a 1.25″ lip for easy installation. This lip or flange rests on the top surface of the enclosure or structure, with the burner secured and protected within the recessed area.

GAS FIRE PIT - THE BASICS USING A DROP-IN PAN

Rectangular Bronze Match Light Fire Pit Kits Specifications:

Pan & Burner

The sizes correspond to the internal dimension of the pan and exclude the flange/lip. The lip is 1.25″. The pans are 2″ deep. The Gas Inlet is 1/2″.

  • Both Pan & H-Burner are manufactured from high-quality Stainless Steel for durability
  • The holes in the burner are drilled, creating a smoother gas flow
  • Drainage Holes in the base of the pan help prevent water accumulation
  • Removable Cover Plate for Spark Ignition Installation.
  • Finish: Hand finished Oil Rubbed Bronze
  • Use in: Outdoor vented natural or propane gas burning fire feature ONLY
  • MUST use an American Fire Glass propane air mixer for propane applications

Dimensions and BTUs

  • 18″ x 6″ – BTU rating 70,000 – Cutout 19″ x 7″ – *Fire Glass 20lbs
  • 24″ x 8″ – BTU rating 120,000 – Cutout 25″ x 9″ – *Fire Glass 25lbs
  • 30″ x 10″ – BTU rating 125,000 – Cutout 31″ x 11″ – *Fire Glass 35lbs
  • 36″ x 12″ – BTU rating 165,000 – Cutout 37″ x 13″ – *Fire Glass 50lbs
  • 48″ x 14″ – BTU rating 200,000 – Cutout 49″ x 15″ – *Fire Glass 80lbs

*Manufacturer’s recommended fire glass quantity (not included)

Gas Connections

  • Natural Gas option – 34″ Quiet-Flex Gas Line with safety shut-off valve and required fittings.
  • Propane option – 36″ 3/8″ Rubber Gas Hose, with straight ball valve, 175,000 BTU propane tank regulator, and the fittings include an air mixer.

Warranty

Qualifies for a lifetime Warranty
