Ready-to-Finish Square Table Fire Pit Form by The Outdoor Plus

The Outdoor Plus
Part #: OPT-STxxPB

$2,268.00$6,970.00

Free Shipping Small Logo
Within 48 Contiguious States
Product Description
Product Reviews

Ready-to-Finish Square Table Fire Pit Forms

Ready-to-Finish fire pit forms or enclosures allow you to quickly construct your fire pit with the freedom to clad the structure with the finish of your choice, matching it perfectly with its surroundings.

All other necessary components are included so you don’t have to shop

The Outdoor Plus manufactures all products in the USA and are made-to-order.

There is a 2 to 3 week manufacturing period for most products.

● The square fire pit forms come in 5 sizes; 36″, 48″, 60″, 72″ and 84″.

● There are 2 different height options, 16″ and 24″. The 24-inch high model has an access door creating a fire pit with hidden gas tank (not included).

● The RTF units can be ordered for use with Natural Gas or Propane.

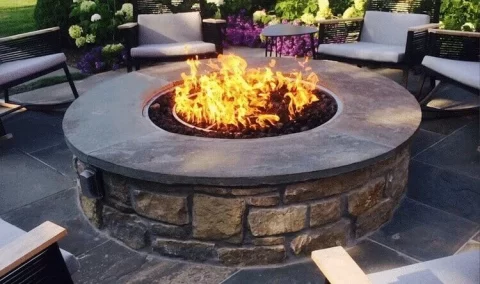

Fire Pit built with Ready-to-Finish Enclosure

Components

● Rigid steel framework.

● Weather and mold-resisting raw Hardy Board finish.

● The basic model, the match-lit, includes a Stainless Steel Drop-In Pan & Burner, a Gas Key Valve with Chrome Key and, Whistle Free Hose, and Stainless Steel Air Vents. The 24″ models include an access door for the storage of a 20lb propane tank.

● The other 4 ignition options will include the installation of the control panel relevant to that system (see below for more details).

Options

Select Size

The Ready-to-Finish Square Table Fire Pit Forms come in 5 different diameters; 36″, 48″, 60″ 72″ and 84″. See below for the Pan & Burner details.

Select Height

The enclosures come in 2 different heights.
● 16″ Tall
● 24″ Tall – Has a 14″ x 17″ access door for the storage of a 20lb Propane gas bottle within the structure.

Gas Type

Available for use with Natural Gas and Propane

Ignition Type

The Ready-to-Finish Round Fire Pit Forms have 5 options.

Square Table Ready to Finish Fire Pit Enclosures two heights
Match Lit
The Match Lit system utilizes the chrome key valve installed on the fire pit structure to light the burner.
Simply turn the key to the on position and light the gas with a match, taper, or lighter. The flame can be adjusted and turned off using the key valve.
fire pit key valve
Match Lit with Flame Sensing (LC Certified)
These systems operate in the same manner as the standard Match Lit systems. However, they also incorporate technology that monitors the flame.
If the flame were to extinguish accidentally, the gas supply would be shut off. This action prevents the build-up of a potentially dangerous gas cloud.
Fire Pit Gas Valve and control panel for flame sense models

Flame Sensing with Spark Ignition

Spark Ignition systems utilize battery power to provide a push-button ignition of the flame via a control panel on the fire pit.

These units also incorporate Flame Sensing technology which will automatically turn off the gas supply if the flame accidentally extinguishes.

TOPs Flame Sense Ignition with spark ignition

110VAC Electronic Ignition – Plug & play (CSA Certified)

Standard Voltage (110 Volt) Electronic Ignition systems can be used with fire pits anywhere that power can be installed and are not close to any water features.

The Electronic Ignition also has Flame Sensing but will automatically relight if the flame is blown out.

The Units can be wired up to a standard light switch, a dial timer or an emergency stop button, and a smart house system.  An upgrade to include a Remote Control system is available.

Electronic Ignition - Plug and Play Complete (1)

12VAC Electronic Ignition – Low Voltage (CSA Certified)

Low-voltage Electronic Ignition systems should be utilized when the installation is close to water features, fountains, etc., and are ideal to use with fire pits for pools.

The Electronic Ignition system also has Flame Sensing that will also automatically relight if the flame is blown out.

The Units can be wired up to an on/off switch, a timer, a remote control, a pool controller, or a smart house system. Upgrades to a remote-controlled unit or a Bluetooth system are available. Bluetooth is both Android and Apple iOS compatible.

SWEIS System - 12V Standard (1)

Pan & Burner

Ready-to-Finish Square Table Fire Pit Form Pans & Burners are made from high-quality Stainless Steel.
Burners have a Lifetime Warranty.

Electronic Ignition systems are CSA Certified at 65,000 BTU Rating.

● 36″ x 36″ (Top) – 20″ x 20″ (Base) 18″ Drop-In Pan – 12″ Single Ring Burner – 65,000 BTU rating

● 48″ x 48″ (Top) – 32″ x 32″ (Base) 18″ Drop-In Pan – 12″ Single Ring Burner – 65,000 BTU rating

● 60″ x 60″ (Top) – 44″ x 44″ (Base) 24″ Drop-In Pan – 12″ Single Ring Burner – 65,000 BTU rating

● 72″ x 72″ (Top) – 56″ x 56″ (Base) 30″ Drop-In Pan – 18″ Single Double Burner – 160,000 BTU rating

● 84″ x 84″ (Top) – 68″ x 68″ (Base) 36″ Drop-In Pan – 18″ Single Double Burner – 160,000 BTU rating


Bullet Burner Upgrade

The Standard Burners can be upgraded to Bullet Burners which produce approximately twice the flame height of an equivalently rated Standard Burner.

For more information head on over to our Bullet Burners page. If you are interested in upgrading, please contact at us the phone number at the very top of the page or via the “Contact Us Form” at the very bottom.

Round-Single-Ring-SS-Bullet-Burner

Ready-to-Finish Square Table Fire Pit Form Downloads

Low Voltage – 12VAC Electronic Ignition Manual

Plug & Play  – 110VAC Electronic Ignition Manual

Match Lit with Flame Sense

Flame Sense with Spark Ignition

Square Table Fire Pit Form  – 16″ Tall – Specifications

Square Table Fire Pit Form  – 24″ Tall – Specifications

Prop 65 Prop 65 Warning : This product can expose you to chemicals including Lead and Lead Compounds, which are known to the state of California to cause cancer, and Carbon Monoxide, Lead and Lead Compounds which are known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
